Custom crane design & Turnkey Project Design, Design for You

Custom crane design & Turnkey Project Design, Design for You. Overhead crane, gantry crane, jib crane, and turnkey crane design projects for your specific application, providing you with the best material handling solution!

How do you choose an overhead crane system for your application? Which type of crane design do you think is the best for you? How can you meet your lifting needs without spending too much money? Don't be worried. The technical team at Yuantai Better Crane is eager to provide you with the best solution, and they are thrived by challenges. Yuantai Better Crane is your expert at side.

Expertise of Yuantai Better Crane

Yuantai Better Crane will meet your lifting needs for your satisfaction. The overhead cranes which we designed, will properly address your lifting problems without wasting money. Yuantai Better Crane has a technical staff of 70 senior engineers and 500 technicians, with the R&D lab at its heart. They are capable of resolving any lifting issues you may have.
Yuantai Better Crane is capable of design complex crane projects from 5 ton to 500 ton with the overhead crane design, outdoor gantry crane design, jib crane designs and container crane designs for various industrial applications. Just tell Yuantai Better Crane what your lifting requirements is, we will give back you the most suitable material handling solutions.

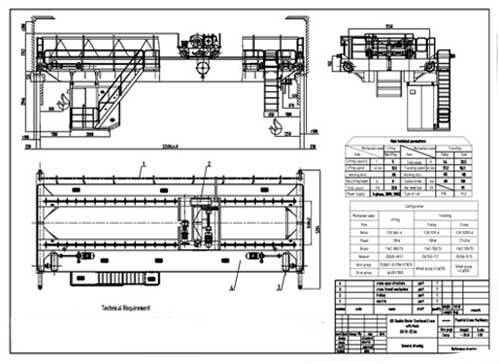

Double Girder Overhead Crane with Open Winch Trolley Design Drawing - QD overhead crane series

How does Yuantai Better Crane fulfill your lifting requirements?

Don't be worried about which crane design is best for your purpose. The professionals at Yuantai Better Crane will recommend the best option for you. Each order placed at Yuantai Better Crane will receive a full set of engineering treatment, no matter it is a large size or customized crane, a fully manufactured bridge crane, a set of components, or even a single spare part. How does Yuantai Better Crane achieve your expectation? It usually involves the following steps:

When your case arrives, your engineer, who is responsible for the entire order, will work with your sales engineer and project manager to analyze your needs and choose the best solution for your application.
Your engineer will develop and supply you with the CAD-generated drawing for initial approval based on a thorough understanding of your needs and technical discussion among Yuantai Better Crane engineers.
If necessary, adjustments will be made after receiving your feedback and input.

Double check with you to ensure the accurateness of crane dimensions and lifting requirement.

Crane manufacturing. Yuantai Better Crane engineer will oversee and conduct the entire process from design to production.
Crane installation. If you require assistance, your assigned engineer will be available at all times.
Cranes Services. Professional crane shipment guidance as well as crane installation, operation, operator training, maintenance, and inspection services will be provided based on your needs. In a summary, your crane will be cared after or during life time.

Your material handling requirements will be handled with tailor-made services, according to Yuantai Better Crane.

Main Types of Crane Designs

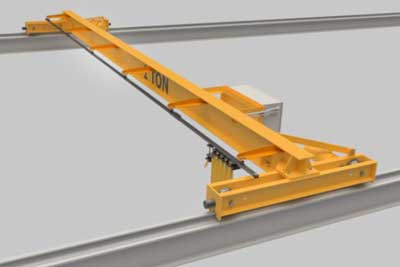

A Top running single girder bridge crane design
is the most common type of overhead crane. It's a multi-purpose bridge crane that may be used in a range of sectors.Top-running single-girder crane capacity typically range from 5 to 10 tons.

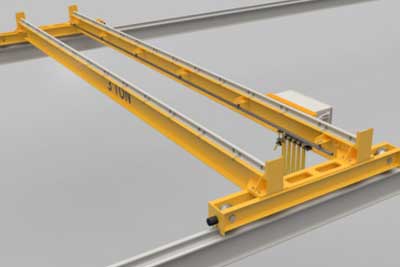

A top running double girder bridge crane design
is identical to a top running single girder crane, but with an extra bridge beam. The addition of the girder boosts the capacity to 30 tons, 50 ton up to 80 ton.

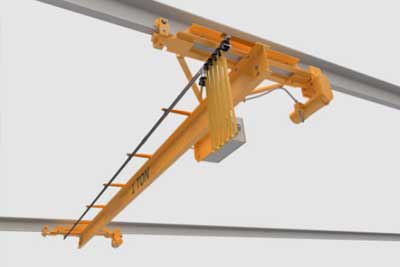

Underhung single girder overhead crane design
The most frequent form of bridge crane for low lifting capacity is an under hung single girder bridge crane (also known as an under running crane). These cranes are most popular in high-production rate facilities and assembly plants because they are one of the most cost-effective types of bridge cranes.

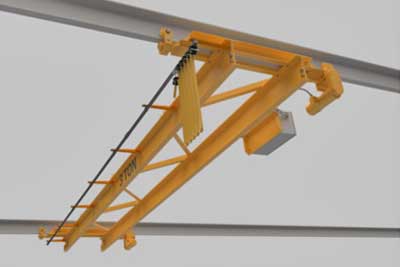

Under hung double girder bridge crane design
An under hung double girder bridge crane is similar to an under hung single girder crane. The additional bridge beam allows the crane to lift up to 20 tons.

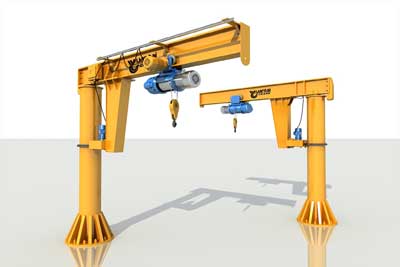

Free standing jib crane design
The pillar jib crane, also known as a free-standing crane, is commonly employed both indoors and outside. The pillar jib crane has larger capacities, spans, and rotations than the wall mounted jib crane.

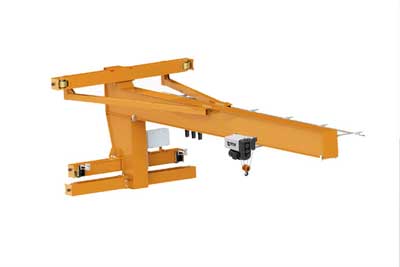

BB wall-travelling jib crane design
By quickly moving small loads in lengthy lateral movements without taking up floor space, the wall travelling jib crane helps boost factory productivity.

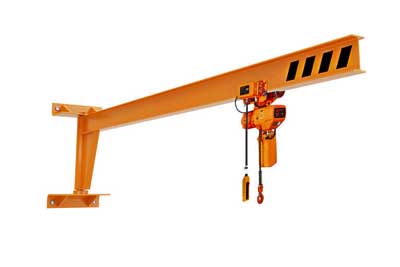

BX wall mounted jib crane design
The wall-mounted jib cranes do not require any extra foundations or take up any floor space. The cantilever is attached to a wall or concrete post, and the rotation is adjustable. Jib cranes are commonly employed in workshops, storage facilities, and ports.

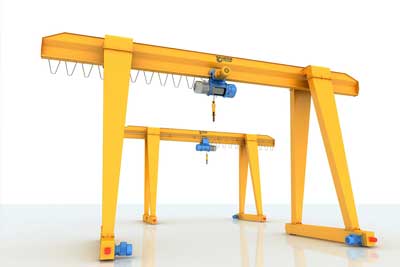

Single girder gantry crane design
The gantry crane has a dual-speed electric hoist and is commonly used in workshops, storage, ports, hydroelectric power plants, and other outdoor locations. The gantry crane has a lifting capacity of 1 to 20 tons.

MG double girder gantry crane design
The gantry crane is used for general handling and lifting activities in an open warehouse or along a train track. The gantry crane has a lifting capacity of 5 to 500 tons.

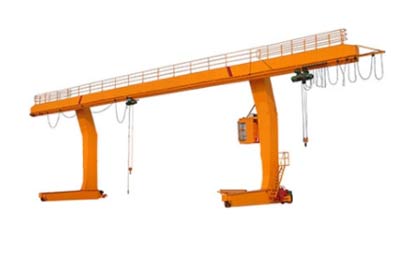

Semi-gantry crane design
Semi-gantry cranes are small or medium cranes that are commonly employed in mechanical processing workshops for materials handling, outdoor locations, and warehouse loading and unloading.

L electric trolley gantry crane design
The gantry crane is utilized to meet the general requirements for outside material handling. The gantry crane has a lifting capacity of 5 to 32 tons.

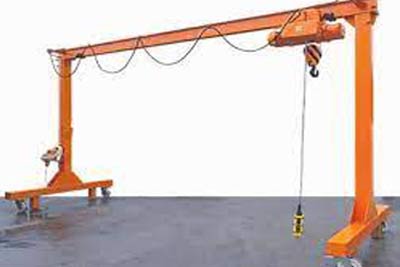

Portable gantry crane / small mobile gantry crane design
√ Widely used in workshop, storage, warehouse etc. √ Span Length: 2~12 m. √ Lifting Capacity: 0.25~10 ton.
