A shipyard gantry crane is a heavy-duty gantry crane used in shipbuilding yard. It is capable of lifting, transporting, flipping, and closing ship bodies and work-pieces.

A shipyard gantry crane is a large gantry crane with a large lifting capacity, large span, high lifting height, multiple functions, and high efficiency. It is particularly well-suited to segmented transportation, end-to-end connection, and rotary operation of large hulls. Shipyard gantry cranes are primarily used in the construction of ships and docks.

Overview of Shipyard Gantry Cranes

The shipyard gantry crane can be designed into single girder gantry crane and double girder gantry crane.

The shipyard gantry cranes are mainly made up of steel gantry frame, upper trolley, lower trolley, trolley travelling mechanism, maintenance, lubrication, elevator, and electric equipment, etc. The shipyard gantry crane also has a rail clamp device (or wheel actuator), an anchor device, a lifting weight limiter system, a wind speed and direction system, a limit switch for each mechanism, and other safety protection devices.

The size and completeness of the blocks that make up the hull are two of the most important variables in a shipyard's productivity. When a large hull block needs to be lifted, one shipbuilding gantry crane is required.

Functions of Shipbuilding Gantry Crane

A shipyard gantry crane is a highly efficient lifting solution designed to increase dockyard productivity. It is capable of lifting and moving large blocks of hull during the construction or repair of a ship. Gantry cranes in shipyards are classified into two types: single girder and double girder. It can be divided into two types of running mechanisms: rail mounted and rubber tyred. Superior quality, high rigidity, excellent safety, and great flexibility are all advantages of the shipbuilding gantry crane.

The size and completeness of the blocks that make up the hull are one of the most crucial factors in a shipyard's productivity. The shipbuilding gantry crane will take over when a large hull block needs to be lifted.



Rail mounted Shipbuilding Gantry Crane

In shipyards, rail mounted gantry cranes are the most typical lifting equipment. The rail-mounted shipyard gantry crane can move a variety of items and loads along crane tracks set into the ground. The work space of the gantry crane can be significantly increased by building the gantry lifting equipment with outreach at both ends of the main beam to create cantilevers.

In order to protect the operators, rail mounted gantry cranes for shipyards typically use cab or remote control operation. The rail mounted shipyard gantry crane has the features of broad adaptability, high utilization, high production, and long-lasting performance.

Shipyard Gantry Crane with Rail-Mounted Design

Shipyard Gantry Crane with Rail-Mounted Design

Rail-mounted gantry cranes are fixed on rails, allowing them to travel along predetermined tracks within the shipyard. These cranes are used for heavy lifting tasks, including handling large hull sections or moving entire ships.

Applications:

  • Handling Heavy Loads: Rail-mounted gantry cranes are ideal for lifting and moving large components like boat hulls, engines, or steel plates.
  • Ship Launching and Maintenance: They are also used to move vessels from assembly areas to launching slipways or to dry-docking areas for repairs.

Advantages:

  • High Lifting Capacity: Typically, these cranes can handle very heavy loads, ranging from 100 tons to over 2500 tons, making them suitable for large vessels.
  • Stable Movement: The fixed rail system ensures stable movement, especially when handling extremely heavy loads.
  • Precision: Offers high precision in load positioning, ensuring safe and accurate placement of materials and vessels.
  • Durability: The robust design of rail-mounted cranes ensures a longer lifespan with minimal maintenance.

Rubber Tyred Shipbuilding Gantry Ccrane

The rubber tired gantry crane is the perfect lifting solution to increase your shipyards' flexibility and mobility. This kind of shipyard gantry crane is mounted on rubber tires which can travel freely anywhere within the working areas rather than operating on rails. The shipyard mobile gantry crane can lift in a range of capacities to accommodate the majority of customer requirements.

The portable shipyard gantry crane is a popular choice for many crane users because to its convenient portability, extensive lifting capacity, adaptable mobility, and straightforward operation.

Shipyard Gantry Crane with Rubber-Tyred Gantry Cranes (RTG)

Rubber-tyred gantry cranes (RTGs) are mobile cranes mounted on rubber tires, allowing them to move freely around the shipyard without the need for fixed rails. These cranes are versatile and can be used for various tasks, such as transferring boats, lifting hulls, and moving components.

Applications:

  • Handling Various Ship Components: RTGs are commonly used for moving smaller boat sections, components, or materials between different areas of the shipyard.
  • Flexibility: Since they do not require rails, RTGs can be repositioned easily, making them adaptable to changing workflows and layouts in busy shipyards.

Advantages:

  • High Mobility: The rubber tires give these cranes excellent maneuverability, allowing them to be moved between different work areas quickly.
  • Flexible Operation: RTGs can operate in spaces where rail-mounted cranes might not be suitable, offering more flexibility in yard design.
  • Less Infrastructure: RTGs do not require the installation of permanent tracks, reducing the initial setup cost and complexity.
  • Lower Maintenance Costs: Without the wear and tear associated with rail systems, RTGs generally require less maintenance over time.
Shipyard Gantry Crane with Rubber-Tyred Gantry Cranes (RTG)

Main Specifications of Shipbuilding Gantry Cranes

Lifting capacity

t

2×50+100

2×75+100

2×100+160

2×150+200

2×400+400

Two trolleys lifting

150

200

300

500

1000

Section reverse lifting

100

150

200

300

800

Work classifications

A5

Span

m

50

70

38.5

175

185

Lifting height

(m)

H1

35

50

28

65/10

76/13

H2

35

50

28

65/10

76/13

Lifting speed

(m/min)

Full load

0.5~5

0.5~5

0.4~4

0.5~5

0.32~3.2

No load

1~10

1~10

0.8~8

1~10

0.64~6.4

Crane travelling

(m/min)

Full load

2.5~25

2~20

3~30

1~25

3~30

No load

3.5~35

3~30

4.5~45

1~30

3~40

Trolley travelling

(m/min)

Full load

2.5~25

2.5~25

3~30

1~25

3~30

No load

2.5~35

2.5~35

3~45

1~30

3~40

Wheel load

KN

260

320

330

700

750

Total power

KW

400

530

650

1550

1500

Power

3-phase AC 50Hz 10KV

Advantages of shipbuilding gantry crane:

Large shipbuilding gantry cranes have clear advantages over conventional gantry cranes when it comes to installing and moving hull parts. It crosses the berth (dock) and can offer dockside assembly services. It can turn the hull and adjust the fragment to the welding position required by the ship in addition to performing lifting and horizontal transportation duties.

In order to guarantee the quality of the machinery, our shipyard's gantry crane uses an optimum design and construction method. It offers crane operators a variety of advantages as an effective lifting instrument.

Lightweight and rigidly robust

The distinctive metal structure's welded girder construction results in a lighter structure with more rigidity. Additionally, it features low wheel pressure.

Maximum safety

The risk of major and even fatal accidents is significantly reduced because the shipyard gantry crane is often operated by an operator from the control station. Additionally, several trustworthy safety tools like windproof tools are available to stop high winds or storms.

Stable and long-lasting performance

The efficient and rational structure contributes to the equipment's longer working life. All of the gantry crane's components and parts are purchased from reliable vendors and have excellent interchangeability. Additionally, there are safety precautions measures like anti-swaying devices that can be used to guarantee a steady and trustworthy movement. The gantry crane in the shipyard likewise needs little maintenance.

Simple and practical operation

The equipment typically operates quietly. A wide field of vision and precise operation are provided by the roomy cab design.

High use of available space

They can maximize working spaces and achieve wide coverage for both rubber-tired and rail-mounted gantry cranes. The shipyard gantry crane can be used in a variety of workplaces.

Features of Shipbuilding Gantry Crane:

Customized Designs and Design Options for Shipyard Cranes

Tailored Solutions for Specific Shipyard Needs:
Shipyard cranes can be customized to suit specific operational requirements, from the weight and size of vessels to the space constraints of the yard. Customization ensures maximum efficiency and safety.

Design Options:

Considerations for Custom Design:

Technological Integration:
Modern shipyard cranes are often equipped with advanced technology, such as:

Custom-designed shipyard cranes not only enhance operational efficiency but also ensure that each crane meets the specific needs of a shipyard's workflow and the unique characteristics of the vessels it works with.

Safe Operation of Shipbuilding Gantry Cranes

In order to avoid accidents, the safety issues during shipyard crane operation must be addressed. The crane driver operating the shipyard gantry crane often sits in the cab room, thus the crane operators must undergo thorough training on heavy duty crane knowledge and the specific equipment they will be working with. Additionally, a coworker from the ground is typically needed to help the driver in operating the gantry crane due to the limited view from the cab area. The crane cabin we created has a comfortable feature that gives operators ease of use and clear view.

Due to the size and capacity of shipyard cranes, we have worked very hard to assure their safety in all areas, including design, manufacturing, delivery, installation, and maintenance. In addition, crane users should focus more on safety concerns to avoid human error and component failure. For instance, operators must closely adhere to all operational guidelines, and in the event that a component fails, prompt repair or replacement must be carried out. We sincerely hope that everyone involved in the crane operation is secure. Consult our engineers online to learn more about safety-related issues right now.

Safety Monitoring and Management systemSafety Monitoring and Management system
Collision Avoidance System for Crowded ShipyardCollision Avoidance System for Crowded Shipyard

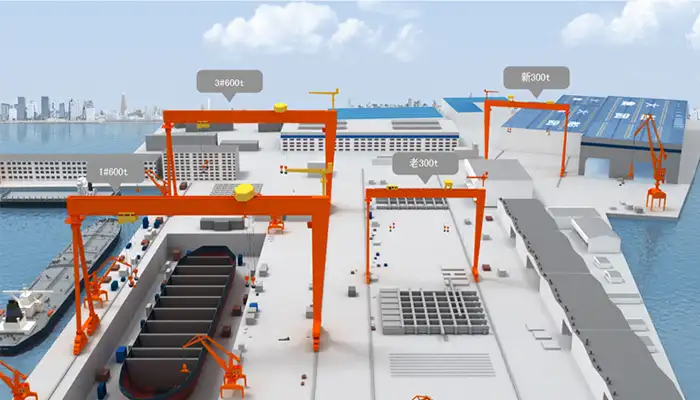

Safety Monitoring and Management system

A safety monitoring and management system for cranes ensures safe, efficient operation in complex environments like shipyards. Key features include:

Benefits include increased safety, improved efficiency, compliance with regulations, cost savings, and data-driven decision-making. Essential for preventing accidents, enhancing productivity, and reducing downtime in heavy-duty industries.

Collision Avoidance System

The Collision Avoidance System for Shipbuilding Gantry Cranes enhances safety and efficiency in shipyards with these features:

This system improves safety, reduces accidents, and ensures efficient crane operations in busy shipyards.

Right Shipyard Crane Manufacturer, Custom Shipyard Gantry Crane

Many purchasers may feel a little overwhelmed when searching for a shipyard gantry crane due to the abundance of manufacturers and suppliers. But picking the correct manufacturer and shipyard gantry crane is crucial since it has a big impact on how effectively your business runs.

Before deciding on a specific type of shipyard gantry crane, we advise you to consider a few factors to narrow down suppliers for your gantry lifting system. These factors include things like whether the suppliers have the necessary credentials and certifications, such as ISO and CE, how long they have been in business, and how they manufacture their gantry cranes. You can reduce the number of vendors on your lists after taking these factors into account. The optimum decision can therefore be made by considering your unique needs for a shipyard gantry crane.

Yuantai Crane, a reputable gantry crane manufacturer and supplier in China, we can provide custom shipbuilding crane and shipyard crane based on your lifting requirements and application conditions. Having worked in the material handling sector for many years, we are very skilled at designing and producing lifting equipment. To meet practically all customer needs, we offer a wide range of cranes, including overhead, gantry, jib, hoist, and winch products. To enhance the quality of our hoist and cranes, we have implemented strong quality control and assurance measures. Our mission is to provide customers with the highest level of pleasure possible through the provision of reliable goods and services.

Contact us right away to learn more about shipyard gantry cranes. You can count on our experienced sales team and engineers to assist you during the entire choosing process.

Types of Shipyard Cranes

Gantry Cranes

Gantry cranes in shipyards are large cranes mounted on wheeled or rail-based structures, enabling them to move over vast areas of the yard. They are designed to handle the heavy lifting required in shipbuilding and maintenance, offering mobility and high lifting capacity.

In a shipyard, gantry cranes are primarily used for moving large boat sections or entire hulls during construction, assembly, and launching. They can also handle the transportation of completed ships or parts to different areas of the yard, making them indispensable for tasks such as launching and dry-docking vessels.

Shipyard gantry cranes are built to lift extremely heavy loads, with some cranes capable of handling up to 2500 tons. This massive lifting capacity allows them to move entire hulls or other large ship components that weigh several hundred tons.

Types:

Advantages:

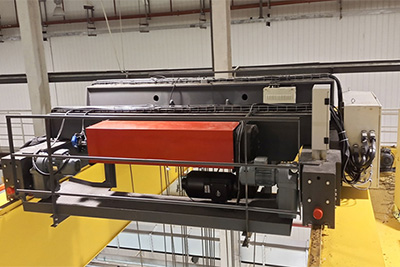

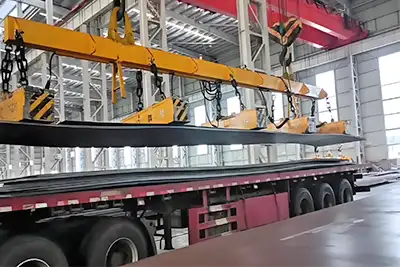

Overhead Cranes

Overhead cranes in shipyards are fixed on tracks above the work area, offering precise lifting and movement of boat parts and materials. They are ideal for indoor tasks within the shipyard, such as in assembly halls or workshops where smaller boat components are handled.

Applications:
Overhead cranes are primarily used in shipyards for lighter lifting tasks. They handle hull components, smaller boat parts, and materials needed for the assembly or repair of boats. These cranes are often found in workshops where the focus is on precision, such as moving smaller sections of a hull or transferring materials between different production stages.

Advantages:

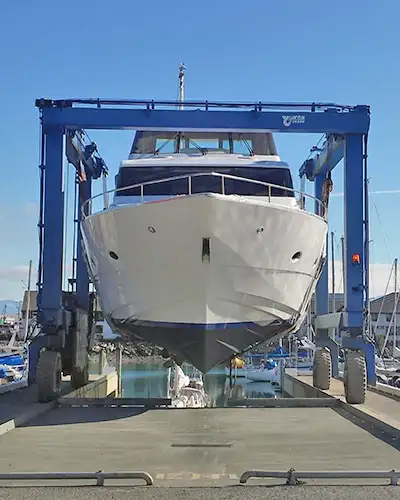

Boat Lifting Cranes (Travel Lifts)

Boat Lifting Cranes (Travel Lifts)


Boat lifting cranes, also known as travel lifts, are mobile cranes specifically designed for lifting boats and yachts in and out of water. These cranes are crucial for the movement and storage of smaller vessels within a shipyard, offering both lifting and transporting capabilities.

Applications:
Travel lifts are used in a shipyard for several key tasks:

  • Boat Launching: Lifting boats into the water at the start of the production process.
  • Boat Hauling: Pulling boats out of the water for maintenance or repair.
  • Boat Transfer: Moving boats within the yard for storage or other services.

These cranes provide essential flexibility in shipyards where boats of various sizes need to be handled.

Capacity:
Boat lifting cranes typically have a lifting capacity between 10 tons and 1200 tons, allowing them to handle a wide range of boat sizes—from smaller yachts to large ships.

Advantages:

  • High Maneuverability: Travel lifts are mobile, so they can easily be repositioned to work across different sections of the shipyard, making them efficient in tight spaces.
  • Versatility: They can lift boats of varying sizes, offering solutions for both smaller yachts and larger vessels.
  • Efficiency in Busy Shipyards: In busy shipyards, these cranes streamline the process of launching, hauling, and transferring boats, helping maintain the flow of operations without delays.

Slipway Winches

Slipway winches are mechanical devices used to pull boats or ships in and out of the water along slipways. These winches are crucial in shipyards, where boats need to be pulled ashore for repairs, maintenance, or storage.

Applications:
Slipway winches are primarily used for tasks like:

  • Pulling Vessels Ashore: Winches help pull boats out of the water, which is especially important for routine repairs or maintenance.
  • Transporting Boats: They can move boats to different areas of the shipyard for cleaning, painting, or other services.

Types:

  • Electric Slipway Winches: These winches use electric motors to provide the pulling force needed to move boats onto the slipway. They are often chosen for their efficiency and ease of use.
  • Hydraulic Slipway Winches: These winches operate using hydraulic power, offering greater control and lifting capacity, which is useful for larger boats or ships.

Advantages:

  • Economical for Smaller Vessels: Electric winches, in particular, are cost-effective solutions for smaller boats or yachts, making them a popular choice in many shipyards.
  • Easy to Operate: Slipway winches are relatively simple to operate, making them accessible to a wide range of personnel.
  • Essential for Maintenance Tasks: For routine maintenance and repairs, slipway winches are indispensable, as they ensure vessels can be easily moved in and out of the water.

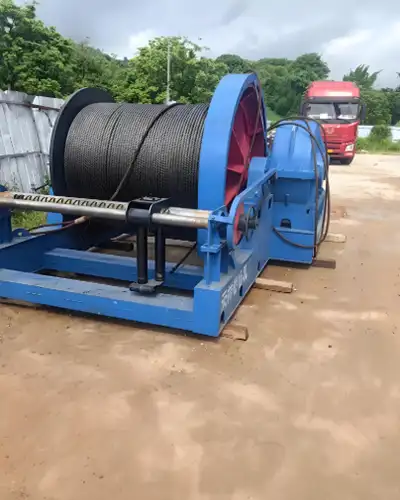

Shipyard electric winch


Goliath Gantry Cranes in Large-scale Shipyard Mold Handling

Goliath Gantry Cranes in Large-scale Shipyard Mold Handling

Gantry Cranes for handling shipyard mold, ship components, large molds, and formwork to improve material handling efficiency of ship construction in large-scale shipyards.
