Plastic fabrication, like metal work, involves heavy weights and high temperatures. A strong and agile overhead crane system is required for safety and precision. Overhead cranes are necessary to handle melted ingredients, raw materials, and finished goods with care and dexterity.
Handling high temperature and large-capacity loads in dangerous and unpredictable environments is a requirement of the Plastic Injection/Die Handling Industry. Each stage of the plastic injection molding process necessitates precision and control to ensure the safety of the crane operators. Overhead handling cranes in this industry are subjected to extreme stress, necessitating the expertise of Yuantai Crane to ensure that the proper equipment is used and properly inspected. Special consideration must be given to hoist reeving, which typically necessitates the use of a double reeved wire rope to provide true vertical lift. Side pulling is common when rotating loads. To ensure that wire ropes are pulled perpendicular to the drum grooving, the drum configuration and rope fleet angle must be carefully considered.
Single girder overhead crane for light mold or die handling with capacity of 1 ton, 5 ton, 10 ton, and 7.5 ton, 10 ton and up to 20 ton. Based on your different lifting requirements and application conditions.
The single girder die handling cranes also can be designed as top running & underhung design. The former one has the end carriages running on the top of main girder while the latter has the the end carriage running under the main girder. The top running design can support large capacity than the underhung crane design. But one the other hand, the ceiling mounted underhung crane will save the cost for supporting columns.

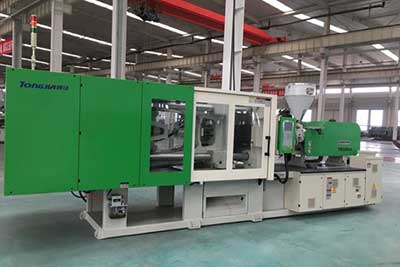

single girder overhead crane for die handing and mold handling

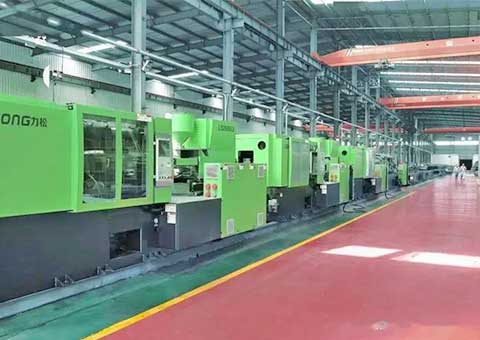

Top running single girder overhead crane for mould handling and die handling

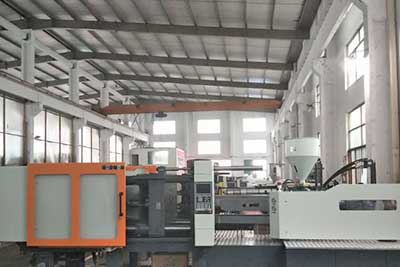

Double girder overhead crane for heavier mold handling
Double hoist/ trolley overhead craneWith travelling rollers, the portable gantry cranes can be use for dies or molds handling with capacity no more than 10 ton. The small A frame gantry crane are very popular for dies and molds handling over the injection molders due to the features of single structure, easy assembl and transportation, very convient to move from one place to antother , and easy operation.

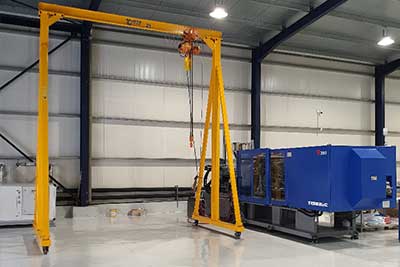

Fixed height portable gantry crane for injection mold handling
Adjustable Gantry CraneIt can be difficult and dangerous for dies and mold handling. It will take your time and effort to properly assess your lifting practices and die handling equipment your company and processing team adopted is well worth the time and effort to ensure the safety of your coworkers and the efficiency of your processes.
Yuantai Overhead Crane has provided various types of overhead die and mold handling cranes for plastic injection molding workshops and is experienced in providing optimal overhead material handling equipment and services for your factory or workshop.
The plastic company is well-known in Jordan because it has a long history, dating back to 1970. They are providing plastic products for well-known brands such as Nestle, Pepsi, Henkel, Golden Mills, and others.
Requirement for a 10-ton overhead crane for mold handling
Different molding methods, such as extrusion, injection molding, blow molding, and rotation molding, are used during plastic production depending on the product. So, in the molding process, the overhead crane is required for mold change. The Jordan client wants Yuantai Crane to provide electric overhead crane systems that are cost-effective, efficient, long-lasting, and safe for the four workshops. Yuantai Hoist and Crane was chosen as his overhead crane manufacturer after a comparison of various overhead crane quotations.
Economical single girder overhead crane for mold handling
According to the plastic mold handling requirements and the working conditions of the plastic production workshops, two sets of 10 tons single girder overhead cranes and two sets of 5 tons single girder overhead cranes with special girder and support bucket are recommended. All single girder overhead cranes can meet his lifting requirements and significantly reduce crane equipment purchasing costs.
Features of 10 molding handling overhead crane
The flat top crane girder, bucket design, and low crane price are three obvious features of the 10 ton single girder overhead crane for the Jordan client.
1) The 10 ton overhead crane's flat top girder design
The flat top girder design of the 10 ton overhead cranes makes the most of the workshop overhead room while increasing the lifting height relatively, resolving the conflict between high lifting height requirements and limited overhead clear room.
The drawing of the LD Type Single Girder Electric Overhead Crane LD 10t-7.5 m A4 that fully satisfies the Jordan client is shown below.
2) Design of a custom overhead crane bucket
Because the concrete workshop lacks proper buckets for the 10 ton single girder overhead crane and for financial reasons, Yuantai's crane engineer designed the following overhead crane buckets, which solves the problem and lowers the client's cost.
Yuantai Hoist and Crane would like to save as much money as possible while ensuring overhead crane quality and safety. The best solution for clients is to provide high-quality material handling equipment at the most affordable price.
The 10 ton portable gantry crane will be used to handle injection molds in a coffee capsule factory in Canada. Mold&Mold is a leader in the design and manufacture of multi-cavity molds for the production of bio-compostable plastic coffee capsules. The 10 ton portable gantry crane is required to improve mold exchanging efficiency and safety.
The 10 ton gantry crane is designed with a roller travelling portable gantry crane based on the application conditions and lifting requirements. The portable gantry can meet the requirement for a lifting capacity of 10 tons while also being easily moved away with motorized travel.
The non-rail travelling gantry crane 10 ton is designed from the start to meet the needs of the client. A gantry crane with dimensions of 8 feet * 7 feet will be used over the injection molder. In addition, the mold must be lifted 4 feet above the injection molder. And the general lifting requirements are depicted in the sketch below.

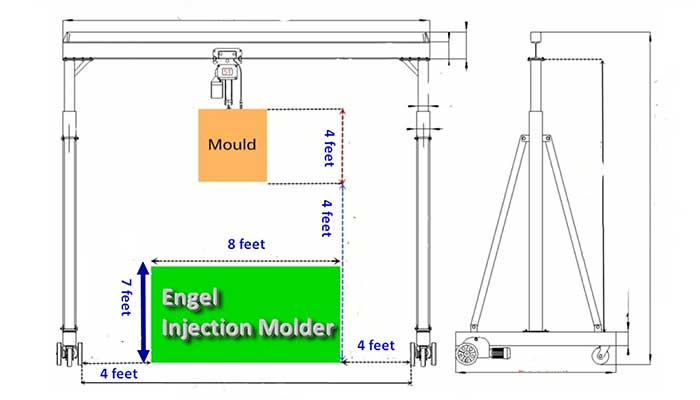

sketch of the 10 ton portable gantry crane for parameter confirmation
Based on the detailed information provided, the technical drawing of the 10 ton portable crane is designed and provided to client for confirmation.

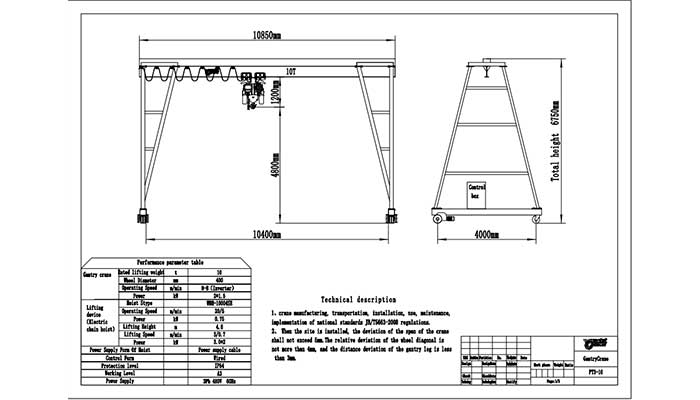

Technical drawing of 10 ton portable gantry crane for mold handling for your reference
If you want to know about the 10 ton portable gantry crane for die handling, please check our Portable gantry crane 10 ton project case study or contact us by leaving a message down below.
10 ton overhead crane for sale.Customized overhead crane for mold handling in medical device manufacturing plants to improve precision & cleanliness.

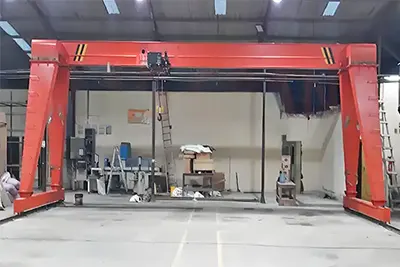

Inquiry Online Leave a Message5 ton gantry crane for sale. 5 Ton single beam gantry crane with box girder, customized for plastic injection mold handling. Get 5 ton gantry crane design!
