Electric Rubber Tired Gantry Crane, Rubber Tire A frame Cranes

Electric Rubber Tired Gantry Crane, Rubber Tire A frame Cranes

Product Type: RTG Gantry Crane
Lifting Capacity: 10 -500 ton
Span: As request
Lifting Height: As your requirement
Working Class: A3-A5
Ambient Temperature: -20-+40 ℃
Inquiry

Electric rubber tired gantry crane for sale, double girder gantry crane with A frame gantry & rubber tire wheels for heavy objects handling.

Electric rubber tired gantry cranes is a type of double girder gantry cranes, with rubber tire wheels for crane travelling, which provides high flexibility for large loads handling indoor and outdoor uses. The A frame rubber tyred gantry rtg cranes is developed on the base of MG double girder gantry cranes,in stead of rail travelling on the ground, the rubber tyred rtg gantry cranes are more flexibility with rubber tire wheels travelling.

Main specifications of A frame rubber tyre double girder gantry crane

  • Lifting Capacity: 10 ~ 500 ton , customized
  • Span Length: 8 ~ 40m, customized
  • Lifting Height: 5 ~ 32m, customized
  • Color: Yellow, red or customized
  • Application of double girder rtg gantry cranes

The electric rubber tyred gantry cranes are widely used in  stockyard,manufacturing plant, construction work,energy, mining, and Various types of Warehouse, Workshopes, etc.

Rubber Tyre Double Beam Gantry Crane

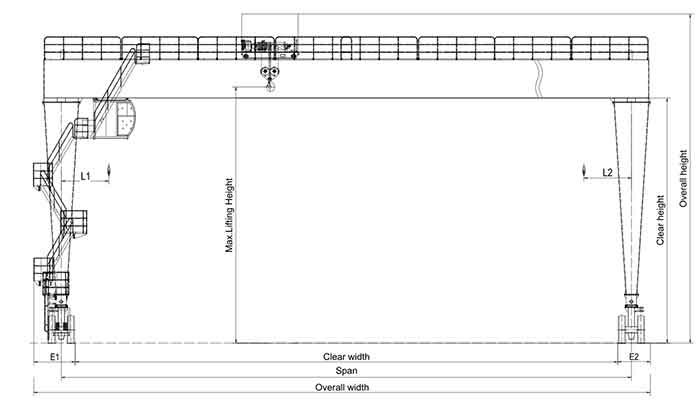

electric rubber tyred gantry crane drawing

Main Rubber Tyre Double Beam Gantry Crane

Advantages of electric rubber tyred gantry cranes

  • 1.  Reasonable Structural Design, High utilization
  • 2. Large operating range
  • 3. Wide adaptability and strong versatility, Longer service cycle
  • 4. Widely used in port yards, construction site, outdoor and indoor

Safety devices

  • 1. Overload Limiter, Limit Switch (Lifting and Traveling), Short-circuit protection.
  • 2. Interlock protection device, Under-voltage protection, Buffer, Zero protection.
  • 3. Rail tongs, anchor device and motor overload protection.
  • 4. Rail clear plate and emergency stop system.
  • 5. Protective cover and current overload protection system.
  • 6. Bus Bar prevent plate and security chain protection.
  • 7. Anti-collision device and ground protection.

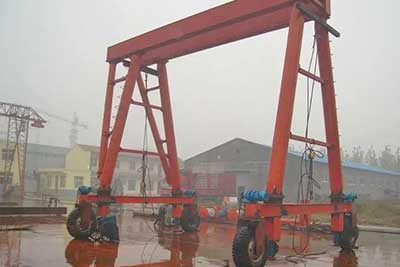

Double girder rubber tyred wheels gantry crane with A frame design

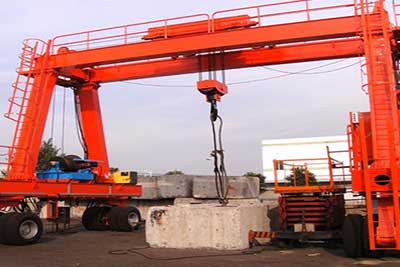

Double girder rubber tyred wheels gantry crane with A frame design  for stone handling

A frame vs. U frame double girder rubber tyred gantry cranes

A frame rubber tyred rtg crane

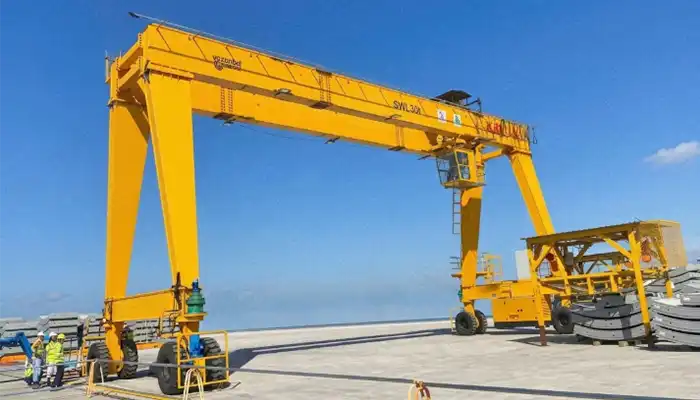

The  rubber tired A frame gantry crane is the most typical type used in varied fields and sections, and it is generally divided into single girder and double girder according to the number of girders. 30 ton rubber tyred A frame gantry crane for tunnel construction in Singarpore for your reference.

U  frame rubber tyred rtg crane

The  rubber tired U frame gantry crane is the most for heavier and large loads handling at port or storaging yards, such as, containers, etc.

Similarities of “A”&“U” type electric rubber typred gantry crane

  • Both the a frame & u frame rtg cranes are designed with compact structure which will save crane construction cost.
  • With optimized structure, the dead weight and wheel load will be reduced largely.
  • Large  and long crane span design is provided with strong rigidity and are reliable to use.
  • Lift heavy-duty objects handing.
  • Both of the two types of rubber tire gantry cranes are well received by customers.

Differences of “A” type and “U” type electric rubber typred gantry crane

  • “A” model gantry crane contains saddle and cantilever but “U” model not.
  • When lifting large object or materials, “U” type of rubber tire crane would decrease its height.
  • Due to large space between two legs, “U”frame double girder gantry crane are perfect to handle large size goods and materials, while “A” frame gantry crane suit the relatively smaller dimensions of goods due to the narrow space between legs.

Based on your applications,Yuantai Crane provide the customized electric rubber tyred gantry cranes for your application with single girder or double girder design to improve your working efficiency and safety. Contact us today to get your customized A frame electric double girder gantry cranes.
