RTG Container Crane 35 Ton, 41 Ton, 70 Ton Port & Container Yards

RTG container cranes (35T, 41T, 70T) efficiently handle containers in ports, offering mobility, versatility, and high lifting capacities.

35 Ton, 41 Ton, and 70 Ton RTG Container Cranes

The Role of RTG Container Cranes in Port Operations

Overview of RTG (Rubber Tyred Gantry) Cranes

RTG container cranes, or Rubber Tyred Gantry cranes, are essential lifting equipment in modern port and container yard operations. These cranes are known for their mobility and flexibility, making them an ideal choice for managing containerized cargo. Unlike traditional rail-mounted cranes, RTG cranes move on rubber tires, allowing them to easily navigate various port layouts. This mobility is a key feature that enables RTGs to cover large areas without being confined to fixed tracks.

RTG container cranes come in different sizes and lifting capacities, ranging from 35 tons to 70 tons, depending on the specific needs of the terminal. Their gantry design provides stability, while their ability to lift containers efficiently is enhanced by advanced hoisting mechanisms and robust structural features. These cranes are designed to handle a wide variety of containers, ensuring efficient cargo handling across busy ports and container yards.

Importance of RTG Cranes in Port & Container Yard Operations

RTG container cranes are vital to port operations as they help manage the heavy lifting and transportation of containers across busy shipping yards. As global trade continues to increase, the need for efficient container handling equipment has never been more critical. RTGs are particularly suited for operations that require high container throughput. They are commonly used in container terminals to load and unload goods quickly, improving port productivity and reducing container dwell time.

The flexibility of RTG cranes makes them an indispensable part of container yards, where they are used for tasks like stacking containers, moving them between different zones, and organizing them for onward transport. Without the need for rail tracks, RTG cranes can move freely across the yard, optimizing space utilization and ensuring that ports can handle large volumes of containers in a confined space.

Key Benefits: Mobility, Flexibility, and Efficiency

RTG container cranes provide a range of key benefits that enhance their performance in port and container yard operations:

• Mobility: One of the standout features of RTG container cranes is their mobility. Unlike rail-mounted cranes, which are restricted by fixed tracks, RTG cranes are mounted on rubber tires, allowing them to move smoothly across the container yard. This mobility enables quick access to containers across a wide area, improving operational efficiency and helping ports handle high volumes of cargo.
• Flexibility: RTG cranes are incredibly flexible. Their design allows them to adjust to different port layouts and container sizes. With adjustable lifting heights and spans, they can handle a range of container types and are capable of working in tight spaces. This flexibility makes them a popular choice for both medium-sized terminals and larger, high-volume ports.
• Efficiency: In port operations, efficiency is crucial, and RTG container cranes excel in this area. Thanks to their high lifting speeds and advanced control systems, they can quickly lift and transport containers, reducing the time spent on each job. This efficiency leads to faster throughput, less congestion, and improved logistics in busy port environments.

In summary, RTG container cranes are essential to the smooth functioning of modern ports. Their mobility, flexibility, and efficiency allow ports to handle increasing container volumes while maintaining high productivity and reducing delays in cargo processing.

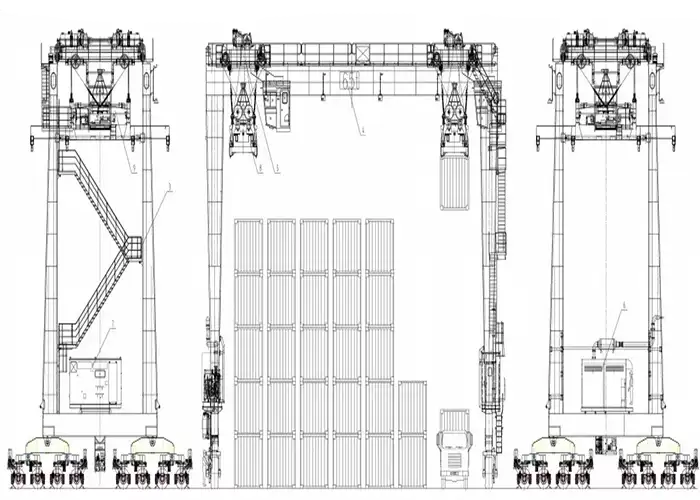

Main Specification of RTG container Cranes

Main Specifications of RTG Container Cranes

RTG (Rubber Tyred Gantry) container cranes are designed to handle heavy loads and offer exceptional flexibility and mobility in port and container yard operations. Below are the key specifications that define the performance and capabilities of RTG container cranes:

Lifting Capacity

• Typical Capacity Range: 35 tons to 70 tons.
• Load Handling: RTG cranes are designed to handle standard containers as well as oversized or heavy containers.
• Capacity Variation: Depending on the size and model, RTG cranes can lift containers weighing from smaller loads (35 tons) to larger, heavier containers (70 tons) for high-volume port operations.

Lifting Height and Reach

• Lifting Height: The lifting height can range from 10 meters to 40 meters, depending on the crane model and container size.
• Hoist Height: The height of the hoist can vary based on the type of container being handled (e.g., high cube containers, standard containers, etc.).
• Span: The span of RTG cranes typically ranges from 20 meters to 35 meters, making them suitable for stacking and unloading containers across multiple rows in container yards.

Span of the Crane

• The span is the horizontal distance between the two supporting legs of the crane.
• Standard Span: Between 20 meters to 35 meters for effective container stacking and handling.
• Adjustable Span: Some RTG cranes feature adjustable spans to adapt to different container stacking configurations and yard layouts.

Traveling Speed

• Crane Travel Speed: Typically ranges from 30 m/min to 45 m/min for horizontal movement across the container yard.
• Trolley Travel Speed: Can vary between 40 m/min to 60 m/min, depending on the crane design and operational needs.
• Hoisting Speed: Can range from 10 m/min to 30 m/min, depending on the lifting capacity and design of the crane.

Power Supply

• Diesel Power: RTG cranes can be powered by diesel generators in locations where electric power may not be readily available. This is commonly seen in less developed ports or when cranes are used in remote areas.
• Electric Power: For more sustainable operations, many RTG cranes are powered by electricity, commonly 380V 50Hz three-phase AC. This provides a reliable power source for continuous operation in large port facilities.
• Hybrid Power Systems: Some RTG cranes utilize hybrid power solutions combining diesel and electricity to reduce energy consumption and emissions.

Control System

• Manual Control: RTG cranes often come with a manual control option for crane operators, allowing them to manually adjust crane movements.
• Remote Control: Remote control operation is a common feature in modern RTG cranes, allowing the operator to manage crane functions from a distance for improved safety and efficiency.
• Automated Control Systems: Advanced automated systems are available in some RTG cranes, enabling semi-automated or fully automated operations for enhanced productivity and reduced human error.
• PLC Control System: Programmable logic controllers (PLC) ensure smooth, precise operations, especially in the handling of containers and high-traffic port environments.

Tire Configuration

• Four-Wheel Drive (4WD): RTG cranes typically feature a four-wheel drive system, which allows them to travel across different surfaces and terrain within the port yard with ease.
• Rubber Tires: The tires are designed for heavy-duty use, providing the necessary traction to carry substantial loads across container yards without the need for rail tracks.

Safety Features

• Anti-Sway Control: RTG cranes are equipped with load sway control systems to prevent containers from swinging during lifting and transportation, improving load stability and safety.
• Collision Detection: To enhance safety, modern RTG cranes come with collision avoidance systems to prevent accidents when operating in tight spaces.
• Emergency Stop Mechanism: Emergency stops are integrated into the crane's control systems, ensuring the safety of operators and nearby workers.

Structural Design

• Gantry Structure: The RTG crane features a robust gantry design to support heavy lifting while maintaining stability. This structure is essential for balancing the crane’s weight while it lifts containers.
• Double-Girder Design: Most RTG cranes use a double-girder configuration for enhanced load-bearing capacity and improved hoisting performance.
• Corrosion-Resistant Materials: To withstand harsh port environments, RTG cranes are made from corrosion-resistant materials and are equipped with anti-corrosion coatings for durability, especially in coastal and marine environments.

Environment and Operation

• Weatherproof Design: RTG cranes are designed to operate in a variety of weather conditions, from rainy and windy environments to extremely hot or cold climates.
• Outdoor & Indoor Operation: Most RTG cranes are suitable for outdoor operations in container yards, though some can also be used for indoor operations in warehouses or specialized facilities.

These specifications ensure that RTG container cranes are versatile, efficient, and reliable for high-volume container handling in ports and container yards. They are designed to meet the rigorous demands of modern logistics, providing safety, speed, and flexibility in a fast-paced shipping environment. Customized design for your rtg container crane if you have any need. Feel free to contact us to [email protected]

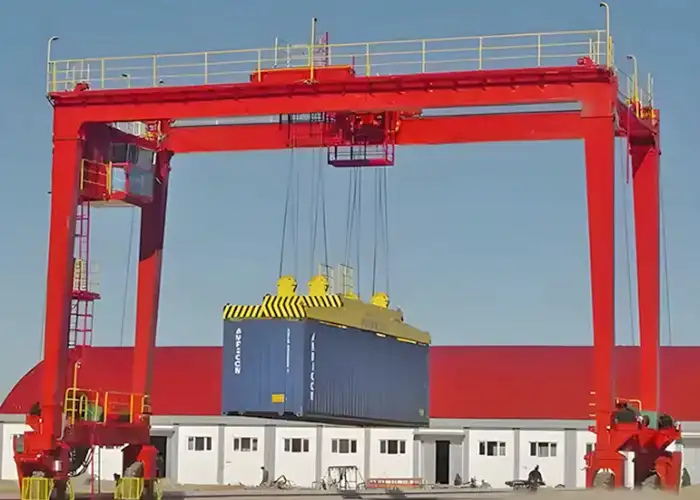

rubber typred rtg container crane

Key Features and Specifications of RTG Cranes

Lifting Height and Span: Variations Based on Container Size and Yard Requirements

One of the most crucial aspects of RTG container cranes is their lifting height and span, which directly affect the crane's efficiency in container handling. These features are specifically designed to meet the needs of container terminals, ensuring cranes can lift containers to varying heights while accommodating different stacking arrangements.

• Lifting Height: The lifting height of RTG cranes is generally adjustable to allow for different container stacking configurations. For example, standard RTG cranes can have lifting heights ranging from 10 to 40 meters, depending on the specific model and the terminal's stacking needs. Higher lifting heights are essential for high-cube containers or for stacking containers in multiple layers to maximize yard space.
• Span: The span of an RTG crane refers to the width between the crane's legs, which determines how many rows of containers can be handled. Typically, spans range from 20 to 30 meters, but the exact span varies based on yard layout and the type of containers being handled. A larger span ensures the crane can handle wider areas and stack containers more efficiently, while a narrower span is often used in tighter or smaller yards where space is at a premium.

Trolley Design and Hoisting Mechanism: Adaptability for Container Handling

The trolley design and hoisting mechanism are essential components that determine the crane’s performance when it comes to lifting and lowering containers. These elements must be designed for precision and heavy-duty operations, ensuring the crane can handle a range of container types efficiently.

• Trolley Design: The trolley moves along the crane’s girder, carrying the hoist unit that performs the actual lifting. RTG cranes typically use a motorized trolley system with high-speed capabilities for quick container transfers. The trolley design is crucial for minimizing container sway and ensuring precise container placement. High-performance trolleys are equipped with anti-sway technology, which helps stabilize containers during lifting, reducing potential damage during handling.
• Hoisting Mechanism: The hoist mechanism is equipped with drum winches or electric hoists that can lift containers to various heights. RTG cranes usually employ a single or double hoist system, depending on the crane's lifting capacity and the weight of the containers. These systems are engineered for maximum lifting efficiency while minimizing wear and tear on the equipment, ensuring reliable, long-term operation. Load sensors are often integrated into the hoisting system to monitor lifting weights and prevent overloading, enhancing both safety and performance.

Wheel Configuration and Maneuverability: Efficiency in Container Stacking and Handling

The wheel configuration and maneuverability of an RTG crane are vital for efficient container stacking and handling operations. Since RTG cranes are rubber-tyred, they offer excellent mobility within the terminal, making them ideal for both loading and unloading containers in confined spaces and moving containers across long distances within the yard.

• Wheel Configuration: RTG cranes feature a four-wheel configuration (or in some cases, more) designed to distribute the weight of the crane evenly across the structure. This configuration ensures stability, even when lifting heavy containers. The wheels are often equipped with high-torque motors, allowing for smooth travel across the yard. Some cranes also have steering mechanisms that can turn the wheels 90 degrees, offering omnidirectional mobility, which significantly enhances the crane's ability to navigate around tight areas and efficiently position containers for stacking or transport.
• Maneuverability: The ability of an RTG crane to move freely in various directions is critical for maximizing efficiency in container handling. Many models come equipped with automatic positioning systems and advanced steering technology to ensure the crane can quickly move from one container to the next. The advanced maneuverability allows operators to perform precise stacking and unloading within limited yard space, thus optimizing yard operations and minimizing time spent on non-productive tasks.

Power Systems: Diesel and Electric Hybrid Options for Flexibility

RTG cranes are equipped with versatile power systems that can meet the energy demands of various terminal operations. These cranes often run on diesel engines, electric motors, or a combination of both (hybrid systems), offering flexibility in energy usage depending on local conditions and environmental considerations.

• Diesel Power: Diesel-powered RTG cranes are popular in ports where electricity supply might be inconsistent or unavailable. Diesel engines provide the necessary power for cranes to operate independently without relying on external electrical sources. These engines are usually fuel-efficient, ensuring that operations can continue smoothly even in remote or less-developed areas. Diesel RTGs are commonly used in smaller terminals and emerging markets where operational flexibility is key.
• Electric Power: Many modern RTG cranes use electric motors as the primary source of power. These cranes are environmentally friendly, offering lower emissions compared to diesel-powered models. They also provide higher energy efficiency, which can lead to reduced operational costs in the long run. Electric RTG cranes are typically used in more developed regions where power supply is consistent and environmental regulations require lower emissions.
• Hybrid Power Systems: To strike a balance between power and sustainability, some RTG cranes utilize diesel-electric hybrid power systems. These cranes use an electric motor for main operations while relying on diesel backup for added flexibility. The hybrid system can also be used to optimize energy consumption, reducing the amount of diesel fuel used and lowering emissions. This makes hybrid RTG cranes suitable for both high-demand operations and environmentally-conscious terminals.

The key features and specifications of RTG cranes—ranging from lifting height and span to power systems—are carefully engineered to meet the diverse needs of container ports and terminals. Whether powered by diesel, electricity, or a hybrid system, RTG cranes provide the mobility, flexibility, and efficiency required to streamline container handling operations. Their ability to adapt to various yard configurations and their precision in lifting heavy containers makes them an indispensable part of the modern port infrastructure.

Container Handling Efficiency in Port Operations

How RTG Cranes Improve Throughput and Reduce Port Congestion

One of the most significant advantages of RTG container cranes in port operations is their ability to dramatically improve throughput and reduce port congestion. With the increasing global demand for faster and more efficient cargo handling, RTGs have become essential in container yards where speed and precision are critical.

• Increased Throughput: RTG cranes can move containers quickly from one place to another, significantly increasing the speed of cargo flow. Their ability to quickly pick up containers from ships, stack them efficiently in the yard, or transfer them to trucks or rail, ensures a continuous flow of goods. This ability to handle high volumes of containers in a short time allows ports to maintain a high throughput, increasing operational efficiency and profitability.
• Reducing Congestion: Container terminals can often become congested, especially during peak times, leading to delays and bottlenecks. RTGs, with their flexible mobility and precise control, help alleviate this by optimizing the use of space. Their ability to stack containers in an organized, strategic manner allows for a smoother flow of operations. By managing the yard's space utilization more efficiently, RTGs help prevent containers from piling up and causing unnecessary congestion, ensuring that the terminal can handle higher volumes without compromising operational flow.

Role in Loading, Unloading, and Stacking Containers

RTG cranes are crucial in the loading, unloading, and stacking of containers, making them indispensable in port operations. They serve as the backbone of efficient container yard management by handling heavy and bulky containers with ease and speed.

• Loading and Unloading: RTG cranes are designed to load and unload containers from ships and transport them across the yard. With a combination of lifting power and precise control, RTGs can quickly and safely move containers from the ship’s hold to the dock and vice versa. This ensures minimal waiting time for ships and reduces dock idle time, which is crucial for maintaining efficient terminal operations.
• Stacking Containers: Efficient container stacking is key to managing space in high-density terminals. RTGs excel in this task due to their adjustable lifting height and wide span. They can place containers on top of one another in multi-layer stacks, maximizing vertical space and increasing yard capacity. The precision of RTG cranes allows them to carefully position containers in even the tightest spaces, improving overall yard management.

Operational Speed and Precision for Optimized Yard Management

The operational speed and precision of RTG cranes are pivotal in optimizing yard management and ensuring that containers are moved quickly while maintaining safety and accuracy.

• Speed: RTG cranes are equipped with powerful motors and advanced control systems that allow them to operate at high speeds. They can move across the yard efficiently, which significantly reduces wait times for trucks, rail transport, and vessels. The increased speed means that more containers can be handled in less time, improving overall terminal efficiency.
• Precision: Speed alone is not enough—precision is just as important when it comes to handling containers. RTG cranes use advanced technology such as anti-sway control to ensure containers are lifted and moved with minimal oscillation. This prevents damage to both the containers and the crane equipment, while also allowing operators to accurately position containers during loading, unloading, and stacking. The combination of speed and precision makes RTG cranes an essential tool in high-demand environments like container terminals.

RTG Cranes in High-Density Container Yards

RTG cranes are particularly suited for high-density container yards, where efficient space utilization and fast container handling are essential for maintaining smooth operations.

• High-Density Yards: In ports where space is limited and container volumes are high, RTG cranes provide a flexible and efficient solution. Their mobility allows them to navigate tight spaces between stacks of containers, and their adjustable lifting heights make them ideal for managing multi-level stacking systems. This makes it possible to store more containers in the same amount of space, which is crucial in high-density yards where the efficient use of space is key to avoiding congestion.
• Optimizing Yard Operations: RTG cranes can be equipped with automatic stacking systems and sophisticated positioning tools that further enhance their efficiency in high-density yards. By using automation to assist in container handling, port operators can reduce human error and speed up the operation. RTG cranes, when combined with intelligent yard management systems, ensure that containers are moved in the most efficient way possible, maximizing space while reducing idle time.

RTG container cranes are a vital part of modern port operations, offering a mix of mobility, efficiency, and precision that optimize container handling in high-density environments. Whether it’s improving throughput, reducing congestion, or enabling precise stacking, these cranes help ensure that ports operate smoothly and efficiently, even during peak times. With their flexible design and ability to navigate tight spaces, RTGs are equipped to handle the increasing demands of global shipping.

Safety Features and Technology in RTG Cranes

Advanced Control Systems: Remote Control and Automated Crane Operations

One of the standout features of RTG container cranes is their integration of advanced control systems designed to enhance operational safety and efficiency.

• Remote Control: Remote control technology allows crane operators to handle containers from a safe distance, minimizing the risk of accidents in close proximity to the crane. With remote control, operators can have a clear line of sight while controlling the crane’s movements, which is particularly useful when maneuvering containers in tight spaces or high-traffic areas. This not only ensures operator safety but also improves overall operational flexibility.
• Automated Crane Operations: Many modern RTG cranes come equipped with automated control systems that allow for pre-programmed lifting and transport tasks. These automation features reduce human error, enabling cranes to operate with a higher degree of accuracy and consistency. For example, automated systems can optimize the speed and path of the crane based on real-time data, ensuring that containers are moved quickly and accurately, while minimizing the risks associated with manual control.

Load Sway Control: Ensuring Stability during Heavy Lifting

Handling heavy and oversized containers is an essential function of RTG cranes, but it comes with its own set of challenges—particularly the load sway that can occur during lifting. To address this, load sway control systems are implemented to ensure stability and safety during heavy lifting operations.

• Sway Prevention: Load sway control systems use advanced sensors and software algorithms to actively monitor and manage the motion of the lifted load. When a container is hoisted, there’s always a risk that it will sway due to wind, momentum, or sudden movements. The sway control system works by adjusting the crane’s movements in real-time to counterbalance the sway and keep the load stable. This ensures that containers are handled safely without the risk of them swinging into other objects, potentially causing damage or accidents.
• Enhanced Safety: This technology is especially useful in high-traffic environments, where other cranes, vehicles, and personnel are nearby. By minimizing sway, the RTG crane operates more smoothly, reducing the chance of accidents and improving overall operational safety in busy container yards.

Collision Avoidance: Enhancing Safety in Busy Port Environments

Ports are inherently busy and congested places, with many cranes, vehicles, and personnel working in close proximity. Collision avoidance systems have been developed to improve safety and prevent accidents in these high-risk environments.

• Advanced Sensors and Detection: RTG cranes are equipped with advanced sensors, including radar and laser systems, to detect nearby objects, other cranes, and moving vehicles. These sensors constantly monitor the crane’s surroundings and can automatically adjust the crane’s path to avoid potential collisions. In case of an emergency, the system can trigger an automatic stop, preventing the crane from moving into dangerous areas.
• Enhanced Operator Awareness: In addition to the automated systems, visual and auditory alerts are often used to notify the crane operator of potential collisions. The combination of automated detection and operator awareness systems creates a safety net that minimizes the risks in busy and congested environments.
• Improved Workflow: Collision avoidance technology also helps improve the overall workflow in ports. By preventing collisions, it allows multiple cranes and vehicles to work in close proximity without delays or interruptions, ensuring that the port operates at maximum efficiency while maintaining safety.

Weatherproof and Anti-Corrosion Features: Essential for Harsh Marine Conditions

Ports and container yards are often located in coastal areas where harsh marine conditions—including saltwater exposure, high humidity, and extreme temperatures—can lead to rapid deterioration of equipment. To combat these challenges, RTG cranes are designed with weatherproof and anti-corrosion features that ensure long-term reliability and performance in these demanding environments.

• Corrosion-Resistant Materials: RTG cranes used in coastal or marine environments are made from corrosion-resistant materials, such as galvanized steel or marine-grade coatings, to protect the crane from the corrosive effects of saltwater and high humidity. This is crucial in extending the lifespan of the crane and reducing maintenance costs over time. With proper corrosion protection, the crane is better able to withstand the environmental stressors and maintain optimum performance.
• Weatherproof Systems: All critical systems in the crane, including the electrical components and hydraulic systems, are weatherproofed to ensure they function properly in all weather conditions. This includes seals and protective covers that shield sensitive parts from rain, salt, and dust, ensuring reliable operation even during harsh weather.
• Long-Term Durability: By incorporating anti-corrosion features, RTG cranes are able to operate longer without the need for frequent repairs or replacements. This is especially important for cranes working in marine environments, where exposure to the elements is constant and can cause equipment failure without proper protection. These features also contribute to reduced downtime and help keep operations running smoothly in even the most challenging conditions.

The safety features and advanced technologies integrated into RTG container cranes make them a vital part of modern port operations. Whether it’s remote control, load sway control, collision avoidance, or weatherproof and anti-corrosion features, each element plays a critical role in ensuring the safety, efficiency, and longevity of these cranes in the demanding environments of port and container yard operations.

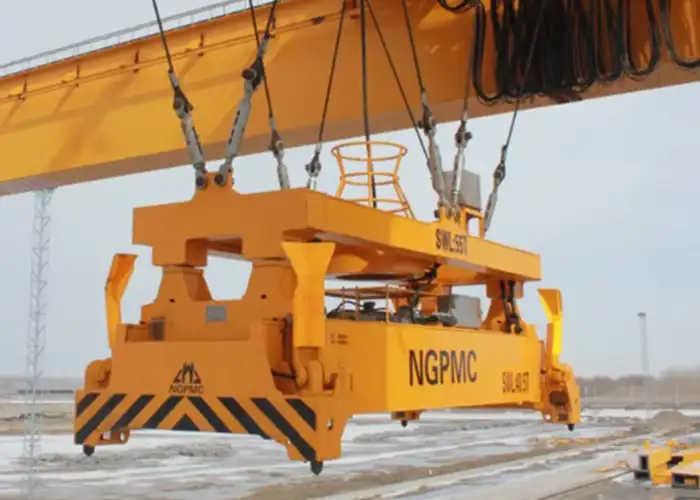

Container spreader, customized for your needs

Advantages of RTG Cranes in Port and Container Yard Environments

RTG cranes offer several key advantages that make them a preferred choice for port operations and container yard management. From high mobility to low maintenance requirements, RTGs are designed to enhance efficiency and flexibility while minimizing costs.

High Mobility: Facilitating Efficient Container Movement Across Port Areas

One of the most notable advantages of RTG container cranes is their high mobility. Unlike traditional cranes that are fixed to rails or tracks, RTG cranes are equipped with rubber tires, allowing them to move freely across various areas of the port or container yard. This mobility enables cranes to:

• Cover Large Areas: RTG cranes can move easily across the entire port, handling containers at multiple locations without being restricted to a specific rail system. This is especially beneficial in busy container terminals or multi-purpose ports, where the demand for efficient container handling spans a large area.
• Maneuverability in Tight Spaces: Their ability to turn and navigate in tight spaces makes them perfect for high-density container stacking and loading/unloading operations. This enhances space utilization, enabling ports to handle more containers within a limited area, which is crucial for meeting high throughput demands.
• Improved Turnaround Times: With high mobility, RTG cranes can quickly move from one task to another, reducing idle time and improving overall port throughput. This means containers are loaded, unloaded, and stacked faster, which leads to faster turnaround times for ships and trucks, helping ports operate more efficiently.

Flexibility in Layout: No Fixed Rails Required for Operation

RTG cranes do not require fixed rail systems to operate, which gives them a significant advantage in terms of layout flexibility.

• Adaptable to Changing Needs: Ports and container yards can be constantly evolving based on container volume and shipping schedules. With RTG cranes, the layout can be easily adjusted without the need to install or remove rails. This adaptability allows for dynamic port operations that can respond quickly to changing demands or unexpected shifts in cargo flow.
• Cost-Effective Infrastructure: Since RTG cranes operate without fixed tracks, there’s no need to invest in expensive rail infrastructure. This reduces initial setup costs, maintenance expenses, and provides a more cost-effective solution for ports looking to optimize their container handling systems.
• Easier Yard Restructuring: When port operations need restructuring, such as expanding container storage or modifying stacking areas, RTG cranes can be easily repositioned, making it easier to accommodate new layouts. This flexibility is a game-changer for ports undergoing expansions or upgrades.

Cost-Effective and Energy Efficient: Diesel-Electric Hybrid Solutions

The hybrid power systems used in RTG cranes combine the benefits of diesel engines and electric motors, providing a flexible and energy-efficient solution for port operations.

• Energy Efficiency: Diesel-electric hybrid systems offer a great balance between performance and fuel efficiency. These cranes can operate on diesel power for mobility, while their lifting mechanisms often use electric power, ensuring that energy consumption is optimized during heavy lifting. This results in significant energy savings and reduced fuel costs compared to fully diesel-powered cranes.
• Reduced Emissions: By incorporating electric motors, the diesel-electric hybrid RTG cranes contribute to reducing the overall environmental impact of port operations. The crane’s fuel-efficient design means less reliance on diesel fuel, which helps lower carbon emissions and supports green port initiatives.
• Operational Cost Savings: Hybrid power systems allow ports to reduce both fuel costs and electricity expenses. Over the long term, the maintenance and operational costs of RTG cranes are lower compared to fully electric or fully diesel cranes. This cost-effective nature is a major draw for ports and terminals looking to improve profitability while maintaining operational efficiency.

Low Maintenance Needs: Durability and Reliability in Long-Term Operations

RTG cranes are designed with durability and reliability in mind, offering a low-maintenance solution for busy ports that require round-the-clock operations.

• Robust Construction: RTG cranes are built to withstand harsh environments, including saltwater exposure, extreme weather conditions, and high-frequency operations. This rugged construction ensures that the cranes can handle the tough demands of high-volume container handling without frequent breakdowns or repairs.
• Minimized Downtime: With low maintenance needs, RTG cranes experience minimal downtime during operations. This reliability ensures that ports can operate efficiently with fewer disruptions, contributing to higher throughput and better operational continuity.
• Longer Lifespan: The design of RTG cranes includes durable components that reduce the frequency of replacements. With fewer parts subject to wear and tear, ports experience longer service life for their equipment, maximizing their return on investment and minimizing the need for costly repairs and part replacements.

In summary, RTG container cranes offer unmatched mobility, flexibility, cost-effectiveness, and low maintenance benefits, making them an ideal choice for ports and container yards. Their diesel-electric hybrid power systems, combined with high durability and flexible layout options, ensure efficient and sustainable operations in even the busiest port environments. These advantages help ports maintain high productivity and low operational costs while also adapting to changing demands.

Typical Applications for 35 Ton, 41 Ton, and 70 Ton RTG Cranes

The RTG container cranes come in a range of capacities, including 35 ton, 41 ton, and 70 ton variants, each designed for specific operational needs in ports and container yards. These cranes are tailored to handle varying container sizes, operational volumes, and specialized tasks. Below is a breakdown of typical applications based on the crane capacity.

35 Ton RTG Cranes: Small to Medium-Sized Ports, Feeder Container Handling

The 35-ton RTG crane is perfect for smaller ports or container terminals that handle feeder services and manage medium-sized containers. These cranes are particularly suited for operations that require flexible mobility and efficient handling of containers in less congested environments.

• Feeder Container Handling: The 35-ton RTG crane is widely used in ports that serve as feeder hubs, transferring containers from large container ships to smaller vessels. These cranes handle smaller, lighter containers that are often transferred to and from feeder vessels for regional distribution.
• Small to Medium-Sized Terminals: In smaller ports, the 35-ton capacity is sufficient to handle a range of tasks, including loading and unloading containers from cargo ships and trucks. The relatively smaller lifting capacity ensures the crane can still operate efficiently without the need for larger, costlier equipment.
• Efficient Yard Operations: These cranes are also used for stacking containers in smaller yard spaces, where the need for high mobility and the ability to maneuver easily between rows of containers is critical. Their high maneuverability makes them ideal for high-density stacking and tight space operations.

41 Ton RTG Cranes: Medium-Sized Terminals, Transshipment Hubs, Intermodal Operations

The 41-ton RTG crane bridges the gap between smaller cranes and heavy-duty cranes, making it an ideal choice for medium-sized container terminals and intermodal operations.

• Transshipment Hubs: These cranes are commonly found in transshipment hubs, where containers are transferred from one vessel to another. The 41-ton capacity allows the crane to handle larger containers and heavier loads, making it versatile for various types of cargo movement in busiest ports.
• Intermodal Operations: The 41-ton RTG crane excels in intermodal operations, where containers are transferred between various transportation modes, such as from ships to trains or trucks. This crane capacity ensures efficient handling of medium-sized containers that are critical for multimodal transport.
• Medium-Sized Terminals: In medium-sized ports, the 41-ton capacity can handle both standard containers and oversized cargo that may be more challenging for smaller cranes. It provides a good balance of lifting power and operational flexibility for ports dealing with a moderate volume of containers.

70 Ton RTG Cranes: Large International Ports, Handling Oversized Containers, Heavy-Lift Operations

The 70-ton RTG crane is a heavy-duty machine designed for the largest container terminals and high-volume ports with more complex operational needs. With a higher lifting capacity, these cranes are ideal for oversized containers, heavy-lift operations, and high-density container yards.

• Large International Ports: In major international ports, such as those found in Asia, Europe, and North America, the 70-ton RTG crane is used for handling high-volume container operations. These cranes are capable of lifting larger and heavier containers, typically used in global shipping.
• Handling Oversized Containers: With a lifting capacity of up to 70 tons, these cranes are perfect for handling oversized or specialized containers. This includes containers that carry heavy machinery, bulk materials, and out-of-gauge cargo that require specialized lifting power to ensure safe handling.
• Heavy-Lift Operations: The 70-ton RTG crane plays a key role in heavy-lift operations that require precision and lifting capacity beyond the standard range. This can include handling oversized equipment, project cargo, or containers with unusually heavy or cumbersome loads.
• High-Volume Container Handling: In busy ports, 70-ton cranes are often the workhorses, moving a large number of standard containers with high speed and precision. Their increased capacity enables these cranes to meet the demands of high-throughput environments, ensuring minimal port congestion and rapid turnaround of vessels.

The three capacity options of RTG container cranes—35 tons, 41 tons, and 70 tons—are designed to meet the specific needs of different ports and terminals. From small feeder operations to heavy-lift operations in international ports, these cranes play a pivotal role in ensuring efficient and cost-effective container handling. Each capacity offers unique advantages that align with specific terminal demands, ensuring flexibility, speed, and precision across all types of container operations.

Case Studies: Successful Deployments of RTG Cranes in Container Yards

The deployment of RTG container cranes has been transformative in improving container handling operations across various types of ports, from regional terminals to major international hubs. Below are three real-world case studies that highlight the successful use of 35 ton, 41 ton, and 70 ton RTG cranes in enhancing operational efficiency and throughput in container yards.

35 Ton RTG Crane in a Regional Port: Improving Turnaround Times and Efficiency

At a regional port handling feeder services and medium-sized containers, the 35-ton RTG crane was deployed to improve the turnaround times for cargo vessels and increase the efficiency of the container stacking process.

• Challenge: The port faced issues with slow loading and unloading speeds, leading to extended vessel wait times and delays in cargo transportation. The previous equipment used was not agile enough for the compact yard, and container handling operations were slowed by inefficient stacking and retrieval of containers.
• Solution: By introducing the 35-ton RTG crane, the port was able to improve operational speed and flexibility. The high maneuverability of the crane allowed for efficient stacking and rapid container retrieval, particularly in areas where space was limited. The crane's ability to navigate narrow yard spaces also helped reduce the need for additional ground staff and equipment, cutting operational costs.
• Result: The 35-ton RTG crane significantly reduced vessel turnaround times by enhancing the speed of container handling. This led to an overall increase in port throughput, with a noticeable reduction in congestion and a more streamlined workflow.

41 Ton RTG Crane in a Transshipment Hub: Increased Cargo Handling Capacity and Reduced Wait Times

A 41-ton RTG crane was deployed at a transshipment hub where containers were transferred between larger vessels and smaller feeder ships. This port serves as a key point in the global supply chain, handling a high volume of containers every day.

• Challenge: The hub faced difficulties in handling high-volume container traffic, especially when dealing with oversized cargo and heavy containers. There was a need to increase the cargo handling capacity to meet the demands of large international vessels while minimizing port congestion and wait times.
• Solution: The 41-ton RTG crane was introduced to improve the capacity for handling larger containers and heavy-lift operations. The crane’s higher lifting capacity allowed it to handle bulkier containers, while its advanced control systems helped maintain speed and precision even under high-demand conditions. This flexibility proved essential in managing a range of different cargo types.
• Result: The introduction of the 41-ton RTG crane led to an increase in cargo handling efficiency, reducing waiting times for vessels. The crane’s ability to handle oversized containers and operate efficiently in a busy transshipment environment helped the port manage a higher throughput without compromising on safety or precision.

70 Ton RTG Crane in a Major International Port: Handling Large Cargoes and Reducing Port Congestion

A 70-ton RTG crane was deployed at a major international port known for handling high-volume container traffic and oversized cargo. The port had been struggling with port congestion, especially during peak shipping seasons, where handling large containers and heavy cargoes efficiently became a challenge.

• Challenge: The main issue faced by the port was the slow processing of large and heavy containers, which caused a backlog and increased port congestion. The existing cranes could not handle the heavier loads efficiently, leading to delays in unloading and stacking operations.
• Solution: The 70-ton RTG crane was deployed to increase the port's heavy-lifting capacity. It was able to handle larger containers with greater lifting power, significantly improving turnaround times. The crane’s advanced automation and remote-control features ensured precise lifting and positioning, while its high mobility allowed it to quickly move containers within the yard.
• Result: The 70-ton RTG crane played a crucial role in reducing port congestion by handling large cargoes more efficiently. The crane's higher capacity allowed the port to meet the growing demand for oversized containers and heavy-lift operations, improving overall throughput and reducing vessel wait times. The crane also enhanced safety by reducing human error and increasing operational precision.

These case studies illustrate the significant impact that RTG container cranes can have on port operations. From improving turnaround times at regional ports to increasing cargo handling capacity in high-volume transshipment hubs, and reducing port congestion in major international ports, these cranes are critical to enhancing the efficiency and flexibility of container yard operations. The ability to adapt the crane's capacity to meet the specific demands of each port environment ensures that RTG cranes remain a vital investment for improving global supply chains.

Conclusion: Customized RTG Container Crane for Your Needs

As global trade continues to expand and the demand for faster, more efficient container handling rises, RTG (Rubber Tyred Gantry) cranes play a pivotal role in the operation of modern ports and container yards. These versatile cranes, available in various capacities such as 35 Ton, 41 Ton, and 70 Ton variants, provide the flexibility and performance needed to handle the increasing volume and complexity of containerized cargo. Let’s recap the key benefits and applications of these powerful machines, and explore what the future holds for the evolution of RTG cranes.

Hot Sale 35 Ton, 41 Ton, and 70 Ton RTG Container Cranes

The different RTG crane capacities cater to various port sizes and operational demands:

• 35 Ton RTG Cranes are ideal for smaller ports and container terminals where efficient handling of feeder containers and smaller loads is essential. Their mobility and cost-effectiveness make them well-suited for high-throughput operations in compact environments.
• 41 Ton RTG Cranes offer a balance between capacity and versatility, making them perfect for medium-sized terminals and transshipment hubs. These cranes excel in intermodal operations, where containers are frequently moved between ships, trucks, and rail, and are critical for improving operational speed and reducing wait times.
• 70 Ton RTG Cranes represent the heavy-duty solution for large international ports and terminals that handle oversized and heavier containers. Their superior lifting capacity ensures smooth operations in high-volume settings, particularly for ports managing large transshipment flows and high-value cargo.

Each capacity offers unique strengths, addressing the specific needs of various port environments, from small regional terminals to major international hubs.

In conclusion, the RTG crane’s ability to adapt to different port sizes and operational needs, combined with ongoing technological advancements, ensures its continued relevance in the future of global port operations. As the industry moves toward more efficient, automated, and sustainable practices, RTG cranes will remain at the forefront of shaping the future of container handling.
