Low Headroom Wire Rope Hoist

Low Headroom Wire Rope Hoist

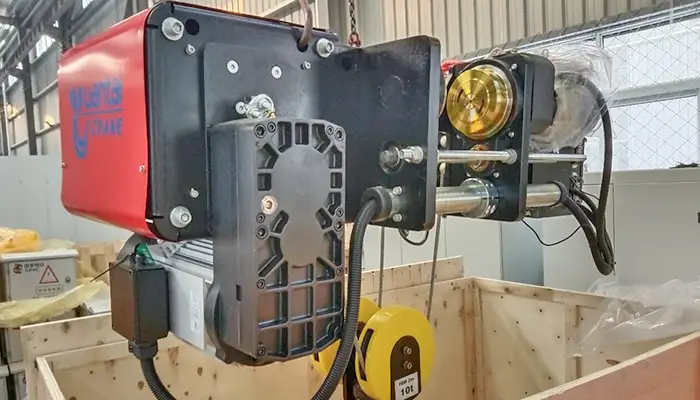

Electric Rope Hoist 20 Ton for Single Girder Cranes

Electric Rope Hoist 20 Ton for Single Girder Cranes

Product Type: NR
Lifting Capacity: 1 ton-20 ton
Span: -
Lifting Height:  1-120 m
Working Class: M5
Ambient Temperature: -20-+40 ℃
Inquiry


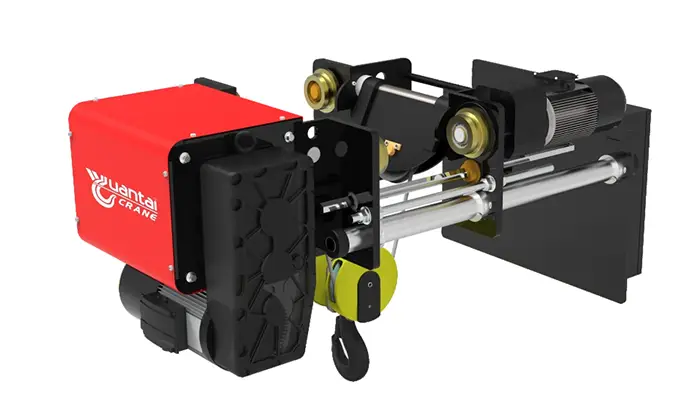

Electric Wire Rope Hoist for single girder cranes, wide hoist specifications, up to 20 ton. Pendent & remote control. Check rope hoist specifications now.

Electric rope hoist is an advanced electric wire rope hoist, which are designed d and processed according to ISO, GB, FEM, DIN, BS standards. The single girder type rope hoist is widely used on single girder cranes including the overhead cranes, gantry cranes & box girder jib cranes. With European style design, electric wire rope hoist possess the unique features of small and compact size, light weight, simple and easy operation. It is favored by clients from European advanced countries, including Germany and America as an cost-effective substitution of its counterparts such as Demag Rope Hoist & Kone Rope Hoist.




Standard Supply Scope - Yuantai Crane, Better Crane

  • Lifting Capacity: 1-20 ton
  • Lifting Height: 1-120 m
  • Voltage: 220-440V 50/60Hz 1/3Phase
  • Protection Class: IP44-IP55
  • Working Temperature: -20-+40 ℃
  • Lifting Mechanism: -
  • Color: Blue, Yellow, Customized

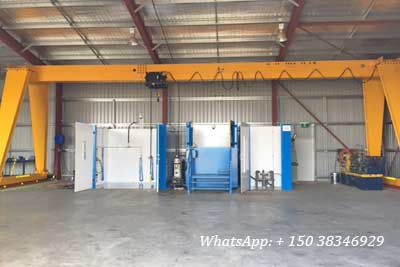

  • Applications: single girder overhead crane, single girder gantry crane, jib hoist crane, etc.

Applications of the single girder crane hoist

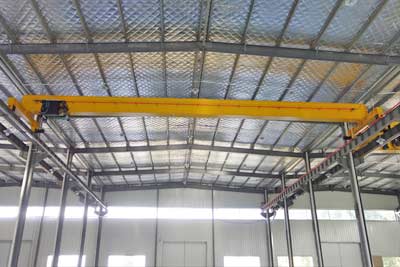

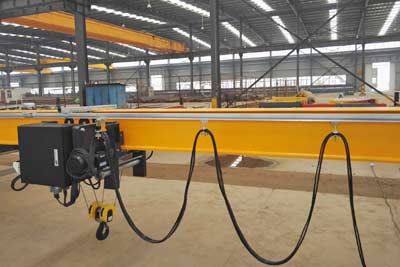

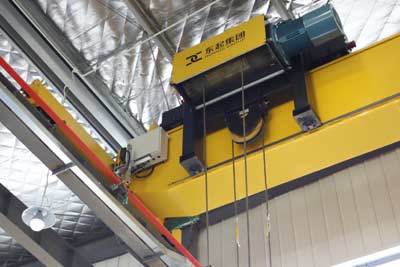

The single girder crane electric hoist is in high configuration, which is usually suspended on the low flange of the crane girder, which can provide maximum of lifting height at minimum of cost. And also, it can be used on our particular designed low headroom overhead crane, where the rope hoist is installed a trolley and the trolley is placed on aside of the main girder, which provide the largest lifting height for low headroom workshops.

It has a modular design, compact structure, low headroom, low noise, low energy consumption, more stable operation, improved efficiency, and a maintenance-free characteristic as compared to conventional cd/md type electric wire hoists. The electric wire rope hoist soon gained popularity in the home market after its release. It is quite affordable compared to the electric hoist of major worldwide brands, and it is adored by customers word widely. The European style electric wire rope hoist now is our star hoisting equipment, which is hot sale with types of cranes.

Advantage of electric wire rope hoist

Electric rope hoist for single girder crane

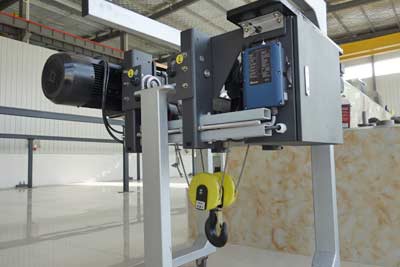

  • Compact design, light weight, low wheel pressure, maximum use of available space, cost effectiveness price
  • Modular design, low maintenance, and full spare parts service
  • Adopt low clearance design to enhance workshop hoisting area, save construction costs, and conserve building height for client workshops.
  • Selected high-quality components that are quiet, dependable, and long-lasting
  • High sustainable work efficiency, precise positioning, and effective operation
  • Safe and dependable, operational oversight, and simple to fix

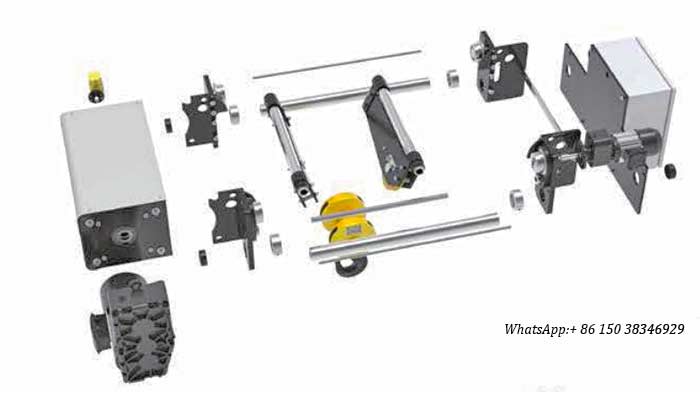

Main components of rope hoist

electric wire rope hoist for single girder crane

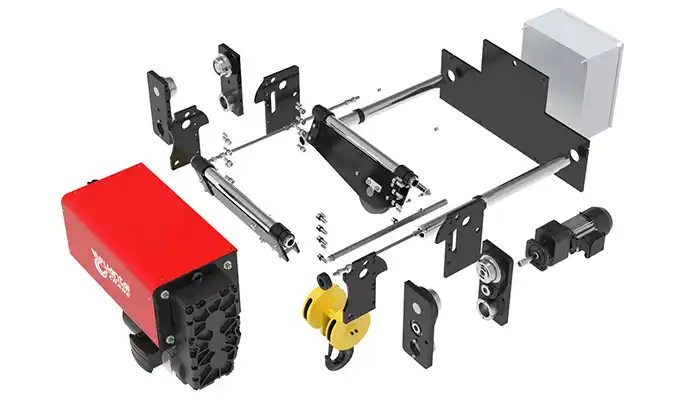

  1. Lifting motor reducer
  2. Lifting motor
  3. Drum assembly
  4. Trolley frame
  5. Trolley travelling mechanism
  6. Hook assembly
  7. Wire rope
  8. Electrics cabin

Features of electric rope hoist for single girder crane

Hoist motor
  • Compared to the conventional electric hoist, the motor power is lowered by 30%.
  • The work efficiency is increased by more than 20% thanks to the sophisticated use of variable frequency positioning technology.
  • The overall noise level of the machine is under 70 dB.
  • The brake pads include a non-asbestos construction.
  • The slide friction between the nylon rope guide and steel wire rope, drum creates no metal dust, giving workers a highly hygienic working environment.

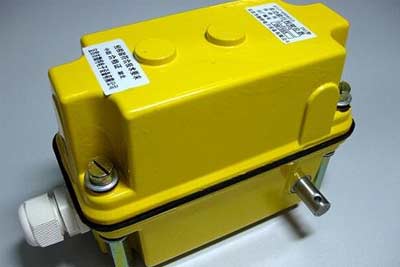

Electric rope hoist height limiterThe height limiter has greater accuracy and a larger adjustment range,  and having no topping issues;

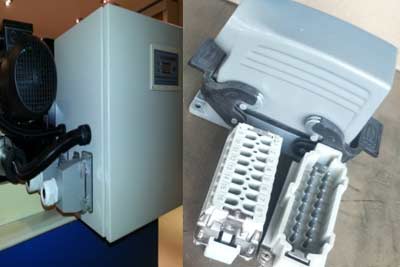

Aviation plug, easy to install;Aviation plug, easy to install;

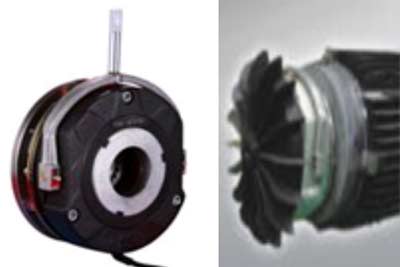

Modern disc brakes Modern disc brakes have a service life of over 1 million cycles without adjusting, are properly sealed, and are dust-free;

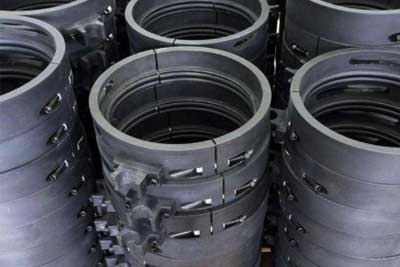

Industrial plastic rope guidesIndustrial plastic rope guides are lightweight, have good wear resistance, and significantly slow down wire rope deterioration.

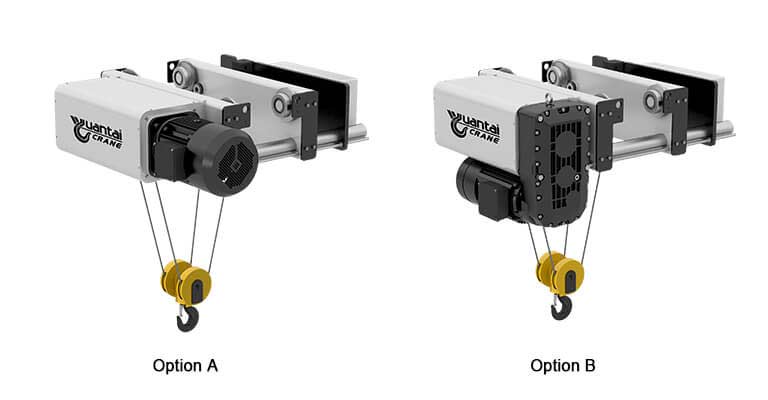

Motor Options

Option A: Co-axial design of drum and lifting motor makes the structure compact and reasonable.
Option B: Compact C-design structure significantly increases the lifting height which effectively reduces the height of the plant.

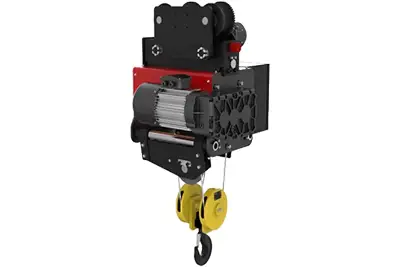

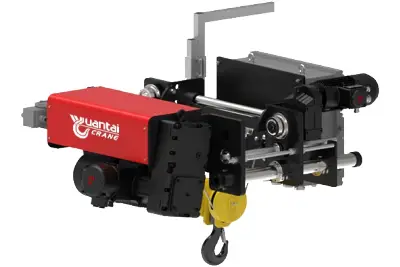

More options of single girder crane hoist

Technical Parameters & Specifications

With the qualities of being energy-efficient, cost-effective, and environmentally friendly, the new series of European style electric rope hoists is typically utilized on European cranes and FEM Cranes. With a working class of M5 and M6, the European wire rope electric hoist has a lifting capacity of 1 ton to 20 tons for single girder cranes and 3.5 ton to 80 tons for double girder cranes. There are single girder crane hoists that can be customized. And for your reference, the key parameters are shown as following. Customized designed rope hoist for single girder crane is available. Contact us today!

Capacity
(Kg)

Working grade
FEM

Working grade
IOS

Lifting height
(m)

Lifting speed
(m/min)

Travelling speed
(m/min)

3.2 ton

2m

M5

6/9/12/15/18

0-5.0

0-20

3.2 ton

2m

M5

6/9/12/15/18

0-8.0

0-20

5 ton

2m

M5

6/9/12/15/18

0-5.0

0-20

5 ton

2m

M5

6/9/12/15/18

0-8.0

0-20

8 ton

2m

M5

6/9/12/15/18

0-4.0

0-20

8 ton

2m

M5

6/9/12/15/18

0-4.5

0-20

10 ton

2m

M5

6/9/12/15/18

0-4.0

0-20

10 ton

2m

M5

6/9/12/15/18

0-4.5

0-20

12.5 ton

2m

M5

6/9/12/15/18

0-4.0

0-20

12.5 ton

2m

M5

6/9/12/15/18

0-5.0

0-20

16 ton

2m

M5

6/9/12/15/18

0-4.4

0-20

16 ton

2m

M5

6/9/12/15/18

0-5.0

0-20

20 ton

2m

M5

6/9/12/15/18

0-3.5

0-20

20 ton

2m

M5

6/9/12/15/18

0-5.0

0-20

FEM European Standards for hoist and cranes

FEM European standards for hoist and cranes of one of the European hoist and crane standards, such as, e.g. DIN STANDARDS (Germany), BSI STANDARDS (United Kingdom) BSI, CEN STANDARDS, etc.
The FEM European(Federation Europeenne de la Manutention) has published standards specifically for material handling and lifting hoist and crane equipment. Some of the primary ones of the Federation Europeenne de la Manutention (FEM European; website www.fem-eur.com) are:

  • FEM European 1.002 Illustrated Terminology of Heavy Lifting Equipment
  • FEM European 9.811 Rope and Chain Hoists – General Specifications
  • FEM European 9.511 Rules for the Design of Series Hoist and Crane Lifting Equipment - Classification of
  • Mechanisms
  • FEM European 9.661 Rules for the design of Series Hoist and Crane Lifting Equipment - Dimensions and
  • Design of Rope Reeving Components
  • FEM European 9.683 Selection of Hoist and Travel Motors
  • FEM European 9.852 Power Driven Series Hoist Mechanisms, Standardized Test
  • Procedure for Verification of the Classification
  • FEM European 9.755 Measures for Achieving Safe Working Periods for Motorized Serial
  • Hoist Units (S.W.P.)
  • FEM European 9.751 Power Driven Series Hoist Mechanisms, Safety
  • FEM European 9.901 Rules for the Design of Series Lifting Equipment and Cranes Equipped with Series Lifting Equipment
Get a quote

Get In Touch Now

Need Latest Crane Price? Please leave us the required Crane's Capacity, Lifting Height, Span, Travelling Length & Voltage for Quick Quotation.
