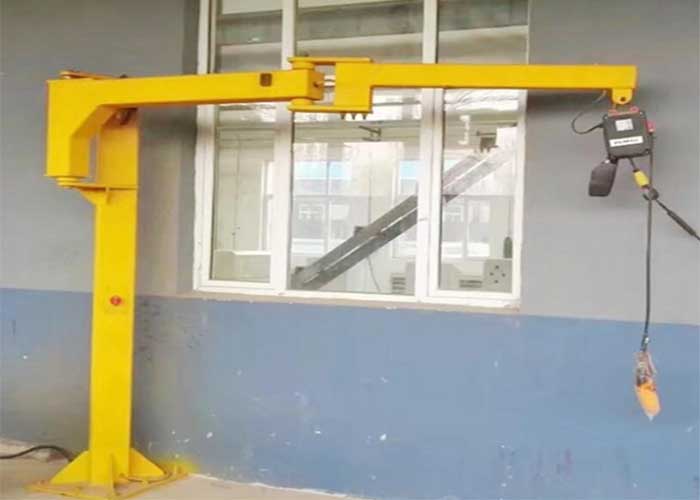

Floor Jib Crane

Floor Jib Crane
Articulating Jib Crane, Light Jib Crane for Sale,Leading Supplier

Articulating Jib Crane, Light Jib Crane for Sale,Leading Supplier

Product Type: ZB
Lifting Capacity: 0.1-500KG
Span: 3200-3300mm
Lifting Height: 3400-3500mm
Working Class: A3,A4
Ambient Temperature: -20-+40 ℃
Inquiry

Articulating Jib Crane, Light Jib Crane for Sale,Leading  Crane Supplier in China

Articulating jib crane for sale, customized light duty jib crane from China, cost-effective articulated jibs for limited workshops & workstation. Check now.

Articulating jib cranes are a type of jib crane that have a flexible arm that can be adjusted to reach around obstacles. They are commonly used in industrial settings for material handling and can provide a versatile solution for moving loads in tight spaces.

The articulated jib crane has the characteristics of novel structure, flexible extension and contraction, flexible practical operation, high efficiency, environmental protection and energy saving. In actual operation, press the button to lift the load, use the bending and rotation of the load-bearing beam to exercise, and bypass the blocks in the operating area to maximize the operating area. With a light shuttle door, you can reach any part of the safe operating area.

The design of the articulated jib crane is effective, with fast operating speed, flexible extension and contraction, and flexible operation. It can bypass objects within the working range very well. The lifting quality of the articulated jib crane is between 250 and 600 kg, and consumers can choose the rated lifting weight according to their own regulations."

There are two main types of articulating jib cranes:

  • Wall-mounted articulating jib crane: This type of crane is mounted on a wall and can rotate 180 degrees. The flexible arm can be adjusted to reach around obstacles and provide greater precision in material handling.
  • Floor-mounted articulating jib crane: This type of crane is mounted on a pedestal and can rotate 360 degrees. The flexible arm can be adjusted to reach around obstacles and provide greater precision in material handling.

Articulating jib cranes offer several features, including:

  • Flexible arm that can be adjusted to reach around obstacles
  • Ability to lift and move loads with precision
  • Can be mounted on a wall or floor, depending on the application
  • Available in a range of weight capacities and spans

Articulating jib cranes are commonly used in a variety of applications, including:

  • Manufacturing and production facilities
  • Assembly lines
  • Maintenance and repair facilities
  • Warehouses and distribution centers

They offer several advantages, including:

  • Ability to lift and move loads with precision, even in tight spaces
  • Versatile solution for material handling
  • Can improve productivity and safety in the workplace
  • Can be customized to meet specific needs and requirements

In summary, articulating jib cranes are an important type of crane used in industrial settings for material handling. They offer several features and advantages, including a flexible arm that can be adjusted to reach around obstacles, the ability to lift and move loads with precision, and a versatile solution for material handling in tight spaces.

Floor mounted articulating jib cranes

A floor-mounted articulating jib crane is a type of jib crane that is mounted on a pedestal or base on the floor, and can rotate 360 degrees. It has a flexible arm that can be adjusted to reach around obstacles and provide greater precision in material handling.

The main structure of a floor-mounted articulating jib crane consists of a vertical mast that is mounted on a pedestal or base, and a horizontal arm that extends from the mast. The horizontal arm is attached to the mast with a pivot point that allows it to rotate 360 degrees.

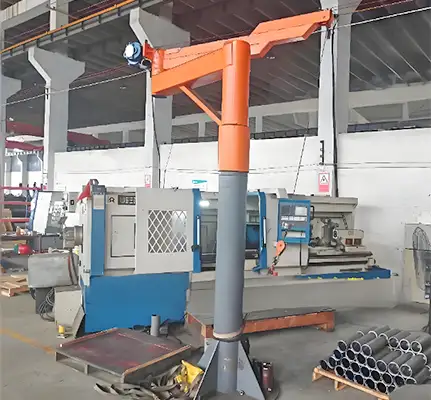

Floor mounted articulating jib crane for sale

Pillar-Mounted Articulating Jib Crane

Pillar-mounted articulating jib crane parameters:

  • Rated capacity: 0.1-0.5t
  • Turning degree: 360°
  • L: 3200-3300mm
  • R1: 1500mm
  • R2: 1500mm
  • H: 3400-3500mm
  • h: 2500mm

The components of a floor-mounted articulating jib crane are similar to those of a wall-mounted articulating jib crane, and include:

  • Mast: The mast is the vertical structure that supports the horizontal arm and allows it to rotate.
  • Arm: The arm is the horizontal structure that extends from the mast and supports the hoist and trolley.
  • Pivot point: The pivot point is the connection between the mast and the arm that allows the arm to rotate.
  • Hoist: The hoist is the component that lifts and lowers the load.
  • Trolley: The trolley is the component that moves the hoist along the length of the arm.
  • Control system: The control system is the component that allows the operator to control the movement of the crane.
  • Foundation: The foundation is the base on which the crane is mounted and provides stability for the crane.

Floor-mounted articulating jib cranes offer several features and advantages, including:

  • Flexible arm that can be adjusted to reach around obstacles
  • Ability to lift and move loads with precision
  • Can rotate 360 degrees, providing greater coverage area
  • Available in a range of weight capacities and spans
  • Can be customized to meet specific needs and requirements

Floor-mounted articulating jib cranes are commonly used in a variety of applications, including:

  • Manufacturing and production facilities
  • Assembly lines
  • Maintenance and repair facilities
  • Warehouses and distribution centers

In summary, a floor-mounted articulating jib crane is an important type of crane used in industrial settings for material handling. It offers several features and advantages, including a flexible arm that can be adjusted to reach around obstacles, the ability to lift and move loads with precision, and a 360-degree rotation capability providing greater coverage area. It can be customized to meet specific needs and requirements, and is commonly used in a variety of applications.

Wall mounted articulation jib cranes

A wall-mounted articulating jib crane is a type of jib crane that is mounted on a wall and can rotate 180 degrees. It has a flexible arm that can be adjusted to reach around obstacles and provide greater precision in material handling.

The wall-mounted articulating jib crane is typically used in industrial settings for material handling and can provide a versatile solution for moving loads in tight spaces. It is available in a range of weight capacities and spans, and can be customized to meet specific needs and requirements.

Wall mounted articulating jib crane



Wall-mounted articulating jib crane parameters:

  • Rated capacity: 0.1-0.5t
  • Turning degree: 360°
  • L: 3200-3300mm
  • R1: 1500mm
  • R2: 1500mm
  • H: 3400-3500mm
  • h: 2500mm

Main structure and components of wall mounted articulating jib cranes

The main structure of a wall-mounted articulating jib crane consists of a vertical mast that is mounted on a wall, and a horizontal arm that extends from the mast. The horizontal arm is attached to the mast with a pivot point that allows it to rotate 180 degrees.

The components of a wall-mounted articulating jib crane include:

  • Mast: The mast is the vertical structure that supports the horizontal arm and allows it to rotate.
  • Arm: The arm is the horizontal structure that extends from the mast and supports the hoist and trolley.
  • Pivot point: The pivot point is the connection between the mast and the arm that allows the arm to rotate.
  • Hoist: The hoist is the component that lifts and lowers the load.
  • Trolley: The trolley is the component that moves the hoist along the length of the arm.
  • Control system: The control system is the component that allows the operator to control the movement of the crane.
  • Foundation: The foundation is the base on which the crane is mounted and provides stability for the crane.

The components of a wall-mounted articulating jib crane work together to provide a versatile solution for material handling in tight spaces. The flexible arm allows the crane to reach around obstacles and provide greater precision in material handling, while the hoist and trolley provide lifting and moving capabilities. The control system allows the operator to control the movement of the crane, while the foundation provides stability for the crane.

Some of the features of a wall-mounted articulating jib crane include:

  • Flexible arm that can be adjusted to reach around obstacles
  • Ability to lift and move loads with precision
  • Can be mounted on a wall, saving valuable floor space
  • Available in a range of weight capacities and spans
  • Can be customized to meet specific needs and requirements

Wall-mounted articulating jib cranes are commonly used in a variety of applications, including:

  • Manufacturing and production facilities
  • Assembly lines
  • Maintenance and repair facilities
  • Warehouses and distribution centers

They offer several advantages, including:

  • Ability to lift and move loads with precision, even in tight spaces
  • Versatile solution for material handling
  • Can improve productivity and safety in the workplace
  • Can be customized to meet specific needs and requirements

In summary, a wall-mounted articulating jib crane is an important type of crane used in industrial settings for material handling. It offers several features and advantages, including a flexible arm that can be adjusted to reach around obstacles, the ability to lift and move loads with precision, and a space-saving design.

FAQ on Articulating Jib Crane

What is an articulating jib crane? An articulating jib crane is a type of crane that has a multi-jointed arm that allows for increased flexibility and range of motion.

1. What are the benefits of using an articulating jib crane?

Articulating jib cranes offer several benefits, including:

  • Increased flexibility: Articulating jib cranes have a flexible arm that can move in multiple directions, making them ideal for use in tight spaces or areas with obstacles.
  • Improved precision: The articulating arm allows for more precise positioning of the load, reducing the risk of damage to the load or surrounding structures.
  • Enhanced safety: Articulating jib cranes can be equipped with safety features such as overload protection and anti-sway technology, reducing the risk of accidents or injuries.
  • Increased productivity: The flexibility and precision of articulating jib cranes can help to increase productivity by reducing the time and effort required to move loads.

Overall, articulating jib cranes are a versatile and efficient solution for lifting and moving loads in a variety of settings.

2. How does an articulating jib crane differ from a traditional jib crane?

An articulating jib crane, also known as a knuckle boom crane, differs from a traditional jib crane in its design and capabilities. While a traditional jib crane has a fixed arm that can only move in a vertical or horizontal direction, an articulating jib crane has multiple hinged sections that allow for greater flexibility and maneuverability. This means that the arm of an articulating jib crane can reach difficult-to-access areas and can be adjusted to avoid obstacles. Additionally, articulating jib cranes are often more compact than traditional jib cranes, making them ideal for use in tight spaces.

3. What industries commonly use articulating jib cranes?

Articulating jib cranes are commonly used in a variety of industries for material handling and lifting purposes. Some of the industries that commonly use articulating jib cranes include:

  • Manufacturing: Articulating jib cranes are used in manufacturing facilities to lift and move heavy materials and products during the production process.
  • Construction: Articulating jib cranes are used on construction sites to lift heavy equipment and materials to different levels of a building or structure.
  • Warehousing: Articulating jib cranes are used in warehouses to move heavy items from one location to another, such as loading and unloading trucks or transporting products within the warehouse.
  • Shipping: Articulating jib cranes are used in shipping yards and ports to load and unload cargo from ships.
  • Mining: Articulating jib cranes are used in mining operations to lift heavy equipment and materials to different levels of a mine.

Overall, articulating jib cranes are versatile tools that can be used in many different industries for a variety of lifting and material handling tasks.
