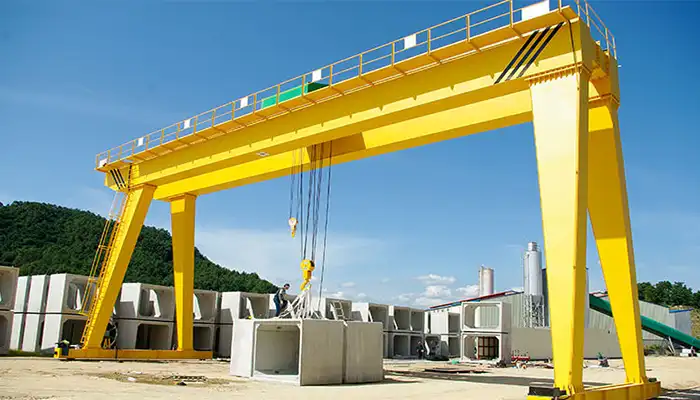

25 ton gantry crane for sale. Types of gantry crane designs & configurations for your selection, cusotmized 25 ton gantry crane specifications for your applications.
A 25 ton gantry crane has a wide range of applications, including workstations, industrial sites, warehouses, factories, railway construction sites, and material handling plants. This type of crane has a large capacity, high efficiency, a simple structure, and is simple to operate. Its primary modes of operation are remote ground control, remote cabin control, and wire control.
A 25 ton gantry cranes are available of various gantry crane designs and configurations , such as, cantilever gantry cranes, container gantry cranes, single girder gantry cranes, double girder gantry cranes, light duty gantry cranes, heavy duty gantry cranes, rail mounted gantry cranes, and rubber tyred gantry cranes, etc. As a leading overhead crane and gantry crane manufacturer, the customized 25 ton gantry crane with tailored specifications are available from us. Contact us today to get your customized gantry crane design today.
Aside from standard gantry cranes, we also have overhead bridge cranes, pillar jib cranes, chain hoists, wire rope hoists,, construction winches, and marine winches. If you are interested, please send a quote to our email address.
25 ton gantry cranes designs
Gantry cranes are classified into several types based on the type of supporting structure and application. Here are some of the most common types of gantry cranes.
Full-Gantry Crane
It is one of the most common types of gantry cranes, with two supporting legs that can move across fixed rails. The full gantry crane is typically used in a designated area. Trucks are permitted to pass beneath the gantry crane. The trolley moves within the main span, and there is no overhang on the main beam.
Full gantry crane 25 ton parameters:
Lifting Capacity: 3t~26t
Span Length: 12~30m
Lifting Height: 6~18m
Working Class: A3, A4
Traveling Speed: 20~30m/min
Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min
Semi-Gantry Crane
a semi-gantry crane is also called single leg gantry cranes which with one leg runs along the ground rail, while the other end supported along a runway system attached to a wall or other vertical structure. Depending on your construction site or requirements, you can determine the height difference between the two legs
25 ton semi gantry crane parameters:
Span: 12-30m
Lifting height: 6-12m
Lifting speed: 6-11.5m/min
Trolley running speed: 37-40.1m/min
Crane running speed: 37.7-40.1m/min
Work duty: A3-A6
Single Girder Gantry Crane
The single girder gantry crane consists of only a single girder as the main beam. The trolley and hoist are usually suspened on the lower part of the main girder. They run on the bridge's underside. It is frequently a light-to-medium-duty gantry crane that is appropriate for areas with limited floor space and low headroom. It also offers low-cost lifting solutions.
Single girder gantry crane 25 ton parameters:
Lifting Capacity: 3t~26t
Span Length: 12~30m
Lifting Height: 6~18m
Working Class: A3, A4
Traveling Speed: 20~30m/min
Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min
Double Girder Gantry Crane
The double beam gantry crane, on the other hand, is made up of two girder beams that are made of box girder & truss girder design. The double girder gantry crane are used for heavy duty load handling, with high safety and efficiency.
Double girder 25 ton gantry crane parameters:
Span: 18-35m
Lifting height: 6-18m
Lifting speed: 1.5-11.5m/min
Trolley running speed: 10-40.1m/min
Crane running speed: 16-50m/min
Work duty: A3-A7
Applications of Gantry Crane
If you need to move heavy loads, a gantry crane may be beneficial to your company. A gantry crane differs from an overhead bridge system in that it does not require a building structure or column to support the crane and is mounted on self-supporting legs. It is also easily disassembled, rentable, and less expensive.
The 25 ton gantry crane is ideal for loading and unloading and handling materials within a fixed span at stations in factories, warehouses, ports, and freight yards. Gantry cranes can be outfitted with a variety of lifting devices to accommodate different workplaces or work processes. Hook gantry cranes, grab gantry cranes, and electromagnetic gantry cranes are the most common.

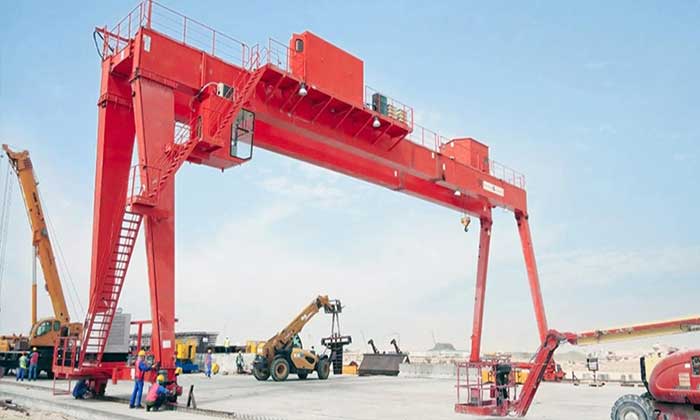

Hook gantry cranes, which use hooks as fetching devices, are common in machining shops, warehouses, and freight yards.

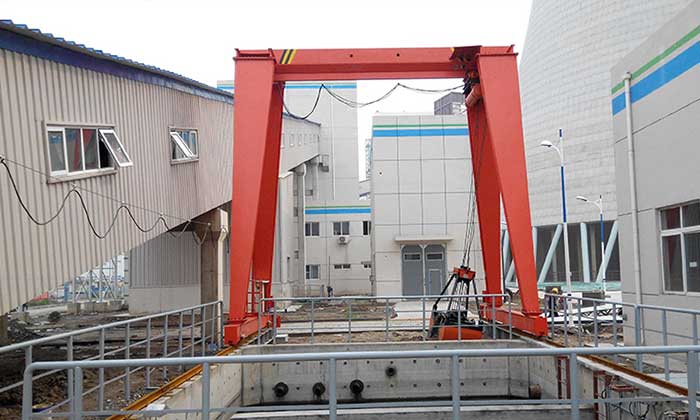

Grab gantry cranes use grabs as fetching devices and are commonly used for loading, unloading, and lifting bulk cargo in warehouses, material yards, and open-air cargo yards.

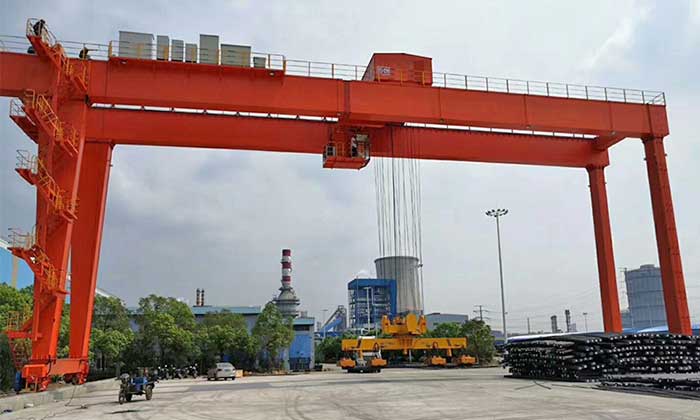

An electromagnetic gantry cranes is equipped with electromagnetic chuck that can be detached. It's commonly used in metallurgical and mechanical processing workshops to assemble and transport magnetically permeable black products and materials like steel ingots, section steel, pig iron blocks, scrap iron and scrap steel, and so on.
The following are some of the most common industries where they are used:
Gantry cranes are designed for the safe and efficient transferring of heavy loads. Using a gantry crane frees up more floor space while improving safety and efficiency in handling heavy loads. A gantry is frequently required to transport complex and often delicate equipment—expensive equipment that must be handled with care.
A gantry crane does not need to be installed into a building's support framework, so no permanent columns or runway beams are required. As a result, using a gantry crane is a cost-effective solution with obvious budget advantages.
Gantry cranes have a number of benefits because they are adaptable. The following are some crucial advantages of gantry cranes that you need to be aware of:
Cost-Efficient
Gantry cranes make it safe and economical to move heavy objects. It is designed to meet the particular needs of many industries, making it easier and more efficient for them to handle materials. The gantry cranes are used in many different places, including power plants, water treatment facilities, and mechanical facilities. Gantry cranes are the optimum lifting equipment if you require it for any of these facilities.
Outdoor-Friendly
Another significant benefit of having gantry cranes is the ability to operate them outside. These cranes do not require any external installation because they are freestanding design. Because of their large size, gantry cranes are commonly found at shipping yards or container terminals.
Gantry crane design, get your 25 ton gantry crane price
In order to fully satisfy our clients, we are committed to provide high-quality gantry cranes and the best services. In addition to gantry cranes, we also offer additional lifting systems for a range of uses, including overhead cranes, jib cranes, hoists, construction winches, and marine winches.
To ensure high-quality hoists and crane, all of our gantry cranes are produced in accordance with manufacturing and design standards and are subject to stringent quality control. In accordance with the applicable contract, we also offer commissioning, installation, and maintenance services. As a top manufacturer and supplier of gantry cranes, we put a lot of emphasis on equipment research and development as well as crane structure optimization to increase its effectiveness and performance. The best driver for us to stay ahead is the high level of client happiness.
Contact us right away if you're interested in a 15-ton gantry crane to receive the best lifting solution and a competitive price. awaiting our collaboration with you!
