5 Ton Gantry Crane- Single Girder Gantry Crane Design 5 Ton

5 Ton Gantry Crane- Single Girder Gantry Crane Design 5 Ton

Product Type: 5 Ton Single Girder Gantry Cra
Lifting Capacity: 5 ton, 5000kg
Span: As request
Lifting Height: as your requirement
Working Class: A3-A5
Ambient Temperature: -20-+40 ℃
Inquiry

Gantry Crane for sale 5 Ton, single beam girder, suspension hoist, remote control & pendant control gantry crane 5 ton for sale.

5 Ton Single Girder Gantry Crane for Sale

A single girder gantry crane is a gantry crane with a single girder/beam structure. The lifting mechanism is usually a wire rope hoist traveling on the single girder, and the crane traveling on the rail track fixed on the ground/floor. Single-girder gantry crane beams are made by section steel or welded box girder or lattice girder or truss gantry cranes.

A gantry crane with a single girder/beam structure is known as a single girder gantry crane. The lifting mechanism is usually a wire rope hoist suspended on the main girder which is mounted on the supporting legs, which are motorized to travels along ground rail or tracks on the ground/floor. Section steel or welded box girder or lattice girder designs are available for the single girder gantry cranes. Contact us to get your customized single girder gantry cranes 5 ton .

Main types of structure designs of 5 ton single girder gantry cranes

We are dedicated to offering our clients the most effective and affordable single girder gantry crane solutions, along with one-source crane services. For different application, the single beam gantry cranes can be designed with the suitable gantry crane solutions. Our series of  single girder gantry cranes are  consisted of the  MH type  electric hoist single girder gantry cranes, with full gantry crane design,  NMH European style electric hoist gantry cranes with full gantry crane design , BMH semi-gantry cranes with European style & Chinese style, etc.

Standard single girder gantry cranes for selection at economical price.

Economical electric hoist single girder gantry crane 5 ton

Economical electric hoist single girder gantry crane 5 ton

It is used as a standard crane in a variety of industries, it provides excellent power for light duty lifting applications.

Optional hoists: cd/md wire rope hoist & electric chain hoists.



Contact us to get customized electric hoist 5 ton gantry crane  with your tailored specifications now.

Single leg single girder gantry crane

Single leg single girder gantry crane

Semi-gantry cranes, also commonly referred to as single leg gantry cranes, are the ideal choice for some prospective crane users who have space restrictions in their facilities. The half overhead crane, half gantry crane design can effectively reduce the amount of workspace needed by crane users, saving them a significant amount of money in additional costs.

Contact us to get customized single leg 5 ton gantry crane  with your tailored specifications now.

Truss girder single beam gantry crane:

Truss girder single beam gantry crane

 In some workplaces where a box type gantry crane is inappropriate, a truss girder gantry crane can be used. The truss structure is made to withstand conditions like sandstorms and strong winds. Because there are more welding points on this gantry lifting system than on a box type gantry crane, it requires more maintenance.

Contact us to get customized truss girder 5 ton gantry crane with your tailored specifications now.

Features

  • Single-girder gantry cranes offer a variety of material handling solutions even if your workshop and warehouse space is limited.
  • Based on the various connection methods of the main beam/girder and end carriages, the gantry crane can be designed to meet any clearance requirements and maximum hook lifting height.
  • Depending on the application, the single girder crane can be used both outdoors and indoors with full-form gantryand a semi-gantry,  A frame or L shape leg, box girder or truss girder, one cantilever, single cantilever or double cantilever,  or no cantilever based on your lifting requirements and application conditions.
outdoor gantry crane  5 ton with single girder design

A frame gantry crane 5 ton for indoor use, with no cantilever to fit into limited workshop and warehouse.  Equipped with low headroom hoist, the gantry crane provide better hook height.

L leg single girder gantry crane for sale good priceL leg gantry crane 5 ton for outdoor use, outdoor gantry crane is usually designed with cantilever on one side or both sides of main girder to enlarge working areas.
Cantilever gantry crane 5 ton for sale

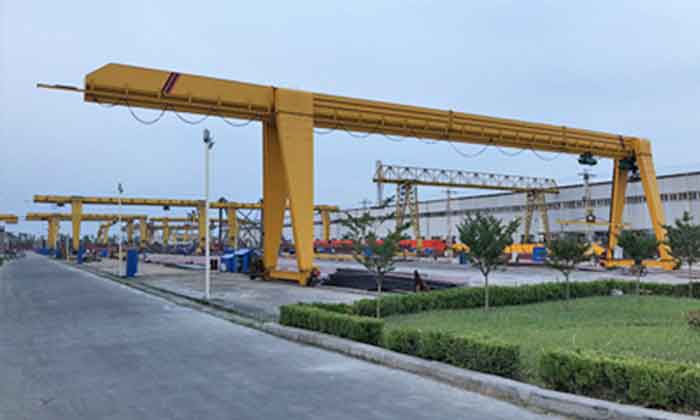

Single girder gantry crane with one cantilever for outdoor use, which is used for space limited application. The 5 ton gantry crane in the picture is located near the workshops at one side,therefor it adopts the single cantilever gantry crane design.

double cantilever gantry crane for outdoor use, 5 ton

Double cantilever single girder gantry crane with wire rope hoists for outdoor use. The 5 ton gantry crane  can have different types of electric hoist as the hoisting system. Contact us to get your customized 5 ton electric hoist gantry crane now.

Applications

Single girder gantry crane general-purpose material handling equipment with wide applications, which is usually used in factories and mines, workshops, station logistics sites, ports, docks, etc.

Outdoor gantry cranes, single girder gantry crane 5 ton for saleOutdoor gantry cranes
Indoor gantry cranes for indoor use 5 ton for saleIndoor gantry cranes

How to get customized gantry crane5 ton

Do you want to buy a 5 ton single girder gantry crane and do not know how to select the most suitble gantry crane design for your application ?  Yuantai Crane is here to help you to workout the 5 ton crane with tailored specification to meet all your industrial seting.

As a leading crane manufacturer in China, Yuantai Crane is able to provide types of overhead cranes, tailored to meet your needs.

To get exactly what meet your industrial crane needs, the following information are needed by  your crane manufacturer and then the accurate gantry crane price will be provided based on the specifications and parameters.

  • – Load capacity: ton?
  • – Span of the crane: m?
  • – Max. lifting height of the crane: m;
  • – Traveling length: m? Do you need us to provide the rail for you?
  • – How many hours will the crane work per day? How many times per hour?
  • – Electric Power supply: 3 phase 380V 50Hz?
  • – What kind of material will the crane lift?
  • – Other special requirements: Please let the crane manufacturer know if you have any special requests so that they can give you more accurate single girder gantry crane prices.

Related 5 ton gantry crane

5 ton portable gantry crane for sale

Portable gantry crane

The 5 ton portable gantry crane is a small but very verstile gantry crane, which can be easily relocated, with  roller travelling or rail travelling design. A very economical light gantry crane for sale.

double girder gantry crane 5 ton for sale

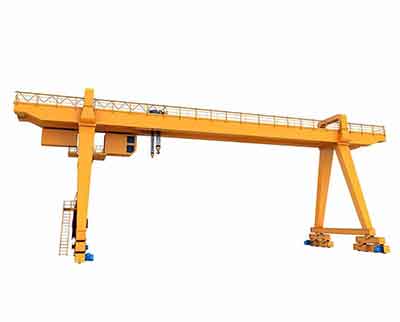

Double girder gantry crane

A double girder gantry crane is used for general handling in an open warehouse or on a rail, and other a variety of environments, primarily for moving objects outdoors and loading and unloading very heavy materials.
