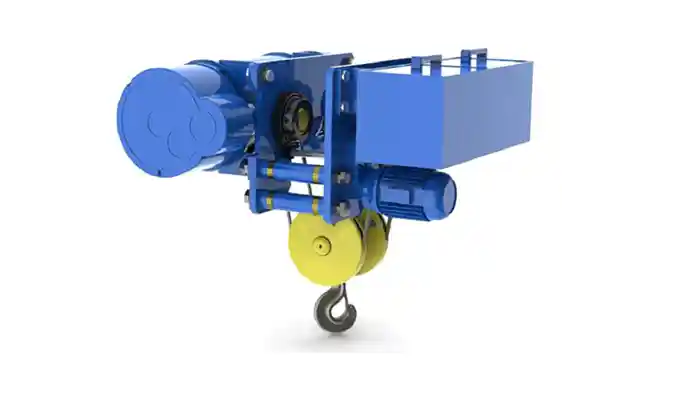

Overview of low headroom wire rope hoist 10 ton

Yuantai Crane low headroom & low  clearance wire rope hoist with motorized trolley for electric hoist crane is derived from CD / MD electric hoist. The product features a compact structure, single or double speed lifting, a high effective lifting stroke, and stable operation. It has a broad range of applications, particularly in new factory buildings. The height of the trip can be used to reduce the height of the building and thus the construction cost.

The low headroom wire rope hoist design minimizes beam-to-hook distance.

• Make more work space available above assembly bays to accommodate taller equipment designs.
• Reduce bridge crane profiles for low-height applications in existing structures.
• Lowering ceiling heights without sacrificing work space reduces new construction costs.

Yuantai Crane low headroom clearance wire rope hoist motorized trolley for crane application

The wire rope low headroom hoist is commonly used to lift heavy objects and can be mounted on the straight or curved I-steel beam of Single Girder Overhead Cranes. They can also be used in conjunction with gantry and slewing jib cranes.

Wire rope low headroom hoists are widely used in factories, plant workshops, warehouses, and stores; they are also used in logistic, dock, port, and freight yards; and they can be used in construction, mining, and other industries.

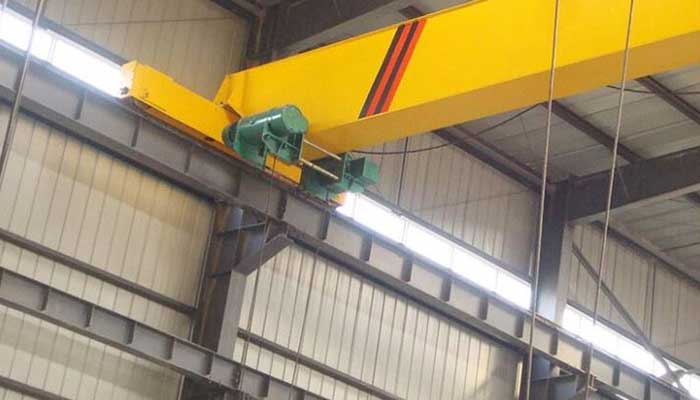

Single girder low headroom wire rope hoist for overhead crane

Features of 10 ton wire rope low headroom hoist

What are the structural characteristics of a low headroom wire rope electric hoist?

The main body of the 10 ton wire rope hoist has no leakage cables, and all cables are arranged inside the 10 ton hoist through various means to make the appearance of the 10 ton electric rope hoist more beautiful; for example, the support shaft is a hollow thick-walled steel pipe, under the premise of ensuring the strength of use. The overall weight of the electric hoist is reduced, and the cables of the hoist's left and right halves can be passed through it.

The hoist is compact in design, and the counterweight is of the box type. Users can add a variety of scrap steel or stones, for example, saving steel and reducing the overall size of the counterweight-type low headroom electric hoist.

The 10 ton low profile hoist is powered by an NF series helical gear reducer. The torque is transmitted by the driving wheels on both sides via a six-sided steel. The transmission torque is high, the reliability is high, and flat key shearing failure is avoided. The outer cover of the hoisting main unit is a square welded structure with mounting bolt holes on all sides, allowing for easy installation and adjustment of the running part of the hoist. It can be quickly converted to a fixed or suspended trolley-operated electric hoist, and the rope can be pulled out 360°.
