Portable Gantry Crane: Easy Move, Portable & Adjustable Design - Steel Gantry Series

Product Type:	Steel Gantry Crane
Lifting Capacity:	0.25~10t
Span:	2~12m
Lifting Height:	1~9m
Working Class:
Ambient Temperature:	-20~40℃
	Inquiry

Portable gantry crane, with portable swivel casters, adjustable beam & legs for light load lifting. Portable gantry crane, easy & affordable gantry hoist.

We design the portable gantry crane for your particular application. Portable gantry cranes are perfect for applications where you need a portable and economical way to lift materials anywhere in your facility.With durable polyurethane casters, the small steel gantry crane is able to mobile around your in and out of your facility.

Main specifications of wheel portable gantry cranes

Load capacity: 0.5 ton – 20 tons
Crane span: 2m – 8m or customized
Lifting height: 1m to 6m or customized
Hoist unit: Motorized or manual
Working duty: A3
Power source: Based on your power supply

Advantages of portable gantry cranes

The advantage of the wheel mounted mobile gantry crane is quick & easy to assembly, Simple and compact structure, light weight,easy maintenance.

Permanent installation is not required, better price.
Quick and easy to assembly.
Portable design allows for relocation for use in more than one facility or work area.
Gantry construction adopts standard welding method. All nuts, bolts, and pins are plated for corrosion resistance.
All Gantry Cranes are painted by safety standard paint.
Simple Gantry Crane work efficiently and economically

Types of portable gantry cranes

Wheel type mobile gantry crane is manufactured for light duty material handling, which is typically used for loading and unloading material in the warehouse, maintaining heavy-duty equipment , applicable for small and medium workshop, especially in areas where cranes are required to move freely. For different applications, the mobile gantry cranes can be designed with different structure and configurations. The main types of wheel type portables gantry cranes are as following:

Model: PT1 Series of portable gantry cranes with manual hoisting & travelling

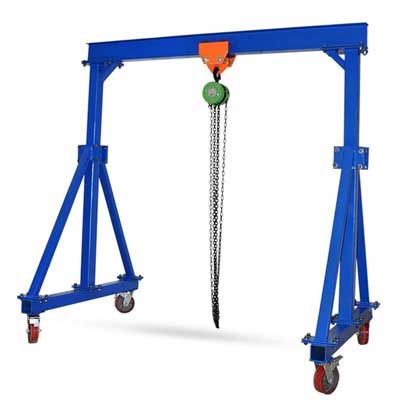

Model: PT-1 manual portable gantry crane
Max Capacity: 20 tons
Max Height:10 meters
Max Span:10 meters
Hoist Type: Manual chain block with trolley
Crane Travelling: Manual universal wheels

Model: PT2 Series of portable gantry crane with manual travelling wheel

Model: PT-2
Max Capacity: 20 tons
Max Height:12 meters
Max Span:12 meters
Hoist Type: Electric hoist with motorized trolley
Crane Travelling: Manual universal wheels

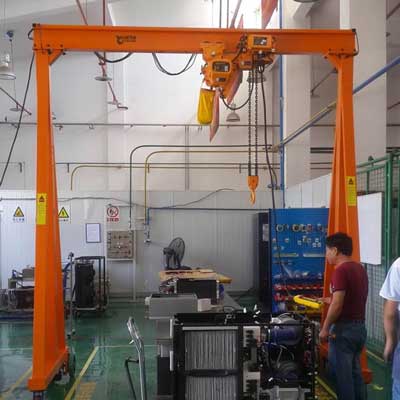

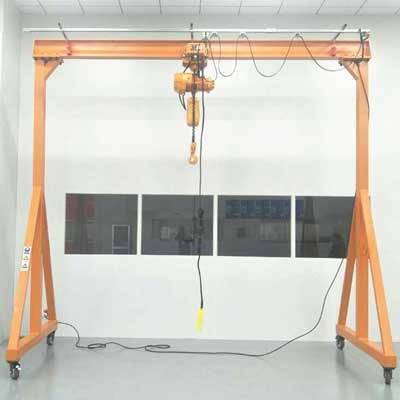

portable gantry crane with electric chain hoist and manual travelling wheel

Model: PT3 series of portable gantry crane with motorized wheel

Model: PT-3 motorized portable gantry
Max Capacity : 20 tons
Max Height:12 meters
Max Span:12 meters
Hoist Type: Electric hoist with motorized trolley
Crane Travelling: Motorized universal wheels

Model:Adjustable series of portable gantry crane

Model:Adjustable portable gantry
Max Capacity : 10 tons
Max Height:12 meters
Max Span:12 meters
Hoist Type: Manual & Electric hoist with motorized trolley
Crane Travelling: Motorized universal wheels or Manual travelling based on your lifting height

Fixed Height Gantry vs Adjustable gantry crane

Fixed Height Gantry Cranes offer a cost-effective solution for moving items within a business. This gantry has four substantial casters, including two with brakes, so it can be moved to any location and locked in place for lifting. Simply unlock the brake and transport when not in use or if necessary. This is a more affordable alternative to a more expensive permanent construction for places with infrequent lifts. For light to heavy labor, multilevel facilities, tiny warehouses, or other situations where a good foundation is not available, a fixed height gantry crane is an excellent option.

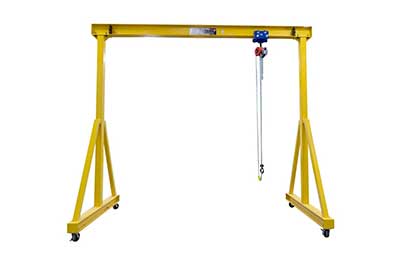

Fixed Height Steel Gantry Cranes

Lifting Capacity: 0.5~20t
Span: 1~12m
Lifting Height: 1~12m (according your needs)
Equipped with manual or motorized universal wheels, we advise motorized one
Hoist can be manual hoist and electric hoist; we advise electric one
Voltage: 220-660V 50/60Hz 3Phase

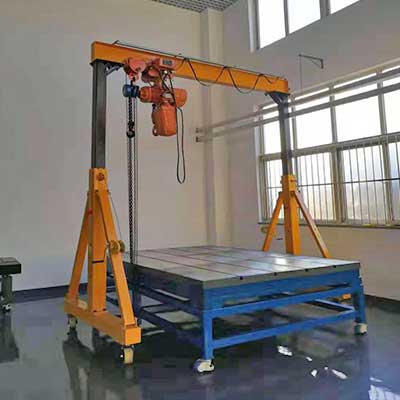

An affordable solution for lifting products anywhere in a facility is provided by adjustable gantry cranes. You can modify the height of the beam using the two adjustable pullers to meet different loads handling and application conditions. This steel gantry has four substantial casters, including two with brakes, so it can be moved to any location and locked in place for lifting. Simply unlock the brake and transport when not in use or if necessary. This is a more affordable alternative to a more expensive permanent construction for places with infrequent lifts. For applications requiring little labor, multi-level facilities, small warehouses, or the absence of a sufficient foundation, adjustable gantry cranes are ideal.

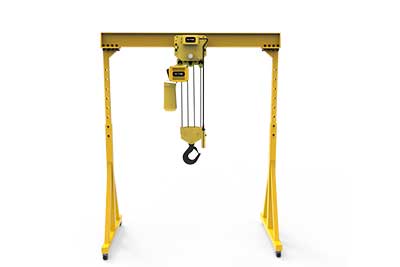

Adjustable Height Steel Gantry Crane for Sale

Capacity up to 10 tons
Max. height up to 12m
Span up to 12m
Equipped with manual or motorized universal wheels, we advise motorized one
Hoist can be manual hoist and electric hoist; we advise electric one

Optional types & configurations

Fixed height wheel portable gantry crane with Electric chain hoist or Electric wire rope hoist

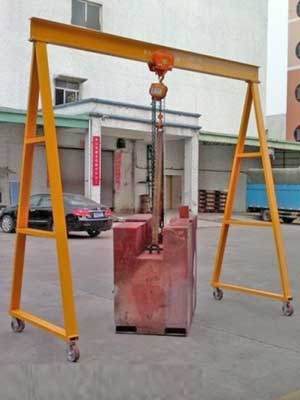

Fixed height gantry with manualchain hoist
Adjustable height portable gantry crane with Electric chain hoist or Electric wire rope hoist
Adjustable height gantry crane with manual chain hoist / chain block

Manual travelling vs. Motorized travelling & Crane Rotating

Steel gantry crane, manual or motorized travelling?

For portable steel gantry crane travelling, they can be designed with manual travelling and motorized travelling.

For manual travelling steel gantry

it is not allowed to move the small gantry crane under loading.
It is usually used for light loads handling with capacity no larger than 5 ton.

For motorized travelling steel gantry

the portable steel gantry cranes can be equipped with motor on the gantry crane which can enable the gantry crane travelling efficiently.
The motorized travelling portable gantry are used for heavy loads handling with capacity up to 10 ton, with customized design, the capacity can be up to 20 ton.

As for crane rotating, there are mainly two types for your selection:

The motorized steel gantry crane can be designed to rotate with the center of the main girder as the center of circle. With this type of rotating design, the steel gantry crane can be used in confined space workshops to enable rotating possible and easy.
The electric steel gantry crane can be developed to rotate with one side of the leg as the center of circle. Compared with the mentioned type, this type is widely used for large workshop or garage.
As for manual travelling steel gantry crane, it is equipped with universal wheels,it can be rotated by your hands, with the one supporting leg as the center of the circle.

Beam center rotating steel gantry crane

Supporting leg center rotating steel gantry crane

Features of wheel mounted portable gantry crane

A portable overhead gantry crane is a more cost-effective lifting solution than a more permanent jib crane or overhead bridge crane for infrequent lifts. These portable cranes have a heavy duty end frame design with square tubing uprights, knee braces, and a channel base for a very stable foundation.

Load capacity is 0.5 t-10 t, span is 2-16 m, Max Lifting height: 10 m,
Universal wheel can move on the ground by human push or by electric driven motor,
Pendant crane control or Remote control are available for your selection.
save labor & production costs, and improve work efficiency.

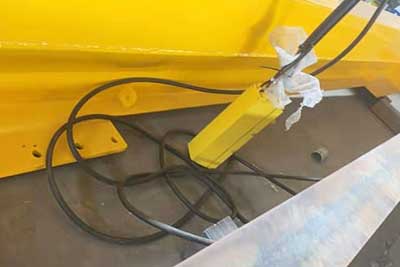

Pendant control - main parts of wheel type portable gantry crane
