Types of aluminum gantry cranes, with portable gantry, fixed gantry, adjustable height / span gantry design for selection.Aluminum gantry crane for sale.
Aluminum Gantry Cranes are the ideal solution for lift equipment, machines or heavy parts. All of our aluminum gantry cranes are portable, allowing them to be used from worksite to worksite. . These portable aluminum gantries can be maneuvered over rough or uneven surfaces due to the lightweight aluminum construction of the gantry frame and the option of inflatable pneumatic caster wheels.
Portable aluminum gantry cranes are lightweight, simple in design, and simple to disassemble and reassemble. They are commonly used in clean rooms and laboratories.With adjustable height and adjustable span, the aluminum alloy gantry crane is very convient and flexible which enable them are wide applicable.
Aluminum Gantry Crane, Light Portable Gantry Crane
Main Specifications of Aluminum Gantry Cranes
- Load capacity: 0.5 ton, 1 ton， 2 ton, 3 ton, 5 ton,
- Crane span: Max 12 or customized
- Lifting height: Max 12 or customized
- Hoist unit: Motorized or manual
- Working duty: A3
- Gantry hoist: Manul or electric hoists, based on your lifting requirements.
- Power source: Based on your power supply
The components of the portable aluminum gantry crane are made of lightweight extruded materials and can be easily lifted by one person. This allows for cost-effective transportation from one worksite to anther worksite and ease of use in a variety of work areas, such as carrying it up a ladder or staircase to a rooftop work area.
Main Aluminum Gantry Crane Design: The Roller Travelling & Freestanding Stationery Gantry Crane with No- Rollers
Variationsof Aluminum Gantry Cranes to Meet Various Industrial Needs

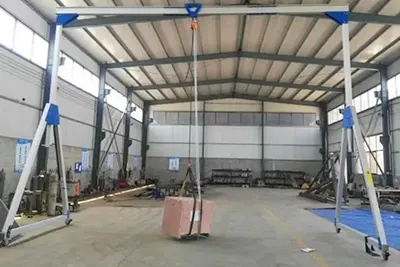

lT4 Simple Gantry Cranes with adjustable Height & Span
- Capacity up to 2 tons.
- Span up to 4 meters.
- Max. height up to 4 meters
Get Simple Gantry Crane Price
Features of Portable Aluminum Crane
- Lightweight and portable, with simple manual assembly on-site
- Assembly is as simple as'scissoring' and takes only 2-3 minutes.
- 36Swivel-locking castors are included as standard for easy positioning.
- All-terrain castors and uneven ground options are available, as well as simple manual height adjustment.
- Captive trolley that is ultra-secure.
- For shipping and storage, the small gantry can be packed flatly.
- Bolted structure, lateral beam, and leg bracing features provide total stability for any lifting challenge.
- Corrosion-resistant anodized finish that is easy to clean and suitable for clean room applications
Hot Sale Aluminum Gantry Cranes Video Presentations
Model: LT-5 Series of Aluminum gantry crane with foldable gantry design
Foldable Aluminum gantry crane are designed for transporting and lifting materials. Foldable aluminum gantry crane which is manufactured for the medium and small factory (company) daily production need. It applies to model manufacture and installing situation, automobile factories, producing department and other lifting occasions.
Main Parameter of Foldable Gantry Crane
- Load capacity of foldable gantry :0.5 ton - 3 tons
- Crane span of foldable gantry :2m - 8m or customized
- Lifting height of foldable gantry:1m to 8m or customized
- Hoist unit of foldable gantry:Motorized or manual
The foldable Aluminum gantry crane can move easily, disassemble and install quickly, cover little area. The structure design reasonably.
PT-3 series of portable aluminum gantry crane with multiple adjustable designs
Main parameters
- Model: LT-3
- Max Capacity: 2 tons
- Max Height :4 meters
- Max Span :4 meters
- Hoist Type: Electric hoist with motorized trolley
- Crane Travelling: Manual or motorized universal wheels
Featurs:
- Electric hoist with motorized trolley.
- Adjustable supporting legs, the lifting height of the portable gantry can be adjusted according to your requirement.
LT-4 series of Height Ajustable Aluminum Gantry Cranes
Main parameters
- Model: LT-4
- Max Capacity: 2 tons
- Max Height :4 meters
- Max Span :4 meters
- Hoist Type: Electric hoist with motorized trolley
- Crane Travelling: Manual or motorized universal wheels
Featurs:
- Electric hoist with motorized trolley.
- Adjustable supporting legs, the lifting height of the portable gantry can be adjusted according to your requirement.
PT-6 series of Telescoping Aluminum Cantry Crane with T Frame Gantry designs
Main parameters
- Model: PT-6
- Max Capacity: 2 tons
- Max Height :4 meters
- Max Span :4 meters
- Hoist Type: Electric hoist with motorized trolley
- Crane Travelling: Manual or motorized universal wheels
Featurs:
- Ajustable height and sspan with telescoping tubes
- Ground Beam can be flipped overhead and changed into free standing gantry cranes.
Aluminum Gantry Crane Basics
Aluminum gantry cranes basics and all you want to know about lightweight aluminum gantry cranes from design, types, prices, to uses, assembly & maintenance.
Aluminum gantry cranes are an essential tool for many industries, including construction, manufacturing, and maintenance. They are lightweight, durable, and easy to move, making them a popular choice for businesses of all sizes. If you are in the market for an aluminum gantry crane, this guide is for you. It will cover everything you need to know about aluminum gantry crane basics, including different types, specifications, applications, safety features, installation, and maintenance.
An aluminum gantry crane is a type of overhead crane that is supported by a gantry or framework made of aluminum. It is used to lift and move heavy objects in various industrial settings. An aluminum gantry crane is typically lighter than a steel gantry crane, making it easier to move and transport. It is also resistant to corrosion and rust, making it ideal for use in outdoor environments.
Types of Aluminum Gantry Crane - Adjustable Height, Fixed Height, and Portable
There are three main types of aluminum gantry cranes: adjustable height, fixed height, and portable.
- Fixed Height Aluminum Gantry Crane: This type of crane has a fixed height and cannot be adjusted. It is designed for use in applications where the load size and shape are consistent.
- Adjustable Width Aluminum Gantry Crane: This type of crane has an adjustable width, allowing it to accommodate different load sizes. It is ideal for use in applications where the load size varies.

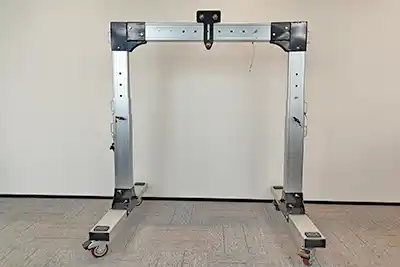

- Telescoping Aluminum Gantry Crane: This type of crane has a telescoping boom that can be extended or retracted as needed. It is ideal for use in applications where the load needs to be lifted to different heights.
- Folding Aluminum Gantry Crane: This type of crane can be folded up for easy storage and transport. It is ideal for use in applications where space is limited.
- Heavy-Duty Aluminum Gantry Crane: This type of crane is designed to lift heavier loads than standard aluminum gantry cranes. It is ideal for use in industrial and manufacturing settings.
- Portable Aluminum Gantry Crane: This type of crane is designed to be easily moved from one location to another. It is ideal for use in construction sites and other temporary work areas.
Overall, there are many different types of aluminum gantry cranes available, each with its own unique features and benefits. Businesses can choose the type of crane that best suits their needs based on factors such as load size, weight, and application requirements.

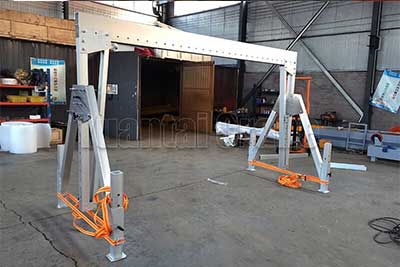

Adjustable Aluminum gantry crane
Foldable Aluminum gantry crane

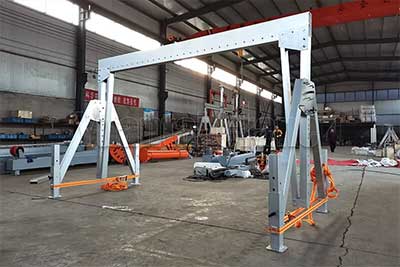

Fixed height portable Aluminum gantry crane
Height adjustable movable Aluminum gantry crane

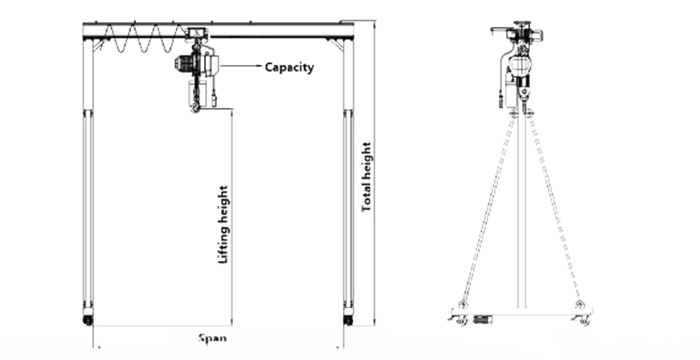

Aluminum Gantry Crane Specifications - Capacity, Span, and Height
What is the weight capacity of an aluminum gantry crane?
- Capacity refers to the maximum weight that the crane can lift. This is an important consideration since lifting objects that are too heavy for the crane can result in damage or injury.
- The weight capacity of an aluminum gantry crane can vary depending on the model. Most aluminum gantry cranes have a weight capacity of between 1 and 5 tons.
What is the span of the an aluminum gantry cranes?
- Span refers to the distance between the legs of the gantry crane. This is an important consideration since it affects the stability of the crane.
- The span of the aluminium gantry crane can designed with your lifting requirements. The general span length of aluminum gantry cranes can vary depending on the model and manufacturer. However, most models have a span length of up to 20 feet. It is important to check the specifications of the specific model you are interested in to determine the exact span length. Additionally, some models may offer customization options for the span length to meet specific requirements.
What is the height under the beam of an aluminum gantry crane?
- Height refers to the maximum height that the crane can lift objects. This is an important consideration since it affects the range of the crane.
- The height under the beam of an aluminum gantry crane can vary depending on the model. Most aluminum gantry cranes have a height under the beam of between 8 and 12 feet.
What is the cost of an aluminum gantry crane?
The cost of aluminum gantry cranes varies depending on the model and manufacturer. The price range for aluminum gantry cranes is between $1000 and $7000. Aluminum Gantry Cranes have a load-bearing capacity ranging from 1000kg to 5000 kg and are lightweight, flexible, corrosion-resistant, and cost-effective.
The cost of an aluminum gantry crane can vary depending on several factors, including:
- Weight capacity: The weight capacity of the crane is one of the most significant factors that will affect the cost. Generally, the higher the weight capacity, the more expensive the crane will be.
- Span: The span of the crane, or the distance between the legs, will also affect the cost. A wider span will require more material and will therefore be more expensive.
- Height: The height of the crane, or the clearance between the ground and the bottom of the beam, will also affect the cost. A higher clearance will require a taller beam and more material, making it more expensive.
- Customization: If the crane needs to be customized to meet specific requirements or applications, this will also increase the cost.
- Brand and manufacturer: Different brands and manufacturers may have different pricing structures based on their reputation, quality, and features.
- Additional features: Additional features such as adjustable height, locking casters, and other accessories can also increase the cost of an aluminum gantry crane.
Overall, the cost of an aluminum gantry crane will depend on a combination of these factors, as well as any additional requirements or specifications needed for a particular application.
1 ton aluminum gantry crane price range estimated:
- Basic models: 700−1200
- Heavy-duty models: 1200−2000
2 ton aluminum gantry crane price range estimated:
- Basic models: 1200−1700
- Heavy-duty models: 1700−25,00
3 ton aluminum gantry crane price range estimated:
- Basic models: 1700−2200
- Heavy-duty models: 2200−3,000
5 ton aluminum gantry crane price range estimated:
- Basic models: 2500−3500
- Heavy-duty models: 2500−5,000
It is important to note that these prices are only estimates and can vary depending on the specific requirements and features of a particular aluminum gantry crane. Additionally, prices may vary based on the brand and manufacturer. It is always recommended to obtain a quote from a reputable supplier or manufacturer to get an accurate price for a specific aluminum gantry crane.
Applications of Aluminum Gantry Crane - Industrial, Construction, and Maintenance
Aluminum gantry cranes are commonly used in applications where a lightweight and portable lifting solution is required. They are often used in cleanroom environments, as they do not produce any particles or contaminants that could affect sensitive equipment or products.
When comparing steel gantry cranes to aluminum gantry cranes, some factors to consider include weight, durability, and cost. Steel gantry cranes are typically heavier and more durable than aluminum gantry cranes, but they are also more expensive.
Applications:
- Pharmaceutical manufacturing facilities
- Biotech research labs
- Semiconductor manufacturing facilities
- Electronics manufacturing facilities
- Food processing plants
Industrial uses and applications
Aluminum gantry cranes are used in a variety of industries and sectors, including:
- Aerospace: Aluminum gantry cranes are used in the aerospace industry to lift and move aircraft parts during assembly and maintenance.

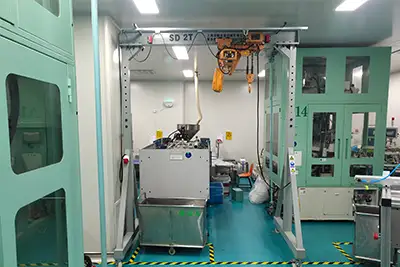

- Cleanrooms: Aluminum gantry cranes are commonly used in cleanroom environments, such as pharmaceutical manufacturing facilities, where cleanliness and particle control are critical.This clean room aluminum gantry crane is designed to meet the specific requirements of clean room environments, providing a safe and efficient lifting solution that minimizes the risk of contamination.
- Laboratories: Aluminum gantry cranes are used in laboratory settings to lift and move equipment and supplies.
Semiconductor manufacturing facilities:
Aluminum gantry cranes are commonly used in semiconductor manufacturing facilities due to their non-corrosive properties. In semiconductor manufacturing, it is important to maintain a clean and contaminant-free environment to prevent defects in the production process. Aluminum gantry cranes are non-corrosive, which means they will not produce rust or other contaminants that can affect the manufacturing process. Additionally, aluminum gantry cranes are lightweight and easy to move, which is important in a facility where equipment and materials need to be frequently moved around to accommodate different production processes. Finally, aluminum gantry cranes can be easily cleaned and sterilized, which is important in a cleanroom environment where cleanliness is critical.
Electronics manufacturing facilities: Aluminum gantry cranes are commonly used in electronics manufacturing facilities due to their lightweight construction and non-corrosive properties. In electronics manufacturing, it is important to prevent contamination of the products being manufactured. Aluminum gantry cranes are non-corrosive, which means they will not produce rust or other contaminants that can affect the manufacturing process. Additionally, aluminum gantry cranes are lightweight and easy to move, which is important in a facility where equipment and materials need to be frequently moved around to accommodate different production processes. Finally, aluminum gantry cranes can be easily cleaned and sterilized, which is important in a cleanroom environment where cleanliness is critical. The use of aluminum gantry cranes helps ensure a clean and contaminant-free environment, which is essential for producing high-quality electronic products.
Food processing plants: Aluminum gantry cranes are commonly used in food processing plants due to their non-corrosive properties and ease of cleaning. In food processing, it is important to maintain a clean and hygienic environment to prevent contamination of the food products being processed. Aluminum gantry cranes are non-corrosive, which means they will not produce rust or other contaminants that can affect the food products. Additionally, aluminum gantry cranes can be easily cleaned and sterilized, which is important in a food processing plant where cleanliness is critical. The lightweight construction of aluminum gantry cranes also makes them easy to move around the facility to accommodate different production processes. Finally, aluminum gantry cranes are resistant to moisture, which is important in a food processing plant where water and other liquids are frequently used. The use of aluminum gantry cranes helps ensure a clean and hygienic environment, which is essential for producing safe and high-quality food products.
Installing an Aluminum Gantry Crane - Safety Precautions and Guidelines
When installing an aluminum gantry crane, it is important to follow all safety precautions and guidelines. This includes ensuring that the crane is properly secured, that the weight capacity is not exceeded, and that all safety features are in place.
Aluminum gantry cranes are powerful lifting tools that can help improve productivity and efficiency in a variety of applications. However, it is important to always take the necessary safety precautions when using an aluminum gantry crane to prevent accidents and injuries. Here are some important safety precautions to keep in mind when using an aluminum gantry crane:
- Always inspect the crane before use: Before using the crane, inspect it for any signs of damage or wear and tear. Check the condition of the wheels, casters, and bearings, and make sure that all bolts and fasteners are tight.
- Ensure proper weight distribution: Make sure that the weight being lifted is evenly distributed across the crane's beam. Never exceed the weight capacity of the crane.
- Use appropriate rigging equipment: Use appropriate rigging equipment, such as slings or chains, to secure the load being lifted. Make sure that the rigging is properly attached to the load and the crane.
- Keep a safe distance: Keep a safe distance from the crane while it is in operation.
- Use proper lifting techniques: Use proper lifting techniques when operating the crane. Avoid sudden movements or jerks, and always lift and lower the load smoothly and steadily.
- Follow manufacturer guidelines: Follow the manufacturer's guidelines for safe operation of the crane, including any recommended safety procedures or maintenance schedules.
By following these safety precautions, you can help ensure that your aluminum gantry crane is used safely and effectively, reducing the risk of accidents or injuries.
How to assembly an adjustable height aluminum gantry crane ?
Assembling an adjustable height aluminum gantry crane is a straightforward process that can be completed in a few simple steps. Here's a general guide to the assembly process:

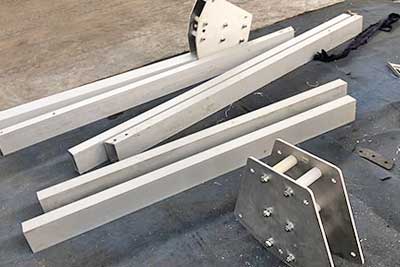

Main parts & components of aluminum gantry crane

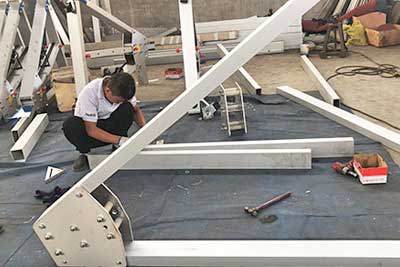

Supporting leg installation of aluminum gantry crane
Crane assembly of aluminum gantry crane

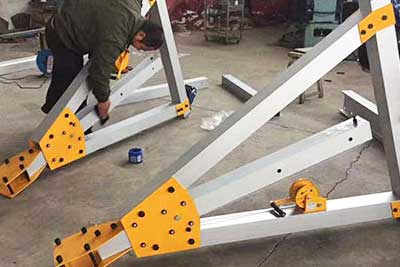

Gantry structure installation of aluminum gantry crane
- Unpack the Components: Begin by unpacking all of the components of the gantry crane and laying them out on a flat surface. Make sure you have all of the necessary parts and hardware before you begin.
- Connect the Legs: Start by connecting the legs of the gantry crane together using the provided bolts and nuts. Use a wrench to tighten the bolts securely.
- Attach the Crossbar/ Ground Beam: Once the legs are connected, attach the crossbar to the top of the legs using the provided bolts and nuts. Again, use a wrench to tighten the bolts securely.
- Install the Wheels: Attach the wheels to the bottom of the legs using the provided hardware. Make sure that the wheels are securely attached and can roll smoothly.
- Adjust the Height: To adjust the height of the gantry crane, loosen the bolts on the legs and slide the crossbar up or down as needed. Once you have adjusted the height, tighten the bolts securely.
- Test the Crane: Once the gantry crane is fully assembled, test it to make sure it is working properly. Lift a light load first to ensure that everything is stable and secure, then gradually increase the load weight as needed.
- Overall, assembling an adjustable height aluminum gantry crane is a simple process that can be completed with basic tools and equipment. Just be sure to follow all instructions carefully and take appropriate safety precautions when working with heavy loads.
Portable aluminum gantry crane assembly for your reference. To get custom design, please feel free to contact us.
Maintenance and Repair of Aluminum Gantry Crane - Tips and Tricks
To ensure the longevity and proper functioning of your aluminum gantry crane, it is important to follow proper maintenance and repair procedures. This includes regularly inspecting the crane, lubricating moving parts, and replacing worn or damaged parts.
‘How to inspect and mainten aluminum gantry cranes? To ensure the safe and efficient operation of an aluminum gantry crane, regular inspection and maintenance are essential. Here are some tips on how to inspect and maintain aluminum gantry cranes:
- Inspect the crane before each use: Before using the crane, inspect it for any signs of damage or wear and tear. Check the condition of the wheels, casters, and bearings, and make sure that all bolts and fasteners are tight.
- Lubricate moving parts: Regularly lubricate the wheels, casters, and bearings to ensure smooth operation and prevent wear and tear.
- Clean the crane: Regularly clean the crane to remove any dirt, dust, or debris that may have accumulated. This will help prevent corrosion and prolong the life of the crane.
- Check the cables and hoist: Inspect the cables and hoist for any signs of damage or wear and tear. Replace any damaged cables or hoists immediately.
- Check the brakes: Test the brakes regularly to ensure that they are functioning properly. If the brakes are not working correctly, do not use the crane until they have been repaired.
- Inspect the structure: Regularly inspect the structure of the crane for any signs of damage or corrosion. If any issues are found, have them repaired immediately.
- Follow manufacturer guidelines: Follow the manufacturer's guidelines for inspection and maintenance, as well as any recommended schedules for replacement of parts.
By following these tips, you can help ensure that your aluminum gantry crane remains in good condition and operates safely and efficiently.
Why Aluminum Gantry Crane is the Best Choice for Your Business
Aluminum gantry cranes are a versatile and cost-effective solution for businesses with lifting needs. They are lightweight, durable, and easy to move, making them ideal for various industrial settings. By choosing the right aluminum gantry crane for your business and following proper safety and maintenance procedures, you can ensure the safety of your employees and equipment while increasing productivity and efficiency.
To get a custom aluminum gantry crane, the main parameters that are needed include:
- Weight capacity: This refers to the maximum weight that the gantry crane will be required to lift.
- Span length: This refers to the distance between the two uprights of the gantry crane. It is important to determine the required span length to ensure that the gantry crane can safely and efficiently lift the required loads.
- Height under beam: This refers to the vertical distance between the ground and the bottom of the beam. It is important to determine the required height under beam to ensure that the gantry crane can be used in the required application.
- Portability: This refers to how easily the gantry crane can be moved from one location to another. It is important to determine whether the gantry crane will need to be moved frequently or if it will be used in a fixed location.
- Power source: This refers to how the gantry crane will be powered. It is important to determine whether an electric or manual gantry crane is required.
- Environment: This refers to the conditions in which the gantry crane will be used. It is important to determine whether the gantry crane will be used in a cleanroom environment or a hazardous environment, as this will affect the required safety features.
- Customization requirements: This refers to any additional customization requirements, such as modifications to the frame or beam, that may be needed to meet specific application requirements.
By considering these parameters, a custom aluminum gantry crane can be designed and manufactured to meet specific application requirements.
Aluminum Gantry Crane Types Yuantai Crane Sale
There are kinds of aluminum gantry cranes, they can be divided into two categories according the movable or not, movable aluminum gantry crane and feltes type aluminum gantry crane.
Get your customized aluminum gantry crane design and get your specific price with the following information :
- Types of aluminum gantry cranes: ________ ( Portable design or height adjustable or span just design)
- Weight capacity: ________
- Span length: ________
- Height under beam: ________
- Portability: ________Manual travelling / Electric Motor travelling, Voltage __380v50hz3phae
- Lifting hoist: ________Manual hoist/ Electric hoist, Voltage __380v50hz3phae
- Environment: ________(General use, Cleanroom or Corrosion Environment, etc. )
- Customization requirements: ________
