Portable Gantry Crane

Portable Gantry Crane
Fixed Height Gantry Crane

Fixed Height Gantry Crane

Product Type: PGC
Lifting Capacity: 500kg -10 ton
Span: As request
Lifting Height: As your requirement
Working Class: A3,A4
Ambient Temperature: -20-+40 ℃
Inquiry

Fixed height gantry crane for sale. Fixed height steel gantry crane is a type of portable gantry crane which is design for higher loads handling with  lifting capacity up to 10 ton. Manual travelling & motorized travelling for selection.

The design has square tube uprights, knee bracing, and a channel base for sturdy lifting and mobility. The connecting of the bolted beam to the upright provides safety. Molded phenolic casters are typical and facilitate movement. This moveable gantry crane is available in capacities ranging from 1-3 to 5-10 tons and can be modified.



Fixed gantry crane parameters:

  • Load capacity: 0.5-10t
  • Span: 2-12m
  • Lifting height: 2-12m
  • Lifting speed: 0.9-7.2m/min
  • Trolley running speed: 11m/min
  • Crane running speed: 6m/min or manual operation
  • Work duty: A2

Applications of fixed height gantry cranes

  • Over machinery for maintenance and product pulling
  • Lifting items wherever in a machine, whenever needed;
  • Lifting equipment required infrequently;
  • Localized material handling applications
  • Anywhere a crane cannot be permanently installed

What the portable gantry crane can do for you?

  • Many of our customers utilize our gantry cranes for equipment production, assembly, and repair.
  • Electric utilities, municipal maintenance (including subways, buses, and building facilities), hospitals, universities, research organizations, and the military are among our current customers.
  • Our portable gantry cranes are perfect for material handling jobs such as maintenance, production, and repairs.Please contact us for assistance in determining the best solution for you.

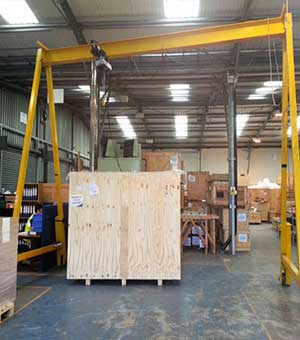

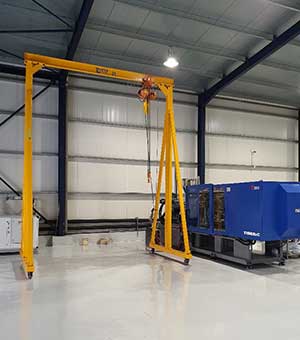

Fixed height a frame gantry cranes for indoor workshops Fixed height a frame gantry cranes for indoor workshops

Fixed Height Steel Gantry Cranes Design

Fixed overhead gantry cranes are classified as standard or non-standard. Any gantry crane gantry crane you require is available to you. Some customers may wish to purchase a custom crane for their work sites. We can supply you with personalized service and tailor any type of crane you require for your industry as an integrated crane manufacturer.
The following fixed height gantry crane design for your reference. If you need a customized fixed height gantry with specialized crane configuration, please feel free to contact us.

Gantry girder design for fixed height portable gantry cranes

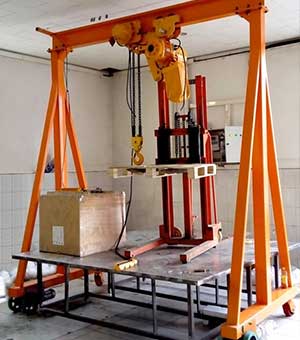

 Fixed Gantry Crane With I Beam Fixed Gantry Crane With I Beam

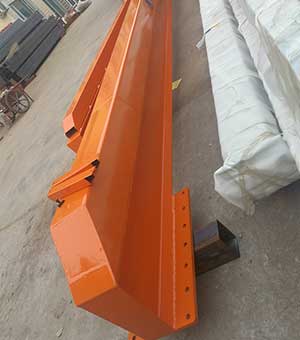

I beam girder design for fixed height portable gantry crane I beam girder design for fixed height portable gantry crane

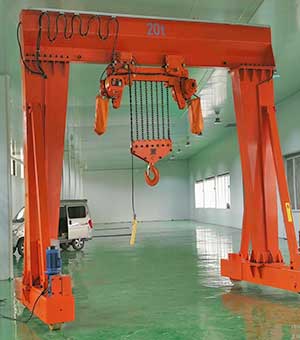

Box girder gantry crane -for large capacity, the one in the picture is 20 ton fixed gantry crane with motorized roller travellingBox girder gantry crane -for large capacity, the one in the picture is 20 ton fixed gantry crane with motorized roller travelling

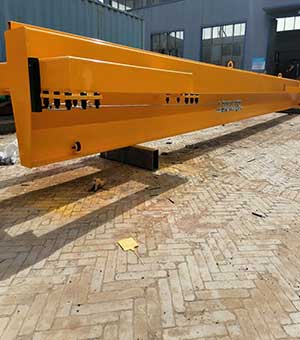

Box girder fixed height gantry crane for heavy loads handlingBox girder fixed height gantry crane for heavy loads handling

Gantry leg design

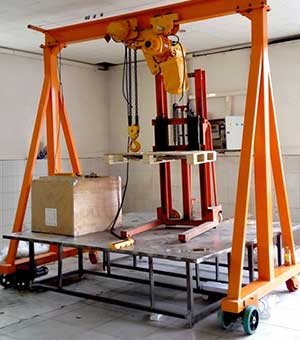

Fixed height gantry crane with A frame legFixed height gantry crane with A frame leg

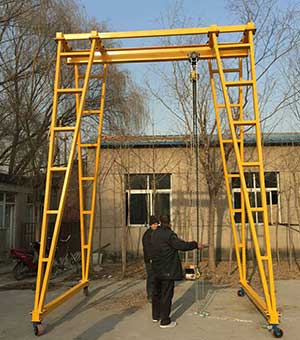

Truss girder fixed height gatnryTruss girder fixed height gatnry

 Fixed Height Gantry Design Features

Parameters needed to get  fixed height portable gantry crane

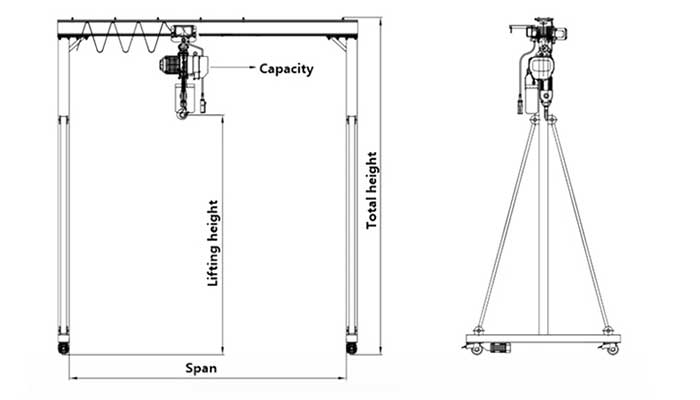

Fixed height portable gantry crane drawing

Main specification needed to custom fixed gantry crane

With the above information, the fixed height gantry can be customized for your application. Contact us to get customized fixed height gantry crane price.

  • First, the fixed height gantry crane, like the portable gantry crane, is precisely constructed for easy erection and disassembly. With a compact package for carriage or storage,  they can be packed when not use and meantime they can be easy assembled and ready for use at any time.
  • Second, the fixed height gantry crane is uniquely constructed for smooth lifting and movement as compared to standard gantry cranes, with square tubing uprights, knee braces, and channel and base structure.
  • Third, high safety performance, the fixed height gantry crane's bolted beam design upgrades the crane components connection, which may improve your operator operation safety performance.
  • Four, the fixed height gantry crane can be used for heavier loads handling, compared with the adjustable height gantry crane. The fixed height gantry crane can be used to handle loads with capacity up to 20 ton. And they provide more stability for loads handling and during travelling .
  • Lifting capacity: _ton?
  • Lifting height: _m?
  • Span: _m?
  • Hoist type: A. Electric chain hoist B. Electric wire rope hoist C. Manual chain hoist
  • Control Mode: A. Remote control B. Pendant Control
  • What material will the crane lift?
  • Transportation: tell us the sea port name near you, we can quote you shipping freight.
