 Portable Jib Crane on Wheels 2 Ton for Sale, A Jib Crane Case Study

Portable Jib Crane on Wheels 2 Ton for Sale, A Jib Crane Case Study

Product Type: Portable JIb Crane on Wheels
Lifting Capacity: 2 ton
Span: 3 m
Lifting Height: 50 m
Working Class: A3
Ambient Temperature: -20~40℃
Inquiry

4 sets of 2 ton portable jib crane on wheels for sale Qatar. The portable jib cranes with tailored crane specifications fully meet client’s lifting requirements and application conditions, which is the second order from the Qatar client. Long term cooperation is build on the bases on high-quality equipment and timely after sale services, which are yuantai crane’s aim. Yuantai Better Crane is always trying to exceed themself.
Qatar client background  batch Asphalt mixing plants

Cooperation and Qatar client back ground

On December 20, 2021, we received a new jib crane inquiry from a Qatar customer, who had cooperated with us once before.

The headquarter of the customer's enterprise is located is Doha, Qatar. Their business is relatively extensive, mainly including concrete & asphalt plants, concrete placing booms, concrete cooling plants, concrete recycling plants, lifting equipment, building maintenance units, generators and related parts and services.

Lifting requirements and application conditions

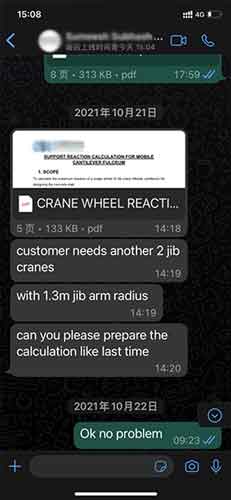

This inquiry was sent by the customer from WhatsApp, saying that another 2 mobile BZ jib cranes were needed. The effective arm length is 1.3m. The arm is fixed. What's special is the application condition. The portable jib cranes will be used on the build roof top to hoist the glass from the earth ground.

In the early stage, according to the parameter information provided by the customer, it is roughly 2 ton, the lifting height is 50m (including the underground height), the effective arm length is 2.8m, and the arm does not rotate.

Through the detailed communications, the finally requirements on the portable jib cranes on wheels are as following:

  • The portable jib will be used on the roof to lift the glass that has been placed on the ground.
  • The jib crane must be mobile so that it can be moved to other areas when not in use or when the project is finished.
  • The arm is not required to rotate and can be fixed.
  • The maximum lifting capacity is limited to 2t.
  • The lifting height is 50m (48.16m in building height plus 1.84m from the roof).
  • The arm of the portable jib crane is 3 m length

Portable jib crane on wheels Solution

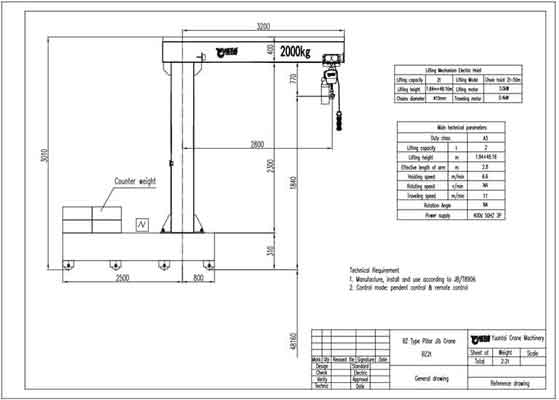

portable jib crane on wheels 2 ton drawing
Portable jib crane on wheels 2 ton drawing

Based on customer requirements, we have designed the following solutions.

  • Lifting capacity: 2 ton
  • Lifting height: 50m(1.84m+48.16m)
  • Span (arm length): 3m (effective arm length: 2.8m)
  • Power supply: 400v/50hz/3p
  • Working duty: A3
  • Control: Pendant control & Remote control
  • Hoist type: electric chain hoist with electric trolley
  • Rotation: No
  • Wheels No.: 8 wheels
  • Equipped with counter weight

The client is very pleased with the design and quotation for the jib crane solution. Because of our collaboration, the customer previously purchased similar jib cranes and recognized Yuantai Crane's products and services, so this time he directly placed an order for four mobile jib cranes, and the entire process went very smoothly.

Tailored features of the mobile jib cranes

The second order requirements on the portable jib cranes on wheels are roughly the same as that of the last inquiry. The chassis design or foundation of the portable jib crane is required to be lengthened and equipped with 8 wheel all together to ensure the operation safety safety under loading.

The client company has very professional engineers and technical teams, and they actually issued a calculation book, but it is necessary to confirm with our technical personnel whether it is feasible.

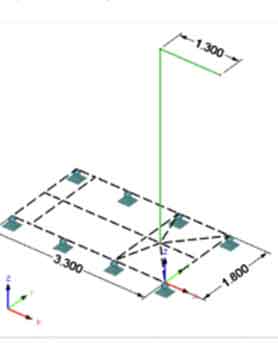

Enlarged foundation structure with 8 wheels to ensure safety of the portable jib crane

Due to the lifting height is exceeds 30 meters and around 50 meters, it is recommended to use the electric chain hoist of the new EQ model.

  • The new EQ type electric chain hoist is designed for large lifting height application and busy working application.
  • This motor of the EQ type electric chain hoist has a heat dissipation device, which is more suitable for this working condition.
  • Besides, the new ones are equipped with overload limiter to ensure safety during operation.

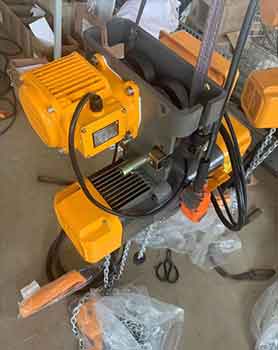

portable jib crane hoist 2 ton with 50 m liting heightEnlarged foundation structure with 8 wheels to ensure safety of the portable jib crane

For the general electric chain hoist design, when the lifting height is 50 meters, the weight of the chain falls is all put together on the right side of the hoist, and the left wheel of the hoist is pressed up.

According to this situation, we added an extra hoist trolley to balance it and prevent the jib hoist from tilting.

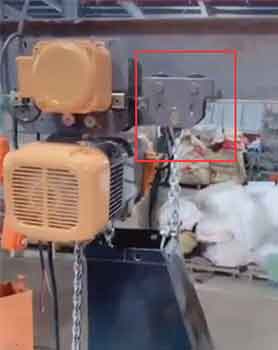

Extra hoist trolley are added to ensure electric chain hoist  Extra hoist trolley are added to ensure electric chain hoist

Production and delivery

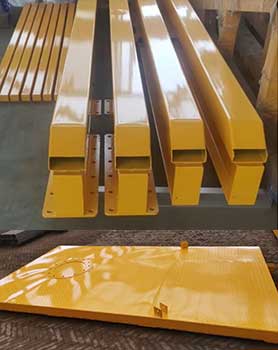

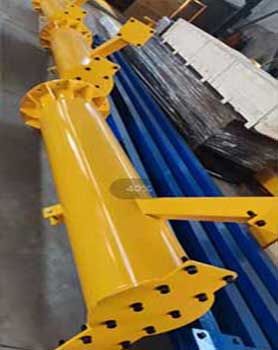

 Portable jib crane on wheel main parts  Portable jib crane on wheel main parts
Portable jib crane on wheel main parts Portable jib crane on wheel main parts

Yuantai Crane has been hard at work on the road, understanding customer needs and providing excellent solutions and cost-effective hoist and crane products. Yuantai Crane hopes to assist more customers by providing high-quality crane solutions and products. Yuantai Better Crane helps to provide better material handling solutions.

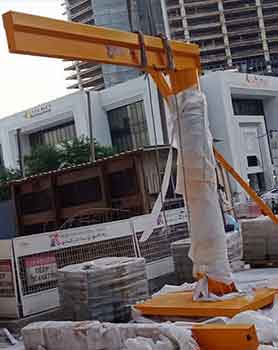

On-site photo feedback from the Qatar customer

portable jib cranes on wheels 2 ton feedback pictures from Qatar client  portable jib cranes on wheels 2 ton feedback pictures from Qatar client

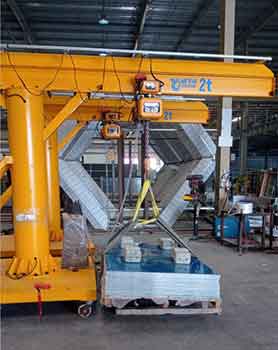

Feedback picture of 2 ton portable jib cranes for glass handling  Feedback picture of 2 ton portable jib cranes for glass handling

How to get jib crane solution?

If you also have jib crane needs, please contact us and let us know your specific needs.

  • Jib crane type: Mobile jib crane? Pillar mounted jib crane? Wall mounted jib crane? Wall travelling jib crane?
  • Lifting capacity:
  • Lifting height:
  • Span (arm length):
  • Power supply (e.g. 380V 50Hz 3Phase):
  • Rotation: 90°? 180°? 270°? 360°?
  • Rotation type: manual or electrical?
  • Hoist type you prefer: electric wire rope hoist, electric chain hoist, manual chain hoist
  • Used indoor or outdoor?
  • What materials will the jib crane lift?
