Production & Delivery Gallery

Production & Delivery Gallery
  • 2022-07-12 09:34:03

5 Ton & 20 Ton Over Bridge Crane, Low Headroom Bridge Crane

5 ton & 20 ton over bridge crane, square box girder, low headroom design, low headroom hoist , good solution for limited overhead space workshop. Check now!

Project info of 20 ton & 5 ton single girder over bridge crane for sale

  • Brand :Yuantai Crane
  • Types of Cranes:Single girder overhead crane
  • Date of Placing Order: 2017-05-09
  • Date of delivery : 2017.5.30
  • Transportation :BY sea
  • Payment: 100% LC
  • Destination port:CIF Male port
  • Destination country:

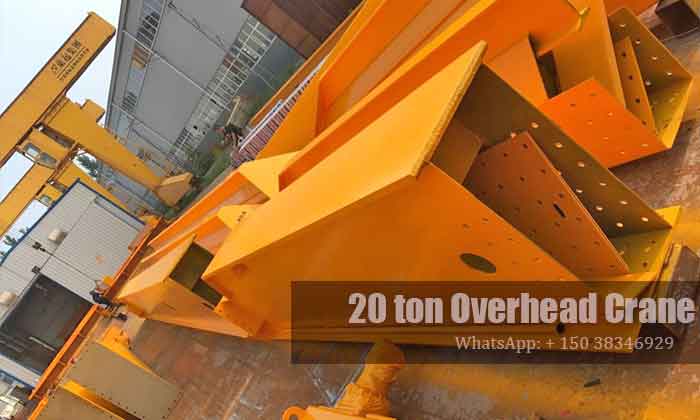

Main girder of 20 ton over bridge crane Main girder of 20 ton over bridge crane

Main Specifications of 2 ton floor mounted pillar jib crane for sale

Quantity

1 set

1 set

Gantry crane type

Single girder gantry crane with low headroom box girder design

Single girder gantry crane with low headroom box girder design

Lifting capacity

20 ton

5 ton

Crane span

14.6m

15.5m

Lifting height

3.8 m

14.6m

Working class

M3

M3

Power supply

3-ph 380V 50Hz

3-ph 380V 50Hz

Hoist control

Pendant control

Pendant control

Color

Standard

Standard

Customized features of 20 ton & 5 ton single girder over bridge crane for sale

  • The main beam is a square box girder beam, and the electric hoist is required to be low headroom design, and the overall height of the 5 ton and 20 ton overhead crane does not exceed 750mm.
  • The 14.6 m long main beams of the 5 ton and 20 ton overhead crane needs to be cut into 2 sections and to load into a 40-foot cabinet
  • Ship to the designated location in Qingdao, and the customer will confirm the specific address and contact information before delivery.
  • LD type single girder overhead crane with 20 ton capacity-14.6m span-5m lifting height is including the whole crane structure, controller, 156m rail and fixing parts, 78m sliding line and other accessories), the main beam needs to be cut into 2 sections at 1/3.
  • Packing method: The main beam structure is packed with the standard strip clothes. The accessories are packed into the plywood wooden box,. the crane track is delivery with no packing. , and clamping plates the pressure plates for fastening crane rials are packed into nylon bags.

Gallary of 20 ton & 5 ton single girder over bridge crane for sale

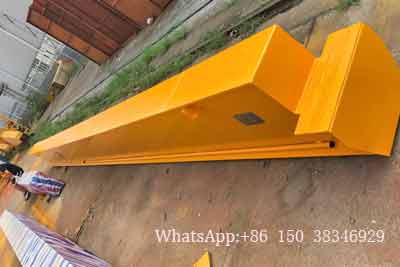

Main girder of over bridge crane Main girder of over bridge crane

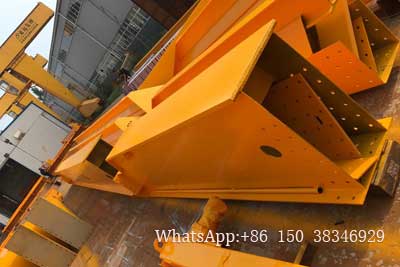

14.6 m main girder of the over bridge crane needs to be cut into two sections for loading into container. 14.6 m main girder of the over bridge crane needs to be cut into two sections for loading into container.

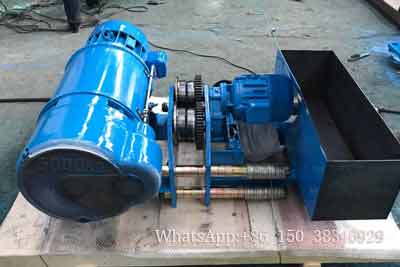

5 ton low headroom hoist for the single girder over bridge crane 5 ton low headroom hoist for the single girder over bridge crane

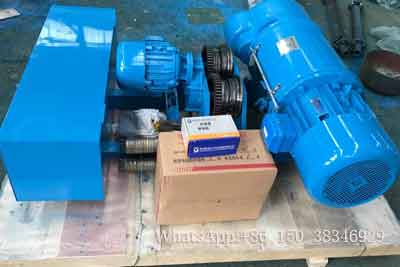

5 ton wire rope hoist over bridge crane hoist 5 ton wire rope hoist over bridge crane hoist

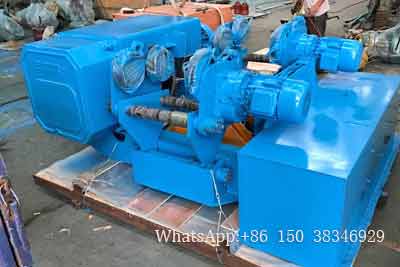

20 ton low headroom hoist for single girder over bridge crane 20 ton low headroom hoist for single girder over bridge crane

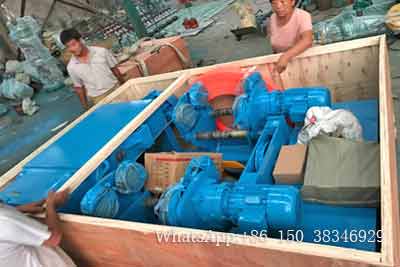

Overhead bridge crane hoists and parts packed into boxes for delivery Overhead bridge crane hoists and parts packed into boxes for delivery

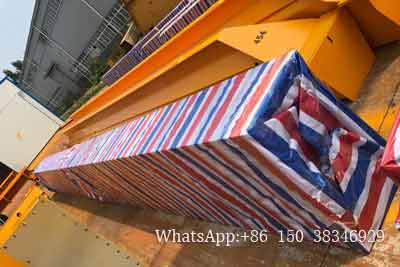

Main girder of 5 ton and 20 ton bridge crane packed  for delivery Main girder of 5 ton and 20 ton bridge crane packed for delivery

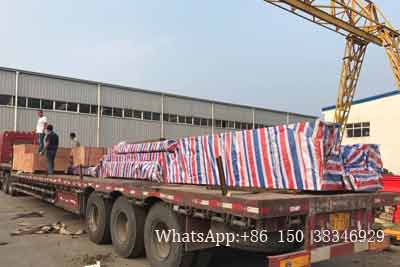

20 ton and 5 ton over bridge crane equppment and parts for delivery 20 ton and 5 ton over bridge crane equppment and parts for delivery
