3 Ton Overhead Crane & Steel Structure for Sale Uruguay

3 ton single girder overhead crane, column & runway beam, all galvanized for use in steam environments. Check 3 ton overhead crane Uruguay project.

Quick info on 3 ton overhead crane for Uruguay

  • Brand :Yuantai Crane
  • Date of Placing Order :2015-1-4
  • No. of Contract:YT1410A0033
  • Lead Time:25 days
  • Way of Trasportation :40 feeter container
  • Way of Transation :CIF
  • Desitnation : Montevideo
  • Country of Desitnation :Uruguay
3 ton overhead crane for sale Uruguay main girder

General requirements on the 3 ton overhead crane

Quatity

2 sets of single girder overhead crane +steel structure

Types of crane

LD single girder overhead crane with cd/md hoist

Capacity

3 ton

Crane span

12.2 m

Lifting height

5m

Power supply

380V /50HZ / 3Phase

Crane control

Remote control

Color

Standard

Crane rail & other crane parts

P24 track 36m, 6 pairs of clamp plates , 120 pressure plates, 6 mm2 square seamless sliding line 18m, 2 current collectors



Special requirment of 3 ton single girder overhead crane

  • Steel structure is used indoors, please refer to the pictures provided by customers.
  • 8 column, each 6m , 6 rail-bearing beams, each 6m
  • Column and rail bearing beam model are HW350*250
  • The 3 ton overhead crane itself requires galvanizing
  • Columns and rail-bearing beams require hot dip galvanizing for use in steam environments.
  • The main beam needs to be cut into two sections: 8m and 4.2m

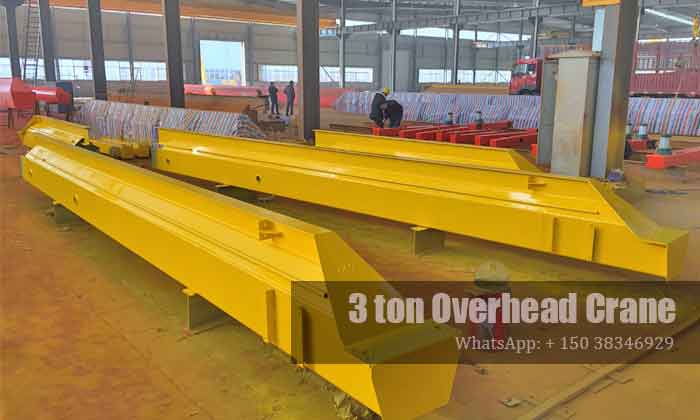

Main girder of 3 ton overhead crane , which is devided into two sections: 8m and 4.2m Main girder of 3 ton overhead crane , which is devided into two sections: 8m and 4.2m
the short part of main girder 4.2 m for sake of transportation to lower cost the short part of main girder 4.2 m for sake of transportation to lower cost

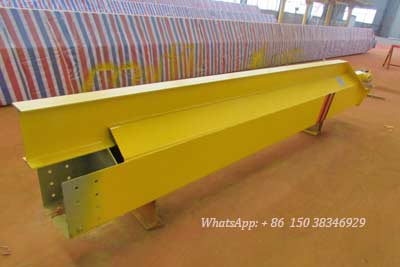

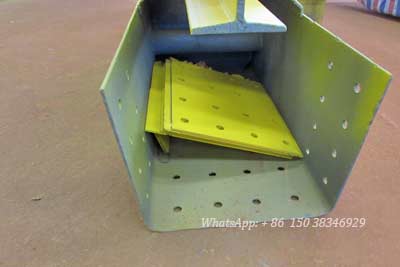

 Strengthened steel plates to bolt the two section of main girder together when arrived at working site.  Strengthened steel plates to bolt the two section of main girder together when arrived at working site.

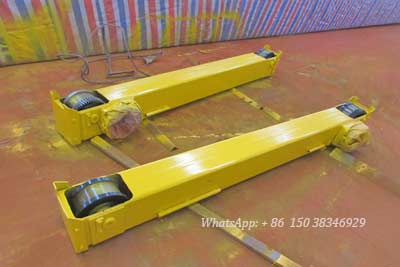

End carriages of 3 ton overhead crane  End carriages of 3 ton overhead crane
3 ton 6 m electric wire rope hoist 3 ton 6 m electric wire rope hoist
name plate of the 3 ton overhead crane hoist name plate of the 3 ton overhead crane hoist

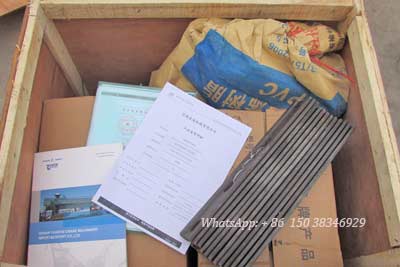

 Parts and componets  Parts and componets

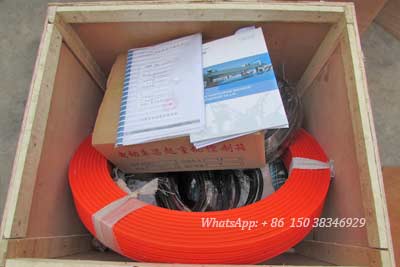

Power supply parts and components Power supply parts and components

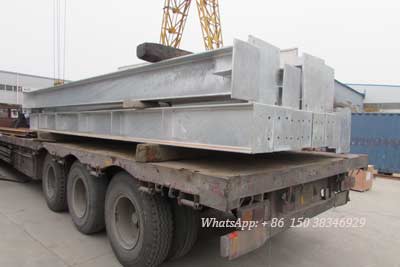

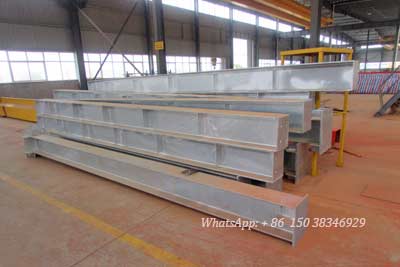

Galvanized columns and runway supporing beams to prevent corrosion in hot steem workshop  Galvanized columns and runway supporing beams to prevent corrosion in hot steem workshop
Ready to delivery to Uruguay  Ready to delivery to Uruguay
Main beam  of overhead crane parcked for deliveryMain beam of overhead crane parcked for delivery

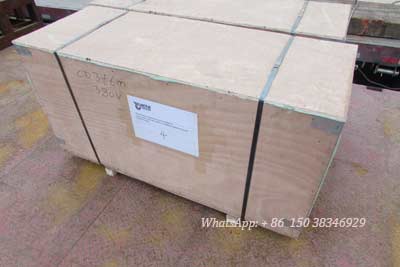

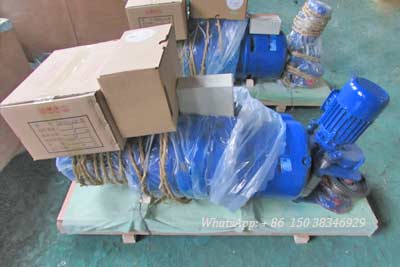

3 ton hoist and parts packed for delivery to Uruguay3 ton hoist and parts packed for delivery to Uruguay
