5 Ton Single Girder Gantry Crane for Sale Australia Good Price

5 ton single girder gantry crane for sale Australia. Check specification, configuration & pictures of 5 ton gantry crane Austrialian project get your customized gantry crane design.

Project info of 5 ton sinle girder gantry crane for sale Australia

  • Brand :Yuantai Crane
  • Types of Cranes: 5 ton single girder gantry cranes
  • Date of Placing Order: 2015.2.11
  • Date of delivery :2015.3.10
  • Transportation :40GP Container
  • Transaction and destination CFR Fremantle
  • Destination country:Australia
5 ton single girder gantrycrane with European style low headroom hoist for sale Australia
5 ton single girder gantrycrane with European style low headroom hoist for sale Australia

Main Specifications of 5 ton pillar jib crane for sale Australia

Quantity

1 set

Gantry crane type

Single girder gantry crane with European style

Lifting capacity

5 ton

Crane span

15.5m

Lifting height

3.8 m

Working class

A5

Power supply

3-ph 400V 50Hz

Hoist control

Pendant control

Color

Standard

Customized features of the 5 ton single girder gantry crane for Australia

  • European single girder door operator, box girder
  • European style low headroom wire rope hoists
  • Dual hoisting two-speed 0.8m/minand 5m/min , hoisttravellingspeed frequency conversion 5-20m/min, frequency conversion , gantry cranerunning frequency conversion5-20m/min.
  • Fully imported configuration
  • The total height of the workshop is 5150, and the liftingheight is 3.8m
  • The main girder of the 5 ton gantry crane are produced into two sections : 11.5m and 4m
  • The total length of P24 track is 35M, 116 pieces of pressure plate, 6 pairs of clamp plates, 1 roll, 1 collector, 6mm2sliding wirewith a length of 17.5m .

Customs declaration&registration information

  • The actual Chinese and English name of the goods: 门式起重机Gantry crane
  • Chinese and English name of cargo declaration: 门式起重机Gantry Crane
  • Sea freight: USD1,350
  • Premium: USD 0
  • Port charges: RMB 3000

Gallary of 5 ton gantry crane for sale Australia

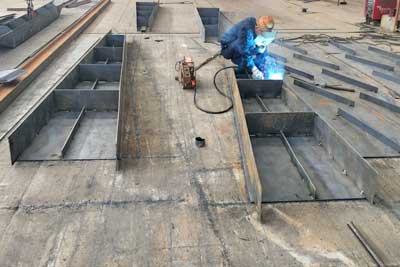

Main steel structure welding for 5 ton gantryr crane Main steel structure welding for 5 ton gantryr crane

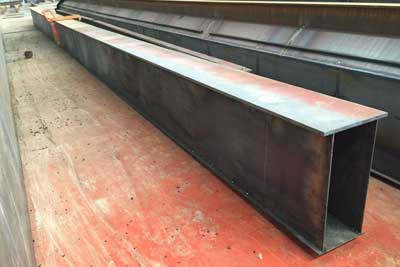

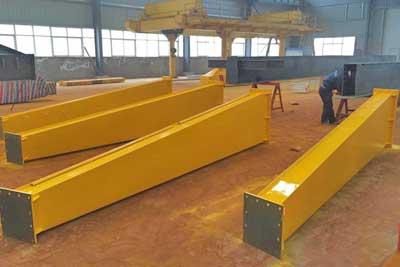

Main girder of the 5 ton single girder gantry crane Main girder of the 5 ton single girder gantry crane

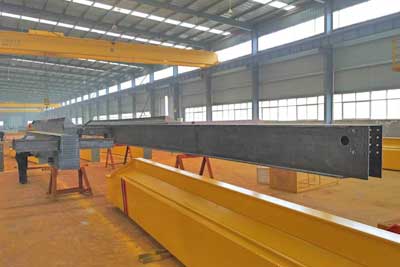

Main beam of the 5 ton single beam gantry crane for sale Australia Main beam of the 5 ton single beam gantry crane for sale Australia

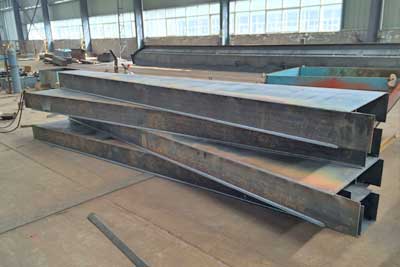

5 ton gantry crane outriger or supporting leg production 5 ton gantry crane outriger or supporting leg production
Finished welding of the 5 ton gantry crane outriger or supporting leg Finished welding of the 5 ton gantry crane outriger or supporting leg
Painting of the 5 ton gantry crane outriger or supporting leg Painting of the 5 ton gantry crane outriger or supporting leg
5 ton electric wire rope hoist for the Australian single girder gantry crane project packed for delivery 5 ton electric wire rope hoist for the Australian single girder gantry crane project packed for delivery

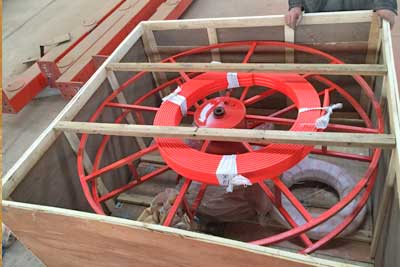

Cable rollers and other parts and components for the Australian single girder gantry crane project packed for delivery Cable rollers and other parts and componentsfor the Australian single girder gantry crane project packed for delivery

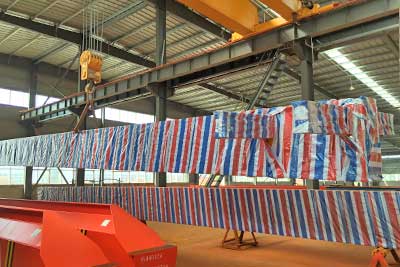

Main girder of the 5 ton single girder gantry crane handled for delivery to Australia Main girder of the 5 ton single girder gantry crane handled for delivery to Australia

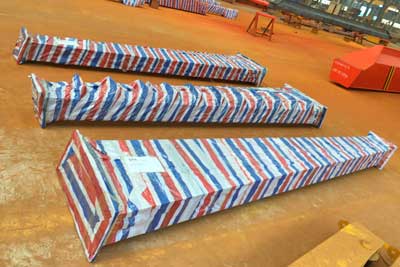

Supporting gantry legs of the 5 ton single girder gantry crane packed for delivery to Australia Supporting gantry legs of the 5 ton single girder gantry crane packed for delivery to Australia

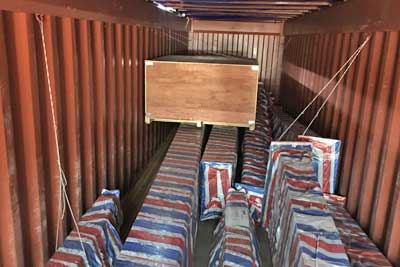

Main beam and legs of the 5 ton crane loaded into containers Main beam and legs of the 5 ton crane loaded into containers

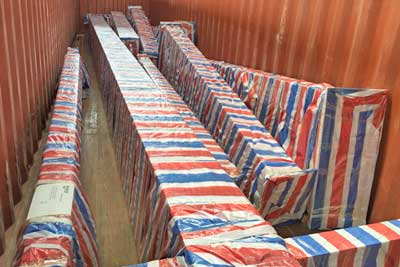

Whole set of 5 ton single girder gantry crane system loaded into containers Whole set of5 ton single girder gantry crane system loaded into containers
