5 Ton Overhead Bridge Crane for Sale Sudan Good Crane PRICE

Overhead bridge crane for sale Sudan. Single girder overhead bridge crane 5 ton, pendent control,rope hoist. Check 5 ton bridge crane specifications.

Project info of 5 ton overhead bridge crane for sale Sudan

  • Brand :Yuantai Crane
  • Types of Cranes:Overhead bridge crane
  • Date of Placing Order: 2017-06-27
  • Date of delivery : 2017.7.20
  • Transportation :By sea , 40GP containers
  • Payment: 100%TT
  • Destination port:CIF Sudan
  • Destination country:Sudan
5 ton overhead bridge crane for sale Sudan
5 ton overhead bridge crane for sale Sudan

Main Specifications of 5 ton single girder bridge crane for sale Sudan

Quantity

1 set

Product Name

overhead bridge crane

Crane Model

LD

Lifting capacity

5 ton

Crane span

14.2 m

Lifting height

6 m

Working class

M3

Power supply

380V,50HZ,3P

Crane control

Ground control

Color

Standards

Customized features of 5 ton top running overhead bridge crane

  • Runway bearing beam model: HN396*199*7*11, 6m/ pieces, together 6 pieces, 5.6m/piece, together 2 pieces, 3.4m pieces , together 2 m pieces, all together 72 meters.
  • Rail model: P24 , 36M each side. A total of 72M is required, 10 pairs of clamp plates; 242 pieces of pressure plates.
  • Seamless sliding line: 6 mm2, 36M
  • Collector: 2
  • The main beam needs to be cut into 2 sections and to be loaded into a 40-foot cabinet

Customs declaration & registration information

  • The actual Chinese and English name of the goods: 电动单梁桥机,electric single girder overhead crane
  • Chinese and English name of cargo declaration:电动单梁桥机,electric single girder overhead crane
  • Inland transportation cost from factory to port: RMB4000
  • Port charge:5500RMB
  • Sea freight: USD 3000

Gallary of 5 ton overhead bridge crane for sale Sudan

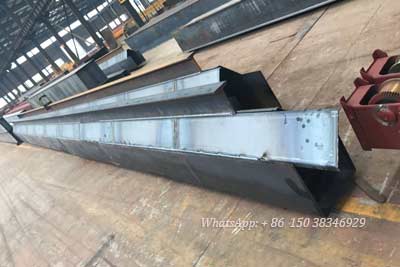

Main girder of 5 ton overhead bridge crane for sale Sudan, which needs to be cut into 2 sections for loading into containers. Main girder of 5 ton overhead bridge crane for sale Sudan, which needs to be cut into 2 sections for loading into containers.

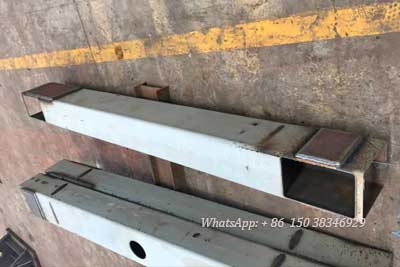

End carriage of 5 ton overhead bridge crane for sale SudanEnd carriage of 5 ton overhead bridge crane for sale Sudan

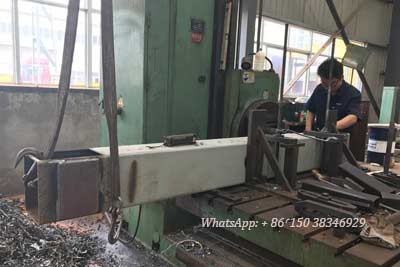

End carriages of overhead bridge crane 5 ton  for sale SudanEnd carriages of overhead bridge crane 5 ton  for sale Sudan

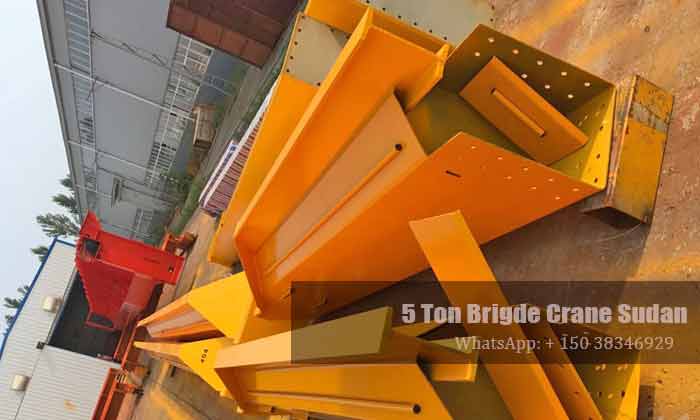

End carriage of the 5 ton bridge crane, painted End carriage of the 5 ton bridge crane, painted

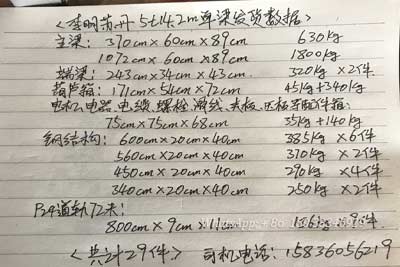

Dimensions & weight of the 5 ton overhead crane structure and partsDimensions & weight of the 5 ton overhead crane structure and parts
