7.5 Ton Open Winch Double Girder Bridge Crane For Sale Pakistan

Overhead bridge crane for sale Maldives, good bridge crane price. Single girder bridge crane, with wire rope hoist & pendent ground control. Check now.

Project info of 7.5 ton double girder bridgecrane for sale Pakistan

  • Brand :Yuantai Crane
  • Types of Cranes:Double girder overhead crane
  • Date of Placing Order: 2017-07-21
  • Date of delivery : 2017-09-30
  • Transportation :BY sea
  • Payment: 100% LC
  • Destination port:CFR Karachi
  • Destination country:Pakistan
7.5 ton double girder bridge crane with open winch trolley for sale Pakistan
7.5 ton double girder bridge crane with open winch trolley for sale Pakistan

Main Specifications of 7.5 ton double girder bridgecrane for sale Pakistan

Quantity

2 set

Product Name

Double Girder Bridge Crane with open winch trolley

Crane Model

QD

Lifting capacity

7.5 ton

Crane span

35.05 m

Lifting height

8 m

Working class

A7

Power supply

400V,50HZ,3P

Color

Orange

Specifications of 7.5 ton double girder bridge crane kits

  • CD 5 ton hoist hoisting motor 7.5Kw , power supply of 400 V50 HZ3PH, 3pcs
  • CD5 ton hoist Hoisting Coupling, 12 pcs
  • Flat cable 2.5 square centimeters * 12 cores, 500 meters
  • Flat cable 1.5 square centimeters* 12 cores, 500 meters
  • One motor for trolley running, one motor for trolley running, 1 brake pad for lifting brake 1
  • HT bolt 12.9 grade M24*150MM, 100 pcs

Customized features of 7.5 ton double girder bridge crane

  • The thickness of the steel plate and the motor are produced according to the drawings,
  • The main beam and walking platform is disassembled to be loaded into container.
  • The main girder and end beam are connected as shown in the below picture

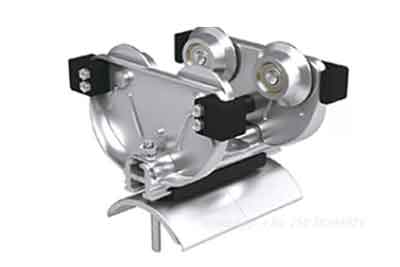

I-beam trolleys for cable suspension 100 pieces of I-beam trolleys and the I-beam bottom width is 50mm
 main girder and end beam connection sample picture main girder and end beam connection sample picture

Customs declaration & registration information

  • The actual Chinese and English name of the goods: 桥机overhead crane
  • Chinese and English name of cargo declaration:桥机overhead crane
  • Inland transportation cost from factory to port: RMB1500
  • Customs declaration fee: RMB5800: RMB5800
  • Sea freight: USD 1,650

Gallary of 7.5 ton double girder bridge crane for sale Pakistan

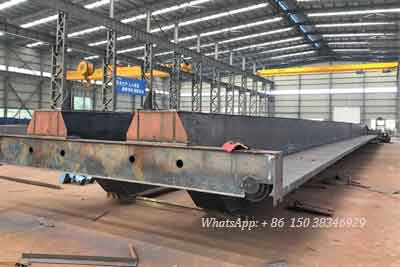

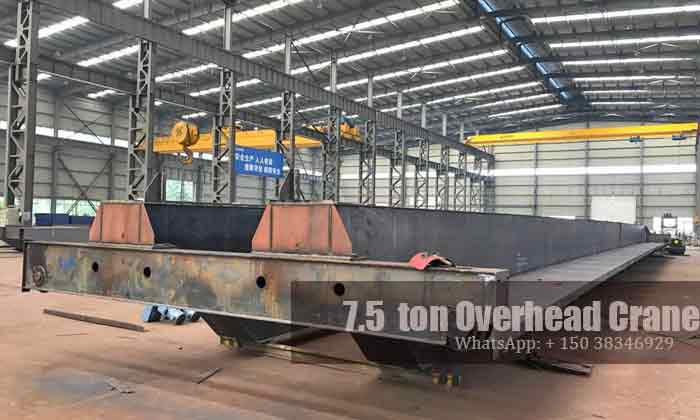

35.5 m span main girder of 7.5 ton double girder bridge crane  for sale Pakistan35.5 m span main girder of 7.5 ton double girder bridge crane for sale Pakistan

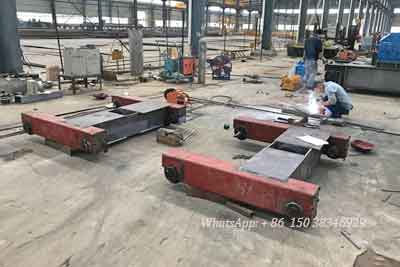

2 open winch trolley frames under construction for 7.5 ton bridge crane project in  Pakistan2 open winch trolley frames under construction for 7.5 ton bridge crane project in Pakistan

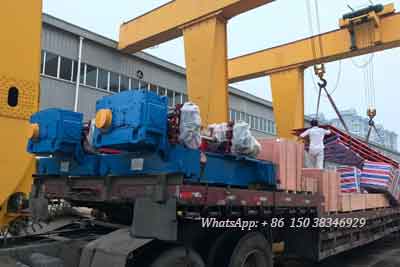

2 open winch trolleys 7.5 ton  loaded into truck for delivery to  Pakistan2 open winch trolleys 7.5 ton loaded into truck for delivery to Pakistan

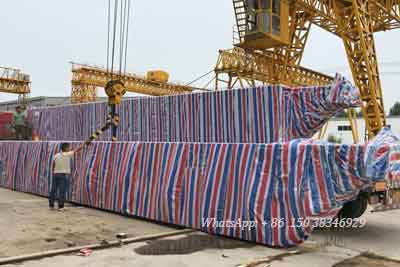

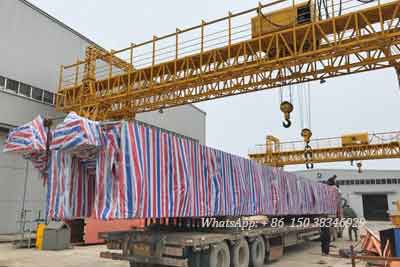

35.05  long main girder of 7.5 ton overhead bridge crane  for delivery to Pakistan35.05 long main girder of 7.5 ton overhead bridge crane for delivery to Pakistan
35.05  long main girder of 7.5 ton overhead bridge crane  for delivery to Pakistan35.05 long main girder of 7.5 ton overhead bridge crane for delivery to Pakistan

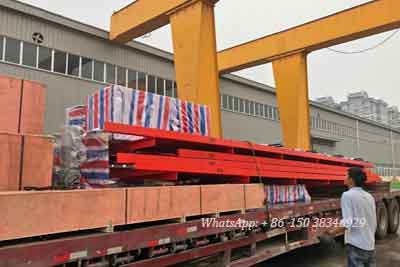

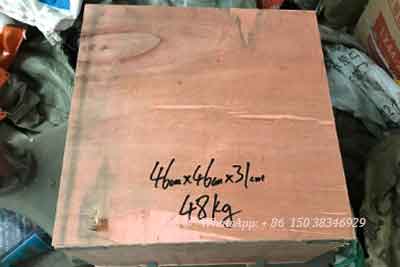

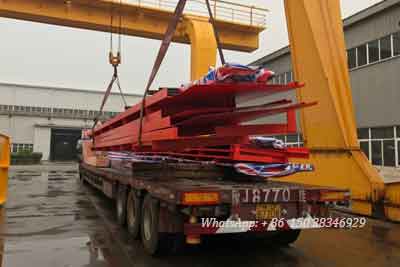

Parts of 7.5 ton double girder  bridge crane loaded into truck for delivery pakistanParts of 7.5 ton double girder bridge crane loaded into truck for delivery pakistan
Parts of 7.5 ton double girder  bridge crane loaded into truck for delivery pakistanParts of 7.5 ton double girder bridge crane loaded into truck for delivery pakistan
Parts of 7.5 ton double girder  bridge crane loaded into truck for delivery pakistanParts of 7.5 ton double girder bridge crane loaded into truck for delivery pakistan
