Double Hoist Overhead Crane 3 Ton + 3Ton Electric Hoists Canada
Single girder overhead crane with double hoists 3 ton + 3 ton for long & large loads handling for Canada. + double hoist overhead crane specifications.
Project info of 3 ton overhead crane & hoist for sale Canada
- Brand ：Yuantai Crane
- Types of Cranes: Double Hoist Overhead Crane
- Date of Placing Order： 2021-11-04
- Date of delivery ： 2021.12.01
- Transportation ：By sea, container
- Payment: 50% T/T prepaid, 50% T/T before shipment
- Destination port：CFR VANCOUVER
- Destination country：Canada
Main steel structure of double hoist overhead crane with capacity of 3 ton + 3 ton, rated capacity up to 6 ton Canada
Main Specifications of 3 ton overhead crane & hoist for sale Canada
|
Quantity |
2 set |
|
Product Name |
Double Hoist Overhead Crane |
| Crane Model |
LD |
|
Lifting capacity |
3 Ton + 3 Ton |
|
Crane span |
16.75m |
|
Lifting height |
6.2 m |
|
Working class |
A3 |
|
Power supply |
240V,60HZ,3P |
|
Crane control |
Remote Control |
|
Color |
Standards |
List of crane rails and sliding wire
|
The 2 sets of overhead cranes will working in the same bay, with a total travelling length of 42 m. |
|
|
Crane rail |
Quantity |
|
P22 |
85.3M |
|
Note: Equipped with the corresponding number of clamp plates and welding pressure plates |
|
|
Seamless sliding wire |
Quantity |
|
16mm² |
42m |
Crane spare parts list:
|
Spare part name |
Quantity |
|
rope guide |
1 |
|
CD lift vane brake fan |
2 |
|
Lifting limiter |
2 |
|
tow rope |
2 |
|
relay |
2 |
|
wire rope |
2 sets |
|
Lifting weight limiter |
2 |
|
Remote control (only transmitter, 10-button) |
1 |
Customized features of 3 ton + 3 ton double hoist overhead crane
- The overhead crane is designed with rated capacity of 3 ton + 3 ton = 6 tons
- A 10-button remote control controls two hoists, but it does not required to control the two electric hoists to go up and down at the same time. Besides, each electric hoist is also equipped with a wire pendent handle.
- The main girder of the overhead crane is required to be divided into 2 sections so that it can be loaded into a 40GP container
Customs declaration & registration information
- The actual Chinese and English name of the goods:overhead crane
- Chinese and English name of cargo declaration:overhead crane
- Inland transportation cost from factory to port: 925 USD
- See Freight: 18000 USD
Gallary of 3 ton + 3 ton double hoist overhead crane for sale Canada

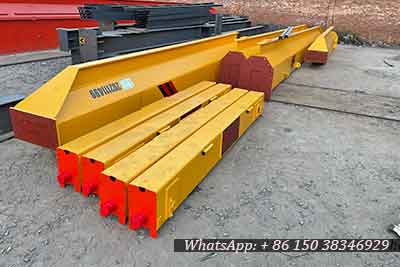

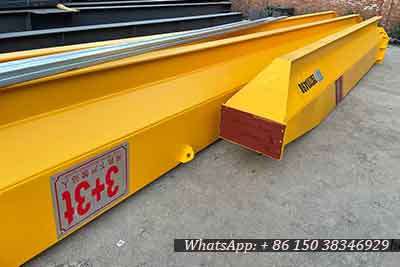

Main girder of 3 ton + 3 ton single girder double hoist overhead crane for sale Canada
Main girder of the single girder overhead crane needs to be cuted into two section to load into containers .Main steel strucctures of the single girder ovrhead crane 3 ton + 3 ton, 2 sets.
Name plate of the ld type single girder overhead crane

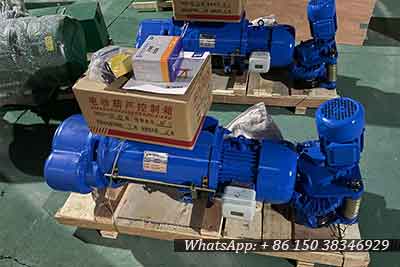

3 ton electric hoists for single girder overhead cranes for sale Canada, 2 sets for long and large load handling.

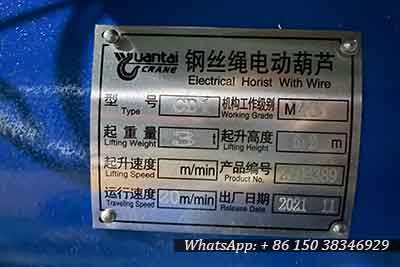

Featured pictures of the 3 ton electric wire rope hoist name plate for your refrence.
