3.2 Ton Overhead Beam Crane for Sale France | Single Beam Crane

3.2 ton overhead beam crane for sale France good price. European style single beam crane, low headroom rope hoist. Check beam crane specifications.

Project info of 3.2 ton sinle girder overhead beam crane for sale France

  • Brand :Yuantai Crane
  • Types of Cranes: 3.2 ton single girder overhead beam cranes
  • Date of Placing Order: 2017.5.19
  • Date of delivery :2017-6-15
  • Transportation :40GP, by shipping Container
  • Transaction and destination: FoB, Qingdao
  • Destination country:France
5 ton  pillar jib crane for sale Australia
3.2 ton + 3.2 ton pillar jib crane for sale France

Main Specifications of 3.2 ton overhead beam crane for sale France

Quantity

1 set

1 set

Gantry crane type

Single girder overhead beam crane with European style

Single girder overhead beam crane with European style

Lifting capacity

3.2 ton

3.2 ton

Crane span

15.88m

7.54m

Lifting height

5.5 m

5.5 m

Working class

A5

A5

Power supply

3-ph 400V 50Hz

3-ph 400V 50Hz

Hoist control

Pendant control+ remote control

Pendant control+ remote control

Color

Standard

Standard

Customized features of the 3.2 ton single girder overhead beam crane for France

  • 1.40*40 square steel 39 meters, a set of collectors, seamless sliding wire, cross-sectional area 6 square centimeter , 20 meters long .
  • 2. Equipped with Norway European style electric wire rope hoist, the running limit of the 3.2 ton is realized with two-speed deceleration function with cross limit
  • 3. The height from the wheel tread to the top of the main beam is 500mm.
  • 4. The 3.2 ton + 3.2 ton overhead beam crane is transported by a 40-foot container and the 15.88 m long main girder of the overhead beam crane is cut into two sections for the sake off delivery.

Customs declaration & registration information

  • The actual Chinese and English name of the goods: 桥式起重机overhead crane
  • Chinese and English name of cargo declaration: 桥式起重机overhead crane
  • Inland stranportation fee: 6000RMB
  • Port charges: RMB 8000

Gallary of 3.2 ton overhead beam crane for sale France

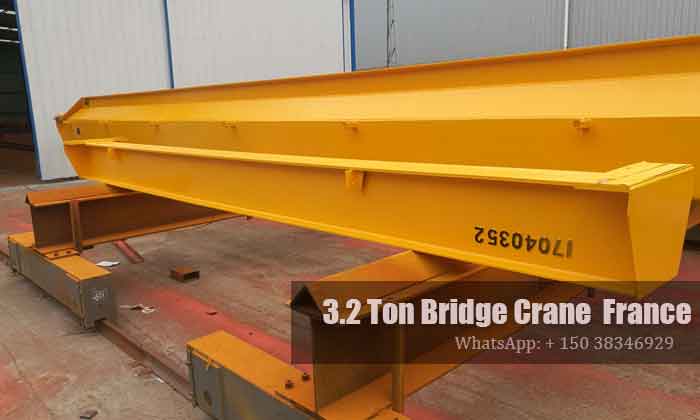

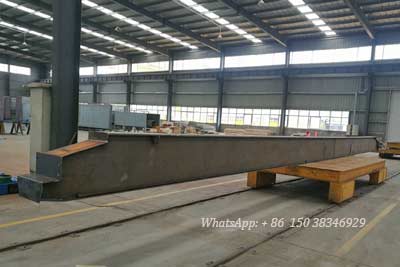

Manufacturing of main girder for 3.2 ton single beam overhead cane for sale France Manufacturing of main girder for 3.2 ton single beam overhead cane for sale France

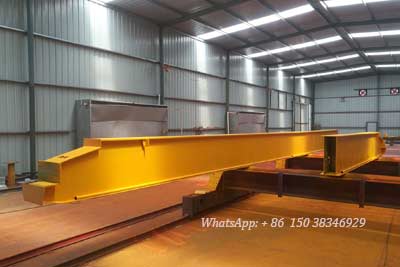

Painting  of main girder for 3.2 ton overhead beam cane for sale France Painting of main girder for 3.2 ton overhead beam cane for sale France

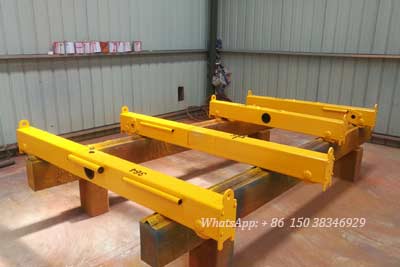

End carriages for 3.2 ton single beam overhead cane , 2 sets for sale France , good priceEnd carriages for 3.2 ton single beam overhead cane , 2 sets for sale France , good price

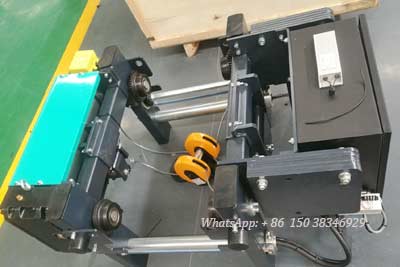

Single beam electric wire rope hoist for 3.2 ton cane Single beam electric wire rope hoist for 3.2 ton cane

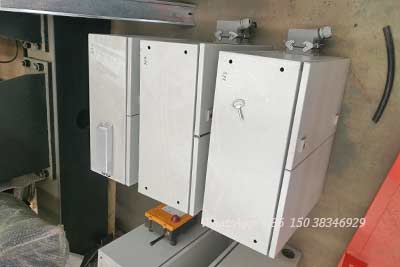

Electrics - Main parts of the single beam overhead cane Electrics - Main parts of the single beam overhead cane

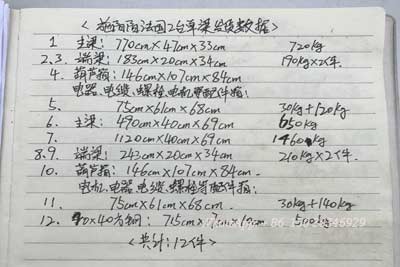

Main parts dimensions and weight list of the 2 sets of 3.2 ton overhead crane Main parts dimensions and weight list of the 2 sets of 3.2 ton overhead crane

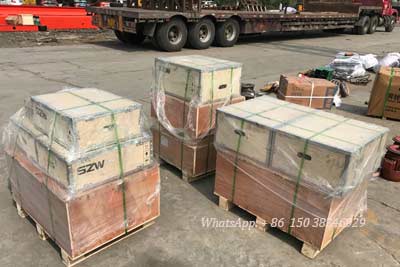

Hoist and parts packed for delivery to France Hoist and parts packed for delivery to France
