5 Ton Single Beam & 20 Ton Double Beam Overhead Crane Haiti

4 sets of overhead cranes for sale Haiti, good price. 4 sets 5 ton single beam overhead crane & 1 sets of 20 ton double beam overhead crane. Check now.

Project info of overhead beam cranes for sale Haiti

  • Brand :Yuantai Crane
  • Types of Cranes: overhead crane with single beam & double beams design
  • Date of Placing Order: 2017.6.23
  • Date of delivery : 2017.7.29
  • Transportation :40GP Containers * 5
  • Transaction and destination CFR AU-PRINCE
  • Destination country:Haiti
  • First contact :2017.4
4 sets of 5 ton single beam overhead cranes  for sale Haiti
4 sets of 5 ton single beam overhead cranes for sale Haiti

Main Specifications of 5 ton & 20 ton overhead cranes for sale Haiti

Quantity

4 set

1 set

Gantry crane type

Single beam overhead crane with European style

Double beam overhead crane with European style

Lifting capacity

5 ton

20 ton

Crane span

12.05m

11.34m

Lifting height

3.5 m

5 m

Working class

M5

M5

Power supply

3-ph 440V 50Hz

3-ph 440V 50Hz

Hoist control

Remote control

Remote control

Color

Standard

Standard

Configurations of the 5 ton single beam overhead crane

General configurations:

5THD type single beam overhead cranes are installed into two working bays, with 2 sets at each bay, the travelling length of working bay is 189 feet, which is 57.6M.

The electric wire rope hoist hoist is equipped with ABM motor configuration, overhead crane long travelling is equipped with SZW motor configuration, and electrical Schneider, etc.

Runway bearing beam:

  • Model: H400*245*6*12*200*10
  • Quantity: 21'-6.4008m/piece-28 pieces, 19' 11 inches-6.0705m/piece-6 pieces,
  • 19' 7" - 5.969/root - 2

Crane rail :

  • Model: P24
  • Quantity: 57.6*4=230.4m 770 welding pressure plates, 32 pairs of plywood

Seamless sliding line:

  • Model: 16 square centimeter
  • Quantity: 57.6*2=115.2m
  • Collector: 5

Configurations of the 20 ton double beam overhead crane

General configurations:

20 ton double beam overhead crane will installed in a working bay with the travelling length of 112ft, that is the 34.32M.

The double beam crane adopts the SZW motor, and Schneider Electric configuration.

Rail bearing beam:

  • Model: H600*365*8*14*240*14
  • Quantity: 22 feet 6 inches-6.858m/piece-6 pieces, 21 feet 5 inches-6.5278m/piece-4 pieces

Crane rail / craene track:

  • Model: P38
  • Quantity: 34.32*2=68.64m 230 welding pressure plates, 10 pairs of plywood

Seamless sliding line:

  • Model: 16 square centimeter
  • Quantity: 34.32m
  • Collector: 2

Customs declaration & registration information

  • Land transportation cost from factory to port: 15,000 yuan
  • Port charge: 30,000 yuan
  • Sea freight: USD 25,200

Gallary of 5 ton & 20 ton overhead crane for sale Haiti

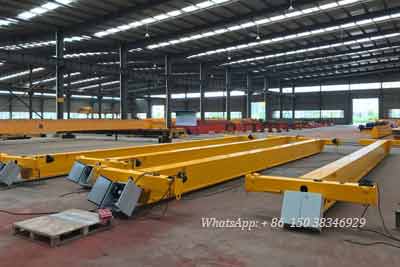

Main girder production for single beam & double beam overhead crane projects HaitiMain girder production for single beam & double beam overhead crane projects Haiti

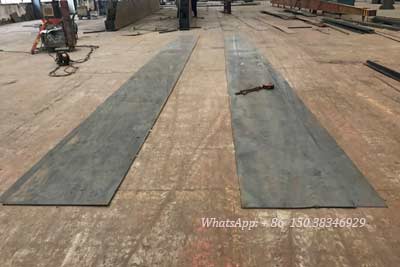

Box stuctrue main girder beams under production  for Haiti clients Box stuctrue main girder beams under production for Haiti clients
Main girder production for HaitiMain girder production for Haiti

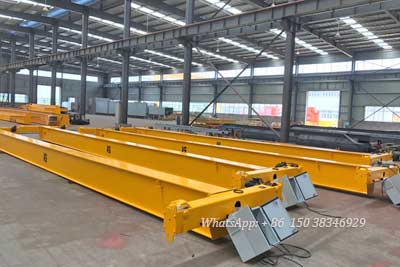

4 sets of 5 ton single beam overhead cranes paited for sale project good price. 4 sets of 5 ton single beam overhead cranes paited for sale project good price.

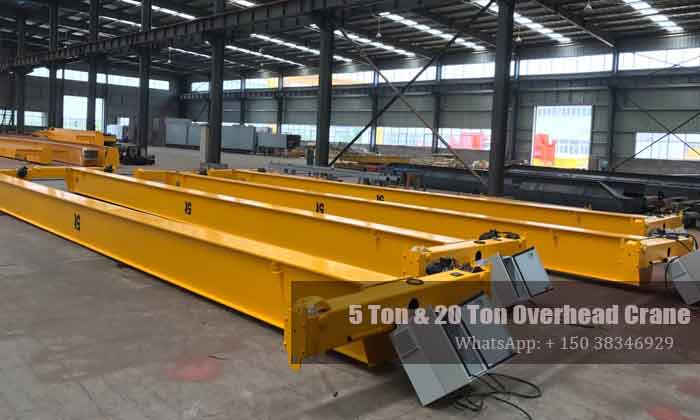

4 sets of 5 ton single beam overhead cranes paited for sale project good price. 4 sets of 5 ton single beam overhead cranes paited for sale project good price.

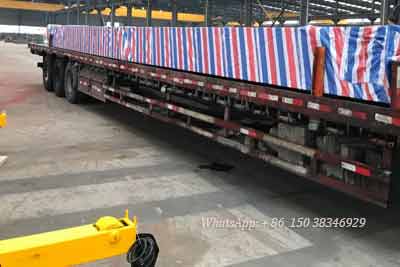

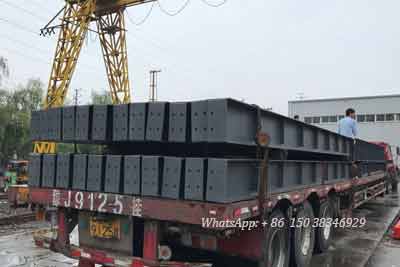

Crane runway beam of the 5 ton & 20 ton overhead beam cranes  for HaitiCrane runway beam of the 5 ton & 20 ton overhead beam cranes for Haiti
Main girder  of the 5 ton & 20 ton overhead beam cranes  for delivery to  HaitiMain girder of the 5 ton & 20 ton overhead beam cranes for delivery to Haiti

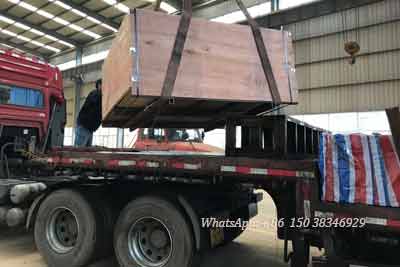

Electric hoists and parts of the 5 ton & 20 ton overhead beam cranes  for  delivery to HaitiElectric hoists and parts of the 5 ton & 20 ton overhead beam cranes for delivery to Haiti
