Overhead Crane for Sale Uganda 0.5Ton, 1 Tons & 2 Ton Good Price

4 sets o electric overhead crane for sale Uganda. Check 0.5 ton, 1 ton & 2 ton overhead cranes specifications & configuration to get your crane design.

Project info of single girder overhead crane for sale Uganda

  • Brand :Yuantai Crane
  • Types of Cranes: single girder overhead cranes
  • Date of Placing Order: 2017-3-20
  • Date of delivery : 2016-4-10
  • Transportation :40GP Container *1
  • Payment: TT
  • Delivery city Shanghai, China
  • Destination country:Uganda
single girder overhead crane for sale Uganda- double girders divided into four sections
single girder overhead crane for sale Uganda- double girders divided into four sections

Main Specifications of electric overhead travelling cranes for sale Uganda

Name Model   Capacity(T)   Span(M) Lifting height(M) Crane control Voltage Color Quantity
Electric overhead travelling crane LD

0.5

10.5 5 Pendant Control 400V 50H Z3PH Standard 1
Electric overhead travelling crane LD

1

5.2 3.5 Pendant Control 400V 50H Z3PH Standard 1
Electric overhead travelling crane LD

1

3.67 4.7 Pendant Control 400V 50H Z3PH Standard 1
Electric overhead travelling crane LD

2

6.1 6.5 Pendant Control 400V 50H Z3PH Standard 1

Customized features of the single girder overhead crane for Uganda

  • Overhead crane with specification of 0.5 ton, 10.5 span, 5m lifting height
    Track P24, 8 pairs of clamping plates, 60 pairs of pressure plates, 35m. 6 mm2 seamless wire and accessories, 7.65m. Rail bearing beam HT390*198*6*8, 35 m.
  • Overhead crane with specification of 1 ton, 5.2 m span, 3.5 5m lifting height
    Track P24, 2 pairs of clamping plates, 52 pairs of pressure plates, 15.3m, 6 mm2 without seam line and accessories, 7.65m. Rail-bearing beam HT390*198*6*8, 15.3m.
  • Overhead crane with specification of 1 ton, 3.67m span, 4.7m lifting height
    Track P24, 2 pairs of clamping plates, 36 pairs of pressure plates, 21.4m. 6 mm2 seamless wire and accessories, 10.7m. Rail-bearing beam HT390*198*6*8, 21.4m.
  • Overhead crane with specification of 2 ton, 6.1 m span, 6.5m lifting height
    Track P24, 4 pairs of clamping plates, 68 pairs of pressure plates, 40 m. 6 mm2 seamless wire  and accessories 20 m. Rail-bearing beam HT390*198*6*8, 40 m.

Customs declaration & registration information

  • The actual Chinese and English name of the goods: 桥式起重机overhead crane
  • Chinese and English name of cargo declaration: 桥式起重机overhead Crane

Gallary of Electric overhead crane for sale Uganda

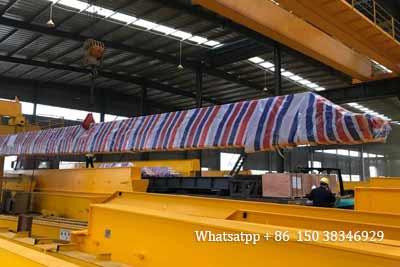

Main girders of  electric single girde overhead crane for sale UgandaMain girders of  electric single girde overhead crane for sale Uganda
Steel structrues of overhead crane for delivery to Urganda Steel structrues of overhead crane for delivery to Urganda

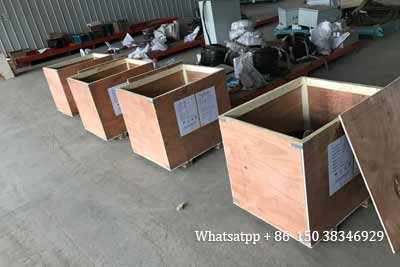

Cranes parts and components will be loaded into wooden box for delivery Cranes parts and components will be loaded into wooden box for delivery

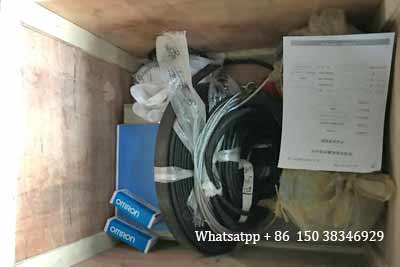

Cranes parts and components loaded into wooden box for delivery  for delivery to UgandaCranes parts and components loaded into wooden box for delivery  for delivery to Uganda
Cranes parts and components loaded into wooden box for delivery  for delivery to UgandaCranes parts and components loaded into wooden box for delivery  for delivery to Uganda

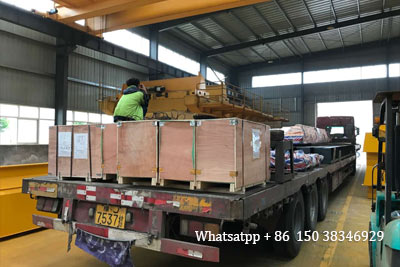

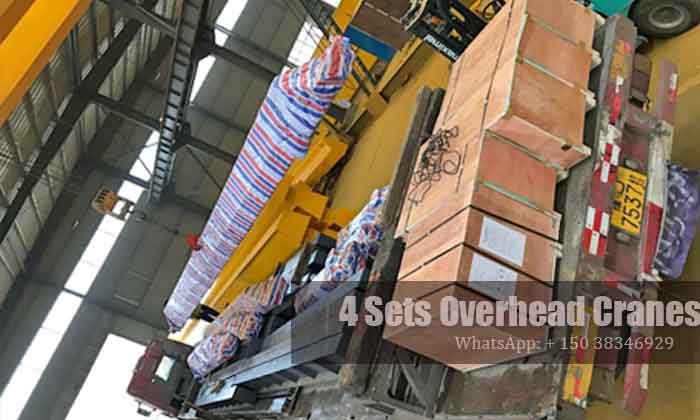

Electric overhead cranes loaded into truck to leave factory for delivery to UgandaElectric overhead cranes loaded into truck to leave factory for delivery to Uganda

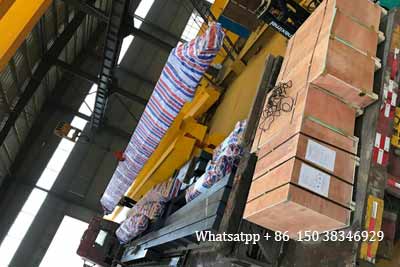

Electric overhead cranes loaded into truck to leave factory for delivery to UgandaElectric overhead cranes loaded into truck to leave factory for delivery to Uganda

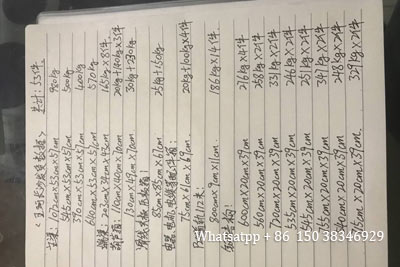

4 sets of electric overhead travelling crane and crane parts and componets dimension list of Uganda projects 4 sets of electric overhead travelling crane and crane parts and componets dimension list of Uganda projects
