41 Ton Container Handling Rail Mounted Gantry Crane Uzbekistan

Rail mounted gantry crane for sale Uzbekistan for container handling, capacity 41 ton, 4+1 containers. Check rmg container gantry crane specifications now.

Project info of 41 ton gantry crane for sale Uzbekistan

Brand ：Yuantai Crane
Types of Cranes:Rail Mounted Gantry Crane
Date of Placing Order： 2021-06-24
Date of delivery ： 2021.12.22

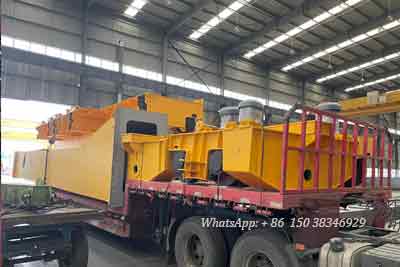

Transportation ：Railway transport
Payment: 30% TT prepaid, 35% TT completed main steel structure production, 30% TT before delivery, 5% TT installation completed
Destination port： CIP Pitnak
Destination country：Uzbekistan
First contact：2015-3-21

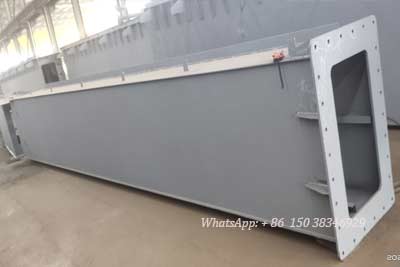

10 ton double girder overhead crane for sale Uganda- double girders divided into four sections

double girder gantry crane 41 ton for sale Uzbekistan

Main Specifications of 41 ton gantry crane for sale Uzbekistan

Quantity	1 set
Product Name	Rail mounted gantry crane
Crane Model	RMG
Lifting capacity	41 ton, with no spreader, total capacity 55 ton
Crane span	32 m
Lifting height	15.2 m （4+1）container
Working class	A6
Power supply	380V,50HZ,3P
Crane control	Driver's cabin control， moving with crane trolley
Color	Standard
Application	Outdoor use

Customized features of 41 ton rmg gantry crane

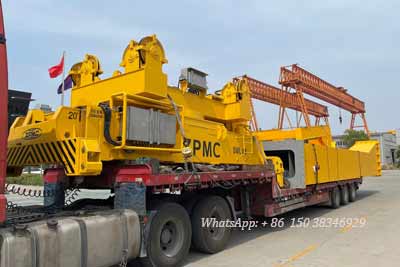

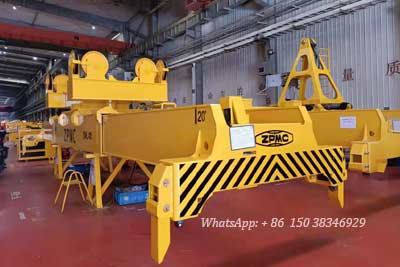

1, 1 spreader: brand Zhenhua 360-degree rotating and retractable 20-foot, 30-foot, 40-foot containers,
2, Single-pole sliding wire: 4x350m 1000A, including relays, etc. Sliding line color requires blue

3, Gantry Crane requirements:

(1). The total lifting capacity is 55 tons, the lifting capacity under the spreader is 41 tons, and the lifting height is 15.2 meters. The span is 32m, the total cantilever length is 9 meters on both sides, and the effective cantilever length is 6 meters on each side
(2). Lifting speed with full load 0~18m/min, no load 0~25m/min, trolley running 0~60m/min, trolley running 0~80m/min
(3). Running motor , hoisting motor bearing , electrical Schneider.
(4). The customer's track model is P65, the control input voltage is 220v, the output is 48v, the total power is 283.6kw, and the maximum wheel pressure is 310KN
(5). Install a 2T-27M maintenance hoist in SEW configuration (see reference drawings).
(6). Safety requirements: phase sequence protection, anti-collision system, overcurrent protection, phase-misalignment protection, overload protection, lifting limit, running limit, grounding protection system, emergency braking system, sound and light alarm, operation monitoring System and standard monitoring system, high-rise safety fence, windproof boots, lighting above the driver's cab and in the working area of the gantry crane, laser infrared sensors are installed in each movement direction, the trolley power supply 7-shaped frame is lengthened to accommodate the power supply pulley when the trolley is at the end of the bridge , Under the bridge and under the outriggers, the camera monitoring system is installed, the pedestrian passage along the full length of the bridge, and the manual rail clamping system. Safety sensors, PLC system. Anemometer, lightning rod.

4, Accessories:
2 sets of brake pads, 10 couplings, 5 washers, 5 lifting limiters, 5 carbon brushes, 5 emergency buttons, 2 electric control coil controller contactors, 2 spreader lights, 2 sets of bearings, 180m wire rope, 4 cab lights,etc.
