10 Ton Top Running Single Girder Crane for Sale Venezuela 4 Sets

10 ton overhead crane for sale Venezuela, a top running single girder crane, equipped with an electric travelling wire rope hoist.Check 10 ton overhead crane specifications for Venezuela crane project now.

Project info of 10 ton single girder overhead crane for sale Venezuela

  • Brand :Yuantai Crane
  • Types of Cranes:Single girder overhead crane
  • Date of Placing Order: 2017.4.26
  • Date of delivery : 2017.5.26
  • Transportation :40GP Container *1
  • Payment: TT
  • Destination port:FOB,Qingdao
  • Destination country:Venezuela
Main girders - 4 sets of 10 ton single girder overhead crane for sale Venezuela
Main girders - 4 sets of 10 ton single girder overhead crane for sale Venezuela

Main Specifications of 2 ton floor mounted pillar jib crane for sale Venezuela

Quantity

4 set

Product Name

Single Girder Overhead Crane

Crane Model

LD

Lifting capacity

10 ton

Crane span

19 m

Lifting height

8 m

Working class

M3

Power supply

380V,50HZ,3P

Crane control

Ground control

Color

Customized as request

Specifications of top running single girder crane kits

  • Rail-bearing beam: H750*440*10*16*300*14, 210.16 meters
  • Run way bearing beam: H500*300*10*14, 24
  • Column: (12m) H290*300*8*14, 3
  • Blade barbed wire: 400 meters, model CBT-65
  • Crane Rail or Track :P24 210.16 meters, including 30 pairs of clamp plates and 710 pieces of pressure plates, etc.
  • Seamless sliding line: 16 square centimeters, 105.08m long.
  • Collector: 5 piece.
  • Straightener: 5 sets

Customized features of 10 ton top running single girder overhead crane

  • Crane runway bearing beams: 11.71 meters/ piece , total 16 pieces, and 5.7 meters / piece, total 4 pieces.
  • the Brand mark of the client is required to be printed on the main girder of the overhead crane.
  • The color of the 10 ton single girder overhead crane, rail-bearing beams and columns are required to be blue , as the sample color send by client .
  • The 19 meters long main beam of top running single girder crane needs to be cut into 2 sections for container loading.
  • The column is 12 meters, which needs to be cut into 2 sections of 8 meters and 4 meters.

Customs declaration & registration information

  • The actual Chinese and English name of the goods: 桥式起重机overhead crane
  • Chinese and English name of cargo declaration:桥式起重机overhead crane
  • InLand transportation cost from factory to port: 18000 RMB
  • Port charges: 25000 RMB

Gallary of 10 ton single girder overhead crane for sale Venezuela

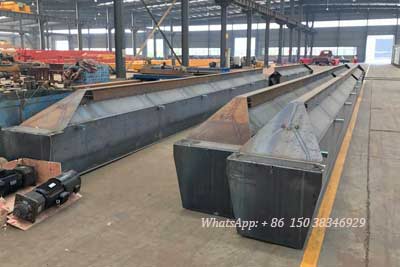

Main girder production  of 10 ton top running single girder crane for sale VenezuelaMain girder production of 10 ton top running single girder crane for sale Venezuela

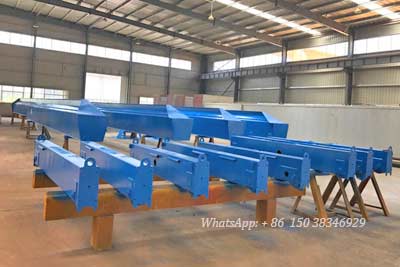

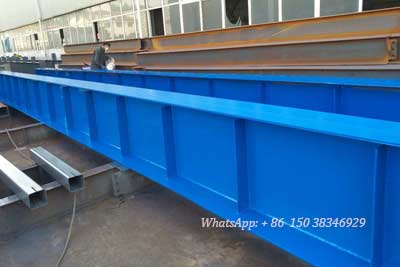

Main girder painted of 10 ton top running single girder crane for sale VenezuelaMain girder painted of 10 ton top running single girder crane for sale Venezuela

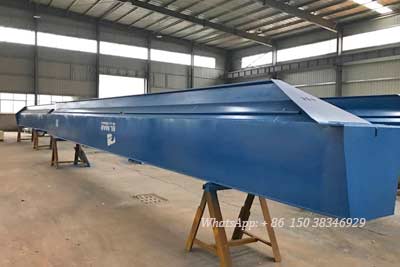

The logo of the client's company is requried to be printed on the mian girder of the 10 ton  overhead crane for sale VenezuelaThe logo of the client's company is requried to be printed on the mian girder of the 10 ton overhead crane for sale Venezuela
Crane runway beam of 10 ton overhead crane for Venezuela projectCrane runway beam of 10 ton overhead crane for Venezuela project

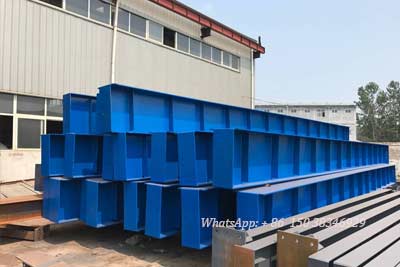

Finished runway bearing beam for 4 sets of 10 ton single girder overhead crane Finished runway bearing beam for 4 sets of 10 ton single girder overhead crane

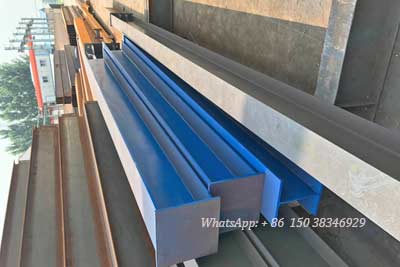

Supporting columns for the single girder overhead crane 10 ton , together for 4 sets of overhead cranes Supporting columns for the single girder overhead crane 10 ton , together for 4 sets of overhead cranes

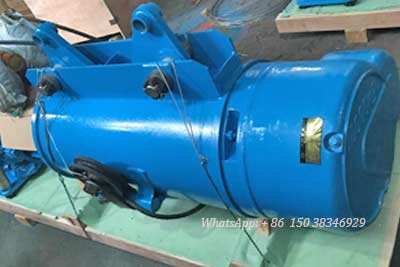

10 ton electric wire rope hoist for the single girder overhead crane top running design 10 ton electric wire rope hoist for the single girder overhead crane top running design

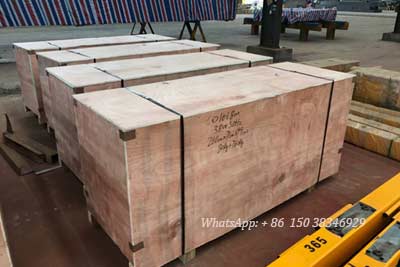

4 sets of electric travelling wire rope hoists and parts  packed into boxes for delivery to Venezuela4 sets of electric travelling wire rope hoists and parts packed into boxes for delivery to Venezuela
