Single Girder Gantry Crane

Single Girder Gantry Crane

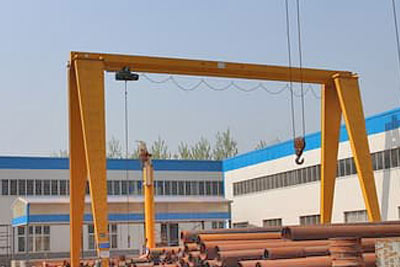

MH Single Girder Gantry Crane with CD/MD Wire Rope Hoist

MH Single Girder Gantry Crane with CD/MD Wire Rope Hoist

Product Type: MH
Lifting Capacity: 1~20t
Span: 8~30m
Lifting Height: According your demands
Working Class: A3,A4
Ambient Temperature: -20~40℃
Inquiry

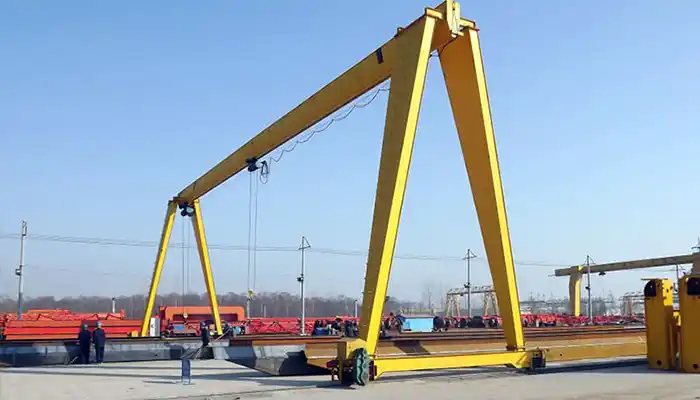

A single girder gantry crane is a small gantry crane with electric hoist as the lifting system and with rail travelling. We offer single-beam gantry cranes designed for general material handling, with lifting capacities ranging from 3 Ton to 20 Ton, working classes A3, or A4, and are widely used in factories, warehouses, stockyards, production workshops, and other settings. With more than 3 decades of gantry crane manufacturing and supplier, Yuantai Crane not only can provide the most cost-effective single girder cranes based on client special needs and the most convenient after-sale services to free your worries, but we also can enable our customers enjoy cutting-edge technology in the hoist and crane field.Single girder gantry crane is mainly consisted of the following gantry crane parts and components , such as, the gantry frame, i.e. main girder, supporting legs, bottom end beams, electric hoist lifting mechanism, travelling mechanism, and electrical control.

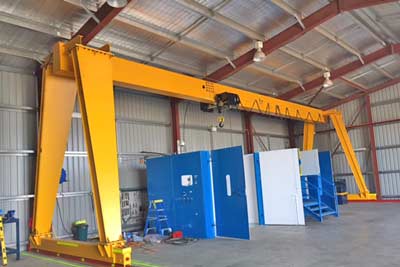

Single girder gantry crane drawing Single girder gantry crane drawing

The specification of the single girder gantry crane is as follow:

  • Product Type: MH
  • Lifting Capacity of Single Girder Hoist Gantry : 1~20 ton
  • Span Length of Single Girder Hoist Gantry: 8~30m
  • Working Class of Single Girder Hoist Gantry: A3, A4
  • Ambient Temperature of Single Girder Hoist Gantry:-25~40℃

Advantages of single girder gantry crane

  • Simple & reasonable crane structure, easy crane installation & operation
  • Good usability and high performance at a low cost
  • Low and simple crane maintenance
  • Parts of gantry cranes can be standardized, generalized, or serialized.

Features of single girder gantry crane

  • The main beam, support legs, ground beam, and crane traveling mechanism are the main part of a single girder gantry crane.
  • There are two types of main beams and support legs: box type and truss type. Box type is good for techniques and easy fabrication, while truss type is light in dead weight and strong in wind resistance. The complete machine has a low dead weight, a simple structure, and is simple to install and maintain.
  • If you intend to use it in an environment containing flammable, explosive, or corrosive gas, please notify Yuantai Crane so that we can outfit the gantry crane with appropriate safe devices to ensure your operation safety.
  • As for crane control, there are three control options: ground handle, wireless remote control, and cab control.

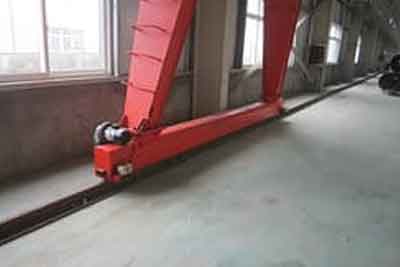

Ground beam with soft start motor- Parts of single girder gantry craneGround beam with soft start motor- Parts of single girder gantry crane

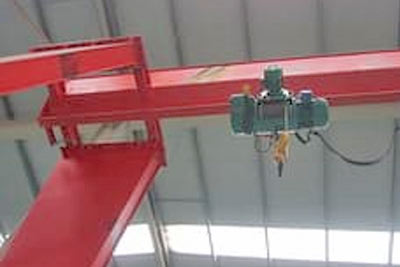

Gantry crane hoist - Parts of single girder gantry craneGantry crane hoist - Parts of single girder gantry crane

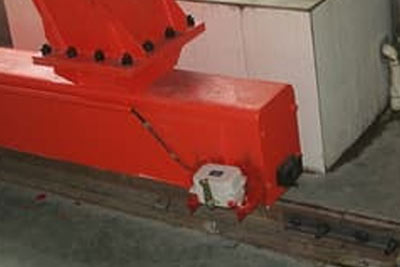

Crane travelling limit- Parts of single girder gantry craneCrane travelling limit- Parts of single girder gantry crane

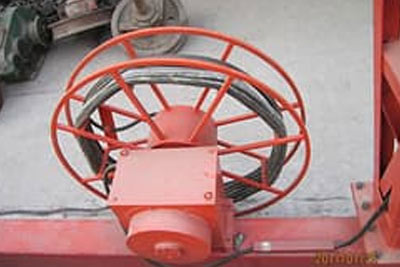

Cable Drum--Crane power supply systemCable Drum--Crane power supply system



Types of cantilever designs

According to lifting requirement, the single girder gantry crane can be designed with no cantilever, single cantilever and double cantilever on the both side of crane girder.

Double cantilever gantry crane with cd/md wire rope hoistDouble cantilever gantry crane with cd/md wire rope hoist
Single cantilever gantry crane with dual wire rope hoistsSingle cantilever gantry crane with dual wire rope hoists

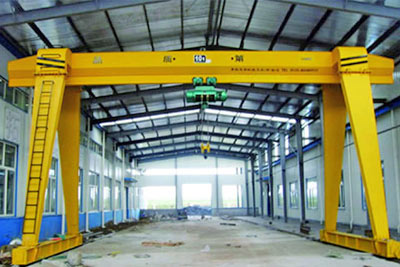

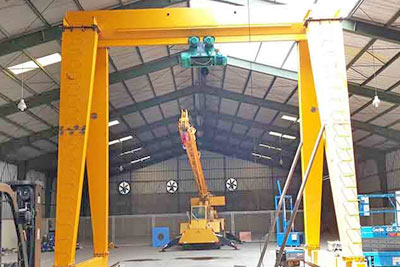

Single girder gantry crane with no cantileverSingle girder gantry crane with no cantilever
Double cantilever gantry crane with European style wire rope hoistDouble cantilever gantry crane with European style wire rope hoist

Safety feature of single girder electric hoist gantry crane

  • Overload protection devices are installed, which provide a loud alarm warning when overloads occur.
  • Limit switches are used to prevent the crane hook from being over lifted or lowered.
  • To ensure a long working life, a high quality polyurethane buffer is used on the hoist gantry crane.
  • For the sake of your operator's safety, room control and remote control are available.
  • In the event of an unstable voltage supply, low voltage protection is used.
  • When an emergency occurs, an emergency stop button is installed to stop the equipment.
  • Current overload protection system, as well as others, and so on.

Application of single girder gantry crane

A single girder gantry crane is a type of general use gantry crane that is commonly used in open ground, warehouses, ports, the granite industry, the cement pipe industry, open yards, container depots, and shipyards, among other places.

As for the material handling in hazardous application, it is is strictly prohibited. For example, the electric hoist single girder gantry rane is not allowed to handle melt metal, flammable, or explosive objects, etc.

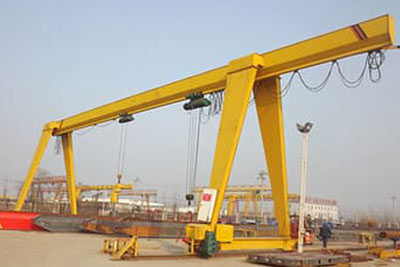

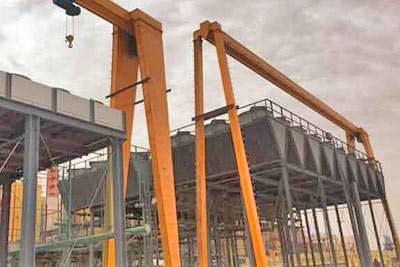

Single girder gantry crane for sale Saudi ArabiaSingle girder gantry crane for sale Saudi Arabia
Single girder gantry crane for sale GuatemalaSingle girder gantry crane for sale Guatemala

Single girder gantry crane comparison: Box type v.s. Truss type

Box type single girder gantry cranes and truss type single girder gantry cranes are the two types of single girder gantry cranes. What are the distinctions between the various types of single girder overhead cranes? Generally,

Box type single girder gantry crane

The box type single girder gantry crane is a medium-sized crane that travels in track and is usually equipped with a standard CD MD electric hoist as the lifting mechanism, with the electric hoist traversing along the lower flange of the main girder, which is made of high-quality steel plates.

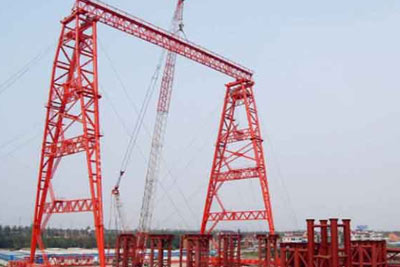

Truss Type Single Girder Gantry Crane

A truss type single girder gantry crane is constructed of truss girder, made of steel bars, with lighter dead weight and higher wind resistant ability, compared with that of box type gantry crane.

Box girder design single beam ganry crane Box girder design single beam ganry crane
Box girder design single beam ganry crane Box girder design single beam ganry crane
