A Straddle Carrier for Container Handling is a highly versatile material handling machine designed for loading, unloading, and transporting containers at ports, intermodal yards, and container terminals. It provides efficient handling of containers with excellent maneuverability, low ground pressure, and high lifting capacities, making it suitable for a variety of environments, including narrow spaces and rough terrains.
straddle carrier for port yard container handling

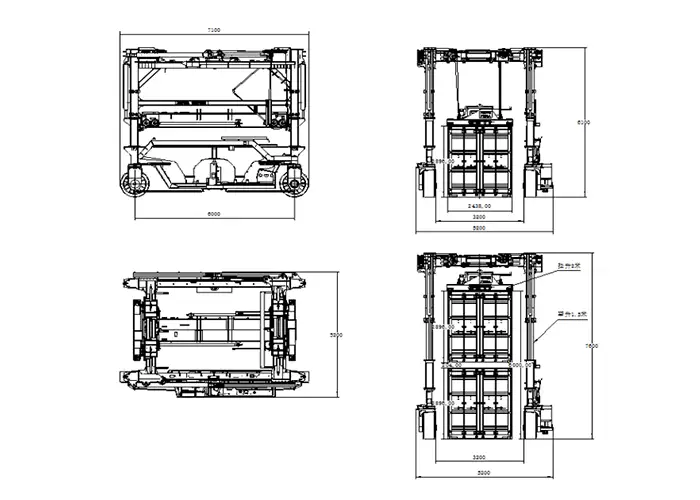

Technical Specifications:
Rated Lifting Capacity: Typically between 35-50 tons, depending on the model.
Lifting Height: Ranges from 9.5 to 12.2 meters.
Stacking Capacity: Supports 2-3 layers of containers.
Container Compatibility: Suitable for handling 20ft and 40ft containers.
Speed:
Hoisting Speed (Full Load/Empty Load): 15/25 meters per minute.
Traveling Speed (Full Load/Empty Load): 15-20 km/h.
Turning Radius: Minimum outer turning diameter of 9.5-10 meters.
Power Supply: Diesel engine, electric drive, or hybrid options.
Brake Mode: Electro-hydraulic brakes for reliable stopping performance.
Tire Configuration: Four to eight wheels for optimal support and balance.
Key Features:
High Customisability:The Straddle Carrier is built with versatility in mind. It can be tailored to meet the specific needs of different industries, including ports, logistics parks, and manufacturing facilities. Whether it's adjusting for different container sizes or custom attachments, this machine adapts to various container handling tasks.
Automatic Attachment System:With the automatic attachment system, the Straddle Carrier easily adjusts to handle different types of containers. This system minimizes the need for manual intervention, improving efficiency and speed during container operations. It's especially helpful when switching between container sizes like 20-foot and 40-foot units.
Advanced Steering Mechanism:One of the standout features of the Straddle Carrier is its range of steering options.
360° turning allows for complete maneuverability, even in tight spaces.
Straight-line travel is great for moving containers long distances.
Crab steering makes it possible to travel sideways, which is especially useful in crowded or narrow areas.
Diagonal travel and other options provide enhanced flexibility, ensuring that operators can navigate the machine in almost any direction with ease.
These various steering modes make the Straddle Carrier perfect for locations where space is tight or when sharp turns are required.
Remote Control Capability:For increased flexibility, the Straddle Carrier can also be operated via remote control. This allows the operator to move the machine from a safe distance, providing greater visibility and improving safety. Whether you're in a busy port or an intermodal yard, remote control makes it easier to perform container handling tasks with precision.
Low Ground Pressure:When fully loaded, the Straddle Carrier exerts very low ground pressure. This feature helps prevent damage to the surface, especially on delicate or uneven terrains. It's an excellent choice for environments where protecting the ground is important, such as in industrial or natural settings.
Fuel-Efficient Design:Designed with energy efficiency in mind, the Straddle Carrier uses less fuel or power compared to other machines in its class. This not only reduces operational costs but also contributes to a lower environmental impact. Whether it's used on a large scale at a port or smaller terminals, the fuel-efficient design makes it a cost-effective solution for long-term operations.
Rugged Construction:Built to withstand tough working conditions, the Straddle Carrier features a robust construction that can handle rough terrains and difficult environments. Whether it's climbing ramps, navigating construction sites, or dealing with uneven surfaces, the Straddle Carrier maintains its stability and performance.
Ergonomic Cab Design:Operator comfort is a key factor in productivity. The Straddle Carrier features an ergonomically designed cab that reduces fatigue during long shifts. Controls are easy to reach, and the layout is intuitive, so operators can focus on their task without discomfort. This makes the machine easier to operate for extended periods of time.
360° Visibility:Safety is a priority, and the Straddle Carrier offers 360° visibility. This gives the operator a clear line of sight in all directions, even when the load is lifted. Whether navigating through busy terminal areas or stacking containers, excellent visibility reduces the chances of accidents and makes the operation smoother.
Maintenance-Friendly:One of the most practical features of the Straddle Carrier is its ease of maintenance. The engine and important components are easily accessible from the ground. This saves time and reduces the need for specialized tools. Regular servicing can be done quickly, ensuring that the machine stays in top condition and minimizes downtime.
Puncture-Proof Tires:The Straddle Carrier is equipped with soft solid puncture-proof tires. These tires are designed to resist damage from sharp objects or rough terrain, ensuring that the machine operates smoothly without frequent tire replacements. It's a practical feature that enhances the durability and reliability of the carrier, even in harsh environments.
The combination of these features makes the Straddle Carrier a highly effective, reliable, and safe solution for container handling in a variety of industries. It offers flexibility, durability, and efficiency to meet the demanding needs of modern logistics operations.
Straddle carriers are built with a range of safety devices to ensure the highest levels of operational reliability and protect both the operator and the equipment. Here are some of the key safety features:
Overload Protection:To prevent the carrier from exceeding its safe lifting capacity, overload protection is in place. This system monitors the weight of the load and automatically restricts operation if the container exceeds the machine's maximum capacity, preventing accidents and equipment damage.
Emergency Brake Protection:In case of a brake failure, the emergency brake protection system kicks in. This mechanism is designed to bring the Straddle Carrier to a safe stop, preventing potential accidents and ensuring that the operator and nearby personnel are kept safe.
High-Temperature Protection:To protect the engine and hydraulic systems from overheating, the high-temperature protection system continuously monitors engine and oil temperatures. If temperatures go beyond safe levels, the system triggers an alert to prevent damage to critical components and ensure smooth operations.
Collision Alerts:The Straddle Carrier comes equipped with visual and audible alarms designed to prevent collisions. These collision alerts warn the operator of nearby obstacles, enhancing situational awareness and reducing the risk of accidents, especially in busy or congested areas.
Pressure Protection:For the safety of the hydraulic system, pressure protection ensures that hydraulic pressure stays within safe limits. This system prevents damage to hydraulic components and ensures that the machine operates smoothly without risking system failure.
Anti-Skid and Stalling Protection:When navigating challenging terrains or steep inclines, anti-skid and stalling protection helps maintain movement and prevents the Straddle Carrier from stalling or slipping. This safety feature ensures that the machine can safely operate on rough or slippery surfaces, enhancing its stability in difficult conditions.
These safety features are crucial in maintaining a safe working environment and ensuring the longevity and efficiency of the Straddle Carrier. By preventing accidents, system failures, and damage, these protections contribute to a reliable and secure operation.

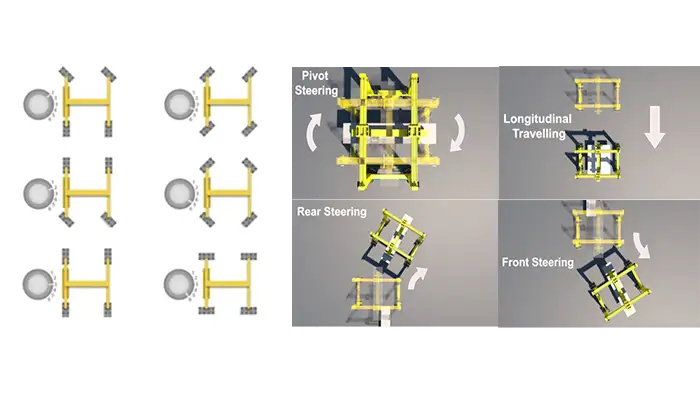

Straddle carriers are equipped with multiple steering modes, allowing for maximum maneuverability in various environments. These diverse options ensure flexibility and precision, making the carrier highly adaptable for different operational needs.
Straight Steering:This is the most common steering mode, where the straddle carrier moves in a straight line, offering a straightforward and efficient way to navigate along a fixed path. It is ideal for traveling over long, open stretches where precision is needed.
Transverse Travel:In this mode, the carrier moves sideways (perpendicular to the usual direction of travel), allowing it to maneuver through narrow spaces or restricted areas. This is especially useful when moving containers in tight spots or between rows of stacked goods.
Pivot Steering:Pivot steering allows the straddle carrier to rotate around a central point. This mode is useful when operating in very confined spaces, enabling tight turns without moving too much forward or backward. It ensures maximum control and minimal space usage.
Crab Travel:In crab travel, the carrier moves diagonally, making it easier to position the machine without turning it. This is perfect for situations where you need to move containers into or out of tight positions without altering the direction of travel too much.
Front and Rear Steering:In front and rear steering, the carrier's front and rear axles are controlled independently, allowing for better maneuvering in complex environments. This mode is particularly beneficial for ensuring smooth turns and precise positioning when handling containers.
These steering modes enhance the overall versatility of the straddle carrier, making it suitable for a wide range of applications from tight, crowded work environments to expansive areas requiring straightforward travel.
Increased Efficiency:Straddle carriers provide faster turnaround times, significantly improving container handling speed. This efficiency reduces the amount of time spent on each operation, allowing for quicker unloading, loading, and transport of containers. The result is better throughput and optimized workflow, boosting overall productivity.
Improved Safety:Safety is a top priority with straddle carriers. Equipped with advanced features like radar anti-collision systems, video monitoring, and overload protection, these carriers provide a secure environment for handling containers. Additionally, emergency systems ensure immediate response to any critical situation, safeguarding both operators and equipment.
Flexible Use:Straddle carriers are adaptable to a range of applications, excelling in both short-range horizontal transport and stacking operations. Whether you're transporting containers over short distances or handling complex stacking tasks, the flexibility of the machine ensures smooth and efficient operations in various scenarios.
Reduced Product Damage:Straddle carriers are designed to handle containers with care. Their smooth, stable movements reduce the risk of product damage during transport and loading/unloading. The advanced systems keep the load steady, even when navigating challenging terrains, preventing any unwanted shifts that might damage the container contents.
Enhanced Mobility:These machines excel in confined spaces, making them ideal for environments with limited space such as narrow aisles, workshops, and storage yards. Their precise maneuverability ensures they can easily navigate tight areas without sacrificing performance, allowing for effective use even in restricted locations.
Cost-Effective:Straddle carriers are designed for energy efficiency, minimizing fuel consumption and lowering overall operational costs. Their long service life and reduced maintenance needs further contribute to a cost-effective solution. By enhancing productivity and minimizing downtime, straddle carriers offer long-term value for businesses.
These operational benefits make straddle carriers a versatile and reliable choice for industries requiring efficient, safe, and cost-effective container handling solutions.

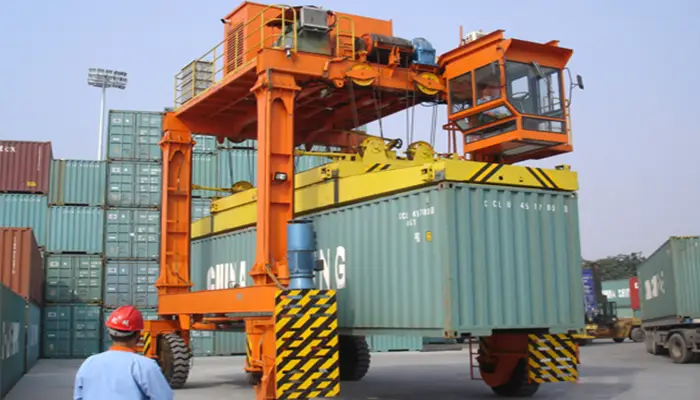

Ports & Terminals: Straddle carriers are perfect for transporting containers between ships and storage areas at busy ports. With their flexibility and high lifting capacities, they can quickly load and unload containers from ships to trucks or storage yards.
Intermodal Yards:In intermodal yards, these machines handle the efficient movement of containers between different transport modes, like rail-to-road or sea-to-road transfer stations. Their ability to quickly shift containers from one mode to another helps speed up logistics operations.
Logistics Parks:Straddle carriers excel in logistics parks, where large quantities of containers need to be handled daily. Their high maneuverability and lifting power make them ideal for organizing and moving goods in distribution centers, ensuring timely deliveries.
Factories/Manufacturing:Straddle carriers are also beneficial in manufacturing settings, especially in facilities with limited space. They can be used to load and unload containers efficiently, supporting production lines that rely on quick and secure material handling.
Rough Terrain Handling:When working in construction sites or other rough terrains with limited access, straddle carriers shine. Their robust design and ability to handle difficult surfaces allow them to operate effectively in areas that traditional forklifts or other machines can't reach.
Each of these applications showcases the versatility and adaptability of straddle carriers, making them essential tools for various industries requiring efficient, safe, and reliable container handling.
Easy Access Engine
Ground-level access makes maintenance tasks simple and quick.
No need for complex equipment to reach the engine.
This feature reduces the time spent on maintenance and helps keep the machine running smoothly.
Minimal Brake Maintenance
Hydraulic brakes reduce wear and tear.
Less frequent maintenance needed.
With fewer brake maintenance needs, the straddle carrier stays in operation for longer periods without interruptions.
Long Service Life
Durable components built to last.
Designed to withstand tough working conditions.
The straddle carrier is made to handle heavy-duty work, ensuring it lasts longer and reduces downtime.
Serviceable Parts
Most components are easy to replace or repair.
Quick fixes to ensure minimal disruption.
This makes servicing fast and efficient, allowing you to keep your operations running without long delays.
The straddle carrier is built for easy maintenance and long-term use, reducing costs and keeping things moving smoothly.
Lifting Capacity
What it means: Determines how much weight the straddle carrier can safely lift.
Common options: 35t, 40t, 50t, and more.
Choosing the right lifting capacity ensures that the carrier can handle your containers' weight without compromising safety.
Container Size Compatibility
What it means: Ensures that the straddle carrier can handle specific container sizes (e.g., 20' or 40' containers).
Options: Adjustable configurations for different container types.
This flexibility allows the carrier to handle multiple container sizes, maximizing efficiency across operations.
Steering Modes
What it means: The type of steering system that the straddle carrier uses to navigate.
Available modes: Straight-line, crab steering, pivot steering, diagonal travel.
Choosing the right steering mode enables smoother operations in tight spaces or rough terrains.
Travel Speed
What it means: Refers to the maximum speed of the carrier in different load conditions.
Options: Variable speeds for empty vs. full loads.
Optimizing travel speed can significantly reduce turnaround times while maintaining safety.
Lifting Height
What it means: Determines how high the straddle carrier can lift containers.
Common heights: 9.5m, 12.2m, etc.
The right lifting height ensures that your containers can be stacked or placed safely in your desired location.
Tire Type
What it means: The type of tire used, which impacts durability and stability.
Options: Puncture-proof, solid tires for rough terrains.
Choosing the right tire type ensures durability, especially when working in harsh environments.
Power Source
What it means: The type of engine used to power the straddle carrier.
Options: Diesel, hybrid, or electric-powered.
Selecting an energy-efficient power source reduces operational costs and environmental impact.
Cab and Control Options
What it means: The type of cabin and control system used for operator comfort and ease of operation.
Options: Ergonomically designed cab, remote control capabilities, and integrated safety features.
An intuitive cab and control system improve operator comfort and reduce the risk of accidents.
Safety Features
What it means: The built-in systems to ensure safe operations.
Key features: Overload protection, emergency braking, anti-collision alarms, and more.
With enhanced safety systems, the straddle carrier helps maintain a safe working environment at all times.
By considering these key parameters, you can tailor the Straddle Carrier to your specific needs and ensure optimal performance, safety, and efficiency in your container handling operations.
