Underhung Overhead Crane

Underhung Overhead Crane
Explosion-Proof Underrunning Overhead Cranes 1Ton to 10 Ton

Explosion-Proof Underrunning Overhead Cranes 1Ton to 10 Ton

Product Type: LXB Explosion Proof Underhung
Lifting Capacity: 1 to 10 Ton
Span: As your request
Lifting Height: As your request
Working Class: A3, A4
Ambient Temperature: -20~40℃
Inquiry

Explosion-proof underrunning overhead cranes are designed for environments where explosive gases, vapors, or dust are present. These cranes offer safe, efficient lifting solutions for hazardous workplaces. With a lifting capacity ranging from 1 to 10 tons, they are reliable for smaller to medium-sized operations in risky environments.

Importance

As a specialized under running overhead cranes are crucial for maintaining safety in places that are vulnerable to explosions. They are built with explosion-proof electrical components, ensuring no risk of sparking or ignition in hazardous areas. Their compact underrunning design helps save space and makes them ideal for low-ceiling environments where standard overhead cranes cannot fit.

  • Explosion-proof features help avoid the risks of sparks or electrical fires.
  • Underrunning design allows for efficient use of space, especially in areas with low ceilings.
  • Capacity range of 1 to 10 tons is perfect for lifting medium-sized loads safely in explosive environments.

In industries with volatile atmospheres, these cranes play an essential role in maintaining operational safety and minimizing risks to workers and equipment.

Applications

Explosion-proof underrunning cranes are used in industries where explosive materials are handled regularly. Here are some common applications:

  • Chemical Plants: Used to lift hazardous chemicals, solvents, and gases.
  • Oil Refineries: Crucial for handling flammable oils and gases.
  • Natural Gas Processing: Lifting heavy pipes, tanks, and equipment in gas plants.
  • Flour Mills & Cement Factories: These environments are often filled with dust, which can cause explosions. Cranes help handle raw materials safely.

These cranes are designed to keep workers safe in environments where traditional lifting solutions would pose a threat. Their design and functionality make them a top choice for hazardous industries.

Main Specifications of Explosion Proof UnderRunning Overhead Cranes

Key Features of Explosion-Proof Underrunning Overhead Cranes (1 to 10 Tons)

Explosion-Proof Design

These cranes are built with electrical components designed to prevent sparks and ignition. Explosion-proof motors, switches, and wiring ensure the crane operates safely in environments with flammable gases, vapors, or dust.

  • Explosion-proof electrical components meet safety standards to prevent accidents.
  • Protection against ignition ensures workers and equipment are safe.
  • Exd, Exe ratings: The crane complies with international standards such as Exd (Explosion-proof) and Exe (Increased safety), guaranteeing it can be used in hazardous zones (Zone 1 or Zone 2).

These design features ensure the crane remains safe in explosive atmospheres, making it suitable for industries where safety is the top priority.

Underrunning Design

The underrunning design means the crane’s trolley runs below the main girder instead of above it. This allows for better space utilization and is especially beneficial for low-ceiling areas. The crane operates from the bottom, saving valuable headroom and making it more suitable for environments where ceiling height is limited.

  • Space efficiency: It takes up less overhead space, which is essential in areas with low ceilings.
  • Lower headroom requirements: Ideal for workshops or warehouses where traditional cranes would not fit.
  • Smooth operation: The underrunning design allows for quiet and smooth travel, reducing wear and tear.

This design maximizes available space and provides flexibility in environments where space is a constraint.

Load Capacities and Span

Explosion-proof underrunning overhead cranes are available with lifting capacities ranging from 1 ton to 10 tons. They also come with span options that typically range from 3 meters to 16 meters, making them adaptable to different operational needs.

  • Lifting capacity: 1t to 10t ensures the crane can handle medium-sized loads.
  • Span options: Can be customized to suit the layout of the workspace.
  • Tailored lifting solutions allow for flexibility in industrial applications.

These capacities are perfect for industries where moderate load lifting is required, and they offer a high level of customization.

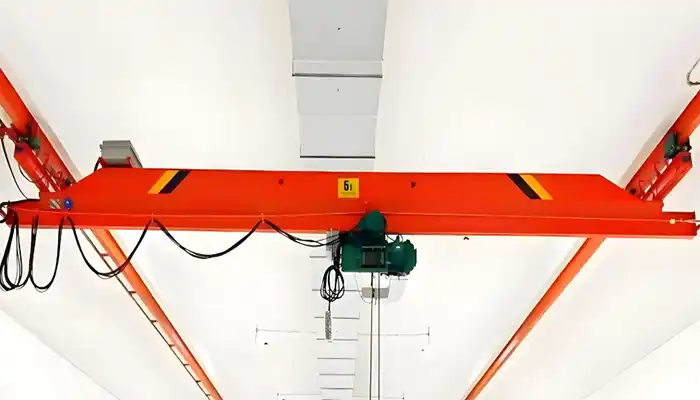

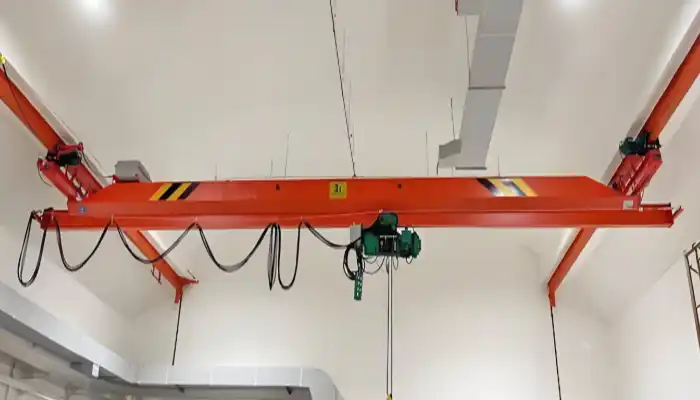

Explosion proof under running overhead crane 1 ton to 10 ton for sale
Explosion proof under running overhead crane 1 ton to 10 ton for sale

Materials Used

These cranes are constructed using non-sparking materials to ensure safety in explosive environments. For example, the wheels and key components are made from stainless steel or other materials that won't ignite explosive gas mixtures due to impact or friction.

  • Non-sparking materials like stainless steel are used for wheels and structural components.
  • Copper or stainless steel cables are used in the hoisting and traction lines to avoid any risks associated with sparks.
  • Durable and safe components ensure the crane operates smoothly in hazardous conditions.

Using non-sparking materials prevents dangerous ignition and ensures a safer working environment.

Control Systems

Explosion-proof underrunning overhead cranes offer various control options to suit operational needs.

  • Wired ground control allows for straightforward operation where the operator remains on the ground.
  • Wireless remote control offers greater flexibility, allowing the operator to control the crane from a distance.
  • Speed control and frequency regulation help adjust the crane’s speed, making lifting operations smoother and more precise.

These control systems enhance the overall safety, convenience, and efficiency of the crane, giving operators better control over their lifting tasks.

Explosion-Proof Mechanisms

Explosion-Proof Electrical Components

In hazardous environments, safety is paramount, and explosion-proof electrical components play a critical role in ensuring a safe operation. These components include motors, switches, and wiring that are specifically designed to prevent sparking or ignition in explosive atmospheres.

  • Explosion-proof motors: Designed to contain any sparks or heat inside the motor casing, preventing ignition in explosive zones.
  • Explosion-proof switches: Built to stop electrical sparks when switching on/off, avoiding risks in volatile environments.
  • Explosion-proof wiring: Insulated and protected to ensure no sparks or heat escape that could ignite flammable gases or dust.

These components are engineered for reliable performance in dangerous environments, minimizing the risk of explosion by containing electrical faults safely.

Hazardous Area Classification

Different hazardous areas have varying levels of risk for explosions, and it’s crucial that explosion-proof equipment like overhead cranes meet these specific requirements. These areas are classified into zones, each with different criteria for the type of explosion-proof protection needed.

  • Zone 1: This area is frequently exposed to explosive gases or vapors during normal operations. Cranes used in this zone must have robust explosion-proof features to protect against regular exposure to explosive atmospheres.
  • Zone 2: In this zone, explosive gases or vapors are less likely but can occur in abnormal situations. While the risk is lower, cranes used here still need to meet stringent safety standards to prevent ignition during rare incidents.

Each zone requires specific explosion-proof ratings for equipment, ensuring that cranes are capable of safely operating within these environments without contributing to potential explosions.

Electrical Safety Standards and Certifications

To ensure reliability and safety in explosive environments, explosion-proof cranes must meet international electrical safety standards and certifications. These certifications are a guarantee that the crane is designed, tested, and proven to be safe for use in hazardous conditions.

  • ATEX certification: This European standard ensures that electrical equipment used in explosive atmospheres meets strict safety requirements. It verifies that the crane's electrical components won’t ignite explosive gases or dust.
  • IECEx certification: An international certification that ensures the crane complies with global safety standards for electrical equipment used in explosive environments.

Both ATEX and IECEx certifications ensure that the crane’s electrical components are safe, durable, and reliable, preventing any ignition risks that could lead to accidents or explosions in hazardous workplaces.

Design and Construction Features

Crane Structure

The structure of the explosion-proof underrunning overhead crane is designed to handle loads safely in hazardous environments. The main girder is built to support lifting capacities from 1 ton to 10 tons, ensuring it can handle a variety of medium-sized loads. The crane’s construction is designed for durability and stability, making it capable of withstanding the harsh conditions found in explosive environments.

  • Main girder design: The main girder is the backbone of the crane, built to safely support lifting capacities within the 1 to 10-ton range. It ensures smooth and stable lifting operations.
  • Non-sparking materials: Stainless steel and other non-sparking materials are used throughout the crane to avoid the risk of ignition due to friction or impact. This is a crucial safety feature for explosive environments.

The crane’s structure is designed for both strength and safety, making it suitable for use in volatile atmospheres without compromising operational effectiveness.

Lifting Mechanism

The lifting mechanism of the explosion-proof underrunning crane is crucial for safely moving loads in hazardous environments. The hoists and lifting systems are designed specifically to handle up to 10 tons and are equipped with explosion-proof features to ensure no sparks or ignition risks.

  • Explosion-proof hoists: These hoists are specially designed to meet explosion-proof standards, ensuring safe lifting in environments with flammable gases or dust.
  • Lifting speed options: The crane allows for customizable speed options, with different lifting speeds (e.g., 6m, 9m, 12m) tailored to suit the needs of specific operations.
  • Capacity options: The lifting mechanism is designed for various lifting heights, ensuring that cranes can be adapted to different operational environments.

This mechanism allows for precise, safe lifting, with flexibility in speed and height adjustments to suit various needs in explosive environments.

Wheel and Trolley Systems

The wheels and trolley systems are essential components of the crane that enable it to travel smoothly along the bridge. These parts are built with non-sparking materials, providing durability while preventing any risks associated with sparks or friction.

  • Non-sparking wheels: The wheels are made from stainless steel or other non-sparking materials, ensuring that there is no chance of ignition from the wheels' contact with the track.
  • Durability in hazardous conditions: Designed to operate reliably in explosive environments, these wheels and trolleys are built to last and withstand the harsh conditions often found in industrial and hazardous workspaces.

The trolley system ensures smooth travel while minimizing the risks associated with sparks, making it safe for use in explosive environments.

Trolley and Bridge Mechanisms

The trolley and bridge mechanisms are essential for the movement and operation of the crane. These mechanisms ensure smooth travel of the crane’s trolley along the bridge, with integrated safety features to prevent accidents.

  • Trolley movement: The trolley runs along the bridge, moving loads smoothly and efficiently across the workspace. Its design ensures stable travel while preventing any jerky movements that could lead to accidents.
  • Safety features: Built-in safety features, such as limit switches and emergency stop mechanisms, ensure safe operation by automatically halting the crane if necessary to prevent accidents.
  • Travel mechanisms: The travel mechanism ensures the crane moves securely along the bridge while maintaining safety standards, even under challenging conditions.

These mechanisms play a vital role in ensuring the crane operates smoothly and safely in hazardous environments. The integrated safety features prevent malfunctions and ensure the safety of workers and equipment.

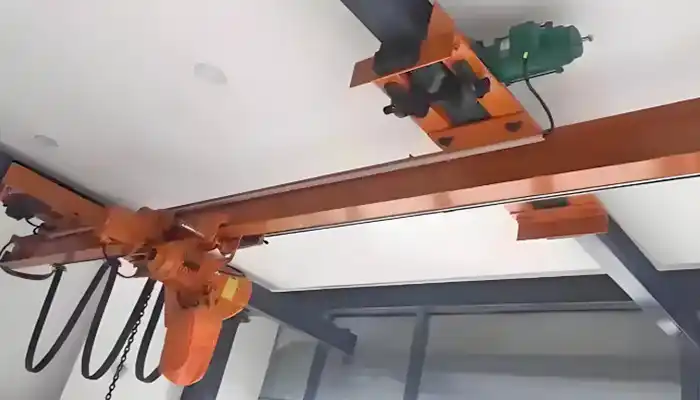

Explosion proof underhung overhead crane with electric chain hoist

Operation and Safety Considerations

Safety Features

Safety is the top priority when operating explosion-proof underrunning overhead cranes. These cranes are equipped with a range of safety features to ensure safe operation in environments with explosive gases, vapors, or dust.

  • Emergency stop buttons: Located strategically around the crane, these buttons allow operators to immediately halt the crane in case of an emergency, preventing accidents or further damage.
  • Overload protection: This feature prevents the crane from lifting loads that exceed its rated capacity, reducing the risk of mechanical failure or dangerous accidents.
  • Other safety features: Built-in limit switches and anti-collision mechanisms prevent the crane from running into obstacles or exceeding safe operating limits.

These safety mechanisms are vital in ensuring the crane operates without causing harm to workers or the surrounding environment.

Environmental Conditions

Explosion-proof cranes are designed to operate safely in harsh conditions, where explosive gases, dust, or vapors are prevalent. The crane’s construction must withstand these environmental factors to ensure reliable performance and safety.

  • Resistance to extreme conditions: The crane is built to endure the high humidity, corrosive gases, and other harsh conditions found in explosive environments like chemical plants or oil refineries.
  • Protection from external elements: Sealed and corrosion-resistant components, such as motors and wiring, ensure the crane’s longevity despite exposure to harsh and potentially hazardous conditions.
  • Dust and moisture protection: The crane’s electrical systems and structural components are specifically designed to keep out dust and moisture, further reducing the risk of ignition in explosive environments.

These environmental considerations ensure that the crane performs safely and effectively even in the most dangerous conditions.

Routine Maintenance

Proper maintenance is essential for keeping explosion-proof cranes in top condition. Regular inspections and maintenance of the explosion-proof components help ensure the crane’s safe operation over time.

  • Inspection guidelines: Regular checks of motors, wiring, and switches ensure they are free from damage or wear that could compromise safety.
  • Maintenance of non-sparking materials: Inspecting parts made of stainless steel or copper, such as wheels, hoisting cables, and traction lines, helps identify any damage or corrosion that might affect crane performance.
  • Replacement of worn components: Timely replacement of damaged or worn-out components keeps the crane in working order and prevents safety hazards.

Routine maintenance is crucial for extending the crane’s lifespan and ensuring that it remains compliant with safety standards.

Operator Training

Given the complexity and potential hazards of operating in explosive environments, operator training is critical for safe crane operation. Operators must understand the unique challenges of working in hazardous locations.

  • Specialized training: Operators need training on how to handle the crane’s explosion-proof features and understand the specific safety protocols required in volatile environments.
  • Safety protocols: Proper training includes knowledge of emergency procedures, such as how to use emergency stop buttons and how to respond to overload warnings or mechanical failures.
  • Regular safety drills: Conducting regular drills ensures operators remain prepared for any emergency and reinforces safe handling practices.

By investing in operator training, employers can ensure their teams are well-equipped to operate explosion-proof cranes safely and effectively in hazardous locations.

Advantages of Explosion-Proof Underrunning Overhead Cranes (1 to 10 Tons)

Safety

The primary advantage of explosion-proof underrunning overhead cranes is their enhanced safety features, which make them ideal for use in hazardous environments.

  • Explosion protection: Designed to prevent ignition in environments with flammable gases, vapors, or dust, these cranes help reduce the risk of explosions.
  • Electrical safety: Explosion-proof electrical components ensure that the crane’s motors, switches, and wiring won’t spark, preventing electrical hazards.
  • Mechanical failure prevention: Built-in safety features such as overload protection and emergency stop buttons minimize the risk of mechanical failure, ensuring safe operation.

These safety features are crucial for protecting workers, equipment, and the surrounding environment in dangerous workplaces.

Space Efficiency

The underrunning design of these cranes offers significant space-saving benefits, making them ideal for use in environments with limited headroom.

  • Low headroom requirements: The trolley runs below the girder, requiring less ceiling space and allowing for greater vertical clearance.
  • Maximized space utilization: The compact design allows for more efficient use of available floor space, making it easier to store materials or use other equipment in the same area.

This space efficiency is especially valuable in industrial spaces with limited ceiling height or where maximizing workspace is critical.

Customization

Explosion-proof underrunning overhead cranes offer a high degree of customization, ensuring they meet the unique requirements of each workplace.

  • Tailored lifting capacity: Cranes can be designed to meet specific lifting capacity requirements, from 1 to 10 tons.
  • Custom span options: The span of the crane can be adjusted to fit the workspace, ensuring it operates efficiently in various layout configurations.
  • Adaptability to environmental conditions: The crane can be customized to operate safely in specific hazardous environments, including those with high humidity, extreme temperatures, or corrosive substances.

This level of customization ensures that the crane meets the exact needs of each operation, improving efficiency and safety.

Durability

Explosion-proof underrunning overhead cranes are designed for long-lasting durability, capable of withstanding the demanding conditions found in explosive environments.

  • Rugged construction: Made from strong, non-sparking materials, these cranes are built to last even under harsh conditions.
  • Resistance to corrosion and wear: The materials used are resistant to corrosion, ensuring the crane remains in good working condition despite exposure to chemicals, dust, and moisture.
  • Reliable performance: The crane is built to operate continuously in challenging environments without frequent breakdowns, reducing downtime and maintenance costs.

This durability ensures that the crane remains functional and safe over the long term, making it a reliable investment for businesses operating in hazardous environments.

Choosing the Right Explosion-Proof Underrunning Overhead Crane (1 to 10 Tons)

Factors to Consider

When selecting an explosion-proof underrunning overhead crane, there are several key factors that should guide your decision:

  • Environmental classification and explosion-proof rating: It's essential to determine the hazardous zone in which the crane will operate. Cranes need to meet the appropriate explosion-proof ratings based on the zone classification (e.g., Zone 1 or Zone 2). The higher the risk of explosive atmospheres, the more stringent the safety requirements.
  • Load capacity and span: Ensure that the crane can handle the required load capacity (1 to 10 tons) and span (typically 3m to 16m). The crane must be tailored to your lifting needs to ensure both efficiency and safety in your specific operational setup.
  • Operational needs: Consider the lifting speed, control options, and any customization required for your operations. Different applications might demand different operational features, such as variable speed for smooth, precise movements or remote control for easier maneuverability.

Each of these factors ensures that the crane meets your specific operational, safety, and space requirements.

Vendor Selection

Choosing the right manufacturer is crucial for ensuring the quality and safety of your explosion-proof crane.

  • Experience: Opt for a vendor with proven expertise in designing and producing explosion-proof overhead cranes. An experienced manufacturer will be familiar with the technical challenges of working in explosive environments and can provide reliable solutions.
  • Specialization: Select a manufacturer who specializes in explosion-proof cranes, as they will have a deeper understanding of the safety standards and operational requirements specific to these environments.

Conclusion

Explosion-proof underrunning overhead cranes are crucial for ensuring safety, efficiency, and reliability in environments where explosive gases, dust, or vapors are present. These cranes are designed to prevent ignition and minimize the risk of accidents, making them ideal for industries such as chemical plants, oil refineries, and gas processing.

To summarize:

  • Key features include explosion-proof electrical components, rugged construction, and safety features such as emergency stop buttons and overload protection.
  • Advantages include enhanced safety, space efficiency, durability, and the ability to customize the crane to meet specific operational needs.
  • Applications are widespread, covering industries that handle flammable or explosive materials.

When choosing the right crane, it's essential to consider the specific environmental conditions, load capacity, and operational requirements. Selecting an experienced and certified vendor and ensuring the crane meets all necessary certifications will guarantee quality and safety in hazardous operations.

Ultimately, the right explosion-proof underrunning overhead crane will ensure smooth, safe, and efficient lifting in environments with explosive risks, helping you protect both your workforce and your equipment.
