Wall Jib Crane

Wall jib crane is types of light duty jib cranes, supported by the walls of your facility for light duty loads handling, which can be grouped into wall travelling jib crane, wall mounted jib cranes, low headroom wall jib cranes, and articulating jib cranes, etc. By utilizing your workshop facility, the wall jib cranes do not take up any of your floor space of your workshops, which will help you to improve your workshop material handling efficiency and safety and at same time will help you to fully utilize your workshop space.

Cantilever wall travelling jib crane Cantilever wall travelling jib crane
Tie rod wall travelling jib craneTie rod wall travelling jib crane
Tie rod wall / column mounted jib crane Tie rod wall / column mounted jib crane
Cantilever wall / column mounted jib crane Cantilever wall / column mounted jib crane

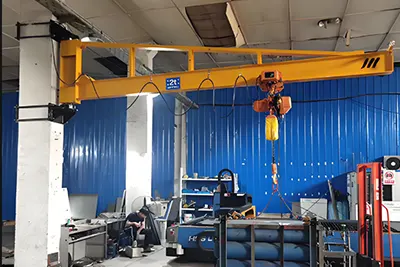

2 Ton Wall Jib Crane for Sale: 180 Degree Rotating Jib Crane

2 Ton Wall Jib Crane for Sale: 180 Degree Rotating Jib Crane

2 Ton Wall Jib Crane for sale with 180-degree rotation, ideal for efficient space-saving material handling and versatile industrial use

Inquiry Online Leave a Message
1.5 Ton Wall Mounted Jib Crane, 1.5 Ton Crane for Agriculture Case

1.5 Ton Wall Mounted Jib Crane, 1.5 Ton Crane for Agriculture Case

Explore how a 1.5-ton wall-mounted jib crane revolutionized agricultural operations, enhancing productivity, safety, and efficiency on a farm in Australia.

Inquiry Online Leave a Message
Wall mounted Tie Rod Jib Crane & Tie Rod Wall Mounted Jib Crane

Wall mounted Tie Rod Jib Crane & Tie Rod Wall Mounted Jib Crane

Wall mounted tie rod jib crane, most economical wall bracket jib crane with tie rod arm, light duty jib crane. Design tie rod wall mounted crane for you!
√Jib Crane Type: BX , √ Capacity : 0.25~10 ton, √ Span & Height: As request

Inquiry Online Leave a Message
Wall-Bracket Cantilever Jib Crane & Wall Mounted Cantilever Crane

Wall-Bracket Cantilever Jib Crane & Wall Mounted Cantilever Crane

Wall bracket cantilever jib crane- a wall mounted jib crane with cantilever & rotating jib arm for manipulate load up to 5 tons. Wall bracket jib for sale.
√Jib Crane Type: BX , √ Capacity : 0.25~10 ton, √ Span & Height: As request

Inquiry Online Leave a Message
Wall Travelling Tie Rod Jib Crane | Tie Rod Travelling Jib Crane

Wall Travelling Tie Rod Jib Crane | Tie Rod Travelling Jib Crane

Wall travelling tie rod crane is a small jib crane, rail travelling on wall, light duty tie rod jib crane.Get your tie rod travelling jib crane design now!
√Jib Crane Type: BB , √ Capacity : 0.25~10 ton, √ Span & Height: As request

Inquiry Online Leave a Message
Wall Travelling Cantilever Crane | Traveling Cantilever jib crane

Wall Travelling Cantilever Crane | Traveling Cantilever jib crane

Wall travelling cantilever crane is a cantilever jib crane, travelling on rails mounted on workshop walls. Low headroom wall travelling crane for sale.

Inquiry Online Leave a Message
Wall Travelling Jib Crane: Rail Travelling Wall Crane & Jib Crane

Wall Travelling Jib Crane: Rail Travelling Wall Crane & Jib Crane

Wall travelling jib crane of Yuantai enable you to handle material hoisting in large area with NO footing / floor space. Wall travelling crane for sale.
√Jib Crane Type: BB, √ Capacity : 0.25~10 ton, √ Span & Height: As request

Inquiry Online Leave a Message
Wall Mounted Jib Crane: Cantilever & Tie Rod Wall Mounted Crane

Wall Mounted Jib Crane: Cantilever & Tie Rod Wall Mounted Crane

Wall bracket & wall mounted jib crane, with cantilever / tie rod jib arm for workshop & workstation material handling. Design your wall mounted jib crane !
√Jib Crane Type: BX , √ Capacity : 0.25~10 ton, √ Span & Height: As request

Inquiry Online Leave a Message
Wall Jib Crane Basics

All you want to know

What is a wall mounted jib crane? What is the tie rod & cantilever wall mounted jib crane ? What does jib mean in cranes? How much can a jib crane lift?

Wall travelling jib crane

A wall travelling jib crane is a type of wall jib crane which travels along a rail, mounted on a wall or other supported structure, in an elevated orbit of a multi-layer assembly shop, taking full advantage of the available working space, a low cost overhead material handling solution. A wall travelling jib crane enable long lateral movement of loads in linked workshops possible and at the same time a hoisting equipment is travelling along the cantilever of the wall jib crane. The lifting capacity of wall travelling jib crane is 0.5 to 10 tons and working class is A3. Customized wall travelling jib cranes is available for your specific setups.

Wall mounted jib crane & Wall Braced Jib Crane

The wall mounted jib crane also called wall braced jib crane is a light duty material handling crane , which is usually mounted to the supporting structure of your building, without taking any of your ground space of your plant. The wall mounted jib crane is the most economical wall jib crane for material handling. The lifting capacity of the wall mounted jib crane is 0.25 ton to 1 ton and the working class is A3.



Tie Rod , Full Cantilever & Articulating Wall Jib Crane

Tie Rod jibs for high ceiling applications

The tie rod jib crane help to achieve maximum floor space and utilize the overhead air space in your workshop. The wall jib crane is mounted to walls or columns to increase hook coverage or hook height over workstations. With rotating jib design, the tie rob jib cranes can rotate 180°.Customized tie rod jib cranes are available. Contact us for more information.
Full Cantilever jibs for low ceiling applications

The full cantilever jib cranes are designed to assist workers in the maneuvering of materials, as well as achieving maximum headroom where low ceilings are of concern. This cantilever style wall jib crane mounts to true vertical wall members. Wall jib crane with this type of cantilever jib design are used to increases personnel productivity by lifting awkward materials. The full cantilever wall jib crane also can rotate 180°.

Wall mounted articulating jib crane

The Wall Mounted Articulating Jib Crane is perfect for applications that require maneuvering under obstructions or around obstacles and there is an adequate wall/column to support the jib crane. Besides wall mounted articulating jib crane, there are free standing articulating jib cranes are available.

For other special lifting weights, Yuantai Crane supports custom designs. If you need them, you can contact us.

On steel supports using wall bracket/ wall mounting

The simplest type of mounting of wall mounted jib cranes is the bolting onto existing steel supports. For the installation of the wall jib crane, the support structure must be of structurally sufficient size or reinforced to have sufficient strength to support the jib crane and exhibit a sufficiently wide connection surface.

On reinforced concrete supports using brackets

The wall mounted jib crane can be mounted on square or rectangular reinforced concrete supports if the structural size is suitable with brackets. The required tension forces can be applied through threaded rods to hold and support the jib crane at the desired height securely. The concrete support must have suitable width for the mounting of wall jib crane as required.

On reinforced concrete walls or supports using weld-on plates

A wall mounted jib crane also can be supported by Concrete walls or support structures on weld-on plates through suitable mounting plates with grouted anchoring as a substructure. When carrying out this construction work, ensure that the mounting plates are perfectly flush and have plumb-vertical connection surfaces. Welded-on plates are attached to the substructure. The crane's wall brackets or wall mountings are bolted to the weld-on plates.

On steel supports using weld-on plates

Weld-on plates can be welded directly onto steel supports or load-bearing steel structures where the wall jib crane will be installed, providing holes will not or cannot be drilled through them.
On reinforced walls using wall brackets and through-wall anchors
For mounting on reinforced concrete walls of adequate load-bearing capacity, wall brackets are used to mount and support the wall jib crane.

Notes: It is required to inspect the building structure where the wall jib crane will be installed because the working jib cranes transfer forces and torque to the building and supporting structures. To ensure your safe opeation of the jib crane, it entirely depends on the adequate checking of the support structure by a professional structural engineer.



Yuantai Crane Factory has more than 30 years of manufacturing experience and is the top crane manufacturer and supplier in China.
Here, we can provide you with the best quality and the most competitive price.
we have over 30 years of experience engineering, manufacturing, and installing overhead crane systems.
Yuantai Crane can provide overall services for all types of industries cranes, and the main services are as follow:

crane design Jib Crane Design
Cranes designed by Yuantai Crane will solve any of your crane problems and material handling problems without spending any unnecessary expenditures.
crane installation Jib Crane Installation
EASAY installation, wonderful working performance. Yuantai Crane can provide on-site crane installation services and our crane engineers will be at your services when necessary.
lifetime maintenance Lifetime Maintenance
Jib crane maintenance from Yuantai Crane ensures your safety and working efficiency.
crane operator training Crane operator Training
Yuantai Crane training includes jib crane operation, maintenance and inspection, and jib crane spare part supply, etc.
technical support Technical support
The powerful technical support of Yuantai Crane will solve your jib crane technical problems.
