Wire Rope Hoist, Cable Hoist & Wire Hoist

Wire Rope Electric Hoist 0.5 -32 Ton

Electric wire rope hoists for sale. Types of electric cable hoists, ie. 1 /2 speed, low headroom, explosion-proof rope hoist for sale, good hoist price.

More on Single / Double Speed Wire Rope Electric Hoist

More on Low Headroom Wire Rope Electric Hoist

CD&MD model electric wire rope hoist is a type of light-duty lifting equipment with features such as a compact structure, light weight, small volume, wide application, and simple operation. Reducers with hard gear surfaces are used, resulting in long life and high mechanical efficiency. Conic rotor brake motors have a safety limiter in both the up and down directions.

MD model wire rope electric hoist has normal and slow lifting speeds, allowing it to lift steadily and precisely.

CD&MD electric wire rope hoists are widely used to lift heavy objects; they are installed on straight or curved I-section steel beams, single girder overhead cranes, or single girder gantry cranes. They can also be used in conjunction with double girder gantry cranes, double girder overhead cranes, and jib cranes. All of this has led to the widespread use of electric hoists in industrial and mining operations, railways, wharves, and warehouses.

Capacity of electric wire rope hoist : 0.5 ton, 1 ton,2 ton, 3 ton, 5 ton, 10 ton, 16 ton, 20 ton,32 ton,etc.
Lifting height of electric wire rope hoist : 6m, 9m, 12m, 18m, 24m, 30m, and Max. 80m.
Application: single girder crane, double girder crane , straight & curved monorail cranes

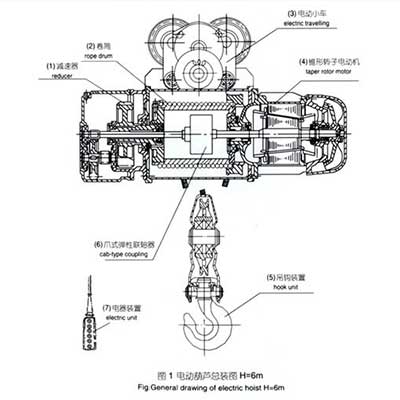

wire rope electric hoist drawing, customized for your applications

Main parts and components of cd/md electric wire rope hoist

Three basic components of the cd/md wire rope hoist are the lifting mechanism, the traveling mechanism, and the electric devices.

MOTORS: We provide squirrel cage induction motors that conform to IS 325 for hoist and crane applications. These motors have better starting torque and comparative horsepower, which shorten handling times. It is flange mounted and has Class B or F insulation in accordance with our design.
GEARBOX: For smooth, trouble-free operation and a longer lifespan, a fully enclosed oil splash lubricated and dust-free gearbox is offered. To achieve greater precision, all gears are helical in shape and made of alloy or low carbon steel on hobbing machines. A unique gear toughening technique also guarantees the drive system will operate quietly and without interruption. Anti-friction bearings support the pinions and gears at both ends.
ROPE DRUM: The rope drum is precisely machined and grooved to guarantee that wire rope is properly seated in the appropriate layer. Two heavy-duty ball and roller bearings are installed in the drum for a smoother operation and longer life.
ROPE GUIDE: Made of superior close grain castings, the rope guide is precisely machined to fit the grooves of the rope drum and guards against the rope overriding and loosening. Additionally, it activates the safety feature limit switch, which prevents the hook from being raised or lowered excessively. The guide's purpose is to guarantee that the rope is properly tensioned.

Electric motor - main parts of wire rope electric hoist

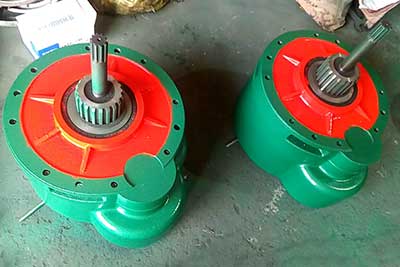

Hoist reducer - main parts of wire rope electric hoist

Hoist drum - main parts of wire rope electric hoist

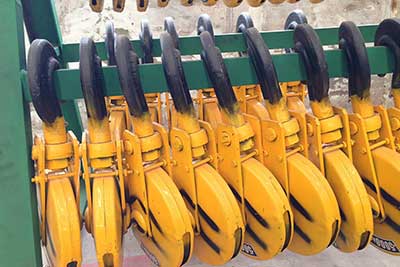

Hoist hook - main parts of wire rope electric hoist

Travelling trolley - main parts of wire rope electric hoist

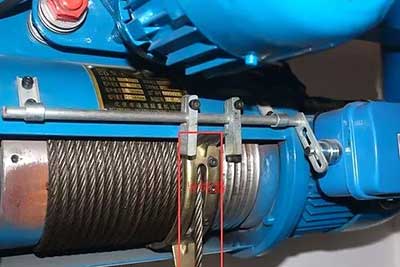

Rope guide - main parts of wire rope electric hoist

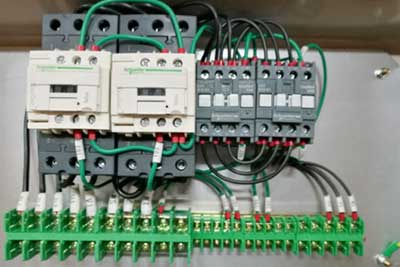

Electrics - main parts of wire rope electric hoist

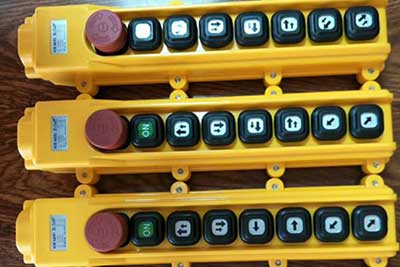

Hoist pendant - main parts of wire rope electric hoist

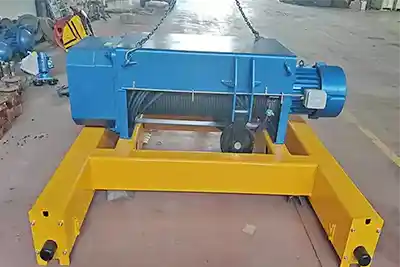

Double Girder Crane Trolley, Crab Unit 32 Ton for Sale

40 Ton Electric Wire Rope For Sale, 40 Ton Single Speed Hoist 8 M Lifting Height

30 Ton Electric Wire Rope Hoist | Electric Hoist for Sale Belarus

Electric Cable Hoist with Stationary Hoist Design

Electric Wire Rope Hoist With Motorized Trolley, Good Hoist Price

Single & Double Speed Electric Wire Rope Hoist, Good Hoist Price

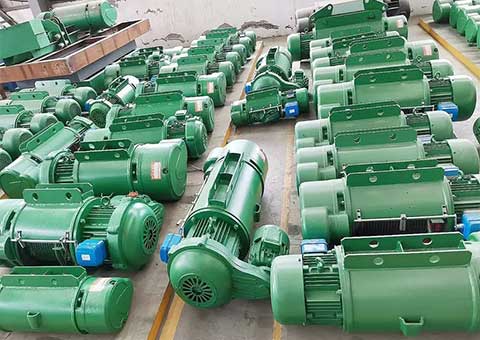

CD/MD Wire Rope Hoist Basics

All you want to know

What are the main types of wire rope electric hoists? Main structure ,componennts and parts of cd/md wire rope hoist? And what's main specifications of wire rope hoist? How to get your customized electric wire rope hoist?

Main Types of electric wire rope hoists

single speed wire rope electric hoist, economical electric hoist design

double speed wire rope electric hoist with slow and high speed to ensure precise load handling

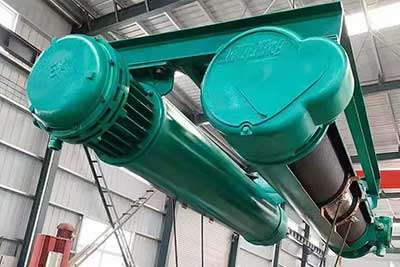

stationery wire rope electric hoist for vertical load handling

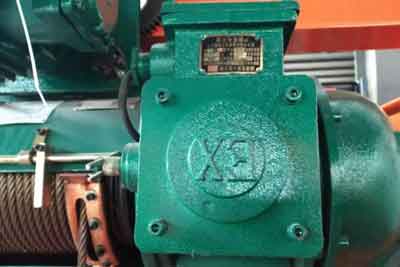

explosion proof wire rope electric hoist to ensure your safety

low headroom wire rope electric hoist for low headroom workshop application

double rail wire rope electric hoist for double rail

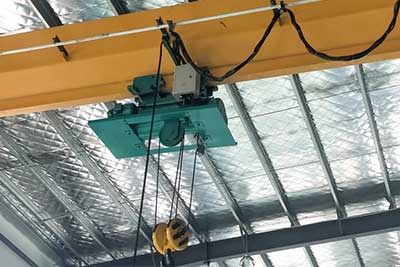

ladle handling wire rope electric hoist for steel mill handling

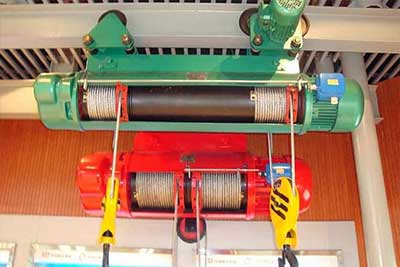

double hook wire rope electirc hoist

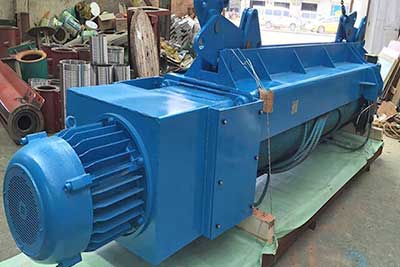

large capacity wire rope electirc hoist with capacity more than 40 ton

For other special lifting weights, Yuantai Crane supports custom designs. If you need them, you can contact us.

Specifications of cd/md electric wire rope hoists

ype				Electric wire rope hoist
Cap.			t	0.25	0.5	1	2	3	5	10	16	20	32
Hook Path			m	3/6/9/12/18/24/30
Speed	Hoisting		m/min	8/0.8						7/0.7	3.5/0.35	4/0.4	3/0.3
Speed	Travelling		m/min	20/30
Wire Rope	Dia.		mm	3.6	4.8	7.7	11	13	15		17.5	19.5	26
Wire Rope	Construction			6*19	6*37+1	6*37+1	6*37+1	6*37+1	6*37+1	6*37+1	6*37+1	6*37+1	6*37+1
Track				16-22b	16-28b	16-28b	20a-32c	20a-32c	25a-45c	32b-63c	45b-63c	56b-63c	56b-63c
Motor	Hoisting	Type		ZD112-4	ZD121-4	ZD122-4	ZD131-4	ZD132-4	ZD141-4	ZD151-4	ZD151-4	ZD152-4	ZDX62-6
		Power	kw	0.4	0.8	1.5	3	4.5	7.5	13	13	18.5	18.5
		Rotation speed	r/min	1380
		Current	A	1.25	2.4	4.3	7.6	11	18	30	30	41.7	4.3
	Travelling	Type		ZDY110-4	ZDY110-4	ZDY111-4	ZDY112-4	ZDY112-4	ZDY121-4	ZDY121-4	ZDY121-4	ZDY121-4	ZDY(D)1
		Power	kw	0.06	0.2		0.4		0.8	0.8*2
		Rotation speed	r/min	1400	1380
		Current	A	0.3	0.72		1.25		2.4
Connecting Times				120
Working system				intermediate FC=25%
Power source				3P AC 380V 50Hz or according to your requirements

Request Your Quote

Production procedures and short lead time - electric Hoist will be produced in 15 days.

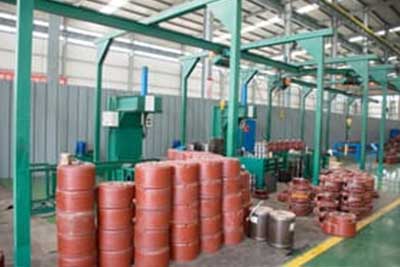

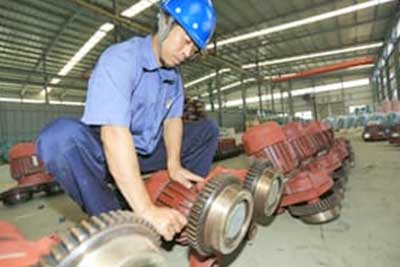

1. Hoist reducer production- wire rope hosit production

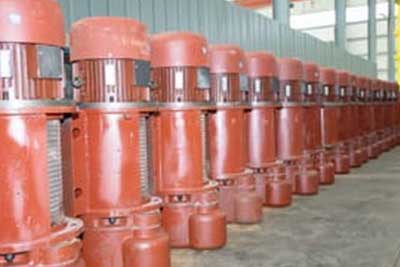

2.Drum and motor installation - wire rope hosit production

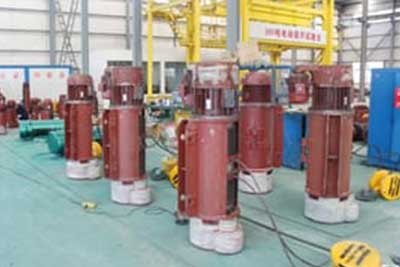

3.Wire rope &Hook& Rope guide installation - wire rope hosit production

4. Trolley installation - wire rope hosit production

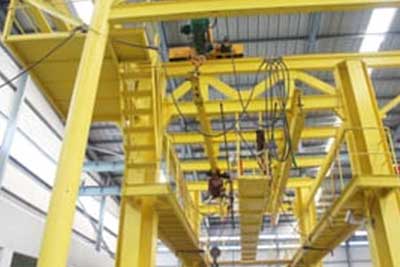

5.Inspection test - wire rope hosit production

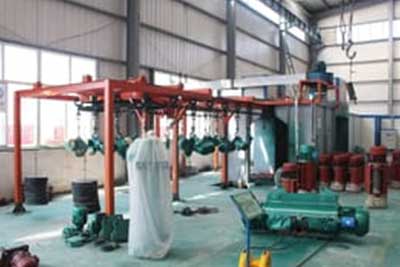

6.Automatic paint drying - wire rope hosit production

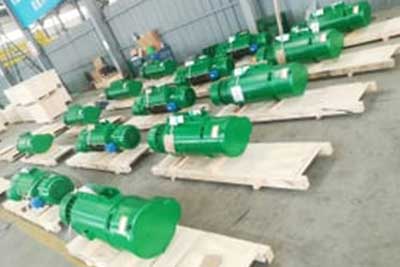

7.Package and storage - wire rope hosit production

Request Your Quote

Applications of CD MD electric wire rope hoists

CD1/MD1 electric hoist is small-sized lifting equipment, which can be mounted on single girder suspension crane, bridge crane, gantry crane and jib cranes. With slight modification, it can also be used as a winch. It is widely used in factories, warehouses, mines, harbors, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

Model CD1 electric hoist has only one speed, which can satisfy normal application, model MD1 electric hoist has two speeds: normal speed and low speed, at a low speed, it can do precise loading and unloading, mounding of sandbox, maintenance of machines, etc. Thus model MD1 electric hoist is more widely used than model CD1.

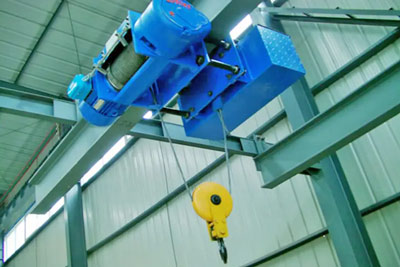

Wire rope hoist electric hoist for overhead hoist crane

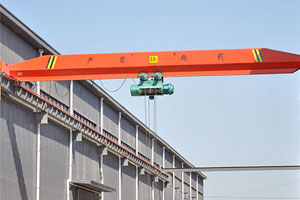

Overhead electric wire rope crane

Electric Hoist Gantry Crane

Electric Hoist Jib Crane

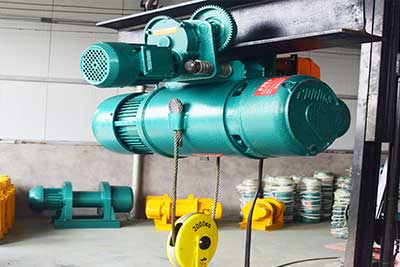

wire rope electric hoist for monorail crane

Monorail hoist
