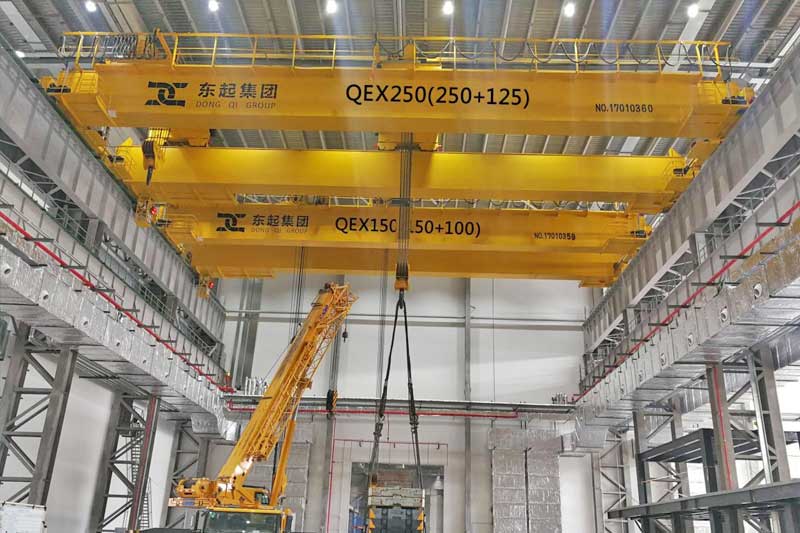

Heavy Duty Overhead Crane, European Double Girder Open Winch Crane - QDX Series

Heavy duty overhead crane, European style open winch crane for workshop heavy duty material handling, to be your heavy duty shop crane. Contact us to get your customized heavy duty crane design and best heavy duty crane price. Contact us to get your heavy duty double girder overhead crane design today.

Standard heavy duty overhead cranes: Lifting capacity: 5 ton-550ton, Span：10.5m-31.5m, Lifting height：1m-30m, Working duty is medium (A5, A6). Also supply non-standard products according to your requirements.
Note:

• Lifting c apacity  of heavy duty crane : 5ton, 10ton, 16/3.2ton, 20/5ton, 32/5ton, 50/10ton, 75/20ton, 100/20ton, 125/32ton, 150/30ton, 160/32ton, 200/50ton, 250/50ton, 300/75ton, 350/80ton, 400/80ton, 450/100ton, 500/100ton, 550/100T
• Span  of heavy duty crane : 10.5M, 13.5M, 16.5M, 19.5M, 22.5M, 25.5M, 28.5M, 31.5M,
• Working duty of heavy duty crane : A6 (Used in much more frequency work, such as auxiliary hoisting in metallurgy and casting workshop). A7 (Used in busy working and the hoisting of melted hot metal).

Applications  of heavy duty overhead crane

• It is used for heavy duty material handling between fixed spans and is one of the most widely used overhead open winch cranes with the widest range of different specifications for various industrial applications.
• The open winch crane are widely used for carrying, assembling, and disassembling general loads handling and can be equipped with a variety of  below-the-hook devices for specialized operations.
• It is prohibited to use in conditions that are easily combustible, explosive, or corrosive (acid, alkali, plating, steam, etc.).
• Working conditions of heavy duty overhead crane: Working temperature: -25°C+40°C, humidity: 85%, altitude: less than 1000 meters, power supply: 380V, 50Hz, 3phases (adjustable according to customer's needs).

Features of European style heavy duty overhead crane

Besides, the features of European optimization design, light dead weight, small wheel load, and short size, the European style heavy duty overhead crane has the following features:

• Traveling with smooth and safety
• European open winch heavy duty cranes come in a range of designs to satisfy the needs of customers.
• On the European open winch crane, three-in-one (motor, brake, reducer) motors from ABB, ABM, Siemens, and others are utilized.
• The heavy duty cranes use Schneider, Siemens, and other well-known brands of electrics.
• The heavy duty overhead crane is capable of double lifting speed and inverter traveling speed.
• Crane drive IP55, F class insulation, 40 percent contact continuity ED
• On the European overhead heavy duty crane, overload warning and secondary class anti-clamp systems are also used.
• European style overhead cranes are protected by a barrier.
• On heavy-duty cranes, sound and light alarm devices are also used.
• The circuit self-check protector is missing, and the flow phase is unprotected.

Anti-swing technology of open winch heavy duty overhead crane

Anti-shake technology is one of the most significant advantages over regular overhead cranes. It also includes the following feature:

• Anti-shake function to prevent a large inertial impact from causing the European open winch heavy duty crane to run a load hook swing.
• The anti-shake mechanism allows the European open winch heavy duty crane to hoist anti-sway over its entire height range.
• Anti-sway capability independently set a load height of the knob, you can choose different heights based on the height of the load, more exact control of the load rope factory, and more precise control of the swing angle
• The anti-sway control mechanism allows for a swing angle of up to 0.25 degrees.
• The operator activates the anti-shake function by setting up a separate switch for this function.
• The anti-shake function lets the operator to avoid manually adjusting the yaw control angle, which improves the overall stability and accuracy of the handling process.

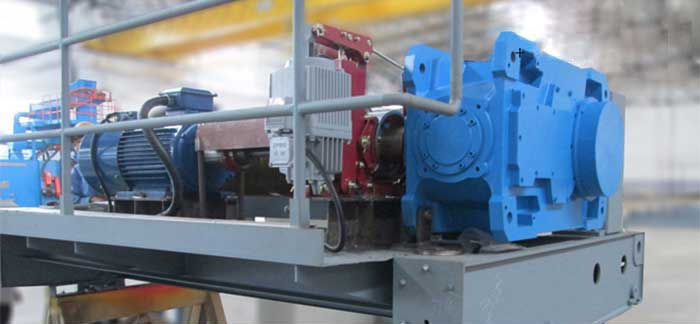

European style open winch trolley

• The maximum lifting capacity of a European open winch trolley is 320 tons, with the ability to lift up to 550 tons with a customized crane design.
• For the crane industry, a compact design provides a better solution for the buck.
• Serial production allows for more flexibility. Its ergonomic features make it more comfortable for the user.
• Lower maintenance costs, extend heavy duty crane usage life, and boost return on investment with reliable quality, resulting in more value for clients.
• Full set of safety controls to assure safe and dependable operation; using the entire frequency of the debugging approach, brake smoothly, and reduce impact inertia.
• Intelligent monitoring, electronic anti-swing, three-dimensional positioning, and remote monitoring functions are all necessary for good equipment performance and monitoring and maintenance.

25 ton European style heavy duty overhead crane with open winch for sale Australia

25 ton  double girder overhead crane for sale Australia - 25 ton overhead crane series

Main specifications of heavy duty overhead crane for sale Australia

• Capacity of heavy duty overhead crane：25 ton
• Crane span of heavy duty overhead crane: 3.7 m
• Lifting height of heavy duty overhead crane: 5 m

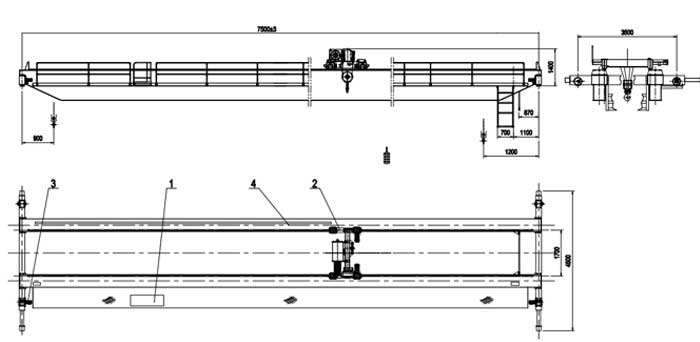

More information about heavy duty crane, please feel free to contact us. Need customized double girder overhead crane design, please feel to contact us to get your overhead crane design drawing and best crane price.

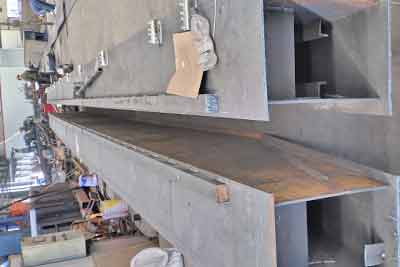

Main girder of 25 ton double girder overhead crane

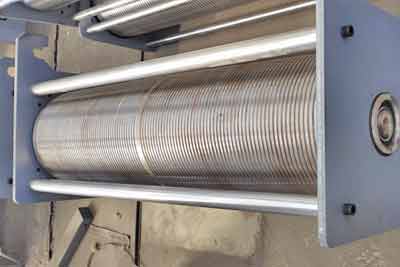

Wire rope drum of 25 ton double girder overhead crane

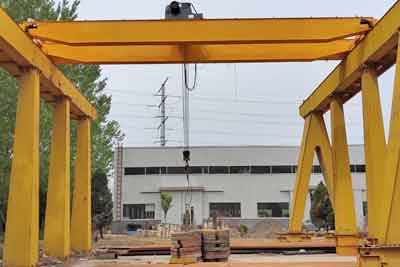

Load testing  of 25 ton double girder overhead crane  at our testing platform

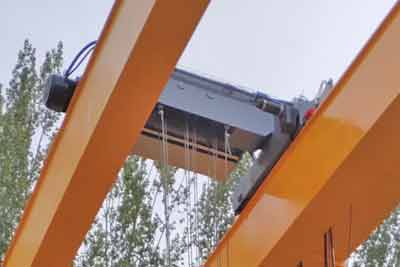

Open winch trolley of 25 ton double girder overhead crane
