Tonnages & Specifications

Tonnages & Specifications
25 Ton Overhead Crane

25 Ton Overhead Crane

Product Type: Double Girder Overhead Crane 2
Lifting Capacity: 25 ton
Span: As request
Lifting Height: As your requirement
Working Class: A3-A5
Ambient Temperature: -20-+40 ℃
Inquiry

25 ton overhead crane for sale, good price. Double girder top running bridge cranes 25 ton with different hoisting systems & configurations for sale. Customized 25 ton double girder overhead crane with tailored specifications for your use. Contact us to get your custom 25 ton crane designs today.

A double girder overhead crane from Yuantai has a larger lifting capacity. With the help of the current computing system, the weight of the double girder crane can be adjusted to reduce the force that the load exerted on the structure and increase the stability of the lifting equipment when loading large quantities of loads or objects.

The modular design also enables the addition of a number of extra features, including overhaul platforms, passage components, rain covers, etc.

Main structure of 25 ton Overhead Crane

The overhead bridge crane has a simple structure that makes it simple to install, maintain, and repair. It is composed primarily of a bridge, a hoist trolley, a crane running mechanism, and an electric control system.

The bridge is the main traveling component, and it is made up of two end trucks and two main beams. The bridge beam spans the end beams or end carriages and is supported by the end trucks. It moves forward and backward along the runway beam to keep the crane running.

The hoisting mechanism is mounted on the trolley and is used to lift and lower loads. The trolley runs along the bridge rail and is supported by the bridge girder. The electric control system is made up of electrical circuits and electrical equipment.

Pendant control, wireless remote control, and cab operation are the most common used crane operation controls, which can be selected based on your requirements. Users can select one or two combinations to meet their specific requirements.

structure of double girder overhead crane 25 ton with open winch trolley
25 ton overhead crane with double rail hoist trolley
Main structure of double girder overhea crane 25 ton
Main structure of european style hoist trolley double girder overhea crane 25 ton

QD Double Girder Bridge Crane 25 Ton With Hook

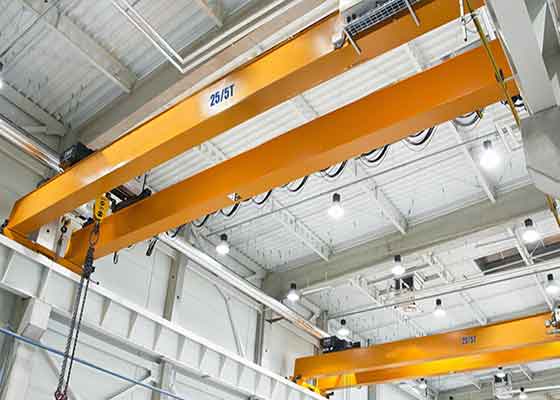

25 ton overhead crane, with top running double girder crane design

QD Double Girder Bridge Crane 25 Ton With Hook Parameters

  • Lifting capacity: 5 ton -450 ton
  • Span:10.5-31.5m
  • Lifting height:6-24m
  • Lifting speed: 2.1-11.5m/min
  • Trolley speed:27-40m/min
  • Crane speed: 42-75m/min
  • Duty: A3-A7
  • Customized heavy duty open winch trolley double girder crane with tailored 20 overhead crane specifications are available.

Features:

  • The bridge crane 25 ton has a box-shaped double main beam structure that can meet the strength, rigidity, and stability requirements of large-tonnage heavy duty lifting.
  • The bridge moves quickly, and production efficiency is high.
  • The crane can be outfitted with various hook attachments to meet the lifting needs of various occasions.
  • The crane is less expensive and easier to maintain than a European standard overhead crane.
  • Contact us to get your tailored crane design.
Technical Parameter of QD Double Girder Overhead Crane
Capacity t 25 ton 32 ton 50 ton
Span S(m) 10.5~31.5 10.5~31.5 10.5~31.5
Lifting height m 6~16 6~18 6~16
Lifting speed m/min 7.2 6 6
Trolley speed m/min 40 37 31.3
Crane speed m/min 75.1 64.9 58.5
Work duty   A3~A7 A3~A7 A3~A7
Track type   P43 QU70 QU80

QDX Double Girder Bridge Crane 25 Ton With Hook

QDX Double Girder Bridge Crane 20 Ton With Hook

QDX Double Girder Bridge Crane 25 Ton With Hook
Parameters

  • Lifting capacity: 5-320t
  • Span:10.5-31.5m
  • Lifting height:6-24m
  • Lifting speed: 0.2-10.7m/min
  • Trolley speed:2.4-33m/min
  • Crane speed: 4.2-68m/min
  • Duty: A3-A5
  • Customized service
Customized building in open winch double girder crane with tailored 20 overhead crane specifications are available.
Bridge crane open winch trolley Bridge crane open winch trolley

Features:

  • The lightweight design concept is used in the European-style overhead crane, which has the characteristics of light weight, low wheel pressure, small boundary size, reliable performance, and compact structure.
  • The lifting reducer is a hard-tooth surface reducer with high transmission accuracy, high safety, and a small size.
  • The trolley uses a frequency conversion motor, which is more reliable and safer.
  • Because the trolley's operating mechanism uses a three-in-one reduction motor, the structure is compact.
Technical Parameter of QDX European style Double Girder Overhead Crane
Capacity t 25 ton 32 ton 50 ton
Span S(m) 10.5~31.5 10.5~31.5 10.5~31.5
Lifting height m 6~18 6~16 6~16
Lifting speed m/min 0.58~5.8 0.49~4.9 0.4~4
Trolley speed m/min 3.2~32 3.36~33.6 2.9~29
Crane speed m/min 5.4~54 5.6~56 5.4~54
Work duty   A3~A5 A3~A5 A3~A5
Track type   P43 QU70 QU80

NLH 25 Ton Bridge Crane with European Style Hoist Trolley

NLH 20 Ton Bridge Crane with European Style Hoist Trolley

NLH 25 Ton Bridge Crane with European Style Hoist Trolley
Specifications

  • Lifting capacity: 5-80t
  • Span:10.5-31.5m
  • Lifting height:6-18m
  • Lifting speed: 0.4-5m/min
  • Trolley speed:2-20m/min
  • Crane speed: 3-30m/min
  • Duty: A5
  • Customized service
Customized electric trolley double girder crane with tailored 20 overhead crane specifications are available.
NLH Overhead crane European hoist trolley

NLH Overhead crane European hoist trolley

Advantages:

  • When compared to standard overhead cranes, the NLH series double beam overhead crane is lower in height, has lower wheel pressure, and is lighter in weight, lowering the user's plant construction costs.
  • The European-style crane's working level can reach A5, A6, or even higher.
  • The hook limit is reduced, and the working area is expanded.
  • Contact us to get your tailored crane design. Cost-effective 25 ton overhead crane for sale, good price.
Technical Parameter of NLH European Type Electric Hoist Overhead Crane
Capacity t 5 ton 10 ton 16 ton 25 ton
Span S(m) 10.5~31.5 10.5~31.5 10.5~31.5 10.5~31.5
Lifting height m 6~18 6~18 6~18 6~18
Lifting speed m/min 0.8/5 0.8/5 0.66/4 0.53/3.4
Trolley speed m/min 2~20 2~20 2~20 2~20
Crane speed m/min 3~30 3~30 3~30 3~30
Work duty   A5 A5 A5 A5
Track type   P30 P30 P38 P38 P38  P43

LH Double Girder Bridge Crane 25 Ton For Sale

LH Double Girder Bridge Crane 20 Ton For Sale

LH Double Girder Bridge Crane 25 Ton For Sale
Parameters

  • Lifting capacity: 5 ton -50 ton
  • Span length: 10.5~31.5m
  • Lifting height: 6~30m
  • Lifting speed: 0.18-8m/min
  • Trolley speed: 20m/min
  • Crane speed: 20m/min
  • Working class: A3~A4
  • Customized features are optional to meet your particular needs and application conditons. Contact us to get your overhead crane with tailored specifications.
Double rail crab hoist trolley
Double rail crab hoist trolley

Features:

  • The LH-Double Girder Electric Overhead Crane is a bridge crane with a hook that can handle and transport fixed cross intercroppings indoors or outdoors.
  • Because its structure is stronger and more secure than that of a single girder overhead crane, the lifting capacity of a double girder overhead crane is greater.
  • Customized Chinese hoist crab double girder crane with tailored 20 overhead crane specifications are available. Contact us to get your tailored crane design.
echnical Parameter of LH Model Electric Hoist Bridge Crane
Capacity t 5 ton 10 ton 16 ton 25 ton
Span S(m) 10.5~31.5 10.5~31.5 10.5~31.5 10.5~31.5
Lifting height m 6~30 9~30 9~30 9~30
Lifting speed m/min 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5) 3(0.3/3)
Trolley speed m/min 20(30) 20(30) 20(30) 20(30)
Crane speed m/min 20(43) 20(43) 20(43) 20(43)
Work duty   A3~A4 A3~A4 A3~A4 A3~A4
Track type   P30 P30 P38 P38 P43

Overhead cranes with different below hook devices

Below-the-hook (BTH) lifting devices are essential attachments that allow for the efficient and safe transportation of a variety of loads. There are various types of crane attachements for your selection such as, coil hooks, coil grabs, mechanical lifters, spreader bars, and magnet lifts used in conjunction with cranes and hoists.

Yuantai Cranes provides below-the-hook solutions to meet your needs and specifications. Many of our customers in the steel mill and foundry, steel service centers, manufacturing and fabrication, and paper mill industries work with us to improve the efficiency and safety of lifts and loads.

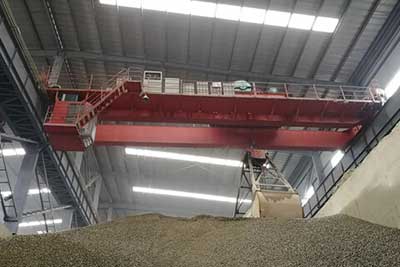

hydraulic grab double girder overhead crane 25 ton

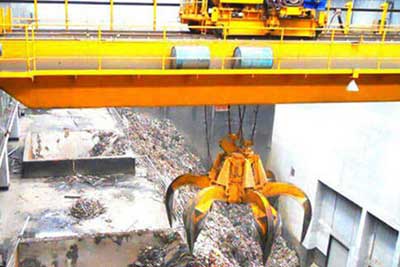

clamshell grab bucket overhead crane

garbage grab overhead crane 25 ton

Orange peel grab bucket overhead crane

 electromagnetic chuck for steel mill overhead crane

electromagnetic chuck bridge cranes.

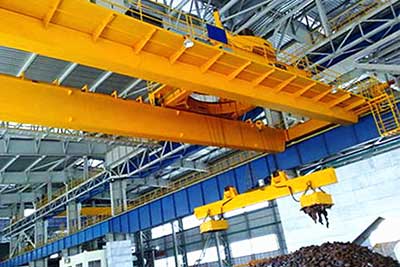

Overhead crane 25 ton with electromagentic beam spreader

Overhead crane 25 ton with Electromagnetic hanging beam

Overhead crane 25 ton

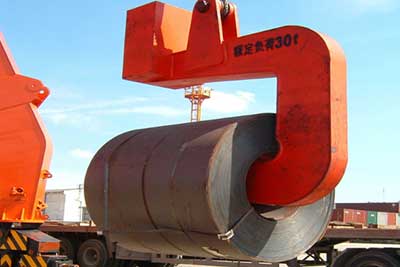

C Hook overhead cranes are designed for handling coils & paper Rolls.

Clamp overhead crane for ingot, billet & slab handling

Clamp overhead crane for ingot, billet & slab handling

Because there are so many different types of below-the-hook lifter applications, there are also different types of below-the-hook lifting devices. Most manufacturers make standard lifting devices that can handle common lifting tasks like lifting and moving bars or pipes, stacking coils, sheets, and plates, and moving pallets and various structural shapes.

Customized below-the-hook devices are also quite common. These are engineered lifters designed to pick up and transport very specific loads.

The size, shape, weight or center of gravity of the load can all impact how a custom-built below-the-hook device is manufactured.Contact us to get a customized lifting devices for your 25 ton overhead crane.

Safety system of bridge crane 25 ton

  • The primary goal of lifting operations should be to improve the safety of the overhead crane system as well as the production process at your facility. We provide a variety of equipment or systems to assist you in achieving a safe and dependable lifting operation:
  • Cabin control or wireless remote control. Wireless remote control is a low-cost option that allows the operator to stand far away from the load. However, if you need a faster crane or work in hazardous conditions, cabin control is a much safer option that allows the operator to work within an enclosed cab.
  • Anti-collision system. When one or more cranes are operating on the same runway system, it is used to slow or stop the crane motion in the event of a collision.
  • Pathways and guardrails .Overhead cranes are typically designed with walkways and guard rails to allow personnel to inspect or service the equipment in a safe and convenient manner.
  • Alarm horns and warning lights .When the crane or load is in motion, this equipment provides audible and visual warnings to other personnel.

Customized bridge crane, get specific 25 ton crane price

A 25 ton bridge crane is a very common crane, and the prices vary depending on the model. Because the HD Eu type incorporates European-style design, SEW, ABM, and other European-brand components, they are more expensive than LD type bridge crane. But on the other hand, it is more energy efficient and has a longer service life. Whereas, the LD type is more economical and are usually preferred by applications with lighter working duty and working frequency.

As for double girder design, the price is also different. Due to more raw materials and special features will be added on to combat the difficult application environment and lifting requirements.

To get accurate 25 ton crane price, please feel free to contact us with the following information:

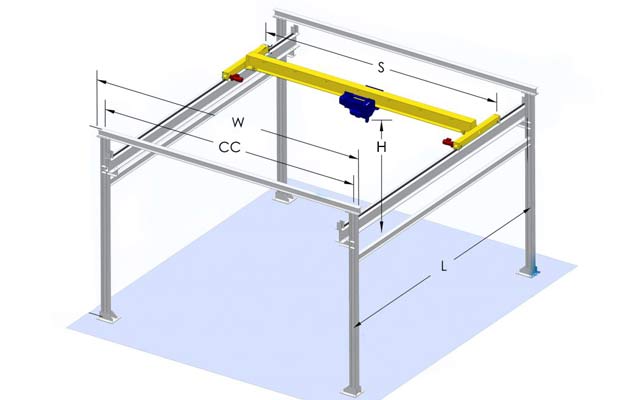

Confrim bridge crane specifications to get your 15 ton crane price

- Crane type you need:
- Lifting capacity: 25 ton
- Span(S):
- Lifting height(H):
- Crane traveling length(L):
- Power supply(e.g. 380V 50Hz 3Phase):
- Crane working conditions and what materials do you want to lift?
- Do you already have the structure and crane rails?
