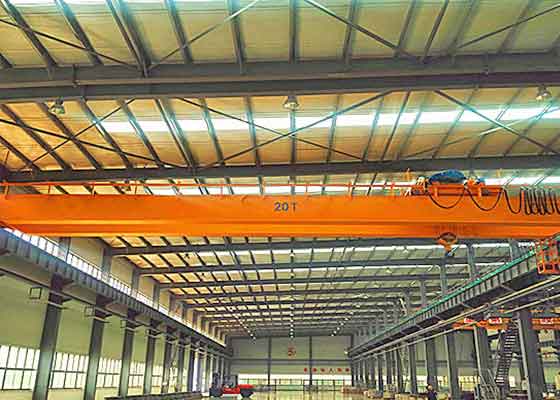

20 ton overhead crane for sale, good price. Double girder top running bridge cranes 20 ton with different hoisting systems & configurations for sale. Customized 20 ton double girder overhead crane with tailored specifications for your use. Contact us to get your custom 20 ton crane designs today.
A double girder overhead crane from Yuantai has a larger lifting capacity. With the help of the current computing system, the weight of the double girder crane can be adjusted to reduce the force that the load exerted on the structure and increase the stability of the lifting equipment when loading large quantities of loads or objects.
The modular design also enables the addition of a number of extra features, including overhaul platforms, passage components, rain covers, etc.
Main structure of 20 ton Overhead Crane
The overhead bridge crane has a simple structure that makes it simple to install, maintain, and repair. It is composed primarily of a bridge, a hoist trolley, a crane running mechanism, and an electric control system.
The bridge is the main traveling component, and it is made up of two end trucks and two main beams. The bridge beam spans the end beams or end carriages and is supported by the end trucks. It moves forward and backward along the runway beam to keep the crane running.
The hoisting mechanism is mounted on the trolley and is used to lift and lower loads. The trolley runs along the bridge rail and is supported by the bridge girder. The electric control system is made up of electrical circuits and electrical equipment.
Pendant control, wireless remote control, and cab operation are the most common used crane operation controls, which can be selected based on your requirements. Users can select one or two combinations to meet their specific requirements.

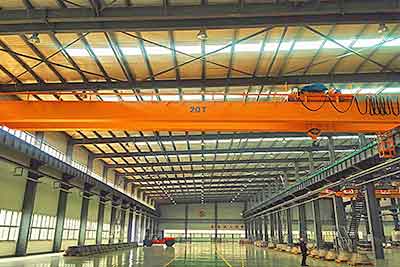

QD Double Girder Bridge Crane 20 Ton With Hook Parameters
- Lifting capacity: 5 ton -450 ton
- Span:10.5-31.5m
- Lifting height:6-24m
- Lifting speed: 2.1-11.5m/min
- Trolley speed:27-40m/min
- Crane speed: 42-75m/min
- Duty: A3-A7
- Customized heavy duty open winch trolley double girder crane with tailored 20 overhead crane specifications are available.
Features:
- The bridge crane 20 ton has a box-shaped double main beam structure that can meet the strength, rigidity, and stability requirements of large-tonnage heavy duty lifting.
- The bridge moves quickly, and production efficiency is high.
- The crane can be outfitted with various hook attachments to meet the lifting needs of various occasions.
- The crane is less expensive and easier to maintain than a European standard overhead crane.
- Contact us to get your tailored crane design.
QDX Double Girder Bridge Crane 20 Ton With Hook
Parameters
- Lifting capacity: 5-320t
- Span:10.5-31.5m
- Lifting height:6-24m
- Lifting speed: 0.2-10.7m/min
- Trolley speed:2.4-33m/min
- Crane speed: 4.2-68m/min
- Duty: A3-A5
- Customized service
Customized building in open winch double girder crane with tailored 20 overhead crane specifications are available.
Bridge crane open winch trolley
Features:
- The lightweight design concept is used in the European-style overhead crane, which has the characteristics of light weight, low wheel pressure, small boundary size, reliable performance, and compact structure.
- The lifting reducer is a hard-tooth surface reducer with high transmission accuracy, high safety, and a small size.
- The trolley uses a frequency conversion motor, which is more reliable and safer.
- Because the trolley's operating mechanism uses a three-in-one reduction motor, the structure is compact.
NLH 20 Ton Bridge Crane with European Style Hoist Trolley
Specifications
- Lifting capacity: 5-80t
- Span:10.5-31.5m
- Lifting height:6-18m
- Lifting speed: 0.4-5m/min
- Trolley speed:2-20m/min
- Crane speed: 3-30m/min
- Duty: A5
- Customized service
Customized electric trolley double girder crane with tailored 20 overhead crane specifications are available.
NLH Overhead crane European hoist trolley
Advantages:
- When compared to standard overhead cranes, the NLH series double beam overhead crane is lower in height, has lower wheel pressure, and is lighter in weight, lowering the user's plant construction costs.
- The European-style crane's working level can reach A5, A6, or even higher.
- The hook limit is reduced, and the working area is expanded.
- Contact us to get your tailored crane design. Cost-effective 20 ton overhead crane for sale, good price.
LH Double Girder Bridge Crane 20 Ton For Sale
Parameters
- Lifting capacity: 5 ton -50 ton
- Span length: 10.5~31.5m
- Lifting height: 6~30m
- Lifting speed: 0.18-8m/min
- Trolley speed: 20m/min
- Crane speed: 20m/min
- Working class: A3~A4
- Customized features are optional to meet your particular needs and application conditons. Contact us to get your overhead crane with tailored specifications.
Double rail crab hoist trolley
Features:
- The LH-Double Girder Electric Overhead Crane is a bridge crane with a hook that can handle and transport fixed cross intercroppings indoors or outdoors.
- Because its structure is stronger and more secure than that of a single girder overhead crane, the lifting capacity of a double girder overhead crane is greater.
- Customized Chinese hoist crab double girder crane with tailored 20 overhead crane specifications are available. Contact us to get your tailored crane design.
Overhead cranes with different below hook devices
Below-the-hook (BTH) lifting devices are essential attachments that allow for the efficient and safe transportation of a variety of loads. There are various types of crane attachements for your selection such as, coil hooks, coil grabs, mechanical lifters, spreader bars, and magnet lifts used in conjunction with cranes and hoists.
Yuantai Cranes provides below-the-hook solutions to meet your needs and specifications. Many of our customers in the steel mill and foundry, steel service centers, manufacturing and fabrication, and paper mill industries work with us to improve the efficiency and safety of lifts and loads.
A hydraulic grab has an opening and closing structure that is typically powered by a hydraulic cylinder.The grabbing of materials is controlled by the opening and closing of multiple jaws, which has a high degree of automation and a high grabbing force.
The mechanical grab itself lacks an opening and closing structure.It opens and closes the grab via the trolley's opening and closing drum, making it suitable for grabbing loose materials such as coal, blast furnace slag, small pieces of ore, and so on.
The garbage grab overhead crane 20 ton for garbage disposal is an import equipment in the city waste incineration plant. A garbage disposal overhead crane is installed over the garbage pit for garbage charging, transport, mixing, and weighing. This garbage disposal grab crane is available in manual, semi-automatic, and fully automatic configurations, capable of automatic grabbing, automatic repeat feeding, automatic repeat dumping, and automatic parking.
Customized garbage handling cranes are available. Contact us to get your 20 ton waste handling crane design!
An electromagnetic chuck is removable fetching mechanism for the bridge cranes. It is frequently used to lift and move magnetic black products and materials, including steel ingots, section steel, pig iron blocks, scrap iron and scrap steel, etc., in metallurgy and machining workshops.
Overhead crane 20 ton is equipped with Electromagnetic hanging beam , which equipped evenly with electromagnetic chucks as the fetching device. It is primarily used to load, unload, and transport long black metal products and materials, such as steel plates, steel ingots, and billets, in metallurgical factories and warehouses.
C Hook overhead cranes are designed for handling coils & paper Rolls.
C- Hook cranes 20 ton are most frequently used for heavy-duty material handling, lifting, hauling, and/or stacking steel coils, aluminum coils, copper coils, steel wires , paper rolls, and other materials.
Clamp overhead crane for ingot, billet & slab handling
Clamp overhead crane for steel mill semi-product, ie, ingot, billet & slab handling. Design billet crane, slab crane & ingot crane for your steel mill!
Contact us to get your customized clamp overhead crane to improve your working efficiency now.
Because there are so many different types of below-the-hook lifter applications, there are also different types of below-the-hook lifting devices. Most manufacturers make standard lifting devices that can handle common lifting tasks like lifting and moving bars or pipes, stacking coils, sheets, and plates, and moving pallets and various structural shapes.
Customized below-the-hook devices are also quite common. These are engineered lifters designed to pick up and transport very specific loads.
The size, shape, weight or center of gravity of the load can all impact how a custom-built below-the-hook device is manufactured.Contact us to get a customized lifting devices for your 20 ton overhead crane.
Customized bridge crane, get specific 20 ton crane price
A 20 ton bridge crane is a very common crane, and the prices vary depending on the model. Because the HD Eu type incorporates European-style design, SEW, ABM, and other European-brand components, they are more expensive than LD type bridge crane. But on the other hand, it is more energy efficient and has a longer service life. Whereas, the LD type is more economical and are usually preferred by applications with lighter working duty and working frequency.
As for double girder design, the price is also different. Due to more raw materials and special features will be added on to combat the difficult application environment and lifting requirements.
To get accurate 20 ton crane price, please feel free to contact us with the following information:
- Crane type you need:
- Lifting capacity: 20 ton
- Span(S):
- Lifting height(H):
- Crane traveling length(L):
- Power supply(e.g. 380V 50Hz 3Phase):
- Crane working conditions and what materials do you want to lift?
- Do you already have the structure and crane rails?
