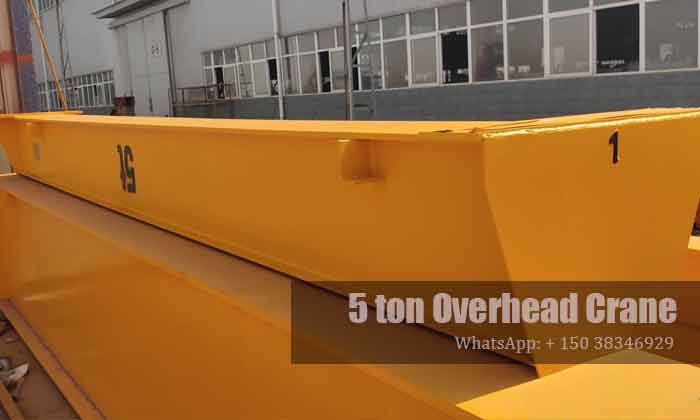

5 Ton Overhead Crane

5 Ton Overhead Crane

Product Type: 5 ton Overhead Crane
Lifting Capacity: 1~32 ton
Span: 7.5~28.5m
Lifting Height: according your requirements
Working Class: A3-A5
Ambient Temperature: -20~40℃
Inquiry

5 ton overhead crane for salegood crane price. Types of overhead crane designs and configurations are for your selection including the economical price single girder crane and cost-effective double girder overhead crane, top running design for general and heavy duty application and under running for economical and light duty material handling. No matter what type of warehouse or workshop you have, there will be a proper type of overhead crane solution for you. Contact us to learn more.

Single girder overhead crane 5 ton specifications

Top running



LD type

Hd type

Features:

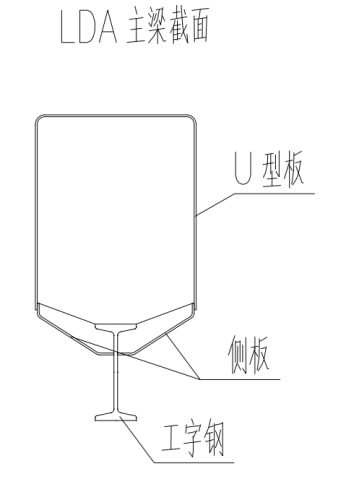

  • Economical overhead crane from China, with u shaped girder + I beam
  • Single girder overhead crane with cd/md wire rope hoist

Features:

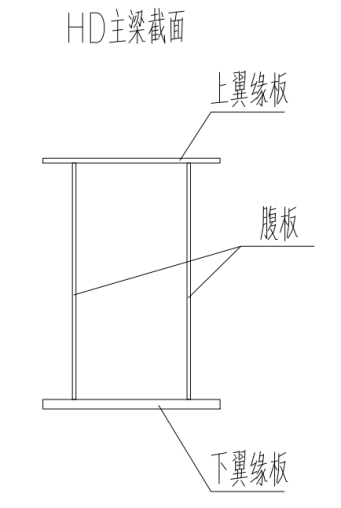

  • Advanced overhead crane with European style, with box structured main girder
  • Single girder overhead crane, equipped with low headroom wire rope hoist

LD type single girder overhead crane
LD type single girder overhead crane

HD type single girder overhead crane

HD type single girder overhead crane

Crane specification:

Capacity: 5 ton crane, Crane span: 5m to 31.5m, lifting height: customized

Crane specification:

Capacity: 5 ton crane, Crane span: 5m to 31.5m, lifting height: customized

Working class:A3,A4

Working class:A5

Main girder : U shaped girder + I beam

Main girder : Box girder

Hoisting system: CD/MD wire rope hoist, electric chain hoist, monorail hoists,

Hoisting system:European style low headroom wire rope hoist

Crane control: Remote control, Pendent control

Crane control: Remote control, Pendent control

Applications: General use

Application:General use & low headroom applications

Contact us to learn more on the LD type 5 ton single girder overhead crane and get latest LD type 5 ton overhead crane price

Contact us tolearn more on the HD type 5 ton single girder overhead crane and get latest HD type 5 ton overhead crane price

Under running overhead crane 5 ton specifications

Under running / Ceiling mounted



LX type

NLX type

Features:

  • Ceiling mounted, light , economical
  • Economical overhead crane from China, with u shaped girder + I beam

Features:

  • Ceiling monted, light, low headroom
  • Advanced overhead crane with European style, with box structured main girder

5 ton underhung overhead cranes

5 ton underhung overhead cranes

5 ton under running overhead cranes

5 ton under running overhead cranes

Crane specification:

Capacity: 5 ton crane, Crane span: 3~15m, lifting height: customized

Crane specification:

Capacity: 5 ton crane, Crane span: 3~15m, lifting height: customized

Working class:A3

Working class:A3,

Main girder : U shaped girder + I beam

Main girder : Box girder/ I beam

Hoisting system: CD/MD wire rope hoist, electric chain hoist, monorail hoists,

Hoisting system:European style low headroom wire rope hoist

Crane control: Remote control, Pendent control

Crane control: Remote control, Pendent control

Applications: General use

Application:General use & low headroom applications

Contact us tolearn more on the LX type of 5 ton double girder overhead crane and get latest LX type 5 ton overhead crane price.

Contact us tolearn more on the nlx type of 5 ton double girder overhead crane and to get latest Nlx type 5 ton overhead crane price.

Why us over Demag / KoneCranes

What are the advantages of HD type overhead crane over the counterpart from Demag or KoneCranes,?

  • On crane performances: Compared with Demag and Kone cranes, our European style overhead cranes are similar or the same in terms of energy saving, space utilization, use and maintenance. Due to independent research and development of technology and self-produced accessories, the cost of HD type single girder overhead crane is twice as low compared with those from Demag & Kone cranes.
  • In terms of after-sales, accessories: There is a large amount of inventory, fast delivery, and short after-sales cycle;
  • The market positioning is also different. Demag and Kone cranes are facing high-end users, and we are in a mid-to-high-end position. The market share of high-end customers is about 8%, and the mid-end or high-end accounts for 40%, so we are facing a more popular market.

Double girder overhead cranes 5 ton specifications

Double girder overhead crane with hoist trolley



LH Model - Typical in China

NLH Model - European style

Features:

  • Large & Sturdy.
  • Economical double girder overhead crane equipped with local electrics & motors

Featrues:

  • Light & Compact
  • Advanced overhead crane with European style quipped with exported motors & electrics

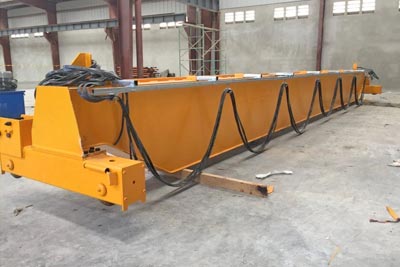

LH type double girder overhead crane with hoist trolleyLH type double girder overhead crane with hoist trolley

NlH type double girder overhead crane with hoist trolley

NlH type double girder overhead crane with hoist trolley

Crane specifications:
Capacity: 5~63t,Crane span: 8m~32m, Working class: A3~A5

Crane specifications:
Capacity: 5~80t,Crane span: 8m~32m, Working class: A3~A5

Hoisting system: CD/MD hoist trolley / crab hoist

Hoisting system: European style wire rope hoist trolley / crab hoist

Main girder : box girder

Crane control: Remote control, Pendent control , cabin control

Main girder : box girder

Crane control: Remote control, Pendent control , cabin control

Applications: General use

Application:General use & low headroom applications

Contact us to learn more on the lh type of double girder overhead crane and get latest Lh type 5 ton overhead crane price.

Contact us to learn more on the lh type of double girder overhead crane and get latest NLH type 5 ton overhead crane price.

Double girder overhead crane with open winch 5 ton specifications



QD type

QDX type

Features:

  • Heay duty & large dimensions
  • Economical double girder overhead crane equipped with local electrics & motors
  • Double girder overhead crane with open winch

Features:

  • Heavy duty & compact structure
  • Advanced overhead crane with European style quipped with exported motors & electrics
  • Double girder overhead crane with European style open winch

QD typeoverhead crane with open winch

QD typeoverhead crane with open winch

QDX type overhead crane with European style open winch

QDX type overhead crane with European style open winch

Crane specifications:
Capacity: 3 ton -800 ton,Crane span:5m-60mm, Working class: A5~A8

Crane specifications:
Capacity:5 ton -320 tons,Crane span:5m- 60m, Working class: A5-A8

Hoisting system:Built in open winch trolley with local configurations

Hoisting system: Built in open winch trolley with European configurations

Main girder : box girder

Main girder : box girder

Crane control: Remote control, Pendent control , cabin control

Crane control: Remote control, Pendent control , cabin control

Applications: General use

Application:General use & low headroom applications

Contact us to learn more on the qd type of double girder overhead craneget latest QD type 5 ton overhead crane price.

Contact us to learn more on the qdx type of double girder overhead craneget latest QDX type 5 ton overhead crane price.

Advantages of European style overhead Crane

  • Low height, light weight, saving construction resources.
  • Compared with ordinary or typical heavy and sturdy overhead bridge crane s, the self-weight is reduced by 15%~30%, and the wheel pressure can be reduced by 15%~30%.
  • Its height is also reduced by 20~30%.

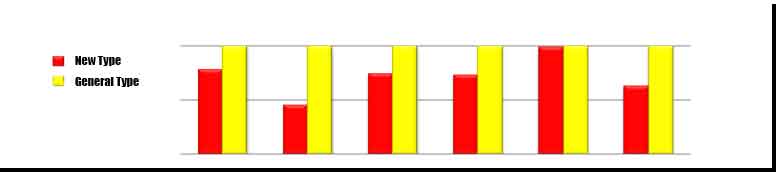

double girder overhead crane comparison  European style new type vs. General use one in China

                                               Self weight,              Wheel pressure,           Height,                         Effective headroom,         Width,                 Crane Power

50ton / 10 Ton double girder overhead crane comparison  European style new type vs. General use one in China

Item

Self weight(kg)

Wheel pressure(KN)

Height of crane

Effective headroom

Width of crane

Power of Crane (KW)

QD50/10t

-22.5m

New type

39241

184

2041

2750

6792

72.5

General type

50137

404

2752

3766

6858

115.5

Contrast

-21.7%

-54..5%

-25.8%

-27%

-1.1%

-37.2%

What is the cost of 5 ton overhead crane ?

There are so many different factors that can affect the price that you'll pay for an overhead crane system. The two most important aspects are span and capacity. These will determine how much labor and material will be required for the project, and will also dictate the complexity and design of the hoist, trolley, bridge, controls, and power system—all major players in how much a crane will cost you.

Factor affectyou 5 ton overhead crane cost:

  • The type of crane you need
  • The span you need to cover under the crane, or horizontal distance center-to-center of the runway rails
  • The capacity, or maximum rated load, that you need your crane to lift
  • The estimated height of your crane, or required lift
  • How fast the crane will need to be
  • How often you will use your crane
  • The environment that your crane will be operating in
  • If you need a runway, the length of your bay that the crane will need to traverse
  • Any special building or structural requirements for operation or installation

What is the price of a general use 5 ton overhead crane?

At Yuantai Crane, we're dedicatedto provide quality overhead material handling cranes at cost-effective price. All of our overhead cranes delivered have to go thoroughinspection and issued qualification certifications. All all the third part inspections are availableif necessary.

Economical 5 ton single girder overhead crane

Overhead  Crane Capacity: 5 ton single girder overhead crane
Span of Bridge Crane : 7.5 -31.5 m
Lifting Height: 6-30 m
Power Supply:220-480/3/50
Bridge Crane price: $3000~41500(USD)

Double girder overhead crane with electric hoist trolley

Overhead Crane Capacity: 5 ton double girder overhead crane
Span of Bridge Crane : 7.5 -31.5 m
Lifting Height: 6-30 m
Power Supply:220-480/3/50
Bridge Crane price: $5800-72000(USD)

Comparison Table of 5 ton Overhead Bridge Cranes

Overhead Bridge crane

Capacity

Span

Height

Coverage Area Type

Coverage Area

Motorization

General-purposeSingle Girder Overhead Crane

5 ton

7.5m to 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Low Headroom Single Girder Overhead Crane

5 ton

7.5m to 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Single Girder Overhead Crane - European style

5 ton

7.5m to 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Ceiling-mounted Workstation Bridge Crane

5 ton

7.5m to 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Explosion-proof Single Girder Overhead Crane

5 ton

7.5m to 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Double Girder Overhead Crane (medium-sized)

5 ton

7.5m to 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Double Girder Overhead Crane (Large-sized)

5 ton

7.5m to 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Explosion-proof Double Girder Overhead Crane

5 ton

7.5m to 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

How to get your 5 ton Overhead Crane design ?

Because each customer's actual working conditions vary, the price of an overhead crane of the same tonnage will also vary. The following factors contribute to crane price differences: lifting capacity, span, lifting height, power supply, actual working environment, and customer special requirements. Any difference in any one factor will result in a different price. As a result, if you want to know the exact price of an overhead bridge crane that meets your needs, please send us a detailed request that includes the following information:

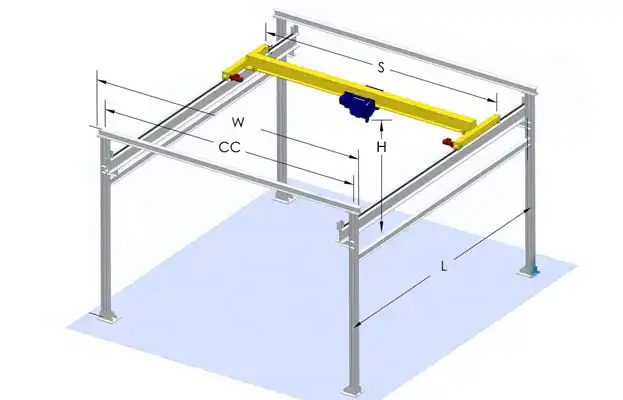

5 ton overhead crane specification drawing

- Crane type you need:
- Lifting capacity: 5 ton
- Span(S):
- Lifting height(H):
- Crane traveling length(L):
- Power supply(e.g. 380V 50Hz 3Phase):
- Crane working conditionsand what materials do you want to lift?
- Do you already have the structure and crane rails?



L D Type Overhead Crane Specifications, Drawings & Production Pictures

The ld type of single girder overhead crane is more of the most popular overhead crane for the unbeatable price. The Top running single girder overhead crane 5 ton is equipped with electric hoist trolley, such as, cd/md electric wire rope hoist, electric chain hoist, monorail hoist,etc. It's capacity can be up to 32 ton. which are widely used for general material handling applications . Contact to get the economical price of ld type 5 ton overhead crane today.

LD 5 Ton Overhead Crane Parameters

  • Lifting capacity: 1-25t
  • Span length: 7.5-31.5m
  • Lifting height: 6-30m
  • Lifting speed: 0.3-8m/min
  • Hoist travelling speed: 20m/min
  • Crane travelling speed: 20m/min
  • Working class: A3~A4
  • Customized service

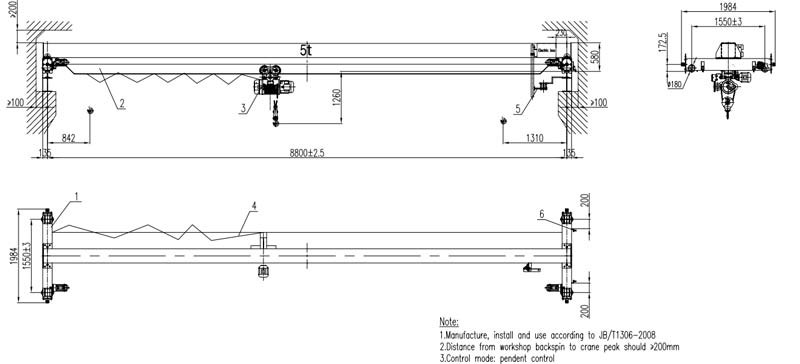

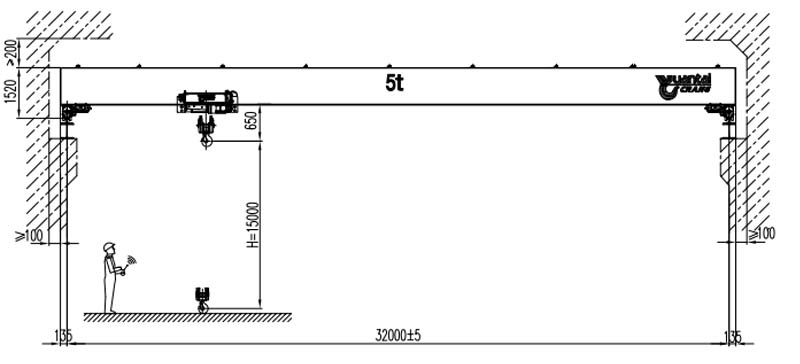

LD type single girder overhead crane 5 ton drawing 5 ton single girder overhead crane with cd/md hoist drawing for your reference

HD Type European Stype Single Girder Overhead Crane Specifications & Drawings

5 ton - 30 ton single girder overhead crane, top running design, equipped with European style low headroom electric hoist, new type of single girder overhead crane, with more advantages such as light self weight and low profile headroom. Contact to get 5 ton overhead crane rate today.

HD 5 Ton Single Girder Overhead Crane Parameters

  • Lifting capacity: 1-20t
  • Span:7.5-28.5m
  • Lifting height:6-18m
  • Lifting speed: 0.8/5m/min
  • Hoist travelling speed:2-20m/min
  • Crane speed: 3-30m/min
  • Duty: A5
  • Customized service
HD5t-32m-15m single girder overhead crane with FEM standard low headroom wire rope hoist drawing HD5t-32m-15m single girder overhead crane with FEM standard low headroom wire rope hoist drawing for your reference

LX Type Underhung Overhead Crane Specifications & Drawings

The under running overhead crane is a small light lifting equipment, which can be mounted to the ceiling structure or roof truss, with the lifting capacity range from 1 to 16 tons, equipped with dual-speed electric hoist. The ceiling overhead crane is widely used for light duty material handling , especially with popular with capacity of 1 ton, 2 ton, 3 ton , 5 ton, but its maximum capacity can up to 16 ton.The light and small overhead crane is also for general use applications in the factory, warehouse, stockyard, etc.

LX Type Under Running Crane For Sale

  • Lifting capacity: 0.5-10t
  • Span:3-22.5m
  • Lifting height:6-30m
  • Lifting speed: 0.7-8m/min
  • Hoist travelling speed: 20m/min
  • Crane speed: 20m/min
  • Duty: A3-A4
  • Customized service

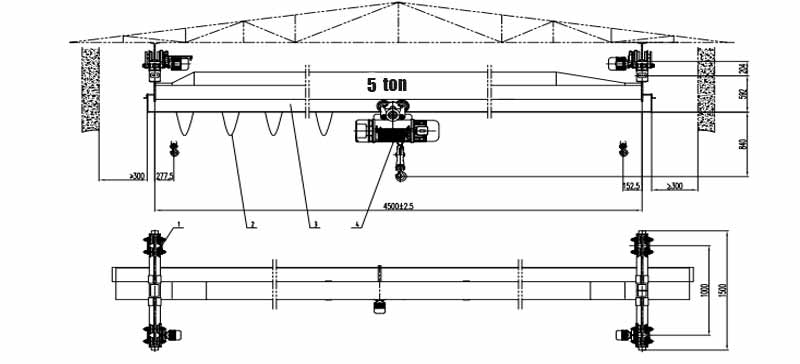

 Lx type underhung  single girder overhead crane with cd/md hoist Lx type underhung single girder overhead crane with cd/md hoist for your referecence

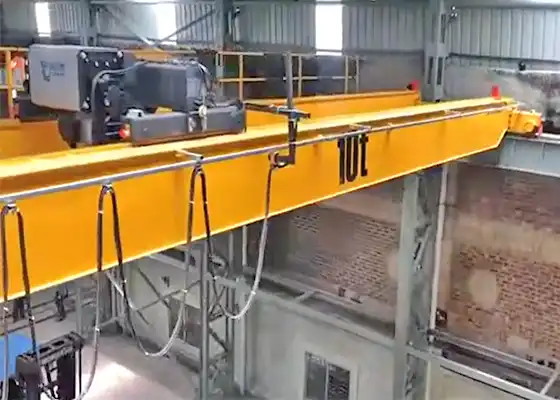

NlH Type Double Girder Electric Hoist Overhead Crane Specifications & Drawings

The NLh double girder overhead crane 5 ton is a type of double beam crane, equipped with an low headroom electric hoist trolley as the hoisting system, With European style design, the NLH double girder overhead crane 5 ton & 10 ton are very popular for light and medium size workshops and factory. Contact us to get more information about the NLX overhead crane.

NLH 5 Ton Double Girder Overhead Crane Parameters

  • Lifting capacity: 5-80t
  • Span:10.5-31.5m
  • Lifting height:6-18m
  • Lifting speed: 0.4-5m/min
  • Trolley speed:2-20m/min
  • Crane speed: 3-30m/min
  • Duty: A5
  • Customized service

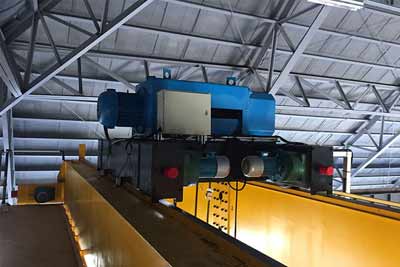

5 ton double girder overhead crane with European style double girder hoist trolley NLH type 5 t-11.15m-3.5m A5 double girder overhead crane with European style double girder hoist trolley for your reference.

QD Type Open Winch Overhead Crane Specifications & Drawings

The economical double girder overhead crane are the typical type of overhead crane design from China, which features as large self weight and large crane dimensions compared with European style double girder crane due to the more steel materials are used. And they are very popular for heavy duty loads handling and they are very popular in steel mill and steel plants. Contact us more on the double girder bridge crane now.

QD 5 Ton Double Girder Crane Parameters

  • Lifting capacity: 5-450t
  • Span:10.5-31.5m
  • Lifting height:6-24m
  • Lifting speed: 2.1-11.5m/min
  • Trolley speed:27-40m/min
  • Crane speed: 42-75m/min
  • Duty: A3-A7
  • Customized service

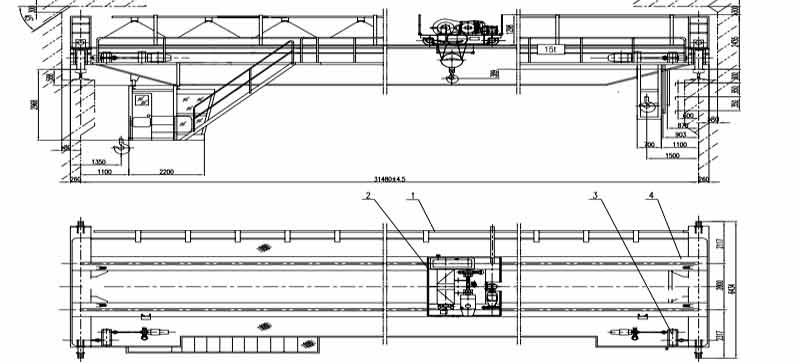

5 ton double girder overhead crane drawing QD15/5t-31.48m-8.25m A5 double girder overhead crane drawing for your reference. Contact us to get your customized 5 ton overhead crane.

How is a 5 ton single girder overhead crane installed in your workshop? To learn more about the assembly of a 5 ton overhead crane,please read on. In the following, it is installation guide for one of our valuable client, who has bought 5 ton overhead crane and installed the crane all by himself. The overhead crane has been installed sucessufully and the installation steps are presented for those who plans to install a single girder overhead crane. If you need more informatin, please feel free to let us know.

For overhead crane installation, it mainly including tree parts, which including the following:

Part One: Steel structure

  1. Weld the runway beam on the columns brackets. Connect the bearing beams with connection bolts.The error standard of the bearing beams is the same as the rail.

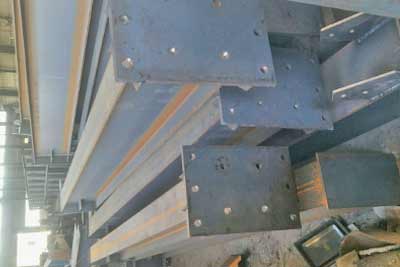

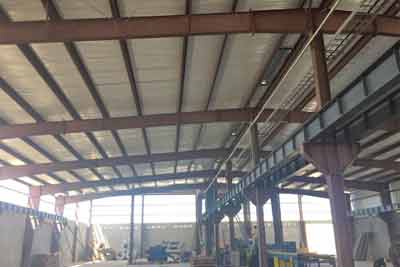

 columns brackets for overhead crane runway installation columns brackets

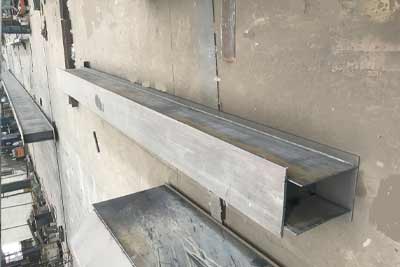

Weld the runway beam on the columns bracketsWeld the runway beam on the columns brackets

Part Two: Rail and Busbar

Rail installation

  • 1, The track must be laid according to the span of the crane. The track laying standard is: height error within ±10mm, span error within ±5mm. The gap between the two tracks must be misaligned by about 3m.
  • 2, There is a 0.3mm gap between the two rails. The rails are connected by splints and tightened. The rail is welded on the bearing beam by the pressure plate, and the pressure plates are welded symmetrically with an interval of 700mm. The ends of the rail connection must be welded with double pressure plates.

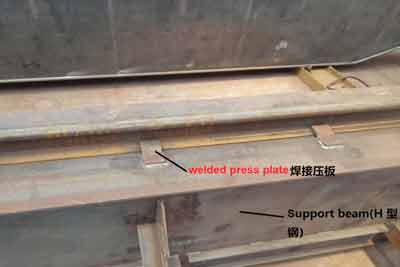

Fasten the crane track or crane rail by welding press plates on the support beams. Fasten the crane track or crane rail by welding press plates on the support beams.

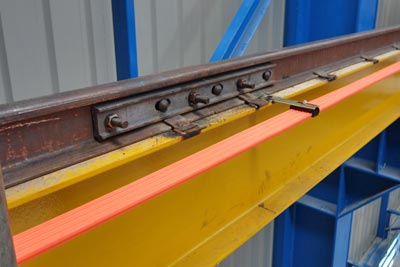

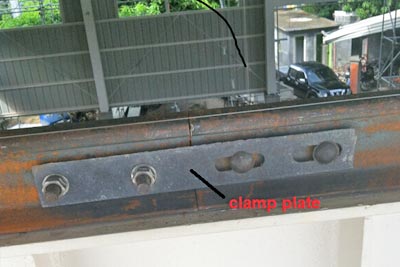

Connect the crane track or crane rail by clmap plates Connect the crane track or crane rail by clmap plates

Busbar installation

Seamless type busbar installation: The busbar is the power feeder system of the crane. The busbar components are composed of tensioners, brackets, buckles and sliding lines.

  • 1, Install the hanger on the bracket, and then weld the bracket to the bearing beam, the distance between the two brackets is 1.5m.
  • 2, Install the busbar on the buckle, and tighten the two ends with a tensioner (the tensioner bracket is drilled with a 50×50 angle iron and welded to the end of the bearing beam, the customer must prepare materials on site)
  • 3, Straighten the busbar, make the busbar parallel to the rail, tighten the buckle nut, the level of the sliding line is ±5mm.

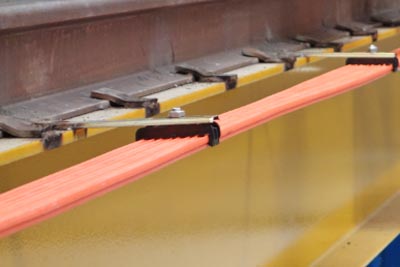

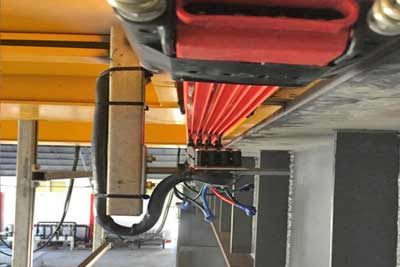

Crane busbar installation Crane busbar installation
Crane busbar installationCrane busbar installation

Part Three: Crane installation:

  • 1, Use bolts to connect the main beam -Assemble the end beam and the main beam to complete the assembly and installation of the crane bridge.
  • 2, Install the electric hoist.-Noted: Adjust the gap of the hoist wheel flange to make it suitable for the main beam of the crane, with a gap of 3-5mm
  • 3, Fix the electrical box of the crane to one end of the crane
  • 4, Connect electrical appliances and motors according to the drawings.Noted: this part will be connected to the aviation plug before leaving the factory, and you only need to insert the corresponding position on site)
  • 5,Crane installation. After commissioning the crane, use the truck crane to place the crane on the rail.
  • 6, Installation of the current collector, the collector is installed under the busbar, and the bracket is welded to the bearing beam.
The above installation must be operated by professionals.

Main assembly precedes of the 5 ton single girder overhead crane

A single girder overhead crane is a type of warehouse materiel handling tool that includes mainly the main girder, end carriages, an electric hoist, and electrics. The main installation steps are presented for your reference. More information, please contact us.

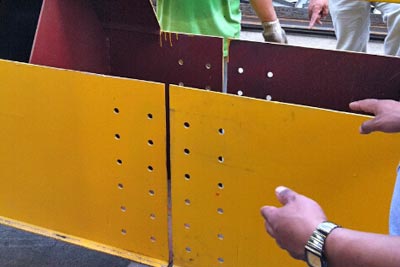

1.Use bolts to connect the main beam of 5 ton overhead crane together 1.Use bolts to connect the main beam
2.Connect the end beam and the main beam with bolts  2.Connect the end beam and the main beam with bolts

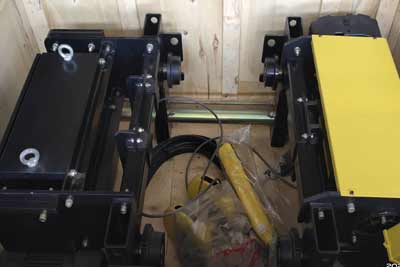

3.Install the 5 ton  electric hoist on the overhea crane 3.Install the electric hoist

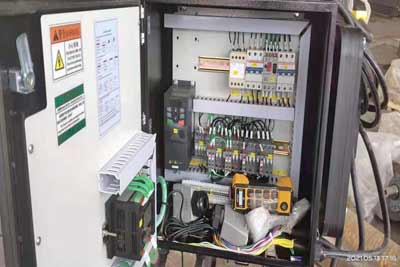

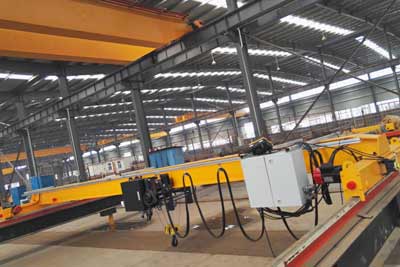

4.Fix the electrical box of the crane to one end of the crane 4.Fix the electrical box of the crane to one end of the crane
5.Connect electrical appliances and motors according to the drawings 5.Connect electrical appliances and motors according to the drawings

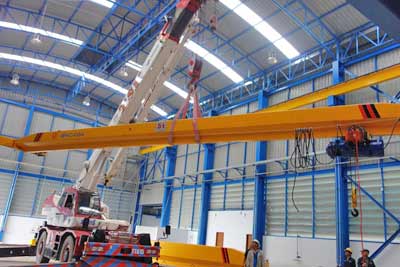

6. After commissioning the crane, use the truck crane to place the crane on the rail.6. After commissioning the crane, use the truck crane to place the crane on the rail.
7.Installation of the current collector7.Installation of the current collector

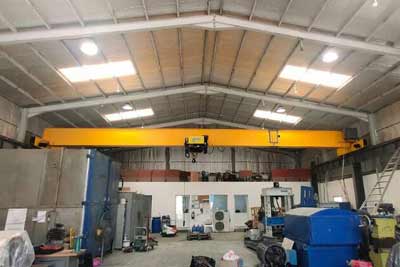

8. Finished installation and load tesing 8. Finished installation and load tesing

The 5 ton single girder overhead crane is for Contracting Company in Bangladesh. In the following , the main crane specifications, configurations and customized crane features are presented for your reference. Single girder overhead crane for sale Bangladesh with 5 ton electric hoist. Check Bangladesh overhead crane specifications & configurations to get your design!

Project info of 5 ton single girder overhead crane for sale Bangladesh

  • Brand :Yuantai Crane
  • Types of Cranes:Single girder overhead crane
  • Date of Placing Order: 2020-04-21
  • Date of delivery : 2020-05-20
  • Transportation :40HQContainer *1
  • Payment: 100% irrevocable letter of credit
  • Destination port:CFR, Qingdao
  • Destination country:Bangladesh
HD type of 5 ton single girder overhead crane for sale Bangladesh
HD type of 5 ton single girder overhead crane for sale Bangladesh

Main Specifications of 5 ton single girder overhead crane for sale Bangladesh

Quantity

1 set

Product Name

Single Girder Overhead Crane

Crane Model

HD

Lifting capacity

5 ton

Crane span

5 m

Lifting height

4.1 m

Working class

A3

Power supply

380V,50HZ,3P

Crane control

Ground control

Color

Standard

Customized features of 5 ton overhead crane for Bangladesh

  • 1. An electronic scale is installed.
  • 2. P18 track, running length: 34.28 meters, a total of 68.56 meters of track is required
  • 3. Seamless sliding line, 6 square centimeter, 34.28 meters long.
  • 4. Column: H396*199*7*11 meters,about 81kg/ piece, height: 3.963m, a total of 14 pieces, column base plate size: 560*400
  • The bottom plate of the column uses M24*300 expansion bolts, 10 for one column, 140 in total.
  • 5. Rail-bearing beam: H396*199*7*11m, weight 63kg, running length 34.28m
  • Including: 2 pieces of 3.756 meters beam; 2 pieces of 5.542 meters beam ; 6 pieces of 6.194 meters beam; 2 pieces of 6.394 meters beam.

Gallery of 5 ton single girder overhead crane for sale Bangladesh

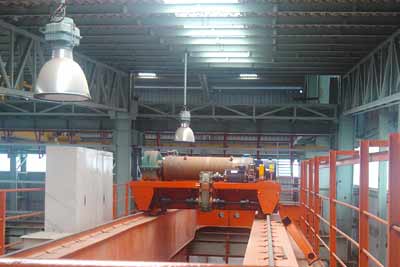

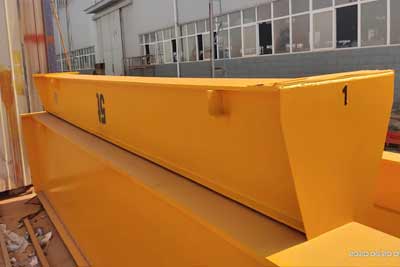

Main girder of 5 ton single beam overhead crane for sale BangladeshMain girder of 5 ton single beam overhead crane for sale Bangladesh

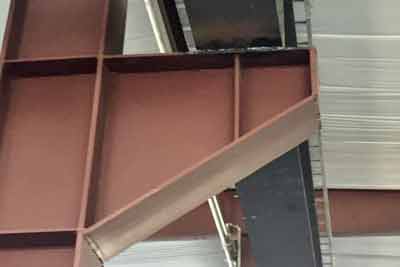

Main girder painted of 5 ton single girder overhead crane for sale BangladeshMain girder painted of 5 ton single girder overhead crane for sale Bangladesh

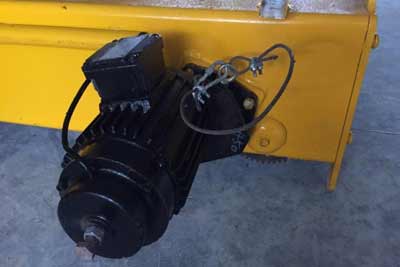

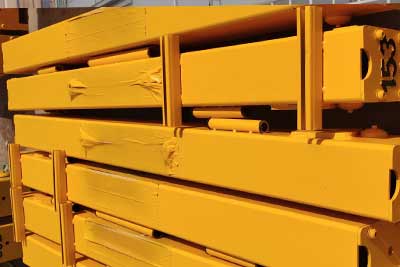

End carriages of single girder overhead crane for sale BangladeshEnd carriages of single girder overhead crane for sale Bangladesh
5 ton electric wire rope hoist for sale  to Bangladesh5 ton electric wire rope hoist for sale to Bangladesh

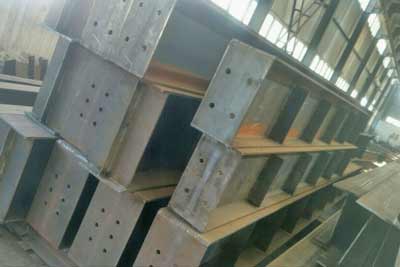

Overhead crane runway bearing beams Overhead crane runway bearing beams
Overhead crane supporting columns Overhead crane supporting columns
5 Ton overhead crane designing video

Dongqi Crane Factory has more than 30 years of manufacturing experience and is the top crane manufacturer and supplier in China.
Here, we can provide you with the best quality and the most competitive price.
we have over 30 years of experience engineering, manufacturing, and installing overhead crane systems.
Yuantai Crane can provide overall services for all types of industries cranes, and the main services are as follow:

crane design Crane project design
Cranes designed by Yuantai Crane will solve any of your crane problems and material handling problems without spending any unnecessary expenditures.
crane installation Crane Installation
EASAY installation, wonderful working performance. Yuantai Crane can provide on-site crane installation services and our crane engineers will be at your services when necessary.
lifetime maintenance Lifetime Maintenance
Crane maintenance from Yuantai Crane ensures your safety and working efficiency.
crane operator training Crane operator Training
Yuantai Crane training includes crane operation, maintenance and inspection, and crane spare parts, etc.
technical support Technical support
The powerful technical support of Yuantai Crane will solve your crane technical problems.
crane parts Crane parts
Yuantai Crane parts will renew your cranes.
Get a quote

Get In Touch Now

Need Latest Crane Price? Please leave us the required Crane's Capacity, Lifting Height, Span, Travelling Length & Voltage for Quick Quotation.
