10 Ton Double Girder Bridge Crane

10 Ton Double Girder Bridge Crane

Product Type: Double girder overhead crane
Lifting Capacity: 10 ton
Span: As request
Lifting Height: As your requirement
Working Class: A3,A4
Ambient Temperature: -20-+40 ℃
Inquiry

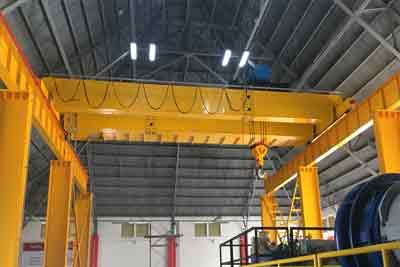

Double Girder Overhead Crane 10 Ton

For heavy-duty material handling that requires a large overhead crane spans, heights of lift, and speed ranges, a double girder overhead crane is your best option. Double girder overhead cranes can be employed in a variety of building structures, whether they are new or old buildings. Depending on the load and lifting needs, the  heavy duty cranes can be equipped with a variety of hoisting system arrangements.

  • For heavier-duty applications, when the lift is greater than 20 tons, the span is greater than 31.5 meters, or the crane duty cycle is A7 and A8, double girder cranes are advised.
  • When an overhead crane needs to be specifically developed in terms of walkways, driver's cabs, magnet cable reels, and other factors, a double girder crane is chosen.
  • Additionally, the top running design of the double girder overhead crane allows for greater lifting height.

10 ton overehad crane  can be designed into double girder design & single girder design based on application conditions and requirements. Check 10 ton single girder overhead crane now.

Electric Hoist Double Girder Overhead Crane 10 Ton LH Type

Electric hoist double girder overhead crane is widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, stock ground, and power station, textile industry and food industry.

Double girder eot crane specifications:

  • Overhead crane type: LH
  • Capacity:10 ton
  • Span Length:8m~32m,
  • Lifting height: As your request
  • Hoisting system: double rail or double girder hoist trolley
  • Working Class: A3~A5,

LH Electric Overhead Crane with Hoist Trolley 10 ton

span(S)

m

7.5

10.5

13.5

16.5

19.5

22.5

25.5



















Lifting Speed(slow)

m/min

8(0.8)

Trolley Speed

m/min

20

Crane speed

m/min

20(ground control);45(cabin control)

Lifting Motor

kw

7.5/0.8

Trolley Motor

kw

0.8×2



















Body weight(ground control)

kg

5230

6400

7450

8600

10560

12350

14850

Body weight(room control)

kg

5730

7100

8150

9300

11260

13100

15560

Max wheel load

KN

39

43

48

53

59

62

71

Recommended Rail



P38



















Main dimension

mm

7.5

10.5

13.5

16.5

19.5

22.5

25.5

Wheel tread to hoist top

H

1350

1350

1350

1350

1350

1350

1550

Wheel tread to main girder bottom

H2

165

165

165

265

365

465

370

Wheel tread to hook centre

H4

385

385

385

385

385

385

540

End girder wheels' distance

W

3200~3900

3200~3600

3800

End girder lenth

B

2700~3100

3700~4200

5300

Trolley track gauge

K

1400~1800

Hook left limitation

S1

1200

Hook right limitation

S2

1200

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

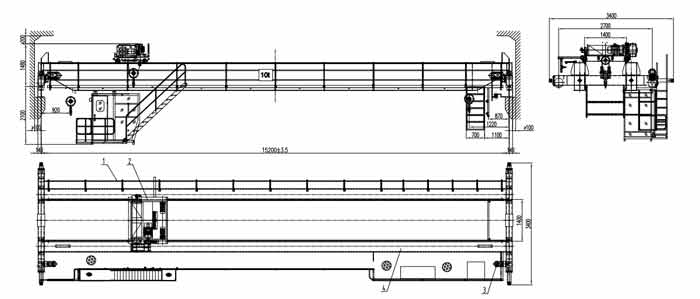

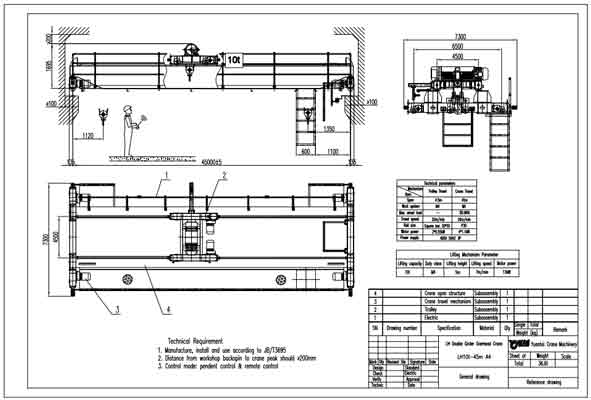

Lh type double girder overhead crane 10 ton with cd/md hoist trolley drawing

Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

 Double girder overhead crane with cd/md hoist trolley  Double girder overhead crane with cd/md hoist trolley
Electric wire rope hoist trolley for L H type overhead crane Electric wire rope hoist trolley for L H type overhead crane

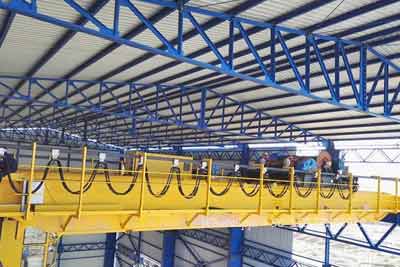

Doule girder overhead crane Doule girder overhead crane
Electric wirer rope hoist trolley Electric wirer rope hoist trolley

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

Double Girder Overhead Winch Crane 10 Ton QD Type

General use double girder overhead electric winch crane is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.

Double girder electric winch crane specifications:

  • Overhead crane type: QD
  • Capacity: 10 ton
  • Span length: 10.5~35.5m,
  • Lifting height: As your request
  • Hoisting system: building in open winch trolley with local configuration and parts in China
  • Working class: A4~A7,

Lifting capacity

t

5

10

Overhead Crane Span (m)

S(m)

7-31.5

7-31.5

Working class



A5 (FEM 2M) ,A6 (FEM 3M)

Lifting height

M

16

10

Lifting speed

m/min

0.8-8

0.53-5.3

Traveling speed

m/min

2-20

2-20

Motor

Lifting power

kw

7.5

11



Cross traveling power



2*055

2*0.75



Crane traveling power







Power source

380v,50hz,3p

Hoisting type

ND

Overhead Crane Total weight

t

6.014-20.313

8.462-24.79

Max wheel load

KN

46.4-79.8

77-118

Track



P38

P38

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

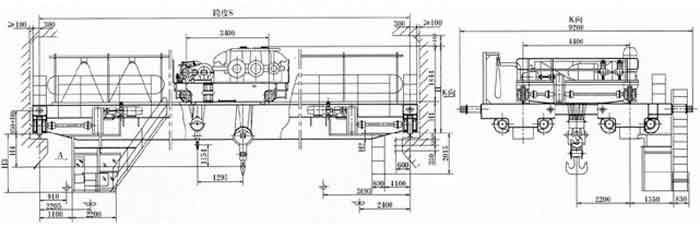

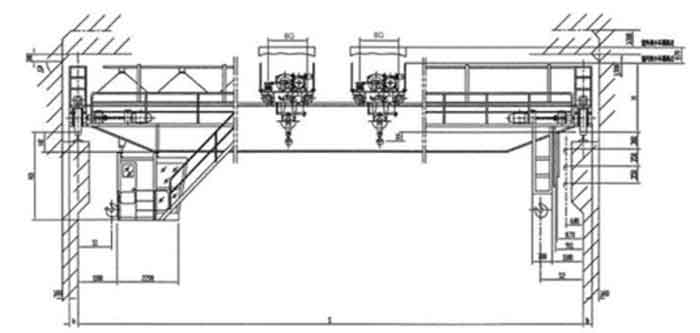

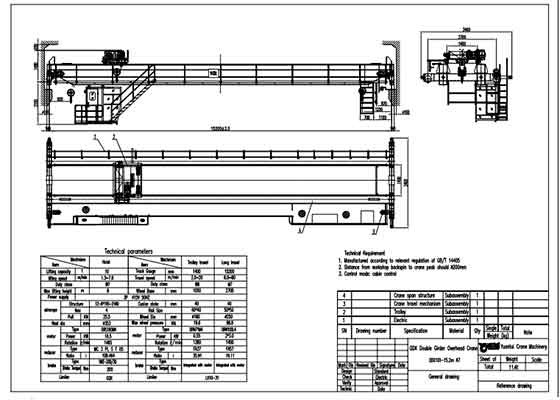

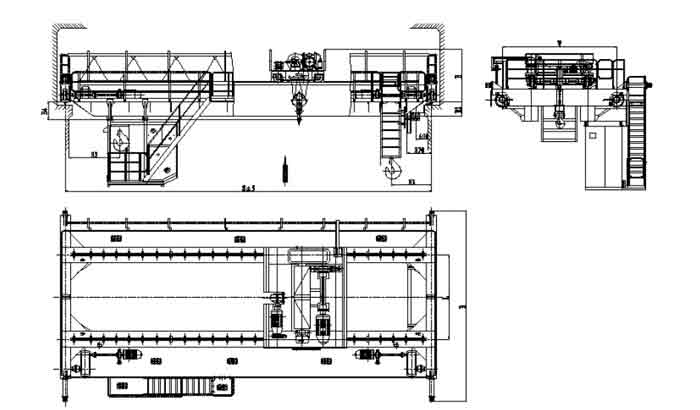

qd type overhead crane 10 ton sample drawing

Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

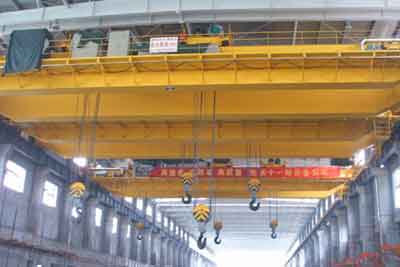

qd  type overhead crane 10 ton sample

Turnkey qd type open winch overhead crane  project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

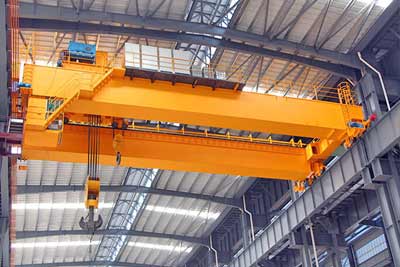

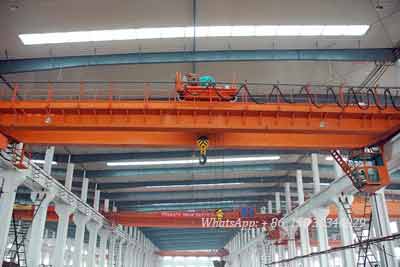

qdx type double girder overhed crane 10 ton sample picture

Double Girder Overhead Winch Crane 10 Ton QDX

  • Overhead crane type: QDX
  • Capacity:10 ton
  • Span length: 10.5~35.5m,
  • Lifting height: As your request
  • Hoisting system: building in open winch trolley with advanced configuration and exported parts,
  • Working class: A4~A7,

Lifting capacity

t

5

10

Overhead Crane Span (m)

S(m)

7-31.5

7-31.5

Working class



A5 (FEM 2M) ,A6 (FEM 3M)

Lifting height

M

16

10

Lifting speed

m/min

0.8-8

0.53-5.3

Traveling speed

m/min

2-20

2-20

Motor

Lifting power

kw

7.5

11



Cross traveling power



2*055

2*0.75



Crane traveling power







Power source

380v,50hz,3p

Hoisting type

ND

Overhead Crane Total weight

t

6.014-20.313

8.462-24.79

Max wheel load

KN

46.4-79.8

77-118

Track



P38

P38

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

qdx type overhead travelling crane 10 ton sample drawing

Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

Overhead crane & hoist for sale Bangladesh. Main specification:capacity 10 ton. 21.7m span, 10m lifting height. Check 10 ton overhead crane images.

Project info of 10 ton overhead crane & hoist for sale Bangladesh

  • Brand :Yuantai Crane
  • Types of Cranes:overhead crane & hoist
  • Date of Placing Order: 2022-01-13
  • Date of delivery : 2022.3.25
  • Transportation :By sea, container
  • Payment: L/C 100%
  • Destination port:FOB, Qingdao
  • Destination country:Bangladesh
10 ton double girder overhead crane for sale Uganda- double girders divided into four sections

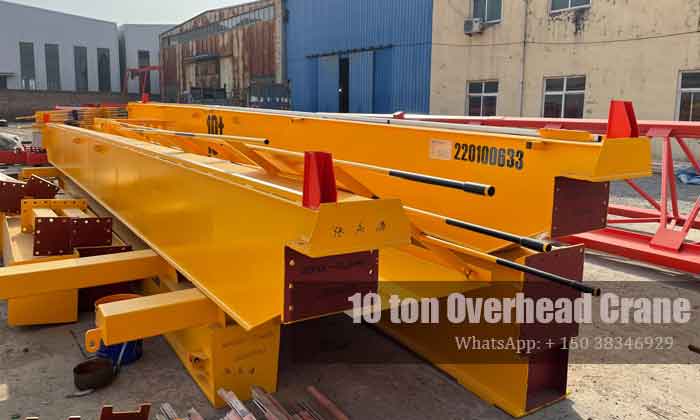

Double girder overhead crane 10 ton main girder for Bangladesh

Main Specifications of 10 ton overhead crane & hoist for sale Bangladesh

Crane name

Model

Workking class

Capacity(T)

Span(m)

Lifting height(M)

Crane control

Voltage

Color

Indoor / outdoor use

Crane Track

Quality

European style double girder overhead bridge crane

QDX

M6

10

10.3

10

Remote control

415/50/3

Standard

Indoor

square steel

1

hook scale





10







415/50/3

Standard

Indoor

/

1

hook scale





25







415/50/3

Standard

Indoor

/

1

Specifications of over head crane & hoist kits

  • Full SZW configuration for crane travelling and hoist lifting.
  • The maximum speed of the crane long travelling is 40m/min, the maximum speed of the trolley is 30m/min, and the maximum lifting speed is 4m/min
  • Crane rail: Square steel 80*60, crane travelling length is 60 meters, total track length is 120 meters
  • Crane power supply line: Single-stage sliding line, 60 meters x 4, 12 collectors ( few more spare parts are required by clients. )
  • The hook scale is required to have a printing function, the interface is in English. The overall quality is good
  • The charging voltage of the hook scale is 24VDC

Gallary of 10 ton overhead crane & hoist for sale Bangladesh

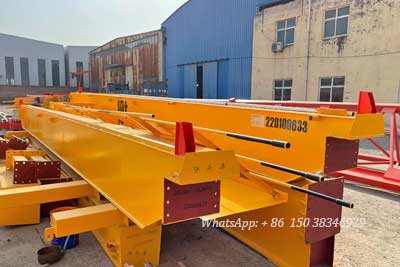

Main girder of 10 ton overhead crane for sale BangladeshMain girder of 10 ton overhead crane for sale Bangladesh

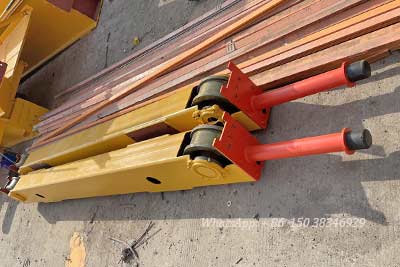

End carriages  of 10 ton overhead crane for sale BangladeshEnd carriages of 10 ton overhead crane for sale Bangladesh

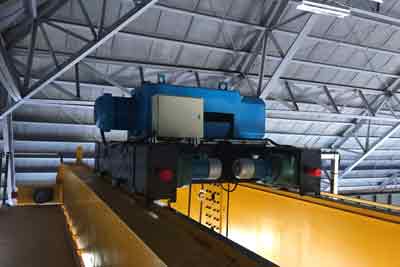

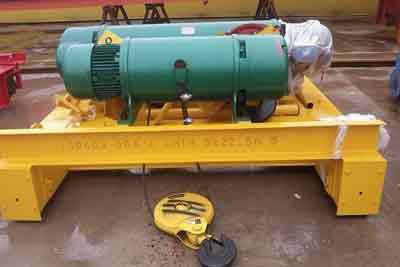

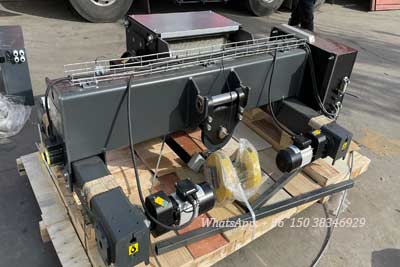

Electric hoist trolley of 10 ton verhead crane for sale BangladeshElectric hoist trolley of 10 ton verhead crane for sale Bangladesh

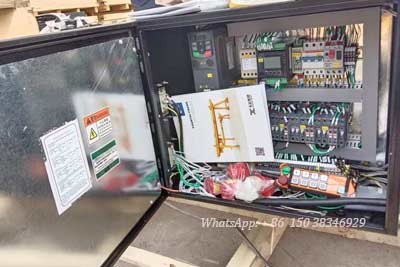

Electrics of qdx type double girder overhead crane 10 ton to BangladeshElectrics of qdx type double girder overhead crane 10 ton to Bangladesh

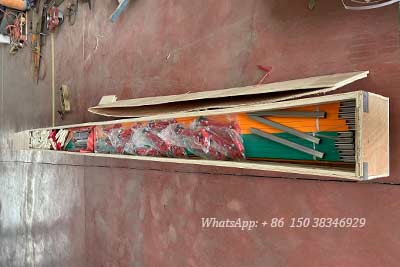

Crane busbar , the crane power supplly line for 10 ton double girder overhead crane packed for deliveryCrane busbar , the crane power supplly line for 10 ton double girder overhead crane packed for delivery

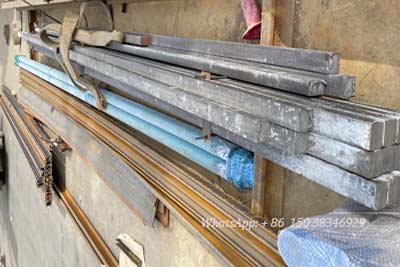

Crane rail, required by Bangladesh client Crane rail, required by Bangladesh client

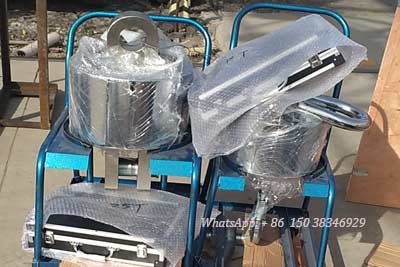

Crane hook scale with printing fuction Crane hook scale with printing fuction

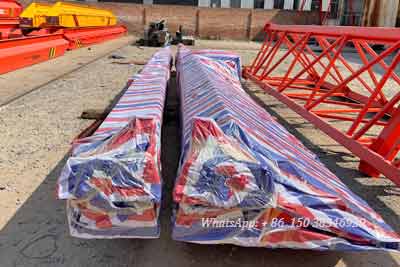

Main girder of the box girder overhead crane 10 ton  for delivery Bangladesh Main girder of the box girder overhead crane 10 ton for delivery Bangladesh

Turnkey qd x type European style 10 ton overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

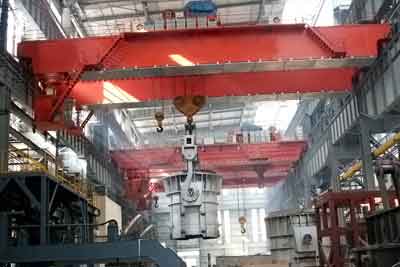

Ladle Double Girder Overhead Crane 10 Ton

Ladle overhead crane are widely used in the smelting industry to convey, pour and charge the liquid hot metal in the process of smelting.

Double girder eot crane specifications:

  • Overhead crane type:QDY
  • Capacity:10 ton
  • Span Length:10.5~31.5m,
  • Lifting height: As your request
  • Working Class:A7,
  • Ambient Temperature:-10~60℃,
Ladle Crane 10 ton
Working Class   A7,A8
Capacity t 5~320
Span m 5~60
Lifting Height m 12~50
Main Lifting Speed m/min 6~15.5,Single Speed or VFD
Aux Lifting Speed m/min 9.5~15.5,Single Speed or VFD
Main Trolley Travelling Speed m/min 29~43.5,Single Speed or VFD
Aux Trolley Travelling Speed m/min 29~43.5,Single Speed or VFD
Crane Travelling Speed m/min 58~105,Single Speed or VFD
Control Method   Cab Control
Power Supply   380V 50HZ 3PHASE or Customized
Temperature -20~60
Protection Grade   IP54~65
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

qdy type ladle overhead crane 10 ton drawing

Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

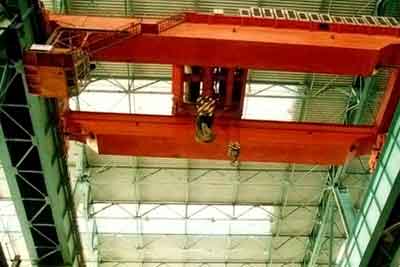

qdy overhead crane  10 ton sample picture
10 ton overhead crane for ladle handling qdy

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.



Explosion Proof Double Girder Overhead Crane

Explosion proof overhead crane is designed for explosive gas atmospheres with explosion-proof electrical equipment.

EX-proof double girder eot crane specifications:

  • Overhead crane type: QB
  • Capacity: 10 ton
  • Span Length: 10.5~31.5m,
  • Lifting height: As your request
  • Hoisting system: Explosion proof electric hoist trolley and customized explosion proof parts
  • Working Class: A4, A5,

Lifting capacity

t

5

10

Overhead Crane Span (m)

S(m)

7-31.5

7-31.5

Working class



A5 (FEM 2M) ,A6 (FEM 3M)

Lifting height

M

16

10

Lifting speed

m/min

0.8-8

0.53-5.3

Traveling speed

m/min

2-20

2-20

Motor

Lifting power

kw

7.5

11



Cross traveling power



2*055

2*0.75



Crane traveling power







Power source

380v,50hz,3p

Hoisting type

ND

Overhead Crane Total weight

t

6.014-20.313

8.462-24.79

Max wheel load

KN

46.4-79.8

77-118

Track



P38

P38

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

qb type explosion proof double girder overhead crane 10 ton drawing

Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

Explosion proof bridge crane is used to application where is not higher than the II B or II C-class. That 's the places or sites with explosive air mixture, which is formed with inflammable gas or steam. And at those places, the factory ignition temperature groups are of not less than the T4 group.

Yuantai Crane designs and manufactures the explosion proof equipment. They are well suit for the harsh and hazardous application environments. They are a great help for places, such as, chemical plants, gas power plants, paint shops, oil refineries, and waste water treatment plants, etc

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

Electromagnetic Double Girder Overhead Crane

The electromagnetic overhead crane is used in metallurgy factory or outdoor place to load and transport electromagnetic black metal materials, such as , steel ingot, merchant steel and pig iron, etc.

Electromangetic double girder eot crane specifications:

  • Capacity:10 ton
  • Span Length:10.5~31.5m,
  • Lifting height: As your request
  • Hoisting system: Double girder hoist trolley or building in open winch trolley for heavy duty
  • Working Class:A5, A6,

Lifting capacity

t

5

10

Overhead Crane Span (m)

S(m)

7-31.5

7-31.5

Working class



A5 (FEM 2M) ,A6 (FEM 3M)

Lifting height

M

16

10

Lifting speed

m/min

0.8-8

0.53-5.3

Traveling speed

m/min

2-20

2-20

Motor

Lifting power

kw

7.5

11



Cross traveling power



2*055

2*0.75



Crane traveling power







Power source

380v,50hz,3p

Hoisting type

ND

Overhead Crane Total weight

t

6.014-20.313

8.462-24.79

Max wheel load

KN

46.4-79.8

77-118

Track



P38

P38

Detailed 10 ton magnetic overhead crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed electromagnetic overhead crane with cusotmized specifications.

qc magnetic overhead crane 10 ton drawing

Get your customized magnetic overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your magnetic overhead crane 10 ton drawing for free today!

Scrap iron lifting electromagnetic chuck

Electromagnetic chuck for lifting scrap iron also known as a lifting electromagnet, scrap electromagnet, or scrap iron electromagnet, has only one function: lifting scrap iron. With the exception of lifting weight, lifting scrap iron is not the sae as lifting the substance. It is important to consider the density of the material in addition to the body's quality.The greater the density, the greater the hoisting, and the lesser the density, the lesser the hoisting. Many low-cost electromagnets flicker the customer. In fact, there is nothing wrong with the material; however, the winding of the magnet is insufficient, and there is a situation where the electromagnets have poor waterproof performance and begin to fail after rain.

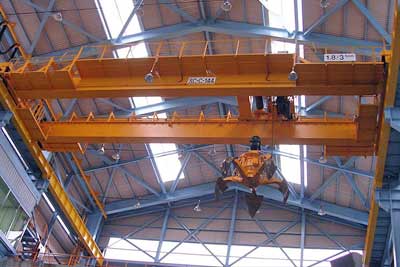

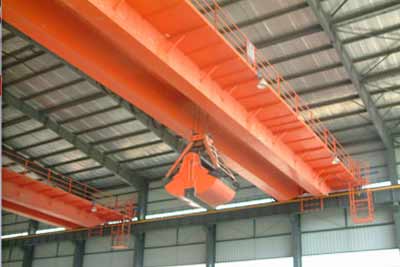

Scrap handling crane

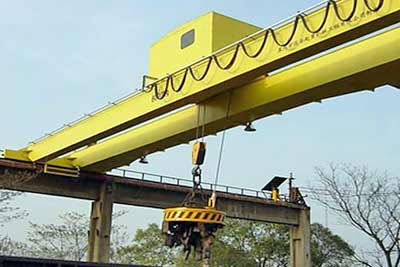

Scrap handling crane 10 ton sample

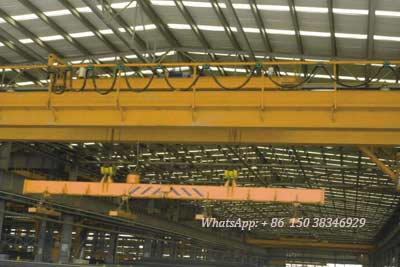

Steel plate handling crane
Steel plate handling crane smaple

Steel pipe lifting electromagnetic sucker

Steel pipe lifting electromagnetic sucker is a type of electromagnetic beam spreader, which is with electromagnet mechanism with high frequency and pressure Load characteristics. It takes 24 hours to run for an extended period of time without any heat or resistance. Appearance necessitates beauty, and quality necessitates excellence.

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

QE Double Trolley Double Girder Overhead Crane

The double trolley overhead crane is used to lift long and big loads with the capacity of ((2.5+2.5)~(200+200)t.

Double girder eot crane specifications:

  • Type:QE
  • Lifting Capacity:10 ton
  • Lifting Height:
  • Span:10.5~35.5m
  • Working Duty:A5,A6
  • Ambient Temperature:-20~40℃

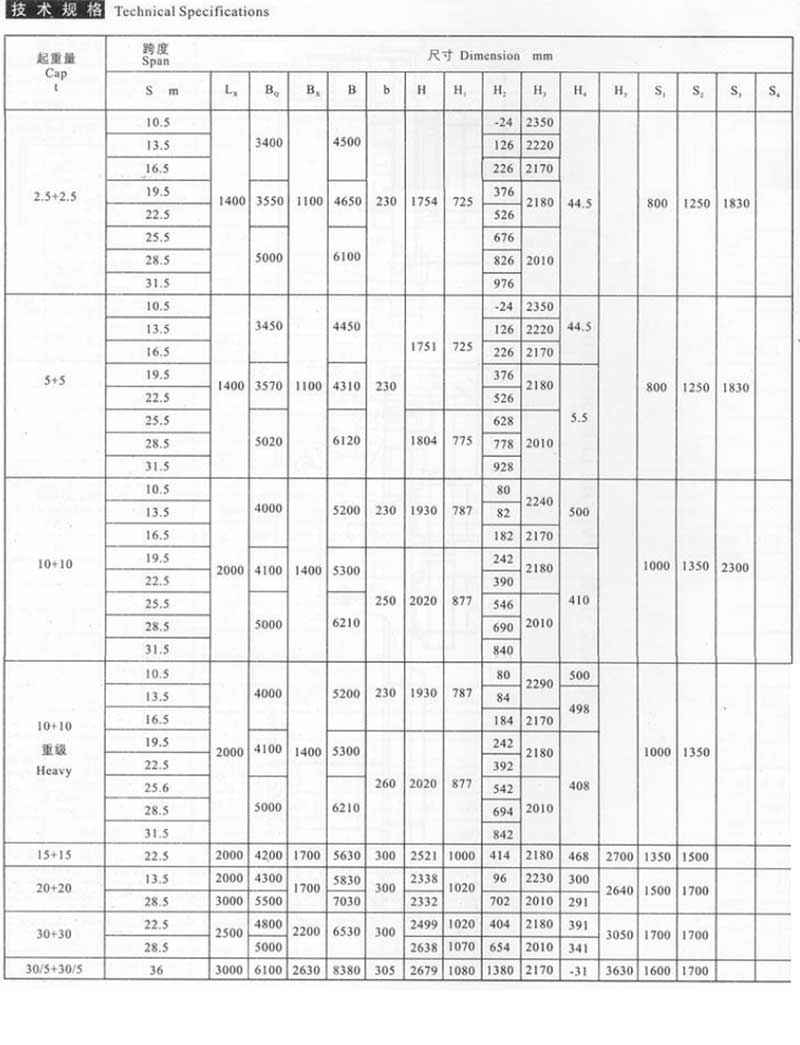

Double trolley overhead crane 10 ton specification
Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

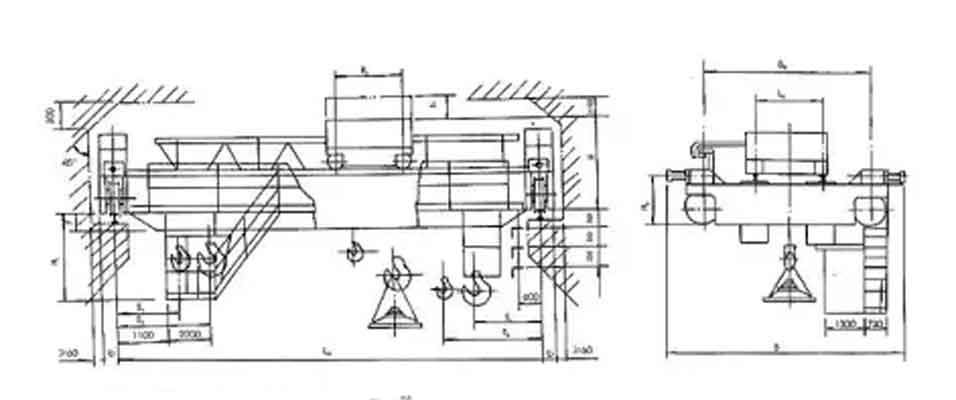

QE type double trolley overhead crane 10 ton drawing

Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

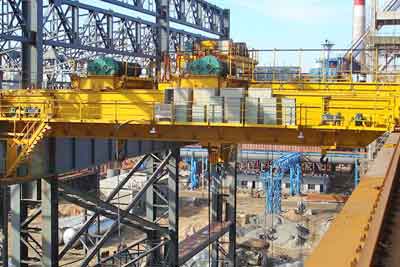

Double trolley overhead crane 10 ton sample project

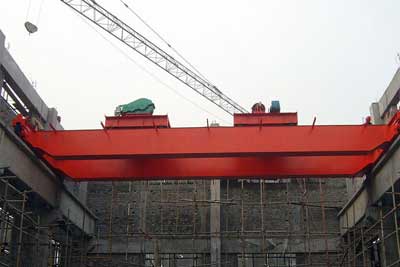

Double trolley overhead crane 10 ton sample project

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

Insulation Double Girder Overhead Crane 10 Ton

The insulation overhead crane is used to handle electrolyse non-ferrous metals such as magnesium, aluminum.

Insulation double girder eot crane specifications:

  • Crane type :QY
  • Capacity:10 ton
  • Span Length:10.5~31.5m,
  • Lifting height: As your request.
  • Working Class:A6,
  • Ambient Temperature:-25~50℃,
LX Series Suspension Double Girder Overhead Crane
Working Class   A3,A4
Capacity t 0.5~10
Span m 3~20
Lifting Height m 3~50
Lifting Speed m/min 0.33~8,Single or Dual Speed
Trolley Travelling Speed m/min 2~30,Single or Dual Speed
Crane Travelling Speed m/min 2~30,Single or Dual Speed
Control Method   Ground or Cab Control
Power Supply   380V 50HZ 3Phase or Customized
Temperature -20~60
Protection Grade   IP44~65
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

Grab Bucket Double Girder Overhead Crane

Grab overhead crane is widely used in power station, storage, workshop, and port to load and unload scattered objects.

Grab bucket double girder eot crane specifications:

  • Overhead crane type:QZ
  • Capacity:10 ton
  • Span Length:10.5~34.5m,
  • Lifting height: As your request
  • Working Class:A6,

QZ overhead crane with grab bucket 10t

Span (S)

m

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5





















Max lifting height

m

18

Lifting speed

m/min

39.3

Trolley traveling speed

m/min

45.9

Crane traveling speed

m/min

112.5

101

Lifting motor

kw

37×2

Trolley motor

kw

5.5





















Crane whole weight(in door)

t

20.8

22.4

25.2

29.1

32.8

36.2

40

43

Crane whole weight(out door )

t

21.7

23.3

26.1

30

33.7

37.1

40.8

43.8

Max wheel load

KN

113

121

131

142

152

162

172

180

Crane rail recommended



P43 or QU70





















Main dimension

mm

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5

Distance from rail surface to trolley top

H

2078

2078

2078

2189

2189

2189

2189

2189

Distance from rail surface to beam bottom

H2

815

815

815

940

940

940

940

940

Distance between two wheels

W

4000

4000

4000

4100

4100

5000

5000

5000

End carriage length

B

6913

6913

6913

6963

6963

7413

7413

7413

Trolley span

K

2000

Grab left limit

S1

2015

Grab right limit

S2

1850

Grab



















Type



Light

Medium

Heavy

Super heavy



Volume

m3

5

3

2

1.5



Material density

t/m3

≤1

>1~1.7

>1.7~2.5

>2.5~3.3



Dead weight

kg

4800

4803

4866

4850

4913

4730

4793



Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

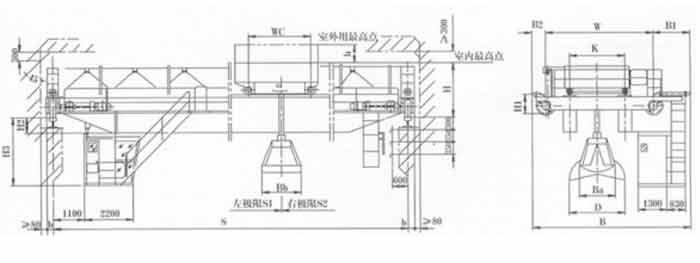

Double girder overhead crane with grab bucket drawing 10 ton Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

Clamshell grab bucket overhead crane 10 ton sample picture

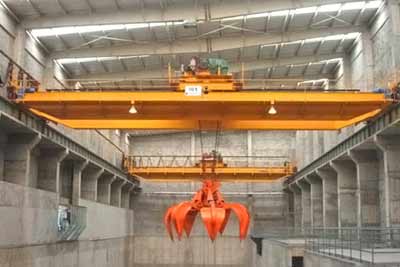

Oragne peel grab bucket overhead crane 10 ton sample picture

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

Comparison Table of 10 ton Bridge Crane

Overhead Crane

Capacity

Span

Height

Coverage Area Type

Coverage Area

Motorization

Single Girder Overhead Crane

10 ton

7.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Electric HoistDouble Girder Overehad Crane

10 ton

7.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Double Girder Overhead Crane

10 ton

7.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Low Headroom Single Girder Overhead Crane

10 ton

7.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

European Single Girder Overhead Crane

10 ton

6m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

European Double Girder Overhead Crane

10 ton

6m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Ceiling-mounted Workstation Bridge Crane

10 ton

7.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Explosion-proof Single Girder Overhead Crane

10 ton

7.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Explosion-proof Double Girder Overhead Crane

10 ton

7.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Grab Bucket Overhead Crane

10 ton

10.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Electromagnetic Overhead Crane

10 ton

10.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Insulation Overhead Crane

10 ton

10.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Double Trolley Overhead Crane

10 ton

10.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Ladle Overhead Crane

10 ton

10.5m ~ 31.5m

customize

Square/Rectangle

31.5m x Unlimited Length

Yes

Get a quote

Get In Touch Now

Need Latest Crane Price? Please leave us the required Crane's Capacity, Lifting Height, Span, Travelling Length & Voltage for Quick Quotation.
