10 Ton Overhead Crane Kit, No Girder Economical Solution

10 ton overhead crane kit for Philippines, economical overhead crane solution from Yuantai Crane. Most cost-effective overhead crane for you. Check now.

Project info of 10 ton overhead crane kit Philippines

  • Brand :Yuantai Crane
  • Types of Cranes 10 ton overhead crane kit
  • Date of Placing Order: 2021-07-19
  • Date of delivery : 2021.4.29
  • Transportation :By sea, containers
  • Payment: 50% TT
  • Destination port:CFR, Manila
  • Destination country:the Philippines
Electric wire rope hoist for sale Philippines
single girder overhead crane for sale Philippines

Main Specifications of 10 ton overhead crane kit Philippines

Quantity

1 set

Product Name

Single Girder Overhead Crane kit

Crane Model

HD single girder overhead crane

Lifting capacity

10 ton

Crane span

11.5 m

Lifting height

10 m

Working class

A5

Power supply

220V,50HZ,3P

Crane control

Pendent control

Color

Standards



Customized features of 10 ton overhead crane kit

  • 10 ton overhead crane kit is required. That is the complete overhead crand system but with the main girder, which will be provided by client themselves according to the overhead crane drawing provided by us.
  • Overhead crane drawing and assistance is required to help the Pillipines clients to produce the main girder.

Customs declaration & registration information

  • The actual Chinese and English name of the goods: Overhead Crane
  • Chinese and English name of cargo declaration:overhead crane
  • Inland transportation cost from factory to port: RMB2000
  • Customs declaration fee: RMB1200

Gallary of 10 ton overhead crane kit Philippines

End carriages of `10 ton overhead crane kit  End carriages of `10 ton overhead crane kit

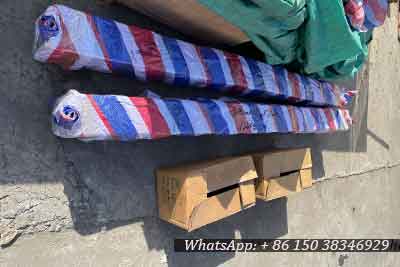

10 ton overhead crane end carriages packaged 10 ton overhead crane end carriages packaged

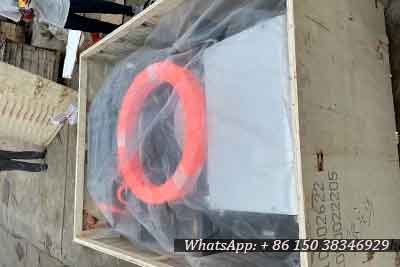

10 ton electric wire rope hoist for Overhead Crane kit fo sale Philippines10 ton electric wire rope hoist for Overhead Crane kit fo sale Philippines

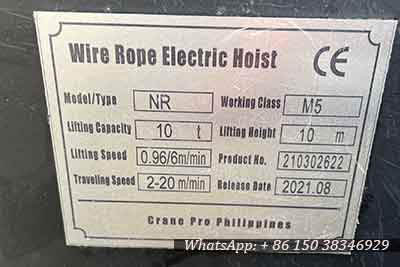

Electric wire rope hoist name plate  10 ton -10 m Electric wire rope hoist name plate 10 ton -10 m

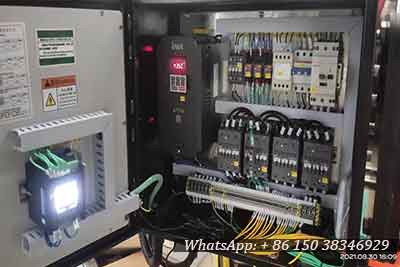

Electric box of overhead crane kit 10 ton for Philippines Electric box of overhead crane kit 10 ton for Philippines

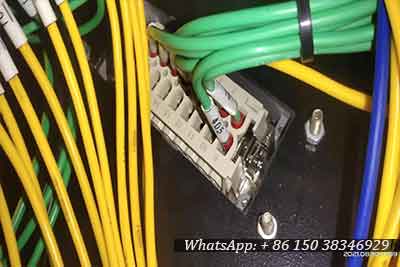

Eletric wires of 10 ton overhead bridge crane kit Eletric wires of 10 ton overhead bridge crane kit
Yuantai Crane makes it easy to design, manufacture, and install your crane! The HD type overhead crane kits are presented for your reference. Besides, all type of overhead crane kits are available from Yuantai Crane includes all the top quality crane parts and components for Double Girder Top Running Cranes, Single Girder Under Running Cranes, Single Girder Top Running Cranes and Single Girder Low Headroom Under Running Cranes. If you have any need of the crane kit, please feel free to contact us.

HD type Single Girder Overhead Crane Kits

End carriages of ovehed crane kitEnd carriages of ovehed crane kit
Wheel of ovehed crane kitWheel of ovehed crane kit
Bearing of ovehed crane kitBearing of ovehed crane kit
Electric hoist of ovehed crane kitElectric hoist of ovehed crane kit
Lifting motor of ovehed crane kitLifting motor of ovehed crane kit
reducer of brdige crane kit reducer of brdige crane kit
reducer of brdige crane kit reducer of brdige crane kit
reducer of brdige crane kit reducer of brdige crane kit
hook  reducer of brdige crane kit hook reducer of brdige crane kit
electrics  reducer of brdige crane kit electrics reducer of brdige crane kit
freequncy converter reducer of brdige crane kit freequncy converter reducer of brdige crane kit
aviation plug  of overhead crane  kit  aviation plug of overhead crane kit
limit switch of overhead crane  kit  limit switch of overhead crane kit
overload limiter  of overhead crane  kit overload limiter of overhead crane kit
Lifting limiter  of overhead crane Lifting limiter of overhead crane
buffer  of overhead crane buffer of overhead crane
 festoon cable & c track  of overhead crane  festoon cable & c track of overhead crane
pendent control   of overhead crane pendent control of overhead crane
travelling motor  of overhead crane  travelling motor of overhead crane
