  • 2022-08-15 12:04:30

3 Ton Gantry Crane, Small Gantry Crane for Brunei

3 ton gantry crane, a single girder gantry crane, with electric hoist + ground control for light load handling. Check small gantry crane specification now.

Project info of 3 ton gantry crane & hoist for sale Brunei

  • Brand :Yuantai Crane
  • Types of Cranes: Electric Hoist Gantry Crane
  • Date of Placing Order: 2021-04-23
  • Date of delivery : 2021.09.02
  • Transportation :By sea
  • Payment: 100% TT
  • Destination port:CIF Muara
  • Destination country:Brunei
Supporting legs of single girder gantry crane 3 ton for sale Brunei
Supporting legs of single girder gantry crane 3 ton for sale Brunei

Main Specifications of 3 ton gantry crane for sale Brunei

Quantity

2 set

Product Name

Single Girder Gantry Crane 3 ton

Crane Model

MH

Lifting capacity

3 ton

Crane span

5 m

Lifting height

4m

Working class

A3

Power supply

220V,50HZ,3P

Crane control

Ground control

Application

Indoor use

Color

Standards

Customized features of 3 ton gantry crane & hoist

  • Accessories: Track (P22) 120 meters with clamping plates, no seam sliding line (6mm²) 60 meters.
  •   2 rope guides, 2 lifting limiters, 1 handle, 4 buffers, 40m wire rope, 1 overload
  • BV third-party inspection (commodity inspection) is required before delivery. Check the quantity, appearance, packaging, etc. of the product, without running the inspection

Customs declaration & registration information

  • The actual Chinese and English name of the goods:Gantry Crane
  • Chinese and English name of cargo declaration: Gantry Crane
  • Inland transportation cost from factory to port: RMB6500
  • Fort charge: 5000RMB
  • Customs declaration fee: 2200USN, 40ft Container*1.

Gallary of 3 ton small gantry crane for sale Brunei

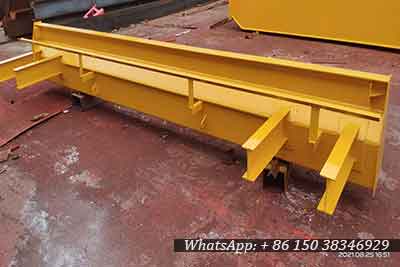

Main girder of 3 ton gantry crane for sale BruneiMain girder of 3 ton gantry crane for sale Brunei

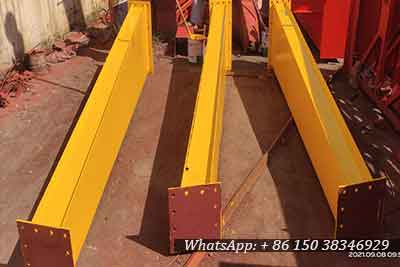

Supporting legs of small gantry crane 3 ton  for sale BruneiSupporting legs of small gantry crane 3 ton  for sale Brunei

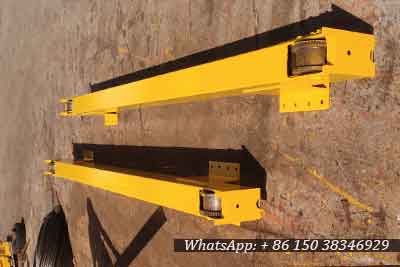

Ground beam of single girder overhead crane 3 ton  for sale BruneiGround beam of single girder overhead crane 3 ton  for sale Brunei

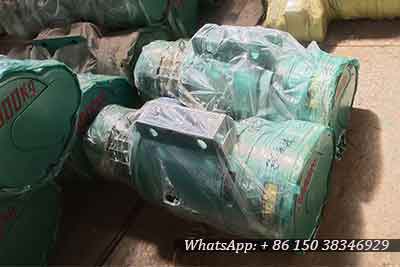

3000kg gantry crane hoists for small gantry crane project in Brunei3000kg gantry crane hoists for small gantry crane project in Brunei

Types of Single Girder Gantry Cranes

Based on different application conditions, there are different types of single girder gantry cranes are available for your reference. Geneally, for light duty gantry crane, there are four types of single girder gantry cranes.
