Production & Delivery Gallery

Production & Delivery Gallery
  • 2022-12-15 14:24:59

Underhung Overhead Crane 10 Ton & 3 Ton for Sale South Africa

3 ton & 10 ton overhead crane for sale South Africa, Underhung overhead crane, single girder design, remote control for delivery to Durban. Check now.

Project info of 3 ton & 10 ton underhung overhead crane for sale South Africa

  • Brand :Yuantai Crane
  • Types of Cranes: single girder overhead crane
  • Date of Placing Order: 2022-07-15
  • Date of delivery :2022.08.15
  • Transportation :By sea, container
  • Payment: 48 % TT prepaid,
  • Destination port:CIF Durban
  • Destination country:South Africa
Electrics and frequency convertor crane control Main girder of electric suspension overhead crane

Main Specifications of 3 ton & 10 ton single girder overhead crane for sale South Africa

Crane type

Model

Working Class

Tonnage(T)

Span m)

Left/ right Cantilever (m)

Lifting Height(M)

Crane control

Voltage

Indoor /Outdoor use

Crane Rail

Quality

Electric under hung crane

LX

M3

10

13

1/1

9

Remote control

400V 50Hz 3P

Indoor use

/

1

Electric underhung crane

LX

M3

5

13.5

0.75/
0.75

6

Remote control

400V 50Hz 3P

Indoor use

/

1

Other parts and components

The galvanized steel wire rope with a diameter of 28mm is 100m, and the tensile strength is 1870N/mm². The steel wire rope is divided into four sections, namely 60m+20m+10m+10m.
It is equipped with four single-piece pulleys and 10 ton hooks, which are used by customers to drag tractors stuck in mud with wire ropes.

Gallary of 3 ton & 10 ton overhead crane for sale South Africa

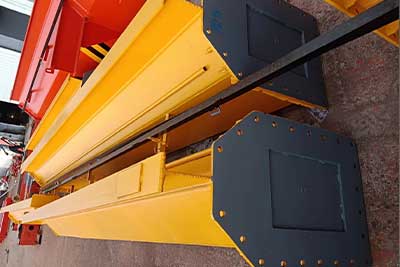

Main girder of 35 ton  overhead crane for sale QatarMain girder of electric travelling underhung bridge crane

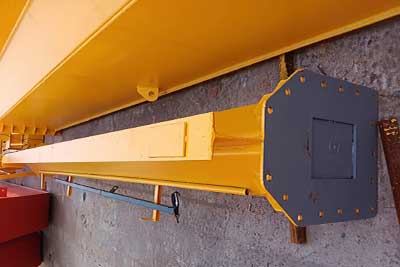

Main girder  of double girder overhead crane 35 ton  for sale QatarMain girder of single girder overhead crane with underhung crane design South Africa

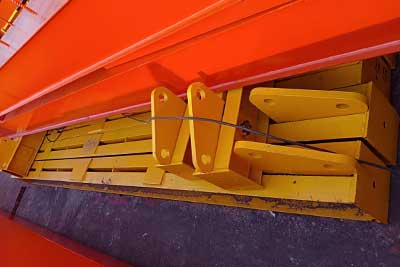

Electric cabin of double girder overhead crane 35 ton  for sale QatarEnd carriages of single girder overhead crane under running type for sale South Africa

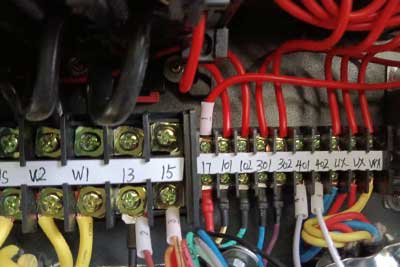

17.7 m long main girder of 7.5 ton overhead crane divided into 2 sections for delivery to QatarElectrics of single girder underhung overhea crane project South Africa

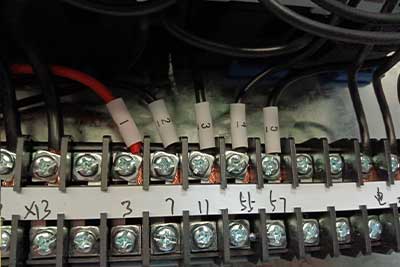

35 ton open winch trolley for sale QatarWire connecting

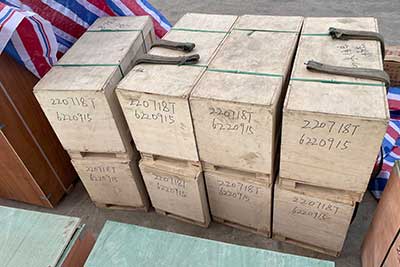

35 ton overhead crane for sale Qatar from Yuantai Crane, one of the top crane manufacturer in China Other parts and compnents requried by the South Africa client.
>

Features of underhung overhead crane

The electric underhung crane is a light duty overhead crane, equipped with CD1, MD1 type electric wire rope hoist as lifting mechanism. The underhung overhead crane is traveling suspended under the I-beam. Standard lifting capacity of the light underhung crane is 0.5 tons - 5 tons. It can be customized based on your particular applications and lifting requirement. This electric underhung overhead crane can be used in the fields of machinery, assembly line, warehouse, etc.

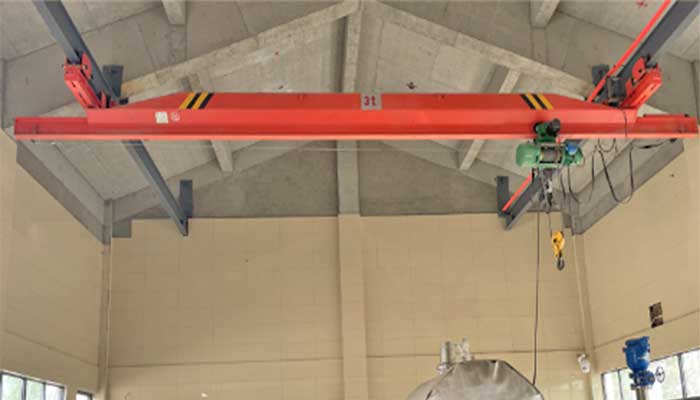

Underhung  overhead crane for sale  South Africa

Underhung overhead crane for sale South Africa

  • This electric underhung overhead crane can be used in a variety of industries, including machinery, assembly lines, and warehouses.
  • Control method: Pendant control/ Remote control, up to your needs.
  • -25 - 40°C working temperature
  • It is not permitted to work in an environment containing flammable, explosive, or corrosive media.

Optional electric travelling underhung overhead crane tips:

Before Using:

  • 1. Before beginning, the operator must inspect the hooks, wire ropes, and safety devices to ensure that they are in good working order.
  • 2. Before starting the power, the operator must ensure that there is no one under the crane or on the track.

During Use:

When hoisting a heavy object for the first time in each shift (or when the load reaches the maximum weight), the weight shall be lowered to the ground again after lifting a height of 0.5m, and the brake performance shall be checked.

After use

  • 1. Raise the hook to a certain height, stop the crane at the designated position, and set the controller pendant to the zero position; then turn off the power.
  • 2. Crane maintenance on a daily basis.
  • 3. Handover of the shift.
