35 Ton Overhead Crane for Sale Qatar for Steel Coil Hanlding

35 ton overhead crane for sale Qatar for steel coil hanlding, double girder overhead crane with frequency convertor for efficient and accurate steel coil handling. Check 35 ton coil handling crane specification and production picture now.

Project info of 35 ton overhead crane for sale Qatar

  • Brand :Yuantai Crane
  • Types of Cranes: double girder overhed crane
  • Date of Placing Order: 2022-05-19
  • Date of delivery : 60 days
  • Transportation :By sea, 40 GP container *4
  • Payment: 35 % TT prepaid, 60% before delivery, 5% installation within 5 days.
  • Destination port:CIF Hamad port
  • Destination country:Qatar
  • Application: steel coil handling crane
Electrics and frequency convertor crane control Electrics and frequency convertor crane control

Main Specifications of 35 ton overhead crane for sale Qatar

Quantity

1 set

Product Name

Double girder overhead crane

Crane Model

QDX

Lifting capacity

35 ton

Crane span

31.3 m

Lifting height

7.7 m

Working class

FEM2 M

Power supply

380V,50HZ,3P

Crane control

Ground control + Remote control

Color

Standards

Indoor / Outdoor use

Indoor + outdoor use

Quality

1

Specifications of overhead 35 ton crane kits

  • The the travelling distance is 90m, and the supporting rail beam and connecting bolts are required, HN692*300*13*20, 175kg/m, and the column spacing is 3750mm.
  • P30 crane track, welded pressure plate
  • 90m 200A single pole conductor bar

Customized features of 35 ton overhead crane for sale Qatar

  • Disassemble the walking platform and main beam
  • Schneider frequency converter, main contactor Schneider brand
  • Hoisting frequency conversion 0.6~2.6m/min
  • Crane travelling frequency conversion 3.0-30 m/min
  • IP55, 5-7m running outdoors, fish belly type of supporting rail beam.

Gallary of double girder overhead crane 35 ton for sale Qatar

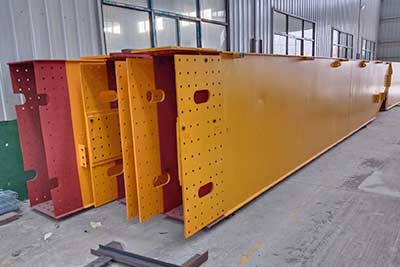

Main girder of 35 ton  overhead crane for sale QatarMain girder of 35 ton overhead crane for sale Qatar
Main girder  of double girder overhead crane 35 ton  for sale QatarMain girder of double girder overhead crane 35 ton for sale Qatar

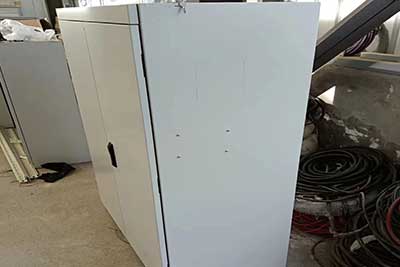

Electric cabin of double girder overhead crane 35 ton  for sale QatarElectric cabin of double girder overhead crane 35 ton for sale Qatar
17.7 m long main girder of 7.5 ton overhead crane divided into 2 sections for delivery to Qatar17.7 m long main girder of 7.5 ton overhead crane divided into 2 sections for delivery to Qatar
35 ton open winch trolley for sale Qatar35 ton open winch trolley for sale Qatar
35 ton overhead crane for sale Qatar from Yuantai Crane, one of the top crane manufacturer in China 35 ton overhead crane for sale Qatar from Yuantai Crane, one of the top crane manufacturer in China
10 ton overhead crane loaded into truck for delivery End carriage of overhead crane for sale

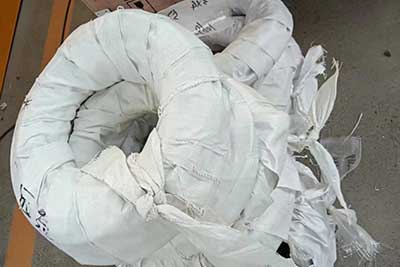

Power line of 35 ton overhead crane for sale QatarParts and driver's cabin loaded into truck for delivery
