Production & Delivery Gallery

Production & Delivery Gallery
  • 2022-12-09 14:53:28

Motorized Electric Chain Hoist for Sale Pakistan 2 Ton & 3 Ton

2 ton & 3 ton electric chain hoist for sale Pakistan good price. Motorized electric chain hoists, pendant control, 380 V 50 Hz 3Ph. Get your electric hoist price.

Project info of 2 ton & 3 ton electric chain hoist for sale Pakistan

  • Brand :Yuantai Crane
  • Types of Cranes: double chain fall electric chain hoists
  • Date of Placing Order: 2022-05-20
  • Date of delivery : 2022.6.30
  • Transportation :By sea
  • Payment: 100% LC
  • Destination port:CFR KEAMARI KARACHI
  • Destination country:Pakistan
2 ton and 3 ton electric chain hoist for sale Pakistan
2 ton and 3 ton electric chain hoist for sale Pakistan

Main Specifications of 2 ton & 3 ton electric chain hoist for sale Pakistan

Quantity

1 set

1 set

Gantry crane type

electric chain hoist with beam travelling trolley

electric chain hoist with beam travelling trolley

Lifting capacity

2 ton

3 ton

Lifting height

15 m

15 m

Working class

A5

A5

Power supply

3Ph 380V 50Hz

3Ph 380V 50Hz

Hoist control

Pendant control

Pendant control

Color

Standard

Standard

Custom features of 2 chain fall electric hoist

  • The travelling track of the motorized electric chain hoist is I-beam, the track width is 134mm, the control voltage is 24v, and the hoist trolley running speed is 11m/min
  • Double chain fall with chain bag
  • Spare parts :3 ton electric chain hoist needs one more hoist hook. 2 ton and 3 ton hoists are all equipped with double chai falls, and additional set of chain falls are required for each hoist.



Gallary of 10 ton H beam hoist for sale Pakistan

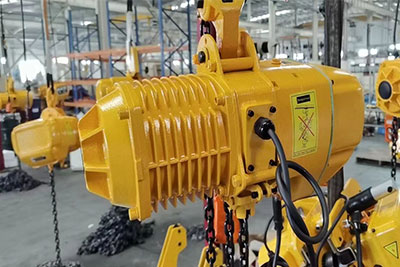

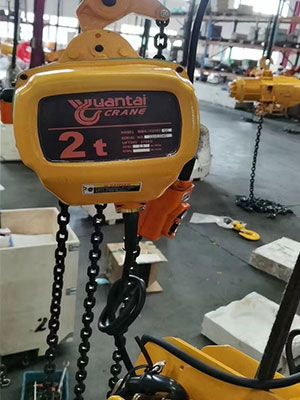

2 ton electric chain hoist for sale Pakistan 2 ton electric chain hoist for sale Pakistan

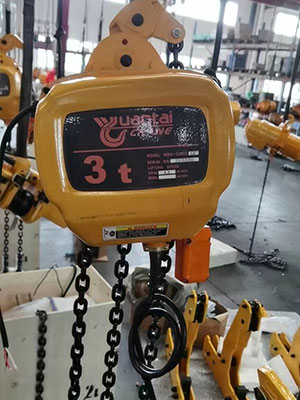

3 ton electric chain hoist for sale Pakistan 3 ton electric chain hoist for sale Pakistan

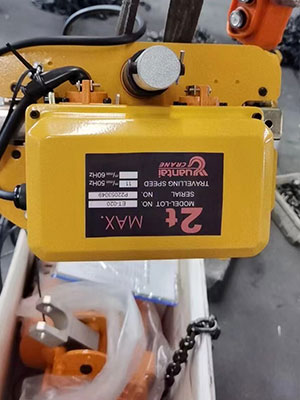

2 ton electric chain fall hoist beam travelling trolley 2 ton electric chain fall hoist beam travelling trolley

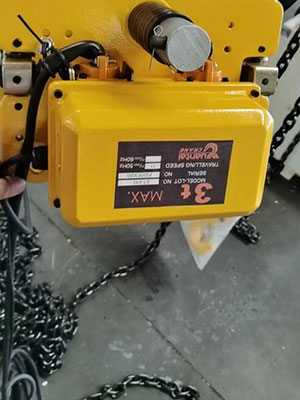

Motorized travelling electric hoist trolley 3 ton for electric chain hoist Motorized travelling electric hoist trolley 3 ton for electric chain hoist

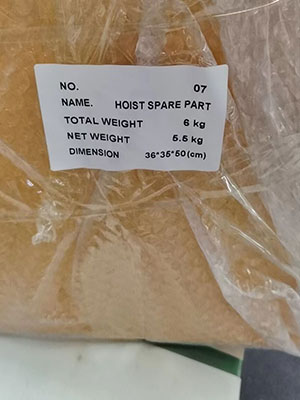

Electric chain hoist parts packed for delivery to Pakistan Electric chain hoist parts packed for delivery to Pakistan

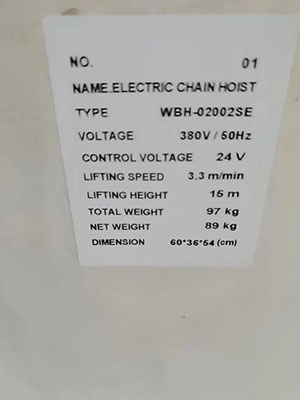

Motorized electric chain hoist packed for delivery to Pakistan  Motorized electric chain hoist packed for delivery to Pakistan

Confirm hoist specifications and get your electric chain hoist design

Because motorized electric chain hoists are designed based on the customer specifications,which are determined by the practical application conditions and lifting requirements. Therefore, there is no such thing as a "one size fits all" price. Before submitting a request for electric hoist quotation, we ask that all clients have the following information on hand:

  • Required Lift Height (distance from the hoist unit to the load level)
  • Working Load Safety (the max weight required to lift)
  • Voltage required (110v, 230v, or 400v, 50Hz or 60Hz, three phase or single phase.)
  • Width of the Beam Flange( which will defines the type of beam trolley)
  • Indoor/outdoor application (For outdoor we have to apply optional features such as rainproof cover to the chain hoist to ensure safety. )
  • Aprox. necessary number of lifts per hour (this helps us work out the duty cycle to ensure the appropriate motor is supplied)
  • Environment - Indoor, outdoor, explosive environment, food processing plants, and so on.
