  • 2022-08-09 10:48:55

6.3 Ton Electric Hoist Overhead Crane for Australia

Electric hoist overhead crane for sale Australia. Single girder crane design, 6.3 ton electric hoist, FEM standard, remote + pendent, good buy from China.

Project info of 6.3 ton overhead crane & hoist for sale Australia

  • Brand :Yuantai Crane
  • Types of Cranes: Electric Hoist Overhead Crane
  • Date of Placing Order: 2021-6-17
  • Date of delivery : 2021.7.20
  • Transportation :By sea, containers
  • Payment: 50% prepayment
  • Destination port:FOB, Qingdao port
  • Destination country:Australia
10 ton double girder overhead crane for sale Uganda- double girders divided into four sections
Electric hoist overhead crane  6.3 ton for sale Australia

Main Specifications of 6.3 ton overhead crane & hoist for sale Australia

Quantity

1 set

Product Name

Single Girder Electric Hoist Overhead Crane

Crane Model

HD

Lifting capacity

6.3 ton

Crane span

16.795 m

Lifting height

7.5 m

Working class

A5

Power supply

415V,50HZ,3P

Crane control

Pendent control + remote control

Color

Standards

Application

Indoor use

Crane rail / crane track

No included.

Customized features of 6.3 ton overhead crane & hoist

  • The 16.795 meter long main beam needs to be cut off to fit into container.
  • The overhead crane is equipped with European style NR electric hoist, but requires the whole vehicle inverter: Schneider brand.
  • Existing track specifications. Head width: 44.05mm Track height: 84mm
  • Workshop space is limited. The distance from the top of the track to the top of the main beam is: 1000mm

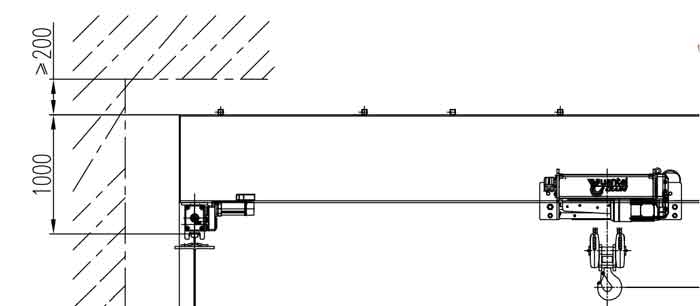

Low headroom electric hoist overhead crane

Customs declaration & registration information

  • The actual Chinese and English name of the goods: Electric hoist overhead crane
  • Chinese and English name of cargo declaration:Electric hoist overhead crane
  • Inland transportation cost from factory to port: RMB4000
  • Port charge : 750 USD

Gallary of 6.3 ton electric hoist overhead crane Australia

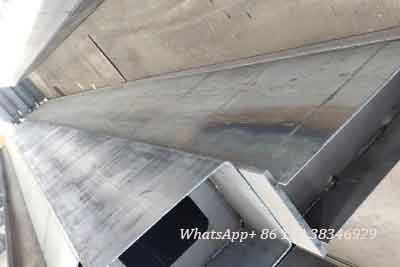

Main girder of 6.3 ton electric hoist overhead crane for sale AustraliaMain girder of 6.3 ton electric hoist overhead crane for sale Australia

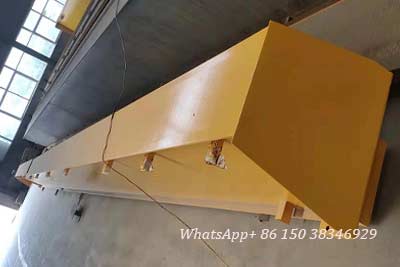

The main girder of 6.3 ton overhead crane single girder design The main girder of 6.3 ton overhead crane single girder needs to be divided into 2 sections for delivery by container to Australia

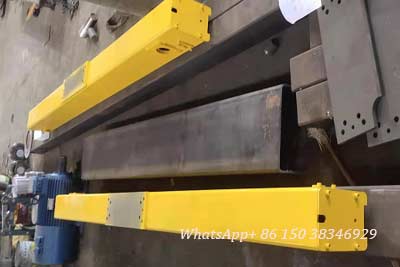

6.3 ton overhead crane end carriages 6.3 ton overhead crane end carriages

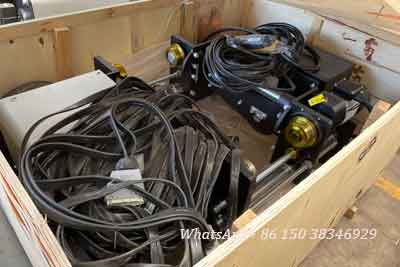

Electric hoist for 6.3 ton overhead crane Electric hoist for 6.3 ton overhead crane

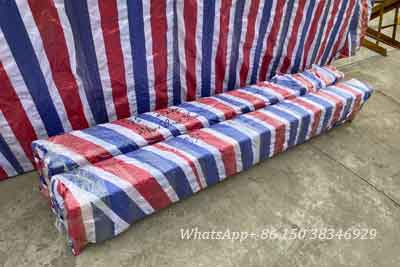

Main girder and end carriages are packed for delivery to Australia. Main girder and end carriages are packed for delivery to Australia.

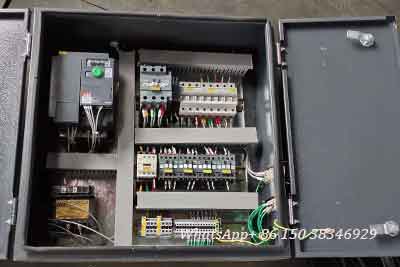

Electrics of the 6.3 ton electric hoist overhead crane Australia Electrics of the 6.3 ton electric hoist overhead crane Australia

NR European style electric hoist

European standard high duty electric hoist is used for material handling, work with single girder & double girder crane in mechanical workshops, etc. It adopts  motor and a reducer imported from Germany. The integrated and compact design of the hoisting motor, reducer, reel, and limit switch allows the user to save space. Modular design increases mechanism reliability while decreasing maintenance time and cost.
