Production & Delivery Gallery

Production & Delivery Gallery
  • 2022-06-24 15:44:24

50 Ton Gantry Crane & 10 Ton Overhead Crane for Sale England

50 ton gantry crane & 10 ton overhead crane for England. Check specifications & configurations of crane project for England sea oil field now.

Project info of cranes for sale England

  • Brand :Yuantai Crane
  • Types of Cranes: 50 ton gantry cranes & 10 ton overhead crane
  • Date of Placing Order: 2015.2.11
  • Date of delivery :2015.3.10
  • Transportation :Bulk carrier
  • Transaction and destination:CFR Liverpool
  • Destination country:England
50 ton gantry crane for sale England50 ton gantry crane for sale England

Main Specifications of cranes for sale England

Quantity

1 set

1 set

Gantry crane type

MG Double girder gantry crane with European style

HD Single girder overhead crane with European style

Lifting capacity

50 ton

10 ton

Crane span

22.5m

31.04m

Lifting height

9.2 meters (Above the ground)
3 meters (Under the ground)

8 m

Working class

M5

M5

Power supply

3-ph 400V50Hz

3-ph 400V 50Hz

Hoist control

Pendant control + Remote control

Pendant control

Color

Standard

Standard

Customized features of the 5 ton single girder gantry crane for England

1. On crane speed

  • HD overhead crane speed: hoisting two-speed, 0.8 and 5; overhead crane long travelling and cross travelling car frequency conversion 5-20
  • MG gantry crane speed: hoisting: 0-3.2m/min; cross travelling two-speed: 5 and 20m/min; gantry crane long travelling frequency conversion: 3-30m/min

2. On crane track or rail

  • HD bridge cane track: P30 track, 60m*2 total length, 400 welded pressure plate, 16 clamping plates , 2 pieces of current collector, 60m busbar line
  • MG gantry crane track: QU80 track, 65m*2 total length, 434 bolt pressure plates, 18 clamping plates, 65m cable, 1 piece of cable reel

Customs declaration & registration information

  • The actual Chinese and English name of the goods: Gantry crane
  • Chinese and English names of cargo declaration: Gantry Crane and Overhead Crane
  • Gantry Crane HS:8426193000
  • Overhead Crane HS:8426112000
  • Inland freight from factory to port:
  • Sea freight: USD 33,000
  • Premium: USD 0
  • Port charge: RMB 15,000

Gallary of 50 ton gantry crane & 10 ton overhead crane for sale England

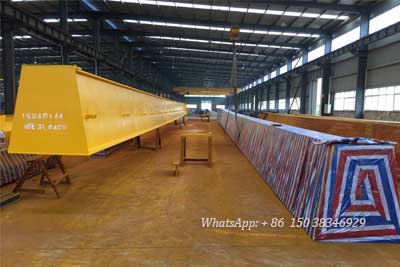

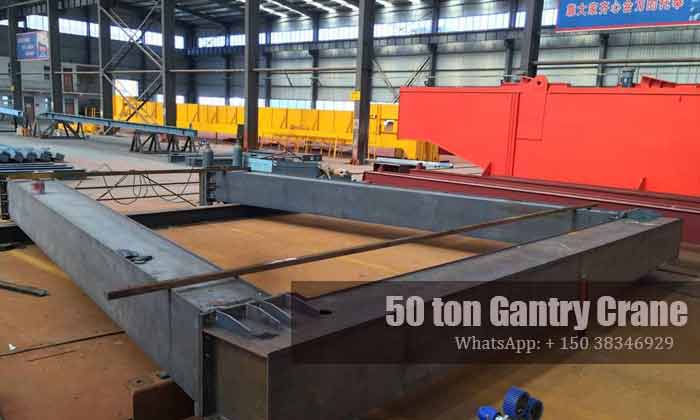

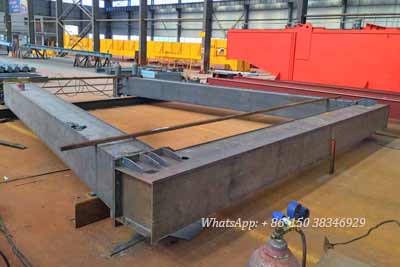

Crane girders of England projectCrane girders of England project

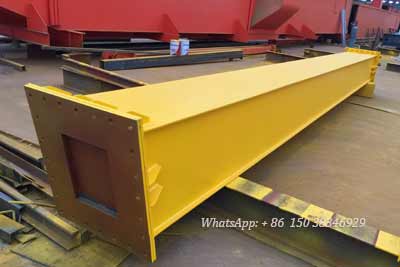

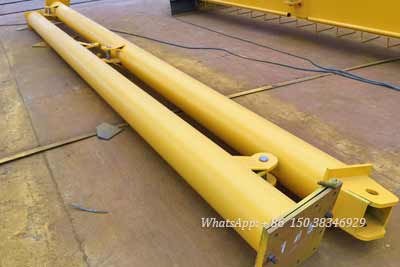

Supporting legs of 50 ton gantry crane for sale England Supporting legs of 50 ton gantry crane for sale England
After paiting of 50 ton double girder gantry crane supporting legsAfter paiting of 50 ton double girder gantry crane supporting legs

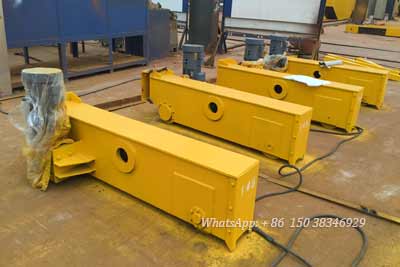

Parts and componets of England projects Parts and componets of England projects
Aftering painting Aftering painting

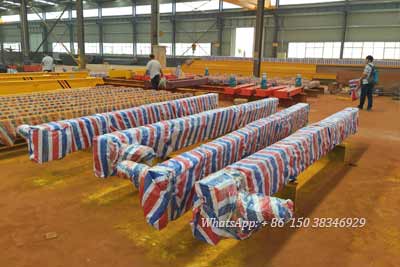

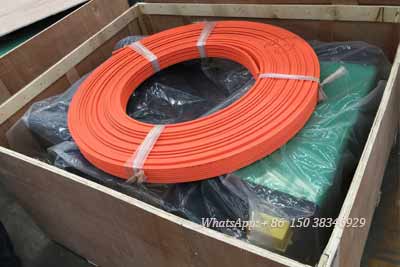

Packed for delivery Packed for delivery

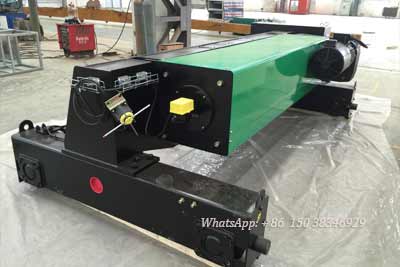

Double girder hoist trolley for 50 ton gantry cranes Double girder hoist trolley for 50 ton gantry cranes

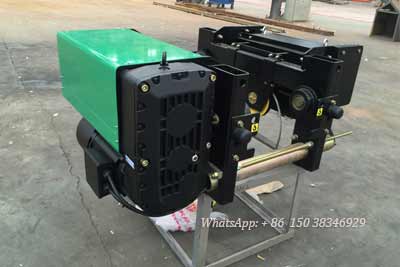

single girder hoist trolley for 10 ton overhead cranes single girder hoist trolley for 10 ton overhead cranes
Parts for 50 ton double girder gantry crane for delivery to EnglandParts for 50 ton double girder gantry crane for delivery to England
Parts for 50 ton double girder gantry crane for delivery to EnglandParts for 50 ton double girder gantry crane for delivery to England
Parts for 50 ton double girder gantry crane for delivery to EnglandParts for 50 ton double girder gantry crane for delivery to England

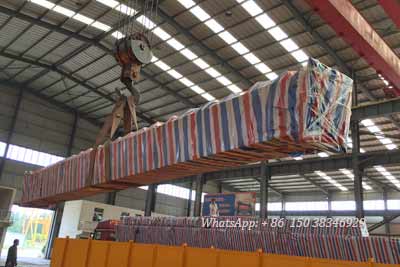

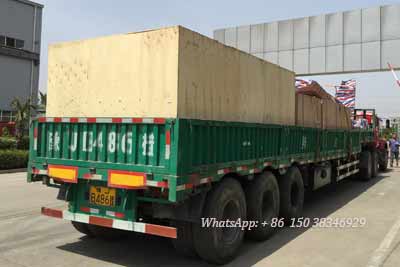

All of the cranes systems are packed and loaded into truck All of the cranes systems are packed and loaded into truck

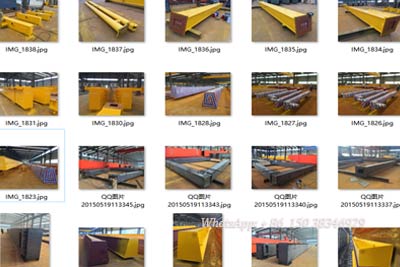

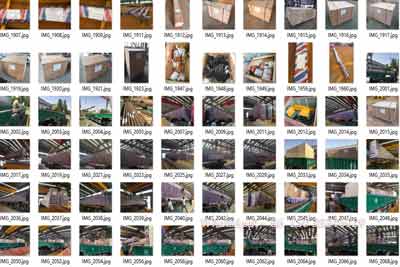

Too many productions pictures to show you if you want to know more, please contact us.Too many productions pictures to show you if you want to know more, please contact us.
Too many delivery pictures to show you if you want to know more, please contact us. Too many delivery pictures to show you if you want to know more, please contact us.
