5 Ton Overhead Crane & 15 Ton Overhead Crane for Sale Good Price

5 ton overhead crane & 15 ton overhead crane for sale Trinidad and Tobago. Check crane specifications & configurations for Trinidad and Tobago project now.

Project info of 5 ton sinle girder gantry crane for sale Trinidad and Tobago

  • Brand :Yuantai Crane
  • Types of Cranes: 5 ton single girder gantry cranes
  • Date of Placing Order: 2015.2.11
  • Date of delivery :2015.3.10
  • Transportation :40GP Container
  • Transaction and destination CFR Fremantle
  • Destination country:Trinidad and Tobago
3 sets of 5 ton overhead cranes & 3 sets of 15 ton overhead cranes for sale Trinidad and Tobago
3 sets of 5 ton overhead cranes & 3 sets of 15 ton overhead cranes for sale Trinidad and Tobago

Main Specifications of 5 ton pillar jib crane for sale Trinidad and Tobago

Crane Type

Modle

Working class

Ton (T)

Span (M)

Lifting(M)

Control

Voltage

Color

Quantity

European style single girder overhead crane with no main girder

HD

A5

5T

13.4M

10M

Ground control

3ph 440V 60Hz

Yellow

3

European style single girder overhead crane with no main girder

HD

A5

15T

13.4M

10M

Ground control

3ph 440V 60Hz

Yellow

3

Hook mounted electric chain hoist





5T



6M

Remote control

3ph 220V 60Hz



1

Trolley travelling electric chain hoist





0.5T



4M

Ground control

1ph 220V 60HZ



3

Trolley travelling electric chain hoist





1T



4M

Ground control

1ph 220V 60HZ



3

Customized features of the 5 ton single girder gantry crane for Trinidad and Tobago

  • European single girder door operator, box girder
  • European style low headroom wire rope hoists
  • Dual hoisting two-speed 0.8m/min and 5m/min , hoist travelling speed frequency conversion 5-20m/min, frequency conversion , gantry crane running frequency conversion5-20m/min .
  • Fully imported configuration
  • The total height of the workshop is 5150, and the lifting height is 3.8m
  • The main girder of the 5 ton gantry crane are produced into two sections : 11.5m and 4m
  • The total length of P24 track is 35M, 116 pieces of pressure plate, 6 pairs of clamp plates, 1 roll, 1 collector, 6mm2 sliding wire with a length of 17.5m .

Customs declaration & registration information

  • The actual Chinese and English name of the goods: 门式起重机Gantry crane
  • Chinese and English name of cargo declaration: 门式起重机Gantry Crane
  • Sea freight: USD1,350
  • Premium: USD 0
  • Port charges: RMB 3000

Gallary of 5 ton gantry crane for sale Trinidad and Tobago

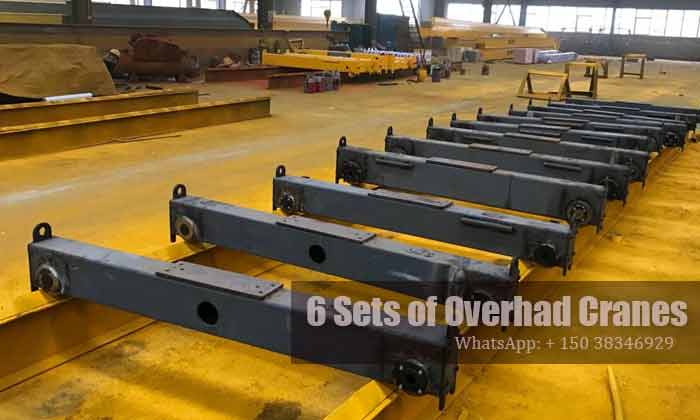

End carriages and end beams of 6 sets of single girder overhead crane for sale  Trinidad and TobagoEnd carriages and end beams of 6 sets of single girder overhead crane for sale Trinidad and Tobago

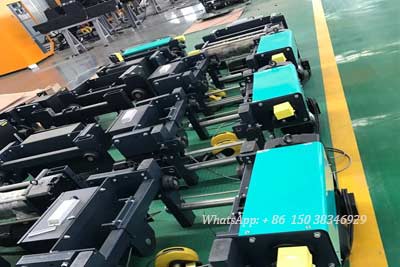

European style of electric wire rope hoists for sale  Trinidad and TobagoEuropean style of electric wire rope hoists for sale Trinidad and Tobago

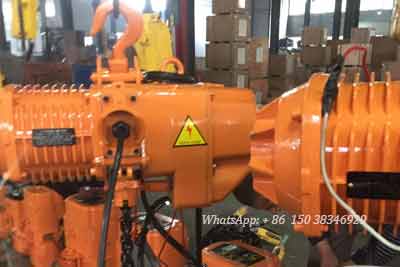

Electric chain hoists for sale  Trinidad and TobagoElectric chain hoists for sale Trinidad and Tobago

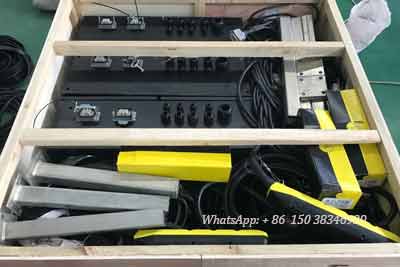

Parts and componets for Trinidad and Tobago single girder overhead crane projectParts and componets for Trinidad and Tobago single girder overhead crane project

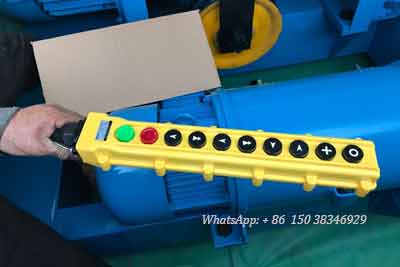

Pend control for  Trinidad and Tobago overhead crane projectPend control for Trinidad and Tobago overhead crane project
Electric wire rope hoists packed for Trinidad and Tobago single girder overhead crane  projectElectric wire rope hoists packed for Trinidad and Tobago single girder overhead crane project

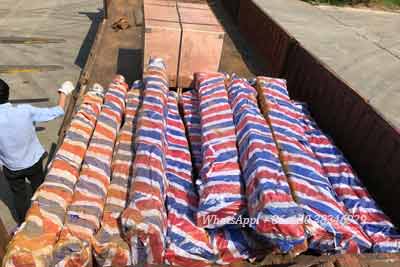

End carriages parts of Trinidad and Tobago  overhead bridge crane projectEnd carriages parts of Trinidad and Tobago overhead bridge crane project

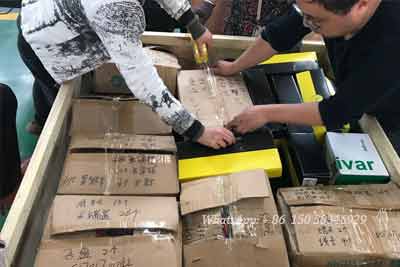

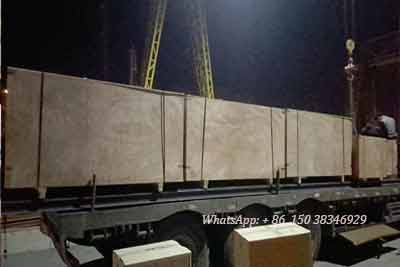

All of the main parts and components of single girder overhead cranes packed for delivery to Trinidad and Tobago All of the main parts and components of single girder overhead cranes packed for delivery to Trinidad and Tobago
