5 Sets of Overhead Cranes HongKong, Duel & Variable Speed Crane
Overhead cranes for sale Hongkong, China, 5 sets, 4 tons & 5 tons, single girder design, dual speed hoisting & variable speed travelling. Check now.
Project info of overhead crane 5 ton & 4 ton for sale Hongkong
- Brand ：Yuantai Crane
- Types of Cranes:Overhead Crane
- Date of Placing Order： 2021-09-30
- Date of delivery ： 41 Days
- Transportation ：By sea, 40GP containers * 2
- Payment: 50% Prepanyment, TT
- Destination port：CFR Kongkong
- Destination country：China
single girder overhead crane end carriages and driving units for sale Hongkong
Main Specifications of overhead crane for sale Hongkong
|
Quantity |
4 set |
1 set |
|
Gantry crane type |
Single girder overhead crane with European style |
|
|
Lifting capacity |
5 ton |
4 ton |
|
Crane span |
11 m |
2.3m |
|
Lifting height |
9.4 m |
8.5 m |
|
Working class |
FEM 2M |
FEM 2M |
|
Power supply |
3Ph 380V 50Hz |
3Ph 380V 50Hz |
|
Hoist control |
Remote control |
Remote control |
|
Color |
Standard |
Standard |
|
Crane rail |
P22 |
P18 |
|
Application |
Indoor use |
Indoor use |
Cane Rail Specifications :
- P22 track (2 sets)
- 1). Length: 2*39.9m=79.8m (2 sets of overhead cranes share 1 set)
- 2). Length 2*34.7m=69.4m (2 sets of overhead cranes share 1 set)
- Total adaptation: 540 welding pressure plates + 27 pairs of plywood
- P18 track (1 set)
- Length: 2*4.32m=8.64m
- Adaptation: 40 welding pressure plates + 3 pairs of clamping plates
Seamless sliding line specifications:
- 16mm² seamless sliding contact system (2 sets)
- 1): Running distance: 39.9 meters (2 sets of overhead cranes share 1 set)
- 2): Running distance: 34.7 meters (2 sets of overhead cranes share 1 set)
- 6mm² seamless sliding contact system (1 set)
- Running distance: 4.32 meters
Bridge crane configuration:
- 1) Vertical hoisting &cross travelling motor: ABM (protection level: IP55).
- 2) Crane long travelling motor: Siemens (Protection level: IP55).
- 3) Inverter & electrical components brand: Schneider.
- 4) Lifting limit & running limit brand: GG.
- 2. The front of the main beam needs to be sprayed with the logo:
- 5ton spray: SWL: 5T
- 4ton spray: SWL: 4T
Gallary of overhead crane & hoist for sale Hongkong

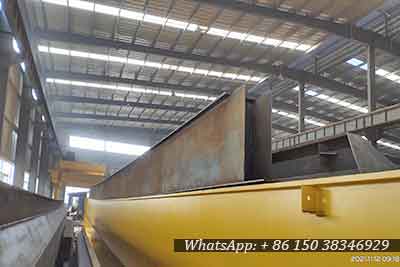

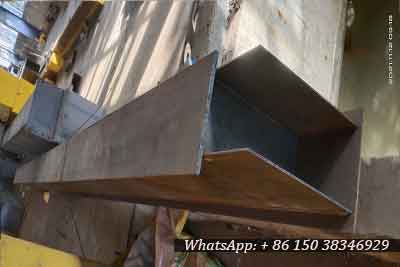

Main girder of overhead crane 4 ton & 5 ton for sale Hongkong
Main girder painted of overhead crane 4 ton and 5 ton for sale HongkongEnd carriages and driving units for overhead crane projects for Hongkong

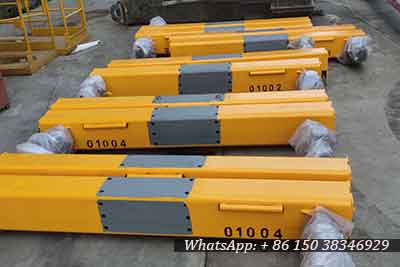

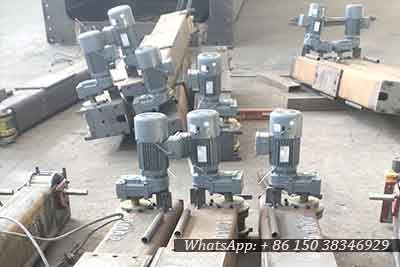

Painted end carriages and driving units for overhead crane projects for Hongkong

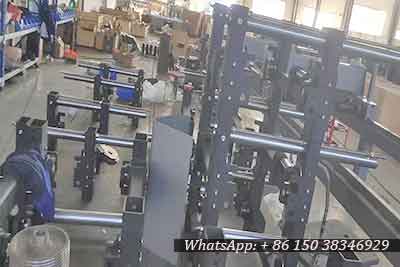

Overhead crane hoist frame

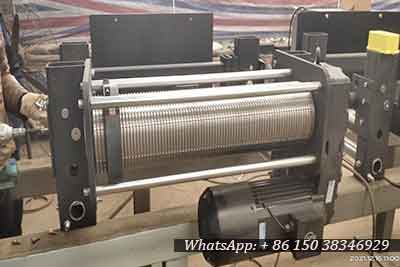

Overhead electric hoist underconstruction
