3 Ton Bridge Crane for Sale Morocco, Small Bridge Crane

Bridge crane 3 ton for sale Morocco, single girder bridge crane , pendent control + remote control, economical overhead crane for Morocco. Check crane specs.

Project info of 3 ton bridge crane Morocco

Brand ：Yuantai Crane
Types of Cranes: Small bridge crane 3 ton
Date of Placing Order： 2017-05-09
Date of delivery ： 2021.11.30
Transportation ：By sea, Containers
Payment:Prepayment
Destination port：CFR, Casablanca port
Destination country： Morocco

single girder overhead crane 3 ton for sale Morocco

Quantity	1 set	1 set
Gantry crane type	Single girder bridge crane with European style	Electric chain hoist
Lifting capacity	3 ton	1 ton
Crane span	11.75m	/
Lifting height	7 m	11.5 m
Working class	A5	A3
Power supply	3-ph 400V 50Hz	3-ph 400V 50Hz
Hoist control	Pendant control + Remote control	Pendant control + Remote control
Color	Standard	Standard

Customized features of 7.5 ton overhead crane & hoist

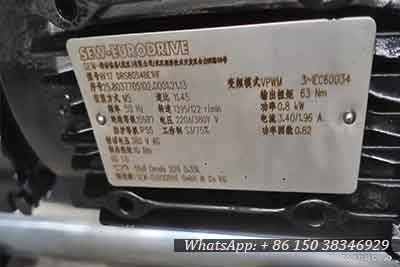

HD types of bridge crane 3 ton is equipped with SEW motors, Schneider's frequency converter, and the electrical switch material of the control panel must come from Schneider.
The running length of the bridge crane is 13 meters. The fish belly beam type girder design and the model isH300*150 45kg/m. The spacing of columns is 4.08m-4.17m-5.405m. The track model is 40*30. Please refer to the drawings for details.
The paint coating is thickened. Main beam end beam needs to reach 150 microns

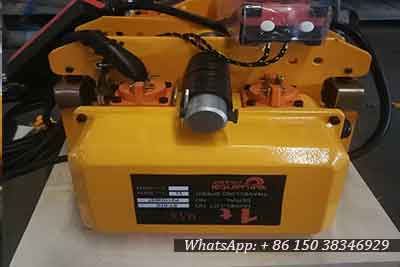

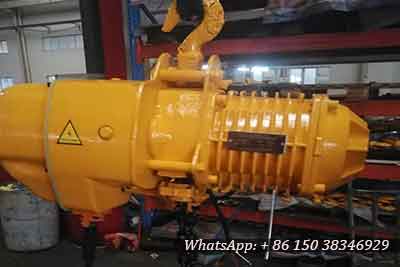

The electric chain hoist is equipped with a 3.1-meter I-beam model. We can choose the model accordingly no special requirements (16 NO. I-beam)
The sliding line is 6mm² with a length of 13m.

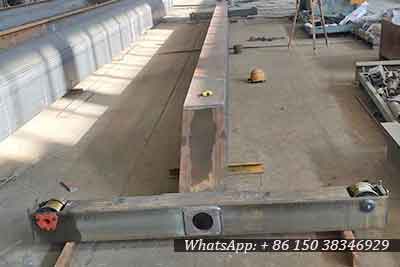

The main girder of the 3 ton overhead crane needs to be cut into two sections to fit into container.
