Single Girder Gantry Crane 1 Ton -32 Ton
Box &Truss Girder, Full & Semi Gantry

Single Girder Gantry Crane 1 Ton -32 Ton, Economical Solution for You

As one of China’sleading gantry crane suppliers, Yuantai Crane Dongqi Group manufactures types of single girder gantry cranes to suit all applicationswithexperiences and expertise across various sectors and industries, producing material handling solutions for both indoor and outdoor applications.

General use single girder gantry cranes are used where overhead crane runways are not practical or wherethe supporting structure could not provide enough strength to support the overhead crane. Generally gantry cranes are used for moving heavy loads without the requirement of supporting facility or structure, which will save your building cost to large extent.

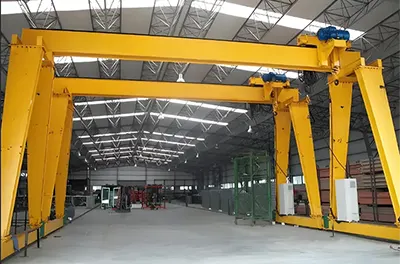

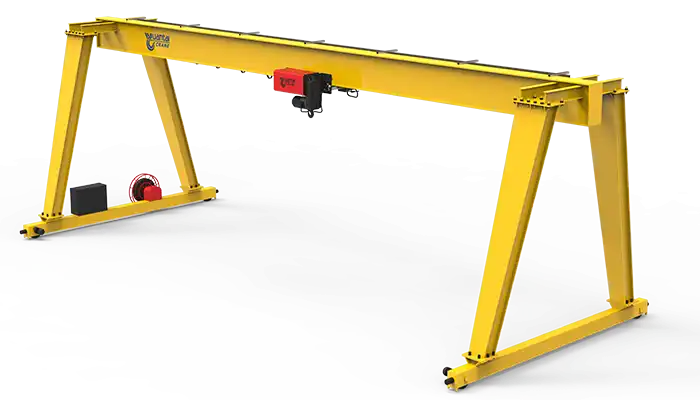

Single Girder Gantry Crane with Low Headroom Eccentric Hoist Trolley

Single Girder Gantry Crane with Low Headroom Eccentric Hoist Trolley

Compact gantry crane with low headroom design and eccentric hoist trolley, ideal for tight spaces & efficient lifting.Get your low headroom gantry crane!

Inquiry Online Leave a Message

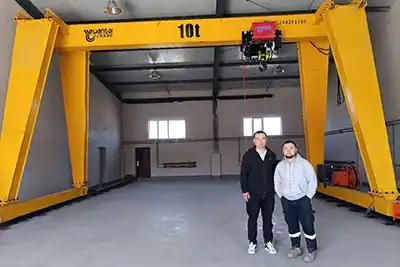

Single Girder Gantry Crane with European Style Low Headroom Hoist

Single Girder Gantry Crane with European Style Low Headroom Hoist

Single girder gantry crane with European standard low headroom wire rope hoist, up to 20 ton, low headroom electric hoist gantry crane for in & outdoors.
Lifting Capacity :1~20t, Lifting Height : As request. Span :7~30m , Working Duty:A5

Inquiry Online Leave a Message

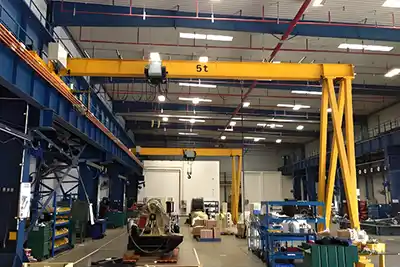

Single Girder Semi Gantry Crane, Single Leg Gantry Crane Design

Single Girder Semi Gantry Crane, Single Leg Gantry Crane Design

Single girder semi gantry crane for sale. Semi gantry design, semi wall travelling & semi single leg travelling on the ground rail for indoor & outdoor use.

Inquiry Online Leave a Message

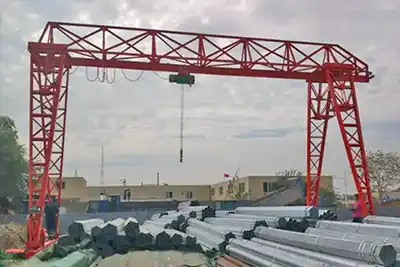

Truss Crane, Truss Gantry Crane,Single Girder Gantry Crane Design -MH Series

Truss Crane, Truss Gantry Crane,Single Girder Gantry Crane Design -MH Series

Truss crane, single girder gantry crane design, 3 ton -16 ton, for outdoor application with high wind resistance. Get your single girder truss crane.
√Gantry Crane Type: MH, √ Capacity : 3.2~32 ton, √ Span: 12-30m, √ Working Class:A3 - A 5

Inquiry Online Leave a Message

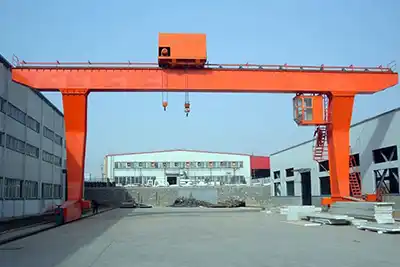

L leg Single Girder Gantry Crane with Hoist Trolley

L leg Single Girder Gantry Crane with Hoist Trolley

Single girder gantry crane, L leg gantry, 1 or 2 hoist trolleys, for hoisting long load,i.e, steel pipe,precast concrete plate & rail beams, up to 35 ton.
Lifting Capacity :1~35t, Lifting Height : As request. Span :8~30m , Working Duty:A3,A4

Inquiry Online Leave a Message
MH Single Girder Gantry Crane with CD/MD Wire Rope Hoist

MH Single Girder Gantry Crane with CD/MD Wire Rope Hoist

Single girder gantry crane with electric hoist,i.e,cd/md rope hoist /chain hoist,up to 20 ton for general material handling,cheap suspension hoist gantry!
Lifting Capacity :1~20t, Lifting Height : As request. Span :8~30m , Working Duty:A3,A4

Inquiry Online Leave a Message
Single Girder Gantry Crane Basics

All you want to know

What is single girder gantry crane? What are the different types of gantry cranes? What is a girder on a crane? What is LD type single girder EOT crane?

What's an Single Single Girder Gantry Crane ?

What's an single girder gantry crane? Single girder gantry crane is one of type of gantry cranes, one of the most frequently used gantry crane. The single girder gantry crane is consisted of one main cross girder, equipped with gantry hoist for vertical lifting , supported by A frame leg or L shape leg to run on the ground beam for horizontal movement, with capacity from 1 ton to 32 ton. According to different application requirements, single girder gantry cranes can be designed with no cantilever, with single cantilever or with double cantilever for loads handling.

All in All, single girder gantry crane is a type of economical overhead material handling solution since only one crane girder is required with various designs to meet indoor and outdoor material handling with efficiency and high safety.

Main Parts and Components of Single Girder Gantry Crane

Single girder gantry crane is mainly consisted of gantry frame, including one crane girder, legs, bottom end beams, lifting mechanism, travelling mechanism, and electrical control system. Single girder gantry crane can be designed with two hanging arms or cantilevers, single cantilever or no cantilever, depending on client's lifting requirements and application environment.

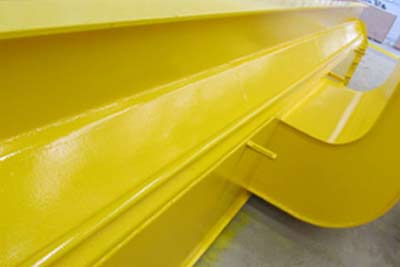

Main girder - main parts of single girder gantry craneMain girder - main parts of single girder gantry crane

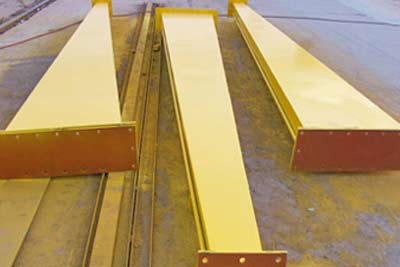

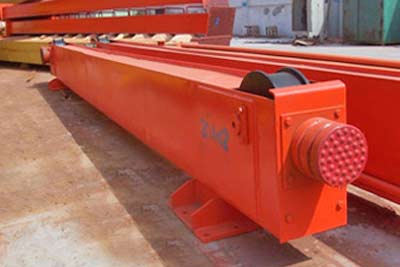

Ground beam- main parts of single girder gantry craneGround beam- main parts of single girder gantry crane
outtrigger / support leg- main parts of single girder gantry craneouttrigger / support leg- main parts of single girder gantry crane

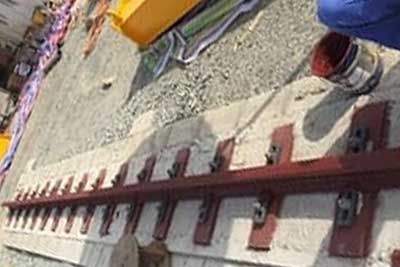

ground track or rail- main parts of single girder gantry craneground track or rail- main parts of single girder gantry crane

On Cantilever design

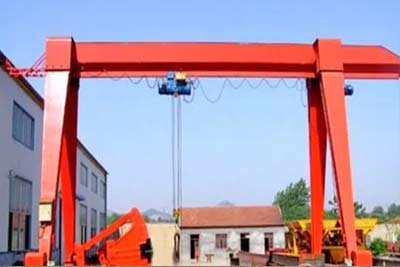

No cantilever single girder gantry craneNo cantilever single girder gantry crane
Single cantilever single girder gantry craneSingle cantilever single girder gantry crane
single cantileversingle girder gantry cranesingle cantileversingle girder gantry crane

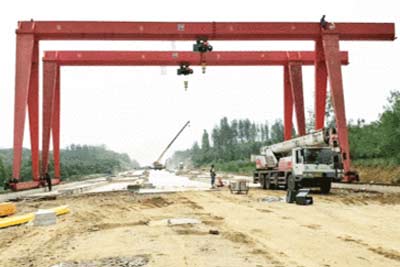

double cantileversingle girder gantry cranedouble cantileversingle girder gantry crane

On leg design of single girder gantry crane

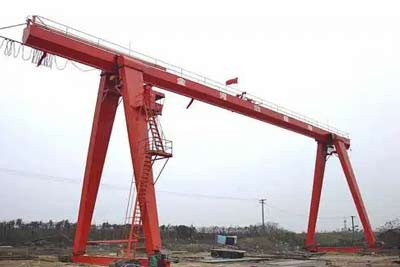

A frame legsingle girder gantry craneA frame legsingle girder gantry crane

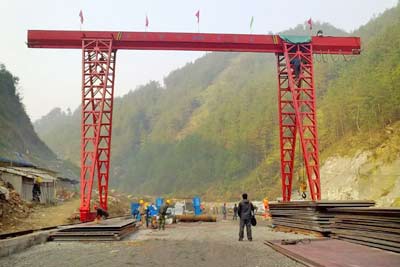

Truss legsingle girder gantry craneTruss legsingle girder gantry crane

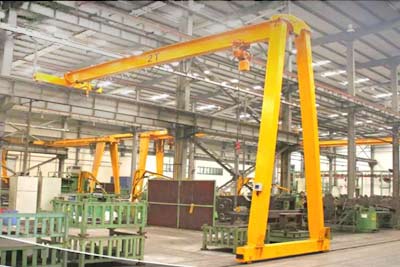

Single leg or one legsingle girder gantry craneSingle leg or one legsingle girder gantry crane
L leg gantry craneL leg gantry crane

Types of Single Girder Gantry Crane Hoist

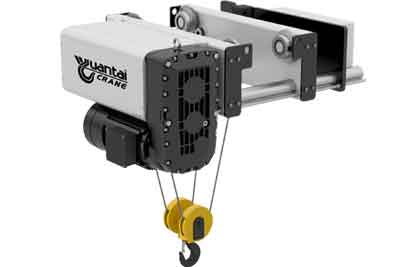

European style electric wire rope hoist forsingle girder gantry craneEuropean style electric wire rope hoist forsingle girder gantry crane

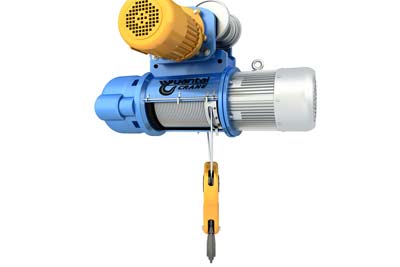

Electric wire rope hoist Chinese cheap hoistforsingle girder gantry craneElectric wire rope hoist Chinese cheap hoistforsingle girder gantry crane

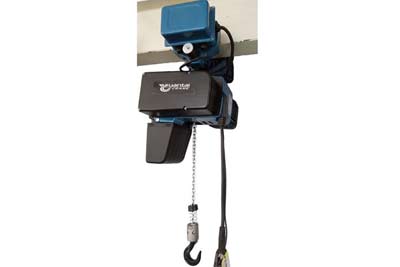

Light weight electric chain hoistforsingle girder gantry craneLight weight electric chain hoistforsingle girder gantry crane

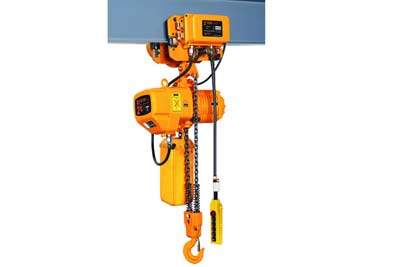

Hot sale electric chain blockforsingle girder gantry craneHot sale electric chain blockforsingle girder gantry crane

For other special lifting weights, Yuantai Crane Dongqi Group supports custom designs. If you need them, you can contact us.

Single girder gantry crane : Box Girder v.s. Truss Girder

Box type single girder gantry cranes and truss type single girder gantry cranes are the two types of single girder gantry cranes. The features of the both types of single girder gantry cranes will be presented for your reference to get your right type of single girder gantry crane design.

Box Type Single Girder Gantry Crane

The box type single girder gantry crane is a medium-sized crane that travels in a track and is usually equipped with a standard CD MD electric wire rope hoist as the lifting mechanism, with the electric hoist travelling along the main girder which is a box construction made of steel plates, with the features of high strength to ensure your crane reliability and safety.

Truss Type Single Girder Gantry Crane

The truss type single girder gantry crane is type of truss gantry crane. The truss single girder gantry crane differentiates itself with the box type gantry crane in terms of structure construction. The truss gantry crane is made of steel bars, with lighter weight and higher wind resistance, which is more frequently used in outdoor application, such as, the port, shipyard, railway line, and material yard.

Box girder gantry crane Box girder gantry crane
Truss girder gantry craneTruss girder gantry crane
  • When overloads occur, overload protection devices are installed, which sound an audible alert.
  • Limit switches are used to prevent the crane hook from being lifted or lowered too high.
  • To ensure a long operating life, a high-quality polyurethane buffer is employed.
  • For the benefit of your operator's safety, room control and remote control are offered.
  • In the event of an unstable voltage supply, low voltage protection is applied.
  • When an emergency occurs, an emergency stop button is installed to halt the device.
  • Current overload protection system, as well as others

Application of Single Girder Gantry Crane

The single girder gantry crane is a standard gantry crane that is commonly used in open ground, warehouses, ports, the granite business, the cement pipe industry, open yards, container depots, and shipyards, among other places. Handling molten metal, flammable, or explosive materials, on the other hand, is prohibited.

Following considerations should be made when purchasing an overhead crane:

  • Lifting capacity
  • Lifting height
  • Working environment (temperature)
  • Working class (how many hours the crane will work in one working day)
  • The Voltage, frequency
  • Power supply requirement?
  • Hoist model (wire rope hoist or chain hoist, if chain hoist, manual type or electric type,manual motorized trolley)
  • Special functions requests? (Working area, intelligent functions etc.)
