Double Girder Overhead Crane 45 Ton / 5 Ton Dual Hooks Pakistan

Double girder overhead crane with open winch, designed with 45 ton main hook & 5 ton Auxiliary hook for sale Pakistan. Check 45/5 ton overhead crane specs.

Project info of double girder overhead crane 45 ton /5 ton for sale Pakistan

  • Brand :Yuantai Crane
  • Types of Cranes: Double Girder Overhead Crane
  • Date of Placing Order: 2021-09-10
  • Date of delivery : 2021.12.20
  • Transportation :By sea , containers + bulk carrier
  • Payment: 100% LC
  • Destination port:CIF Karachi
  • Destination country:Pakistan
45 ton /5 ton open winch for sale Pakistan
45 ton /5 ton open winch for sale Pakistan

Main Specifications of double girder overhead crane 45 ton /5 ton for sale Pakistan

Quantity

1 set

Product Name

Double girder overhead crane with open winch trolley

Crane Model

QDX

Lifting capacity

45 ton / 5 ton

Crane span

22.785 m

Lifting height

15 m

Working class

M6, M7, M8

Power supply

415V,50HZ,3P

Crane control

Ground control

Color

Standards

Customized features of double girder overhead crane 45 ton /5 ton

  • Working Duty: Main hook M8,Crane Travelling: M8, Trolley: M7, Auxiliary hook lift: M6
  • Speed: Main hoisting speed1~9m/min, auxiliary hook hoisting speed 1~5m/min, trolley running 2~30m/min,crane long travelling speed 5~50m/min.
  • Power supply: The control voltage is 24V, the continuity rate of the main and auxiliary hoisting motors is 100%, and the operation of large and small cars is 60%.
  • Existing power supply is single-pole slide line , which requires 1 1000Amp collector.
  • Trolley power supply is the drag chain type,
  • Crane control: remote control,ground pendent control.
  • Inverter brand: Schneider; electrical brand: Schneider
  • Maintenance Platform: Both Sides
  • Crane wheel & track: The wheels are collar type, the existing P43 track.
  • Large wheel diameter: 400mm, small wheel diameter: 250mm
  • Crane drum: The diameter of the main hoisting drum is 400mm, and the diameter of the auxiliary hoisting drum is 260mm
  • Crane hook: Electric rotating hook. The center distance of the main hook and auxiliary hook: 1050mm, The auxiliary hook should be placed on the side away from the sliding line
  • Wire rope: main hoisting wire rope 20mm-8X26, auxiliary hoisting wire rope 10mm-8X26
  • Color: Industrial Yellow RAL1004 Epoxy Resin 80mm Sa 2.5
  • Spare parts: 1 crane long travelling motor, 1 crane travelling driving wheel, one crane travelling passive wheel, 1 main hoisting drum.
  • Crane transportation: two-sided walking platforms are required besides the main girder. The main beam walking platform is disassembled for bulk cargo transportation, and the rest of the containers are transported.

Customs declaration & registration information

  • The actual Chinese and English name of the goods: overhead crane
  • Chinese and English name of cargo declaration: overhead crane
  • Inland transportation cost from factory to port: RMB16000
  • Sea feight + port charge: 18020USD, 40 GP *2 + Bulk Carrier

Gallary of double girder overhead crane 45 ton /5 ton for sale Pakistan

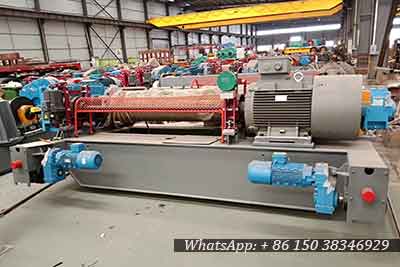

Tailored open winch trolley for 45 ton / 5 ton double girder overhead crane PakistanTailored open winch trolley for 45 ton / 5 ton double girder overhead crane Pakistan

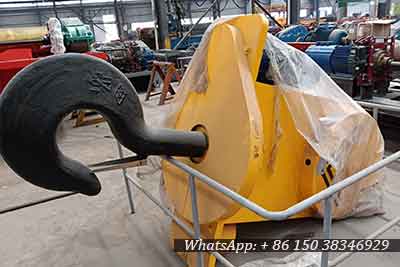

Crane hook for double girder bridge crane for sale  PakistanCrane hook for double girder bridge crane for sale Pakistan

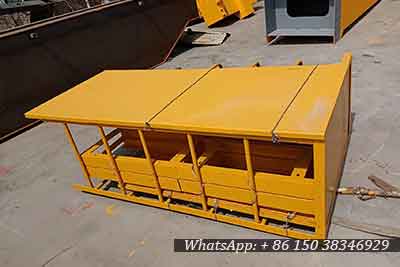

Maintenance platform  of overhead crane 45 ton / 5 ton  for sale PakistanMaintenance platform of overhead crane 45 ton / 5 ton for sale Pakistan

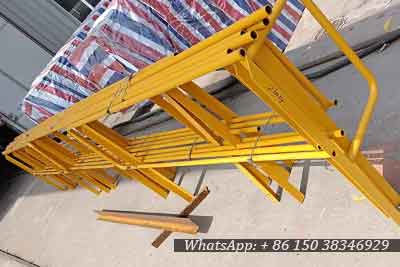

Maintenance platform of eletric overhead crane 45 ton / 5 ton  for sale PakistanMaintenance platform of eletric overhead crane 45 ton / 5 ton for sale Pakistan

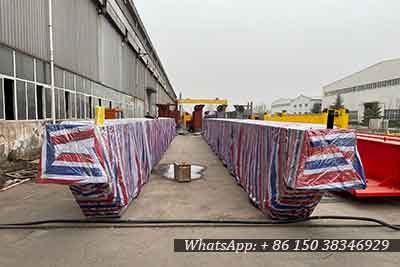

Main girder of 45 ton overhead crane packed for delivery to Pakistan Main girder of 45 ton overhead crane packed for delivery to Pakistan

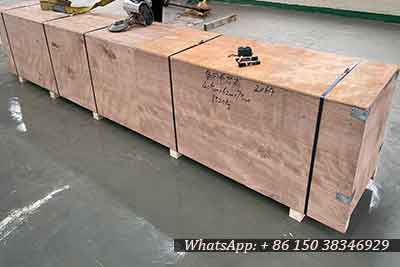

Main parts and components of overhead cran for sale  pakistan Main parts and components of overhead cran for sale pakistan

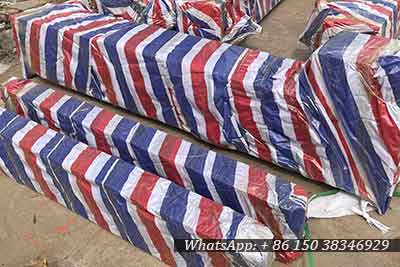

Parts and components of overhead crane 45 ton / 5ton Pakistan Parts and components of overhead crane 45 ton / 5ton Pakistan

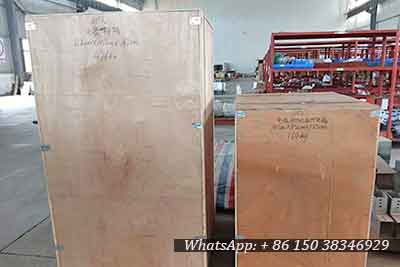

45 ton overhead crane parts and components for sale Pakistan 45 ton overhead crane parts and components for sale Pakistan
