Non Rail Travelling Portable Gantry Crane 10 Ton Canada

Gantry crane 10 ton, small gantry, castor roller mounted, non rail travelling portable crane, small & economical. Check 10 ton gantry crane specifications.

Project info of 10 ton gantry crane for sale Canada

Brand ：Yuantai Crane
Types of Cranes:Non rail travelling gantry crane 10 ton
Date of Placing Order： 2021-12-09
Date of delivery ： 2021.9.20
Transportation ：By sea , 40 GP,
Payment:TT, Prepayment,
Destination port：Hawthorne Drive, Windsor, Ontario
Destination country：Canada

Gantry crane 10 ton for sale Canada - Small gantry crane series of Yuantai Crane

Main Specifications of 10 ton gantry crane for sale Canada

Quantity	1 set
Product Name	Non rail travelling portable gantry crane
Crane Model	Portable gantry crane
Lifting capacity	10 ton
Crane span	10.4 m
Lifting height	4.6 m
Working class	A3
Power supply	480V,60HZ,3P
Crane control	Pendent control
Color	Standards
Application	Indoor use

Specifications of over head crane & hoist kits

All of the crane lifting speed is required with frequency conversion.
Lifting speed: 0.5~2.7m/min
Hoist travelling speed: 1.1~11m/min
Crane travelling speed: 0.6~6.0m/min

Customs declaration & registration information

The actual Chinese and English name of the goods: gantry crane
Chinese and English name of cargo declaration: gantry crane
Inland transportation cost from factory to port: RMB3000
Port charge: RMB4500

Gallary of 10 ton gantry crane for sale Canada

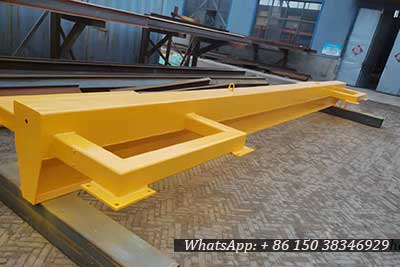

Main girder of nonrail travelling portable gantry crane 10 ton for sale Canada

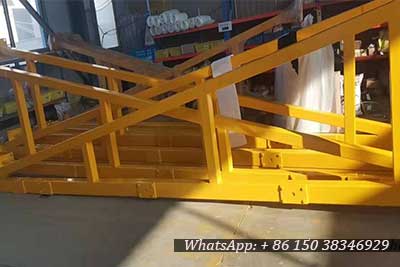

Supporting lets of the 10 ton gantry cranes for sale Canada

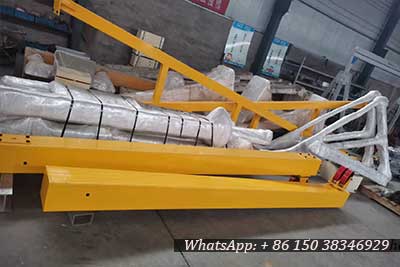

Main steel strucutre of portable gantry crane 10 ton Canada project

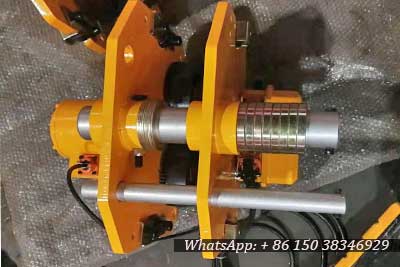

Gantry crane hoist trolley for 10 ton gantry

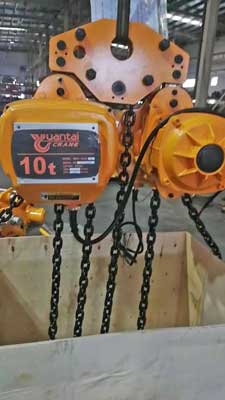

10 ton electric chain hoist for gantry crane

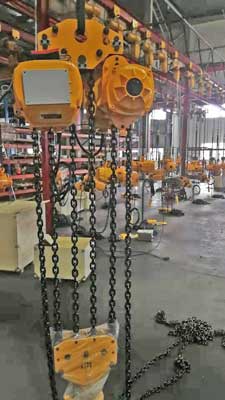

10 ton gantry crane hoist under construction for sale Canada

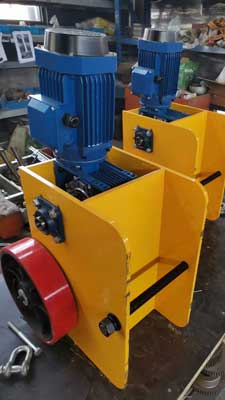

Electric motor driving unit for roller mounted non rail travelling gantry crane 10 ton

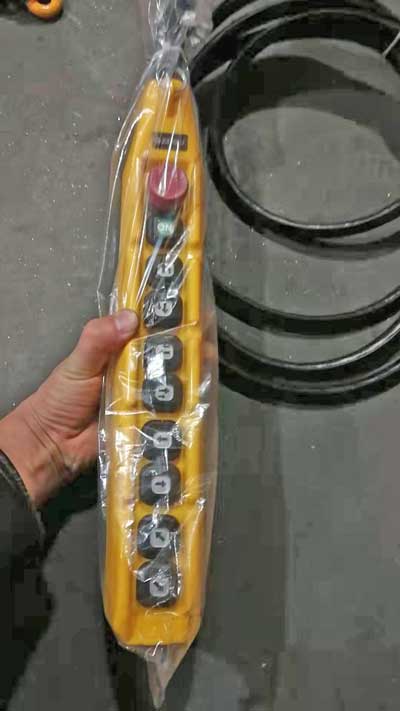

pendent control for the 10 ton gantry hoist crane Canada

Benefits and uses of portable gantry crane 10 ton

You've most likely heard the term "gantry crane" if you work in the material handling industry. Gantry cranes are another variation of overhead bridge crane systems. One of the best aspects of gantry cranes is that, due to their various shapes and sizes, they can be used and implemented in a wide range of industries. When determining the use and application of Gantry Cranes, some parameters such as girder configuration and crane size are taken into account. Yuantai crane manufacturer in China designs various types of gantry cranes to meet a variety of industrial needs.

Versatile of gantry crane designs & configurations for unique requirements

One of the major advantages of non rail travelling portable gantry cranes is that they are the most versatile type of cranes as compared to any other crane type in the industry. Portable gantry cranes are lighter in weight hence extremely portable and versatile and because of their ability to adjust height with the weight, they have been used extensively at construction sites. These cranes come with 5 position height adjustments and hence are easily adaptable to perform multiple tasks at the same time.

One of the most significant advantages of nonrail traveling portable gantry cranes is that they are the most versatile type of cranes in the industry. Portable gantry cranes are lighter in weight, making them extremely portable and versatile, and they have been widely used on construction sites due to their ability to adjust height or span to meet various material handing requirement. These adjustable portable gantry cranes have 5 position height adjustments and can thus perform multiple tasks at the same time.

Modular design, easy assembly and disassembly

Another significant advantage of these small portable cranes is their ease of assembly and disassembly, as well as their ability to load and unload service trucks quickly. The portable small gantry crane 10 tons can be assembled and disassembled in only four steps, saving a significant amount of installation time and manual labor. They can even be taken to remote and difficult areas where other cranes cannot be taken and deployed due to their light weight and portable size.

Small design but high strength with capacity from 500kg to 10 ton

When compared to other larger gantry cranes in the industry, portable gantry cranes have a very high strength, with capacity can up to 10 ton. This is especially useful on construction sites and in the material handling industries, where light weight gantry cranes that are portable and can lift heavy loads are in high demand. Aluminium gantry cranes are a useful alternative for many applications due to their strength.

Economical design, affordable gantry crane price

Purchasing, deploying, and using cranes can be an expensive business, and if you want to reduce manual labor and time in your industry, you must spend a lot of money on those cranes. However, one of the most advantageous aspects of small gantry cranes is that they are very affordable, and even small businesses can deploy and use them. The cost of using gantry cranes is very low in comparison to the benefits they provide.

Design for you

Movable gantry cranes are more common than other types of traditional cranes because they may be highly tailored to meet the needs of different industries. The portable gantry cranes may be tailored to meet the needs and be used almost in any application with tailored features and configuration. If you have any need of small non-rail travelling gantry crane, please feel free to contact us.
