Portable Gantry Crane 500kg -20 Ton

Adjustable &Portable Overhead Crane

Portable gantry crane & Overhead crane : 500kg -20 Ton small gantry crane with portable,adjustable & affordable gantry crane design.Get portable gantry now

Check Steel Poortable Gantry Crane

Check Aluminium Gantry Crane

Maximum throughput with Agilon parallel picking

Portable Gantry Crane 500kg -20 Ton
Small, Portable,Adjustable & Affordable

Portable or mobile gantry cranes are free-standing gantries with wheels or casters that may be transported from one site to another quickly and conveniently. Wheels and/or casters can be added to any of our gantries. Because of the triangle ("A") shape of their legs, these cranes are also known as a-frame hoists, rolling cranes, or gantries.

YuanTai Crane manufactures and assembles its portable gantry cranes in China. Our innovative pinned-joint design, heavy-gauge steel and aluminum, and plated bolts, pins, and hardware ensure that its adaptability and reliability.Customers are continuously ordering accessories for gantries built since 1984, we have countless customers to build types of portable gantry cranes, such as, fixed height A frame gantry crane, adjustable gantry crane, Aluminium small gantry crane, and customized portable gantry cranes, etc.

We provide a wide range of portable gantry cranes for sale to meet your specific requirements and budget. We offer hundreds of models and production lines for portable gantry cranes, including a 20-ton made-to-order gantry and the opportunity to have a crane tailored specifically for you. Please contact us if you require a portable gantry crane with a capacity ranging from 500kg to 1 ton, 2 ton, 3 ton, 5 ton, 7.5 ton, 10 ton, or 20 ton.

Application of portable gantry crane

Portable gantry cranes are perfect material handling solutions in airplane, automotive, and marine repair shops. They're also high recommended for usage in warehouses, machine shops, and loading docks. Equipped with castors or rollers ,the small gantry crane are with ease movement and easy maneuverability.At the factory, the structural steel legs are welded together. Before use, what you need to do is assembly. The standard portable gantry cranes are available in fixed and telescoping designs, with capacities from 1 to 10 ton. Custom and motorized travel designs are also available on request. Motorized travelling designs for large capacities only, with capacity up to 20 ton.

Portable gantry crane,movable gantry crane for sale up to 10 ton

16 Ton Mobile Gantry Crane with Rubber Tyres: Flexible, Cost-Effective Lifting

Battery Gantry Crane & Battery Powered Gantry Crane 1 Ton to 5 Ton

Aluminum Gantry Crane: Portable, Adjustable, Light Weight Gantry

Rail Mounted Portable Gantry Crane,Small Rail Gantry Crane - PT5 Series

Portable Gantry Crane: Easy Move, Portable & Adjustable Design - Steel Gantry Series

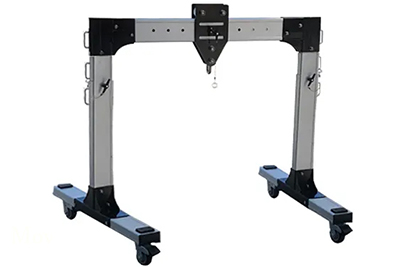

Aluminum Adjustable Gantry Crane: Height & Span Adjustable 1T, 2 T

500kg 1 Ton Gantry Crane with Manual Hoist for Sale,Cheap Gantry Crane

Portable Gantry Crane Basics

All you want to know

What is a portable gantry crane? How much does a gantry crane cost? What is the difference between gantry crane and overhead crane? Are gantry cranes safe?

What is A Portable Gantry Crane? Portable Gantry Crane Definitions, Types & Main Components

Portable or mobile gantry cranes are free-standing gantries with wheels or casters that may be moved quickly and easily from one location to another. Any of our gantries can be equipped with wheels and/or casters. These cranes are also known as a-frame hoists, rolling cranes, or gantries because of the triangle ("A") shape of their legs.

A portable gantry crane is a cost-effective and versatile way to lift and move heavy loads within your facility. For light use, it is commonly found in garages, shops, and workstations. The portable gantry crane has a low cost, high mobility, a simple structure, and requires little maintenance. The small gantry crane can be positioned anywhere you want it to be thanks to its castor wheels.

Types of Portable Gantry Crane

The portablegantry cranescome in a range of versatile configurations and designs to suit different lifting requirements. Contact us now to get the most suitable portable gantry crane design for your facility!

PT1-1 fixed height type portable gantry

PT2-1 adjustable by winch portable gantry

Adjustable height by turbine portable gantry

Adjustable height by lever portable gantry

PT3-1 Fixed height type portable gantry

PT3-2 Adjustable height by manual winch small gantry

Adjustable height by electric power small gantry

Fixed height & span type Aluminium gantry crane

LT2 Adjustable height type Aluminium gantry

Adjustable height and span aluminium gantry

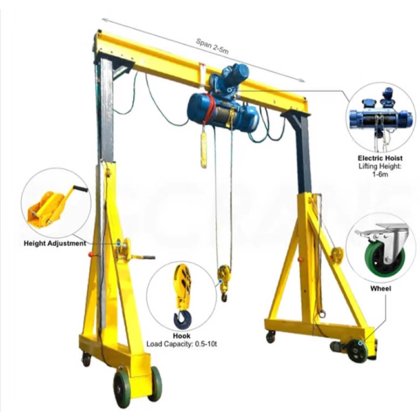

Main Components of Portable Gantry Cranes

Portable gantry crane is a kind of lifting equipment with flexible usage. It can be disassembled into main girder, legs and hoist unit. Also it can be convenient to assemble when needed. Usually, it takes 2-3 persons to finish the assembly and disassembly. Only 2 persons needed to operate it for lifting usage.

For other special lifting weights, Dongqi Crane supports custom designs. If you need them, you can contact us

Features of Portable Gantry Cranes : Why to Use a Portable Gantry Crane?

Features of Portable Gantry Cranes

The gantry crane, which is attached to caster wheels, can be operated flexibly at the workstation.
The gantry crane beam is an I-beam for lighter capacity or box beam for large capacity that can be outfitted with a manual hoist, chain hoist, electric hoist, and so on.
Trolleys and hoists are not standard parts.
The portable crane is delivered disassembled.
The portable gantry crane specifications can be tailored to the specific needs of the customer.

Why To Use A Portable Gantry Crane Design

Mobile -A portable gantry crane is designed for more flexible working because it can be moved anywhere and at any time. Furthermore, because the portable crane can be disassembled and packaged, it can be stored compactly when not in use, saving space in your shop.
Small mobile overhead gantry cranes are light in weight when compared to standard gantry cranes. In terms of lifting capacity, portable gantry crane models can meet the majority of shops' lifting requirements, with load capacities ranging from 1 to 10 tons.
Quick Assembly- Portable cranes are extremely simple to assemble and disassemble. This piece of equipment has transportation advantages and can be easily moved to remote areas.
Low Cost -A portable gantry crane is much less expensive than a standard gantry crane. Furthermore, it can save your company a lot of money by lowering transportation and construction costs.
Adjustable -The portable gantry crane's height can be adjusted and used for a variety of tasks. The gantry crane can be easily adapted to the job if the height and other functions can be customized.

Applications of Portable Gantry Crane: Where Can I Use A Portable Crane?

A portable gantry crane is a versatile and cost-effective way to lift and move heavy loads within your facility. It is commonly found in garages, shops, and workstations for light use. The portable gantry crane is inexpensive, mobile, has a simple structure, and requires little maintenance. Because of its castor wheels, the small gantry crane can be positioned wherever you want it to be.

Portable gantry cranes can be used both inside and outside. The crane is equipped with four universal wheels that allow it to be moved anywhere. However, you must ensure that the ground is flat so that the crane can run steadily. The universal wheel lock card should be secured after adjusting the position.

The portable lifting cranes are versatile and easy to use for a variety of applications. The portable gantry crane is an excellent choice for small businesses due to its low cost and ease of use.

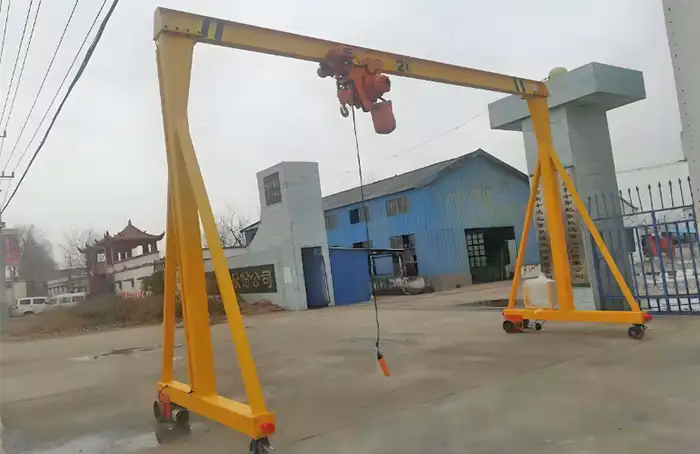

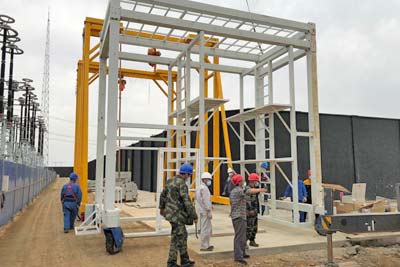

Steel portable gantry crane for outdoor application

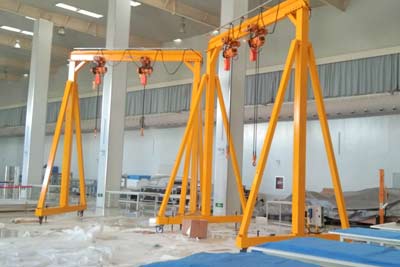

Electric chain hoist portable gantry

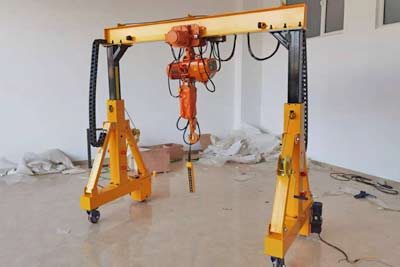

Height adjustable mobile gantry crane

Portable aluminium gantry for clean room

Small aluminium gantry crane for indoor use

Height adjustable aluminum gantry crane

Frequently Ask Questions of Portable Gantry Cranes

How Does A Portable Gantry Crane Move?

Under the gantry's legs are universal load wheels that can move in all directions on flat ground. The crane's main beam is connected to the legs by high-strength bolts that pass through the flange plate and can be quickly disassembled and installed. The gantry can be transported to another location for installation and use using a small car or vehicle.

How to Assemble A Portable Gantry Crane?

We disassemble the crane to make shipping and transportation easier. Install the crane according to the drawings once you've received it. The setup of a small portable gantry crane is very simple.

If you have any questions, please contact our sales team, and we will arrange for professional technicians to provide technical assistance.

What Are Operating Regulations for Potable Lifting Gantry Crane?

A load test should be performed after the small mobile gantry crane has been assembled. The test is divided into two parts: static load testing and dynamic load testing, which are used to assess the operating strength, bearing strength, stability, and reliability of each system.
When the portable mobile crane is in operation, it must be dependable and stable, with no distortion.
Overload lifting is strictly prohibited.
When transporting the portable gantry, move it without any load.
During operation, there should be a dedicated person for unified guidance, and other personnel should have a clear division of labor and determine a unified contact signal.
Heavy objects should be lowered to the ground rather than suspended in the air in the event of a power outage or other special circumstances during operation. It is strictly forbidden to stand under the movable gantry and the heavy objects.

What Should You Pay Attention To When Using Portable Cranes Outdoors?

This type of gantry crane can be used both indoors and outdoors. If it is used for outdoor operations, it must be maintained on a daily basis.

If the portable gantry is exposed to the sun and rain for an extended period of time, the gantry's surface should be painted with protective paint.
The universal wheel bearing and self-locking component must also be maintained.
The portable gantry hoist should not be left out in the rain or sun for an extended period of time.

Crane services of Yuantai Crane

Yuantai Crane Factory has more than 30 years of manufacturing experience and is the top crane manufacturer and supplier in China.
Here, we can provide you with the best quality and the most competitive price.
we have over 30 years of experience engineering, manufacturing, and installing overhead crane systems.
Yuantai Better Crane can provide overall services for all types of industries cranes, and the main services are as follow:

	Portable Overhead Crane project design Cranes designed by Yuantai Crane will solve any of your portable gantry problems and material handling problems without spending any unnecessary expenditures.
	Portable Overhead Crane Installation EASAY installation, wonderful working performance. Yuantai Crane can provide on-site crane installation services and our portable gantry engineers will be at your services when necessary.
	Lifetime Maintenance portable gantry maintenance from Yuantai Crane ensures your safety and working efficiency.
	Portable Overhead Crane operator Training Yuantai Crane training includes crane operation, maintenance and inspection, and portable gantry spare parts, etc.
	Technical support The powerful technical support of Yuantai Crane will solve your portable gantry technical problems.
	Portable Overhead Crane parts Yuantai Crane parts will renew your portable gantrys.
