Single Beam Gantry Crane for Sale Qatar, 10 ton Gantry Cranes
Single beam gantry crane 10 ton for sale Qatar, 2 sets. 10 ton gantry crane for outdoor material handling. Custom single beam gantry crane available. Check now.
Overview of 10 ton gantry crane project

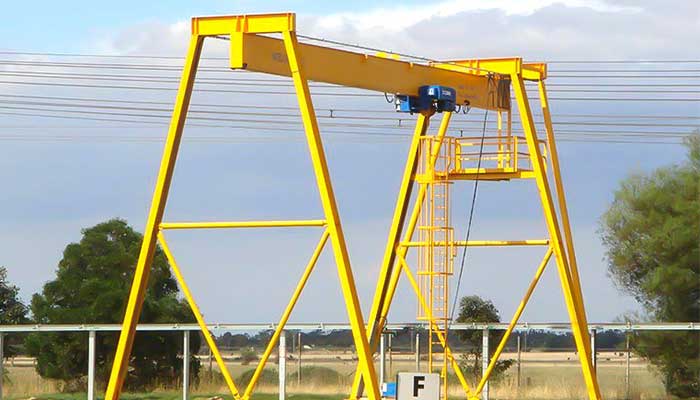

- Crane type: single beam gantry crane, with European style
- Crane specifications: 10 ton -16 m span - 6m lifting height
- Country: Qatar
- Date:2017-01-14
- Qty:2sets
Detailed parameters of single beam gantry crane for sale Qatar
Recently we were busy with the delivery of 2 sets of 10 ton single beam gantry crane to Qatar. Single beam gantry crane is one type of gantry crane which is usually used for outdoor material handling, therefore, they are called the outdoor gantry cranes. Based on customer requirement, they are also can be used for indoor use but without cantilevers. As for the 10 ton single girder gantry crane for the Qatar client is for outdoor use. The production picture will be presented for your reference. If you need any gantry crane either single girder or double girder, please feel free to contact us. Custom made gantry crane will be provided based on your practical application conditions and lifting requirements.
Detailed specifications of single beam gantry crane
- Lift Capacity of Single Girder Gantry Crane: 10t
- Span of Single beam Gantry Crane: 16m
- Lift Height of Single Girder Gantry: 6m
- Lift Speed of Single Girder Crane:7m/min
- Travel Speed of Single Girder Rail Travelling Gantry Crane:20m/min

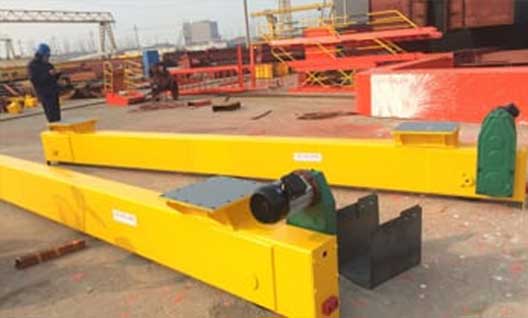

Ground Beam-10 ton Single Beam Gantry Crane

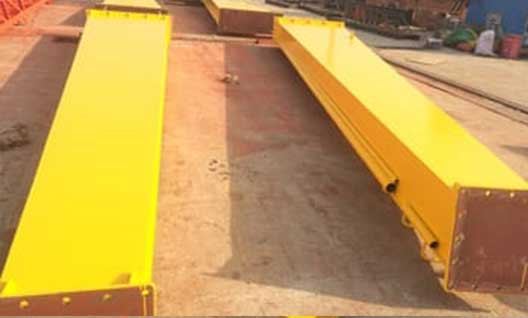

Support Leg-10 ton Single Beam Gantry Crane
After production, all the single beam gantry crane’s support legs will make reassemble to test to ensure everything will be fine at the assembly working site in Qatarg. Yuantai Crane will take the responsible to ensure the sound operation of the your gantry crane.

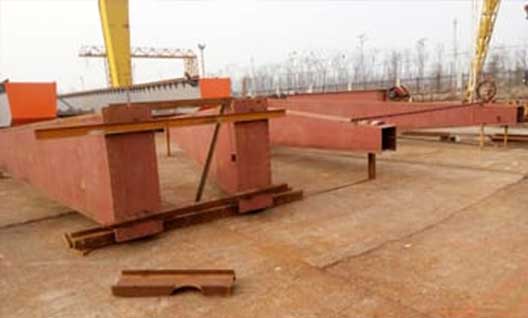

Test Assembly-10 ton Single Beam Gantry Crane for Sale Qatar
Single girder gantry cranes
A gantry crane with a single girder/beam structure is known as a single girder gantry crane or single beam gantry crane. The lifting mechanism is usually a wire rope hoist on a single girder and a crane on a rail track fixed to the ground/floor. Section steel or welded box girder or lattice girder gantry cranes are used to make single-girder gantry crane beams. The single girder crane is built in strict accordance with FEM/DIN standards.
Application of single beam ganry cranes
General-purpose material handling equipment with a single girder gantry crane that is commonly used in factories and mines, workshops, station logistics sites, ports, docks, and so on.
Features of single girder gantry cranes
- Single beam gantry cranes offer a variety of material handling solutions even if your workshop and warehouse space is limited.
- Based on the various connection methods of the main beam/girder and end carriages, this gantry crane can be designed to meet any clearance requirements and maximum hook lifting height.
- Depending on the application, single beam gantry crane can be used both outdoors and indoors. You can choose between a full gantry crane design and a semi gantry cane design.
- You can choose between an A-frame gantry crane and an L-leg gantry crane.
Types of single girder gantry cranes for sale
Gantry crane projects for sale
GANTRY CRANE FOR INDONESIA
- Product: 100 ton Gantry Crane
- Span: 45m
- Height: 30m
- Model: MGU
- Export Country: Indonesia
GANTRY CRANE FOR EGYPT

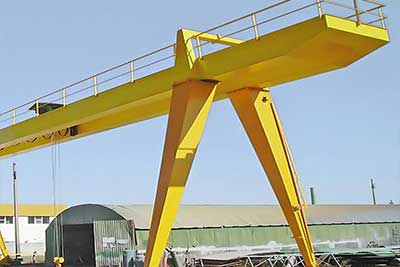

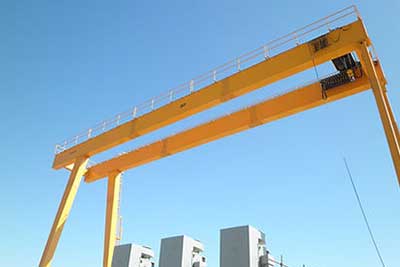

- Product : 40 ton gantry crane
- Span: 32m
- Lift Height: 20m
- Industry: Construction
- Export Country: Egypt
GANTRY CRANE FOR MALAYSIA

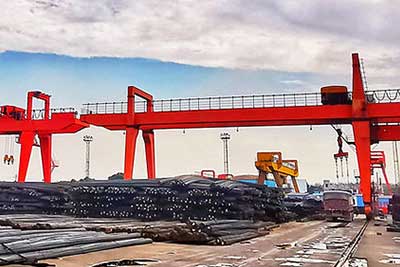

- Product: 50 tons gantry crane
- Span: 35m
- Lift Height: 21m
- Industry: Steel
- Export Country: Malaysia
SHIPBUILDING GANTRY CRANE FOR RUSSIA

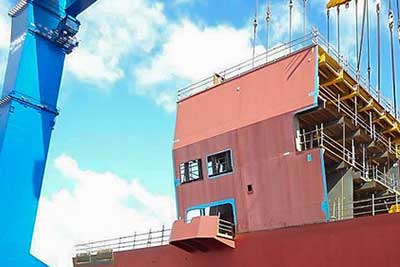

- Product: 200 Tons gantry crane for ship yard
- Span: 80m
- Lift Height: 36m
- Industry: Shipbuilding
- Export Country: Russia
GANTRY CRANE FOR MONGOLIA
- Product: 40 ton gantry crane for workspiece handling
- Capacity: 40 Ton
- Span: 31.5m
- Lift Height: 12m
- Industry: General purpose material handling
- Export Country: Mongolia
